Valve Body & Oil Strainer (ATM)

224 part groups · 20 illustrations

Illustrations

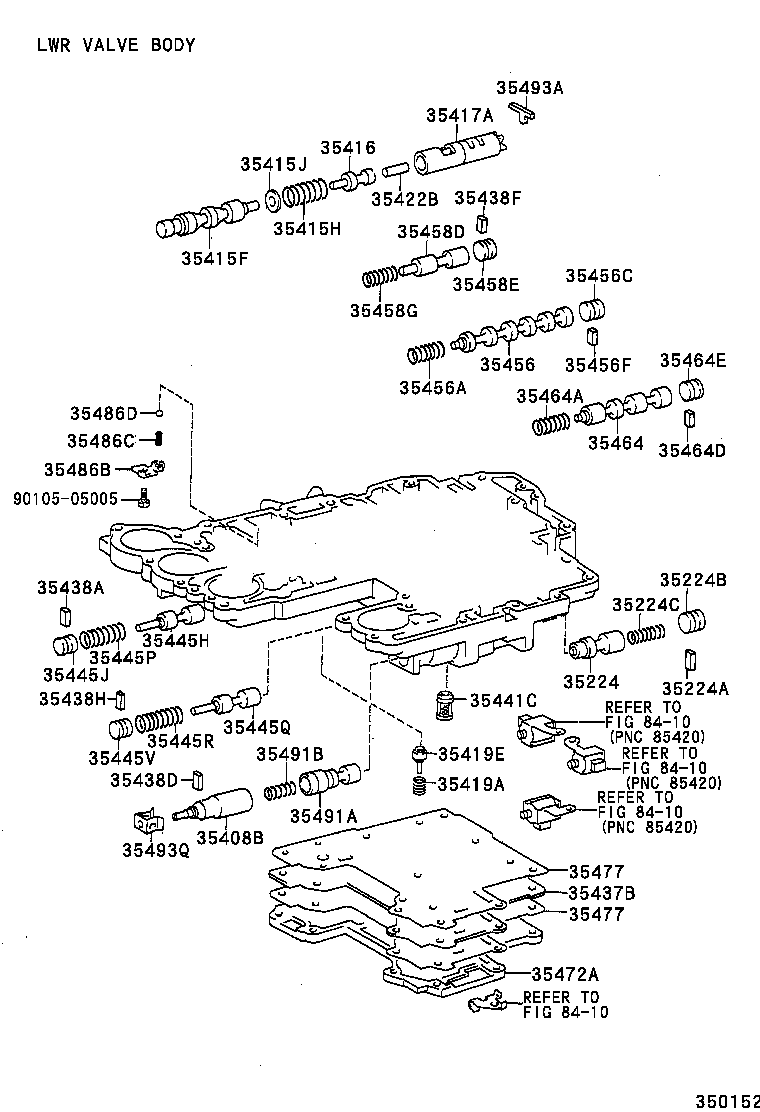

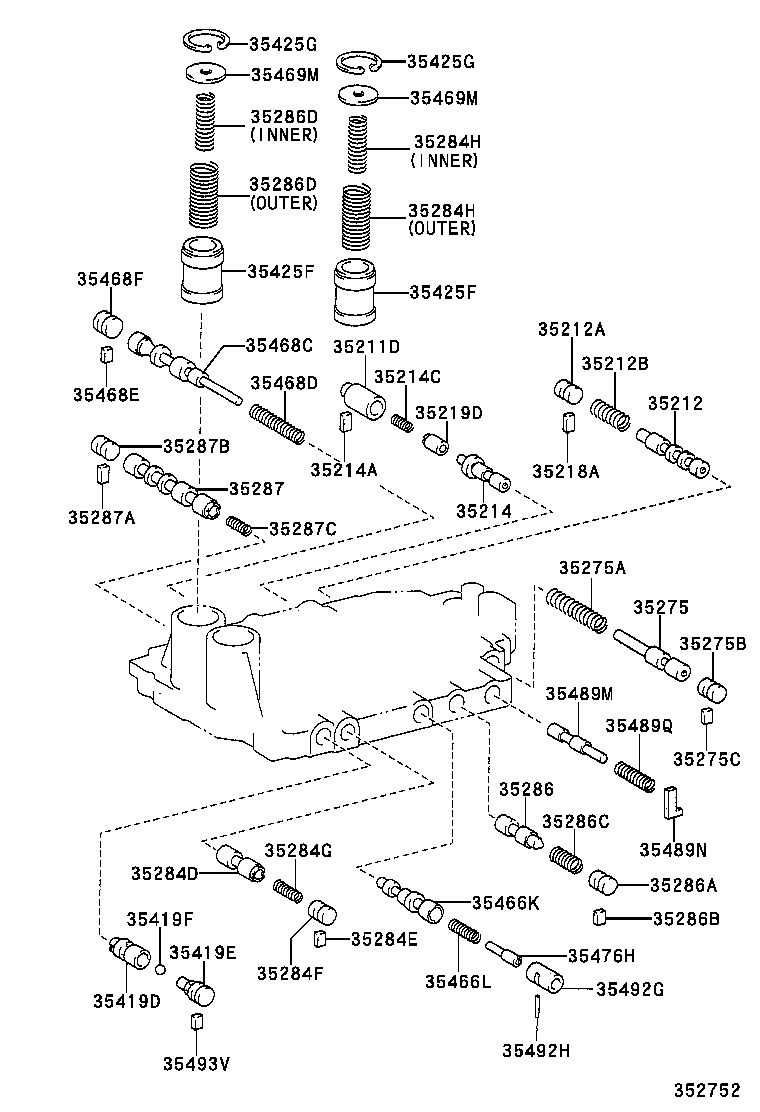

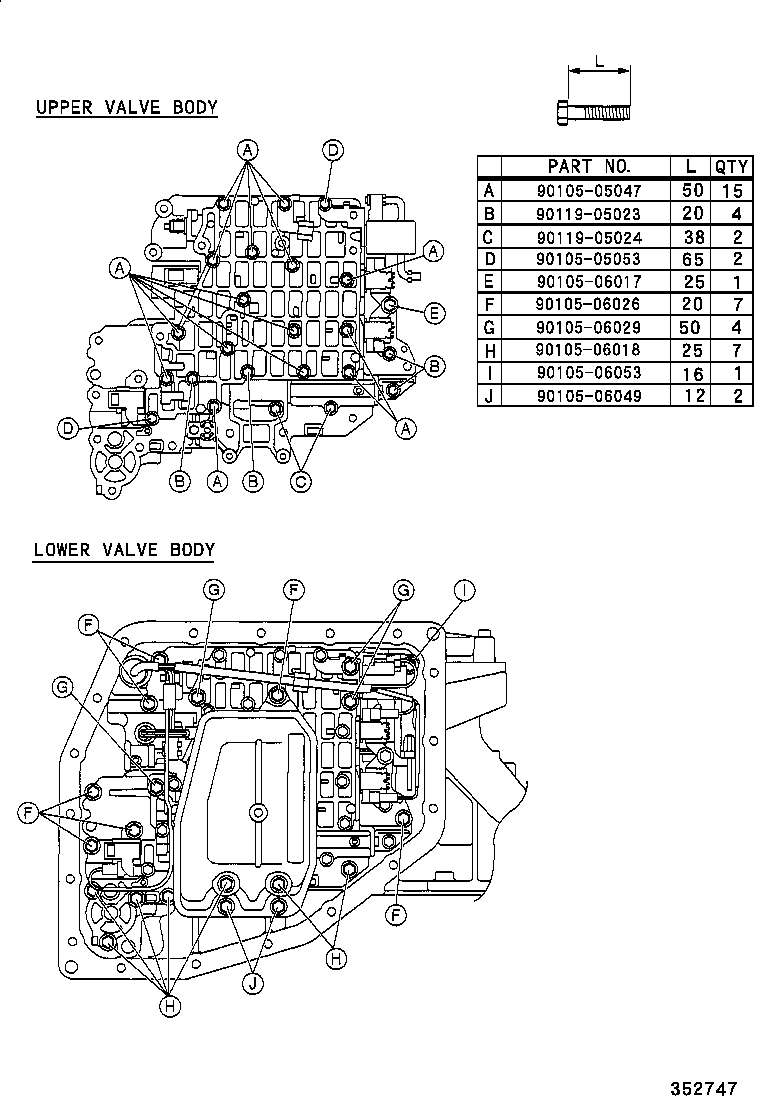

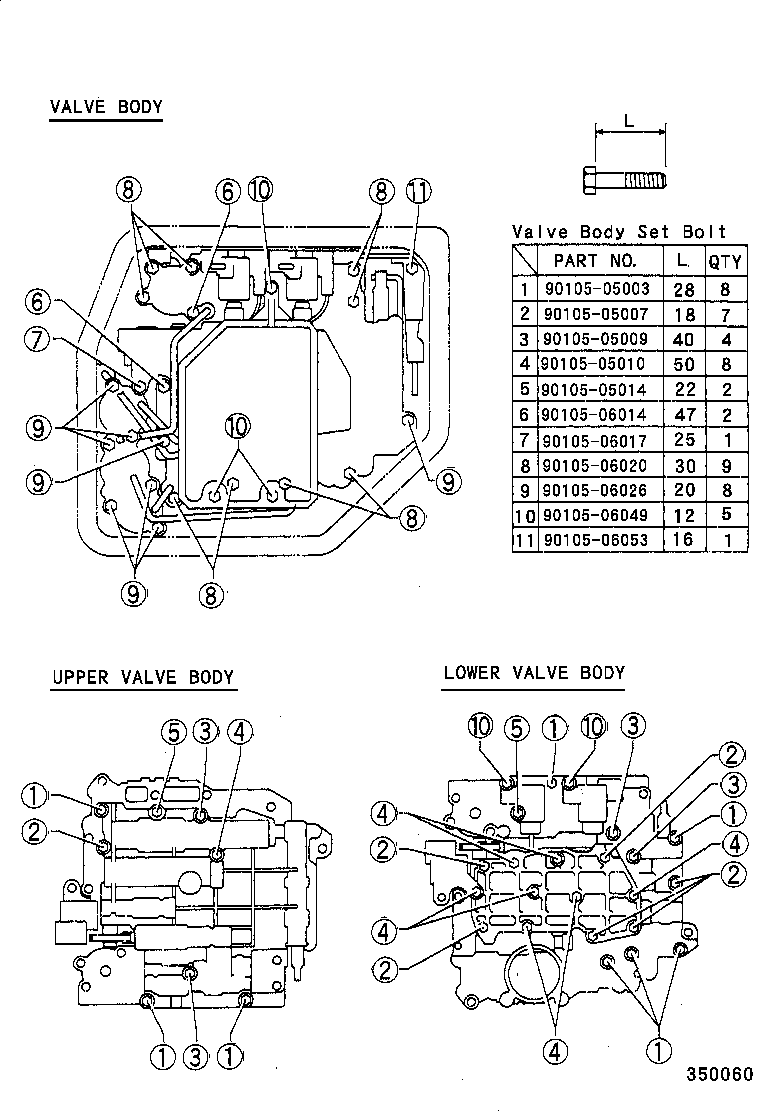

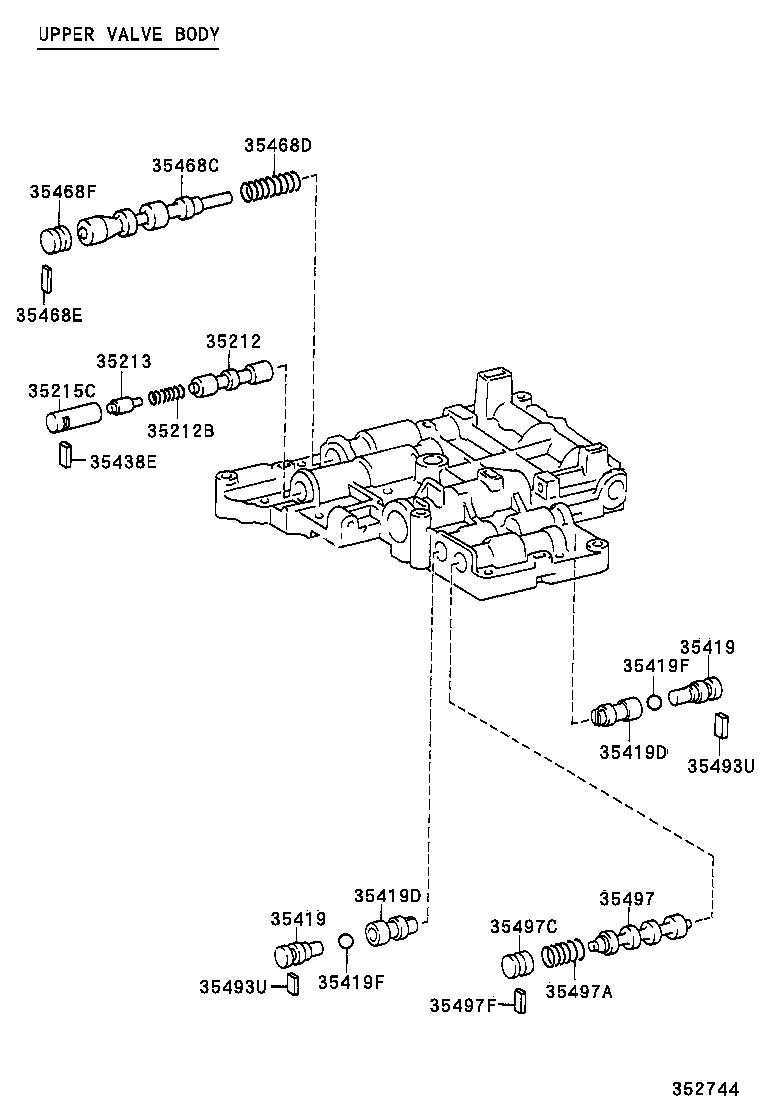

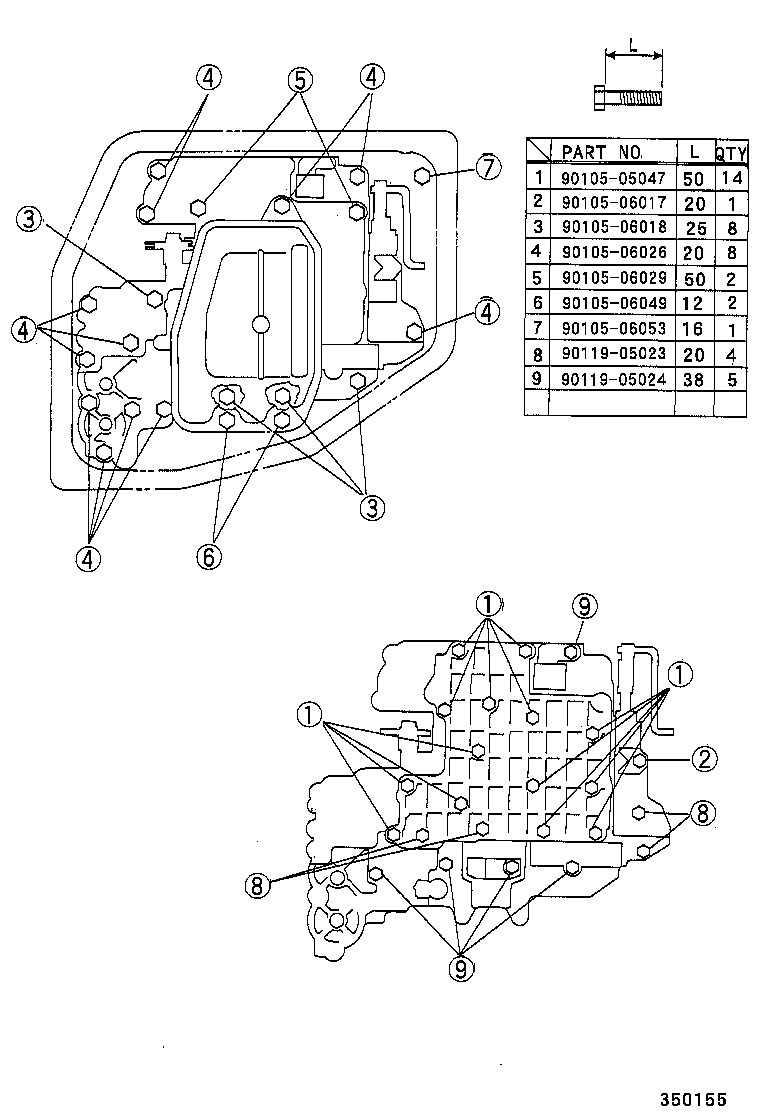

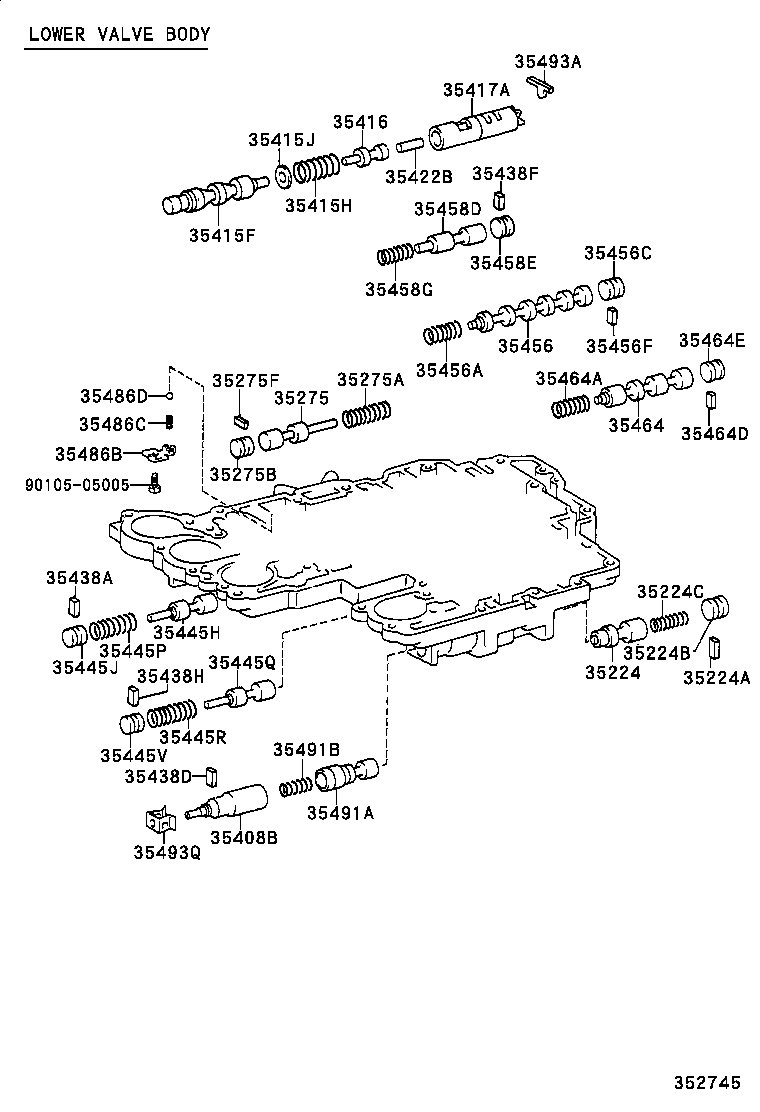

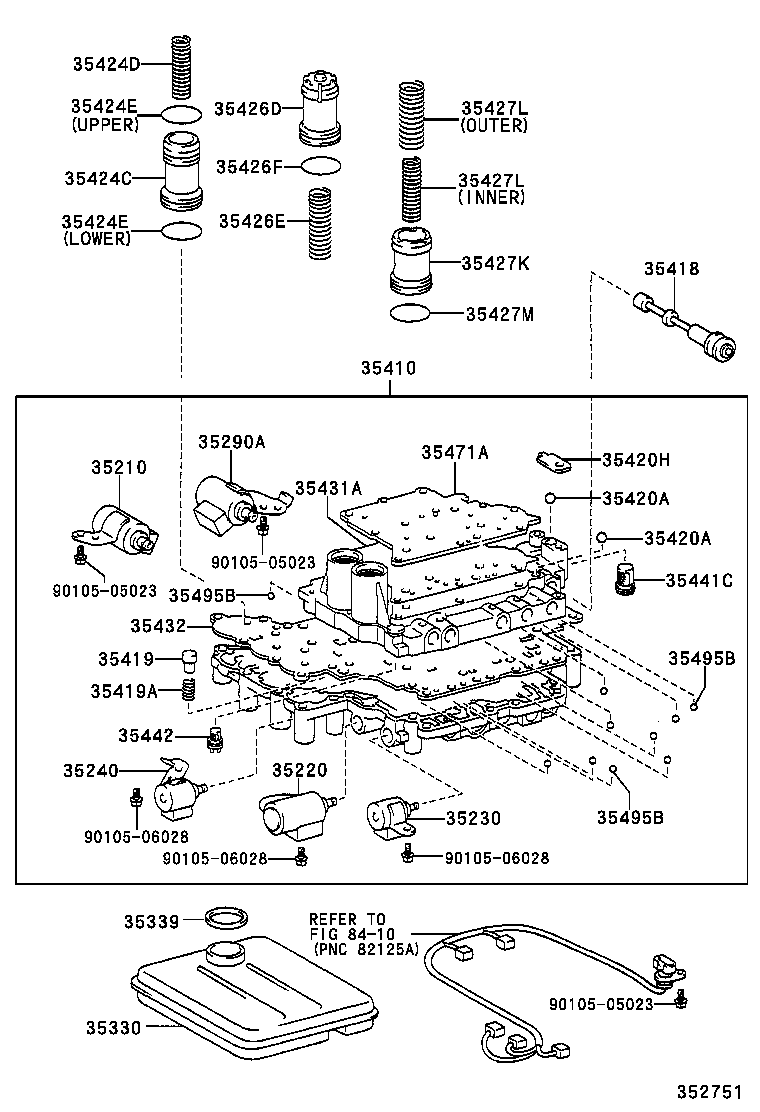

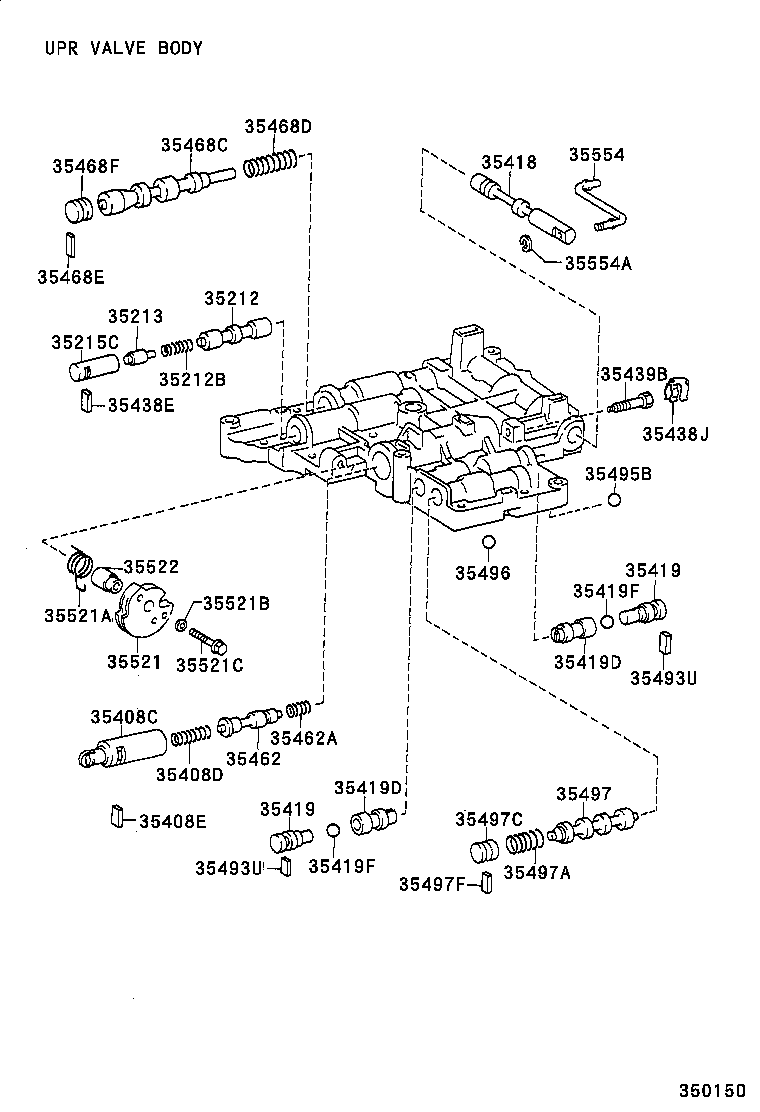

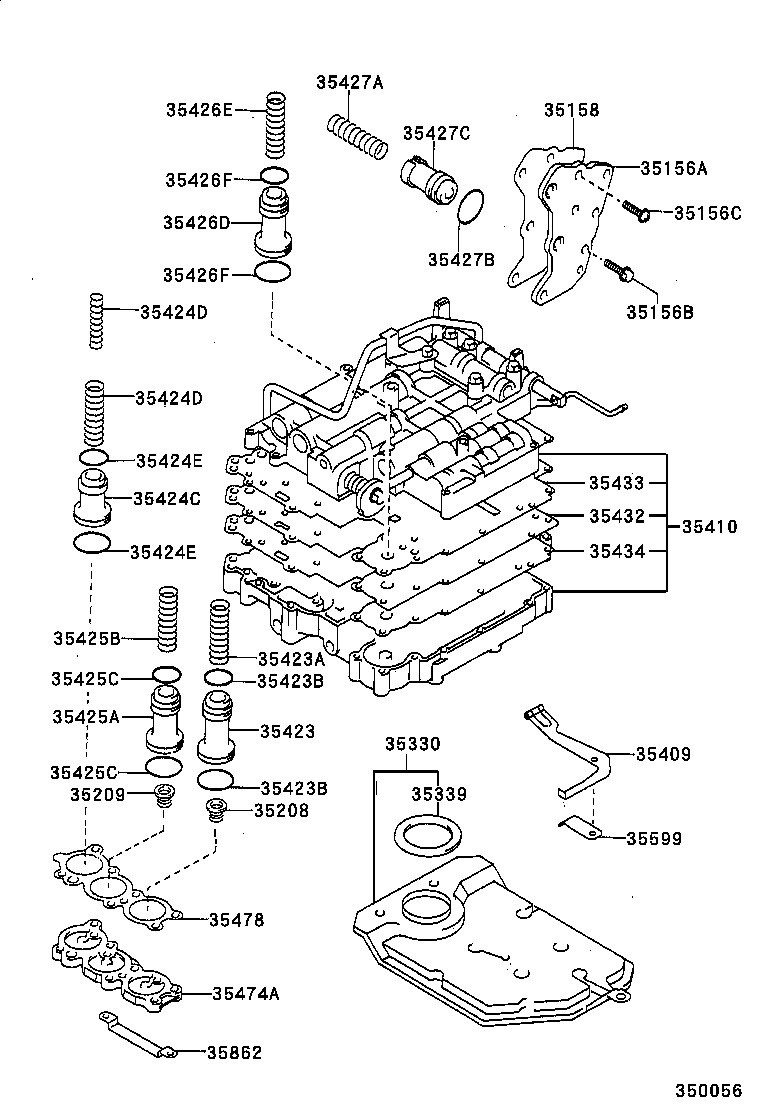

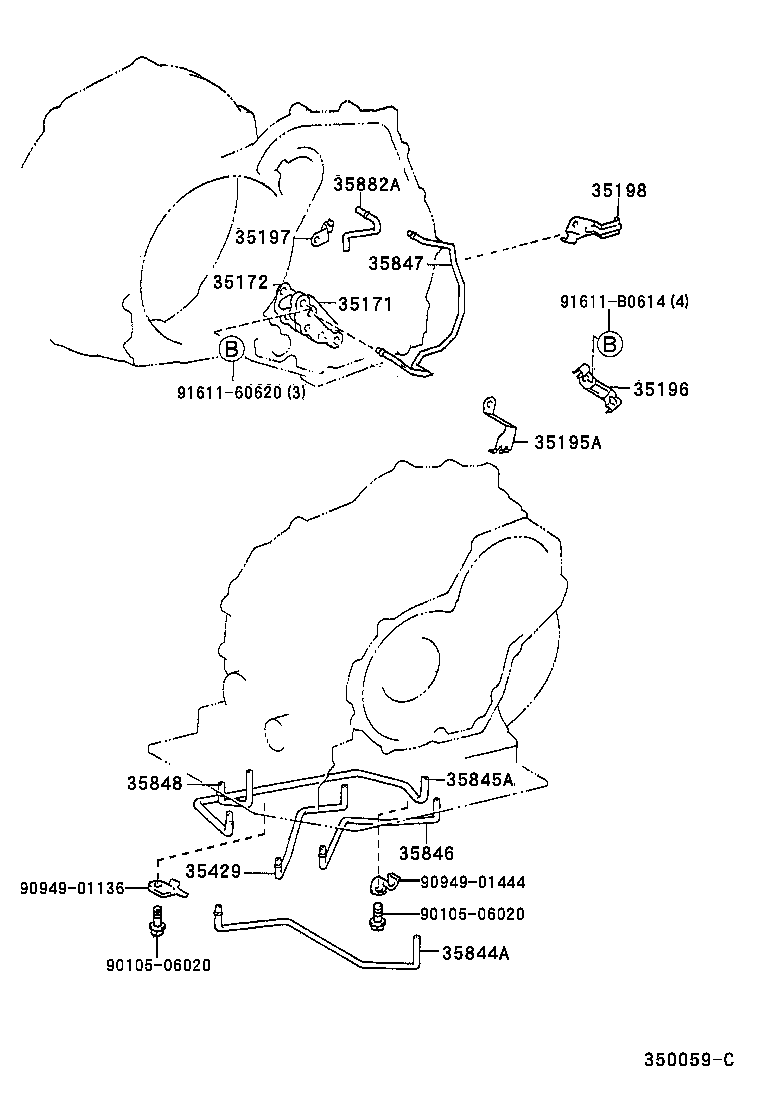

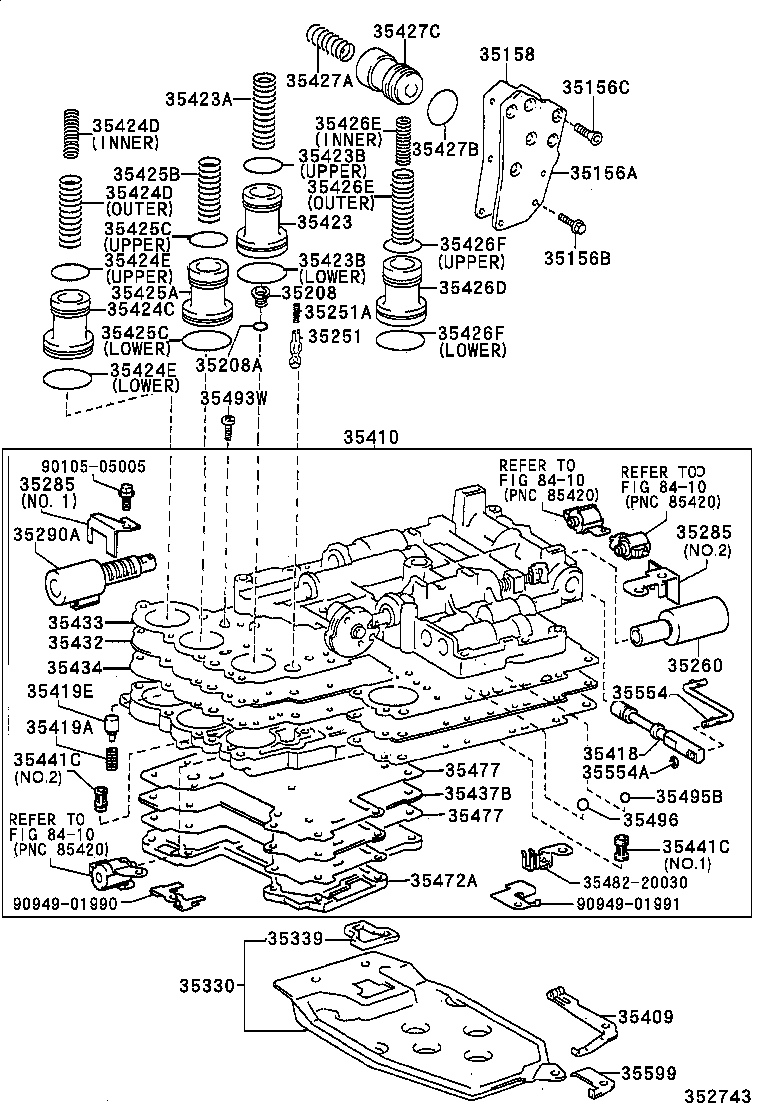

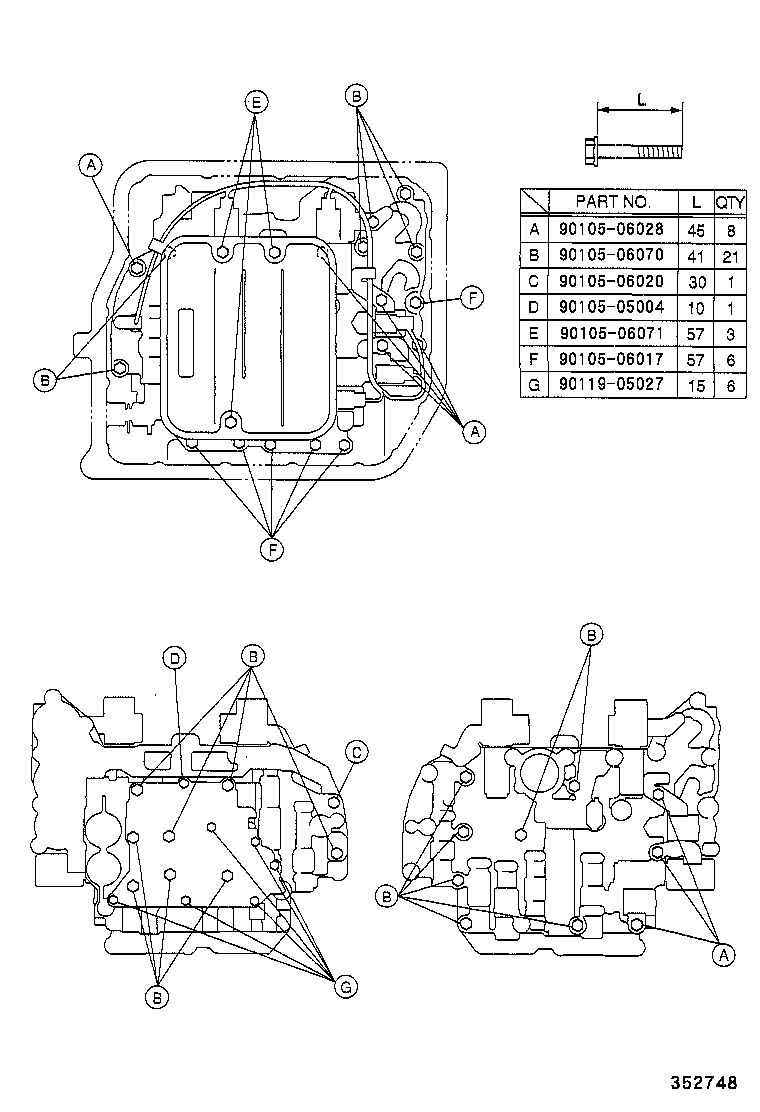

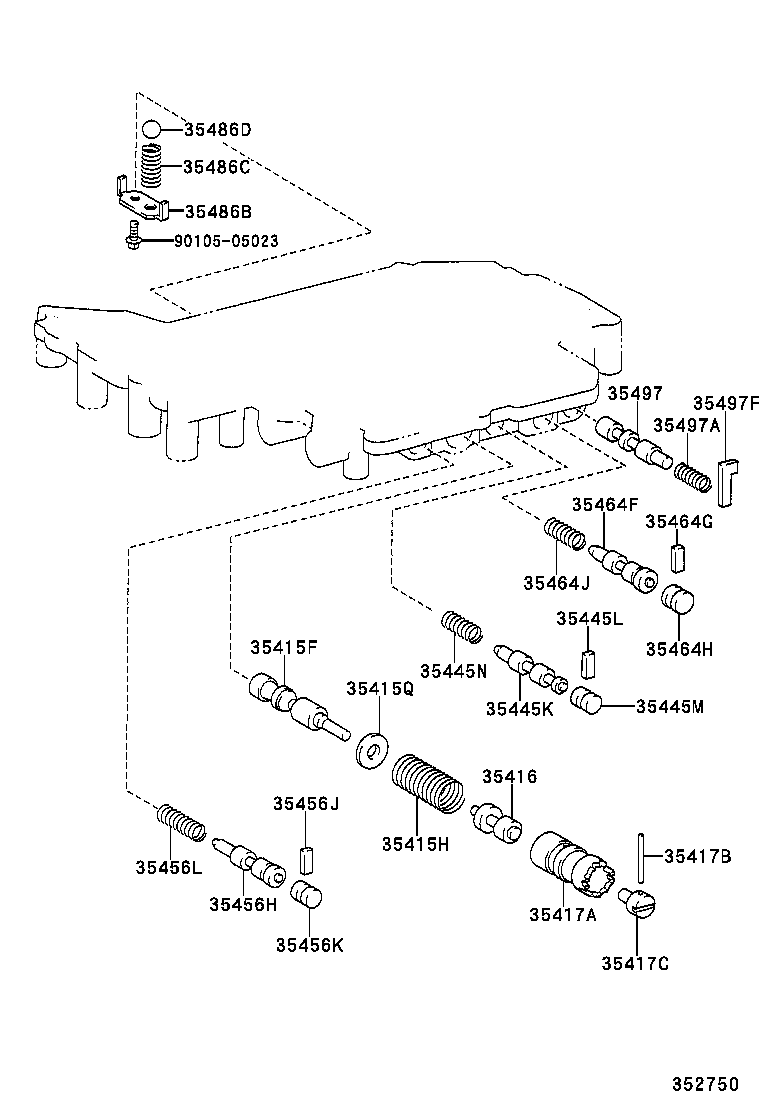

Figure 350560 350560 1997-10 → 2000-07 Figure 350150 350150 1997-10 → 2000-07 Figure 350152 350152 1997-10 → 2000-07 Figure 350154 350154 1997-10 → 2000-07 Figure 350155 350155 1997-10 → 2000-07 Figure 352751 352751 2000-07 → — Figure 352752 352752 2000-07 → — Figure 352750 352750 2000-07 → — Figure 352749 352749 2000-07 → — Figure 352748 352748 2000-07 → — Figure 350056 350056 1997-10 → — Figure 350057 350057 1997-10 → — Figure 350058A 350058A 1997-10 → — Figure 350059C 350059C 1997-10 → — Figure 350060 350060 1997-10 → — Figure 352743 352743 2000-07 → — Figure 352744 352744 2000-07 → — Figure 352745 352745 2000-07 → — Figure 352746A 352746A 2000-07 → — Figure 352747 352747 2000-07 → —

Part groups

PNCDescription
35156A Plate, Transmission Case, NO.2
35156B Bolt(FOR TRANSMISSION CASE NO.2 PLATE)
35156C Screw(FOR TRANSMISSION CASE NO.2 PLATE)
35158 Gasket, Transmission Case, NO.2 Plate
35171 Cover, Transaxle Housing
35172 Gasket, Transaxle Housing Cover
35195A Clamp, Transaxle Apply Tube, NO.1
35196 Clamp, Transaxle Apply Tube, NO.2
35197 Clamp, Transaxle Apply Tube, NO.3
35198 Clamp, Transaxle Apply Tube, NO.4
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35210 Solenoid Assy, Clutch Control, NO.1
35211 Valve, Lock UP Signal
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215B Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219 Plug, Lock UP Signal Valve
35219D Plunger, Lock UP Control Valve
35220 Solenoid Assy, Clutch Control, NO.2
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35260 Accumlator Assy, Throttle Pressure
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35275F Key, Straight
35284D Valve, C-2 Exhaust Check
35284E Key, Straight (FOR C-2 EXHAUST CHECK VALVE)
35284F Plug (FOR C-2 EXHAUST CHECK VALVE)
35284G Spring, Compression (FOR C-2 EXHAUST CHECK VALVE)
35284H Spring, Compression (FOR C-2 LOCK VALVE)
35285 Plate, Solenoid Lock
35286 Valve, B-1 Lock
35286A Plug (FOR B-1 LOCK VALVE)
35286B Key, Straight (FOR B-1 LOCK VALVE)
35286C Spring, Compression (FOR B-1 LOCK VALVE)
35286D Spring, Compression (FOR B-1 LOCK VALVE)
35287 Valve, C-2 Lock
35287A Key, Straight (FOR C-2 LOCK VALVE)
35287B Plug (FOR C-2 LOCK VALVE)
35287C Spring, Compression (FOR C-2 LOCK VALVE)
35290A Solenoid Assy, Line Pressure Control
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35408B Plug Sub-assy, Accumulator Control Valve
35408C Plug Sub-assy, Throttle Valve
35408D Spring, Compression (FOR THROTTLE VALVE PLUG)
35408E Key, Straight (FOR THROTTLE VALVE PLUG)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415Q Spacer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35417B Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE)
35417C Plug(FOR PRIMARY REGULATOR VALVE)
35418 Valve, Manual
35418A Pin, Straight (FOR MANUAL VALVE)
35418B Plug (FOR MANUAL VALVE)
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35420A Ball (FOR PRESSURE RELIEF)
35420H Cover, Check Ball
35422B Plunger, Primary Regulator Valve, NO.2
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35425F Valve, Accumulator
35425G Ring, Snap (FOR ACCUMULATOR VALVE)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427A Spring, Compression (FOR B-4 ACCUMULATOR PISTON)
35427B Ring, O (FOR B-4 ACCUMULATOR PISTON)
35427C Piston, B-4 Accumulator
35427K Piston, B-3 Accumulator
35427L Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
35427M Ring, O (FOR B-3 ACCUMULATOR PISTON)
35429 Tube, Line Pressure
35431A Gasket, Upper Valve Body Cover
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35437B Plate, Valve Body Cover
35438A Seat, 2ND Coast Modulator Valve Spring
35438D Seat, Accumulator Control Valve Spring
35438E Seat, Lock UP Relay Valve Spring
35438F Seat, Detent Spring
35438H Seat, Low Coast Modulator Valve Spring
35438J Seat, Throttle Valve Spring
35439B Screw, Throttle Valve
35441C Strainer, Solenoid Oil
35442 Strainer, Throttle Modulator Oil
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445K Valve, B-2 Control
35445L Key, Straight (FOR B-2 CONTROL VALVE)
35445M Plug (FOR B-2 CONTROL VALVE)
35445N Spring, Compression (FOR B-2 CONTROL VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445S Key, Straight (FOR 2ND COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E Ball (FOR UPPER VALVE BODY)
35451 Sleeve, Throttle Valve
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35456H Valve, C-2 Control
35456J Key, Straight (FOR C-2 CONTROL VALVE)
35456K Plug (FOR C-2 CONTROL VALVE)
35456L Spring, Compression (FOR C-2 CONTROL VALVE)
35457 Valve, Throttle Modulator
35457E Plug (FOR THROTTLE MODULATOR VALVE)
35457F Spring, Compression (FOR THROTTLE MODULATOR VALVE)
35457G Pin, Straight (FOR THROTTLE MODULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35464F Valve, B-1 Control
35464G Key, Straight (FOR B-1 CONTROL VALVE)
35464H Plug (FOR B-1 CONTROL VALVE)
35464J Spring, Compression (FOR B-1 CONTROL VALVE)
35465A Sleeve, Primary Regulator Valve Plunger
35466K Valve, Clutch Apply Control
35466L Spring, Compression (FOR CLUTCH APPLY CONTROL VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35469M Spacer (FOR ACCUMULATOR VALVE)
35471A Cover, Upper Valve Body
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35476H Plunger, Clutch Apply Control Valve
35477 Gasket, Valve Body Cover
35478 Gasket, Accumulator Cover
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35489M Valve, B-3 Orifice Control
35489N Key, Straight (FOR B-3 ORIFICE CONTROL VALVE)
35489Q Spring, Compression (FOR B-3 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492G Sleeve, Clutch Apply Control Valve
35492H Pin, Straight (FOR CLUTCH APPLY CONTROL VALVE)
35493A Seat, Primary Regulator Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493W Seat, Valve Body
35495B Ball, Check, NO.1
35496 Ball, Check, NO.2
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35554 Rod, Manual Valve Connecting
35554A Ring, E (FOR MANUAL VALVE CONNECTING ROD)
35599 Cover, Manual Detent Spring
35666D Tube, Brake Apply
35844A Tube, Accumulator Back Pressure, NO.1
35845A Tube, Direct Clutch Accumulator
35846 Tube, Brake Accumulator
35847 Tube, Transmission Lube Apply
35848 Tube, Forward Clutch Accumulator
35862 Bracket, Accumulator Apply Tube
35882A Tube, Differential Gear Lube Apply
35895 Tube, Front Clutch Apply
35899 Tube, Governor Pressure
