Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Power Steering Tube
20 part groups · 12 illustrations

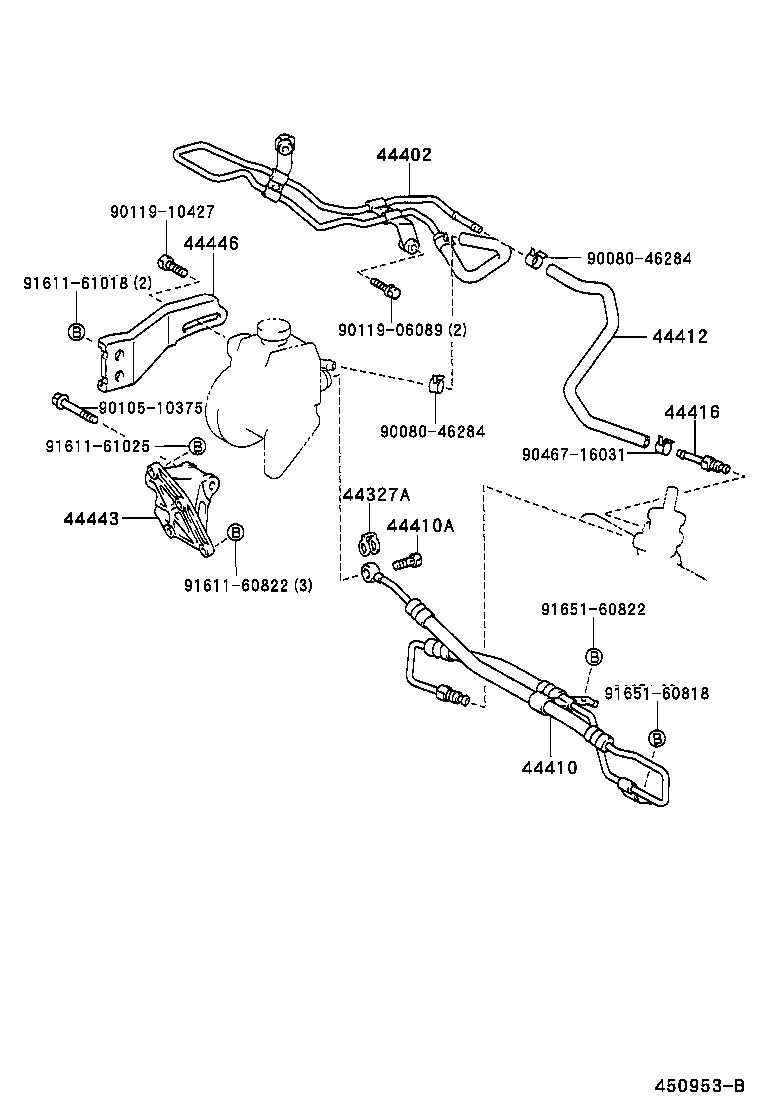

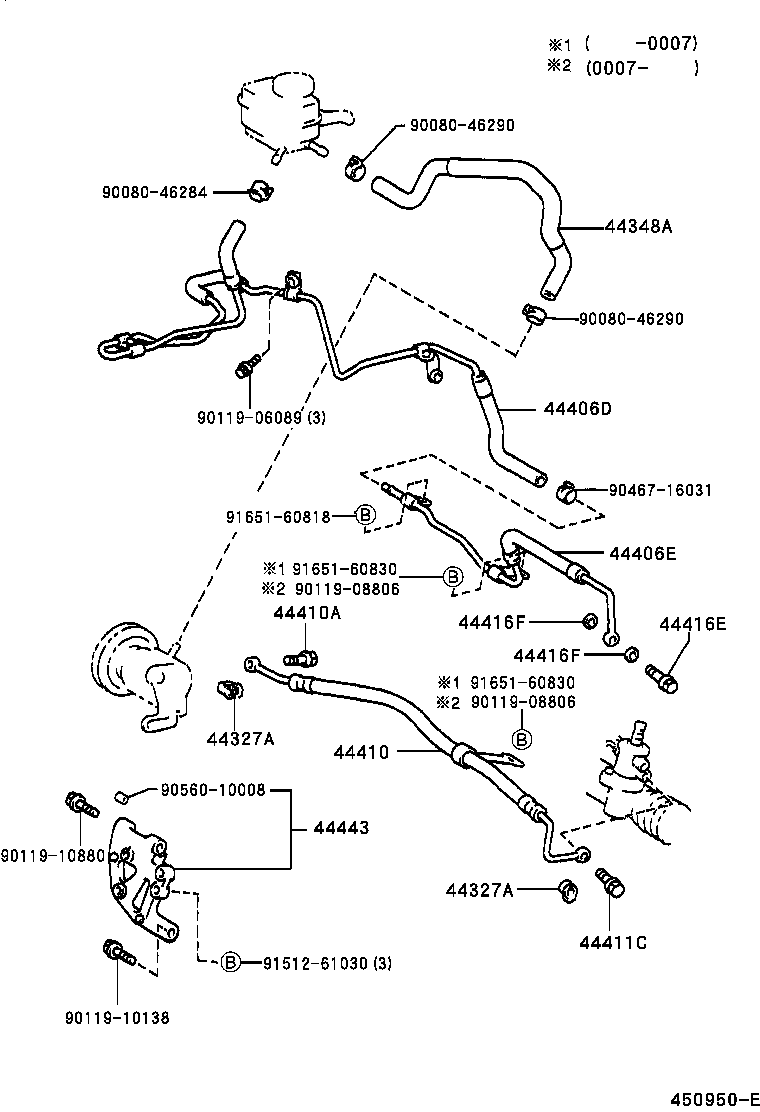

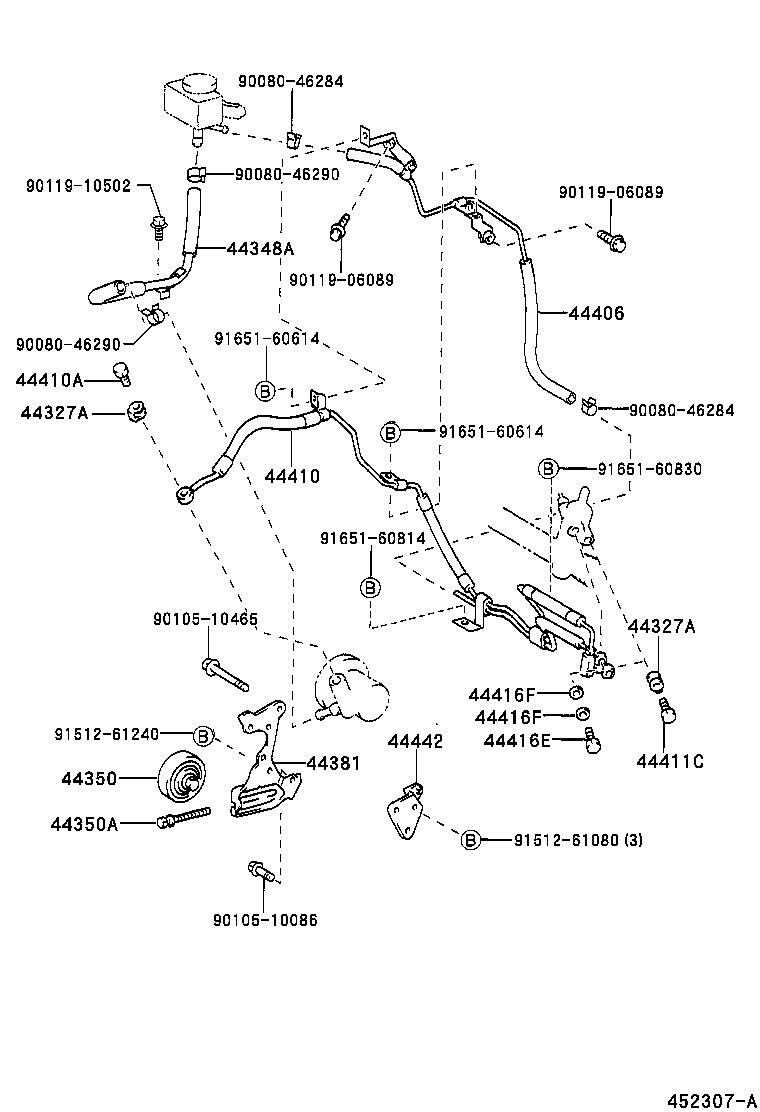

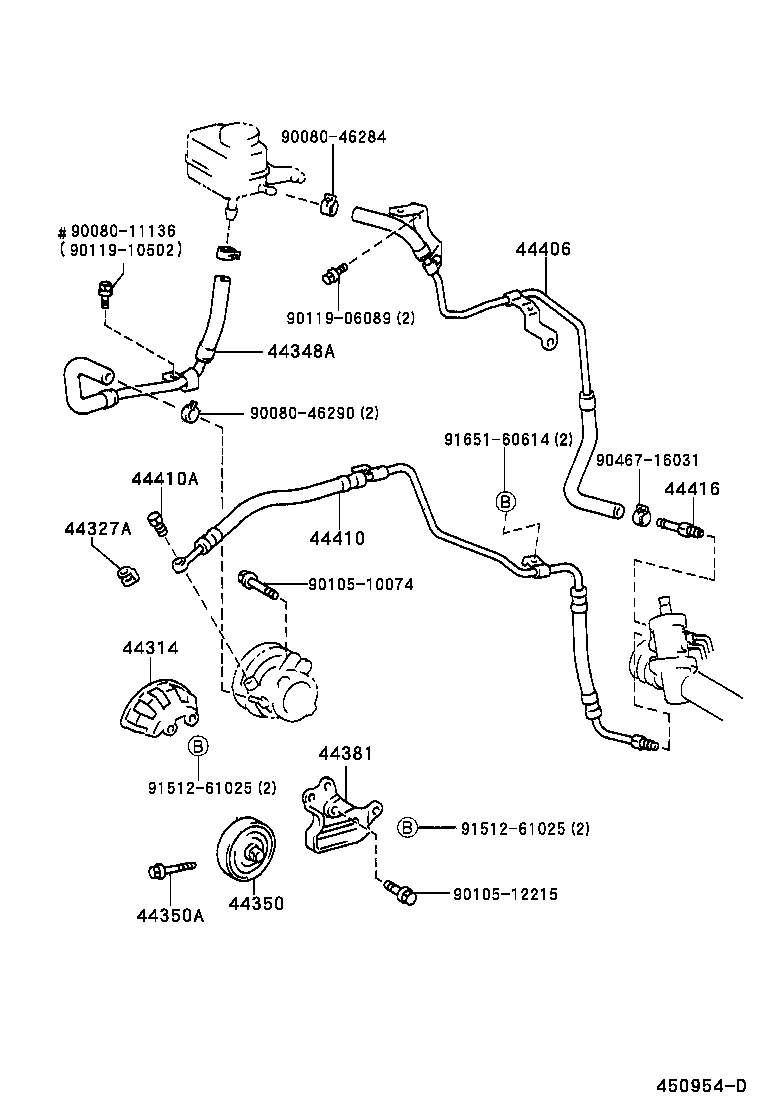

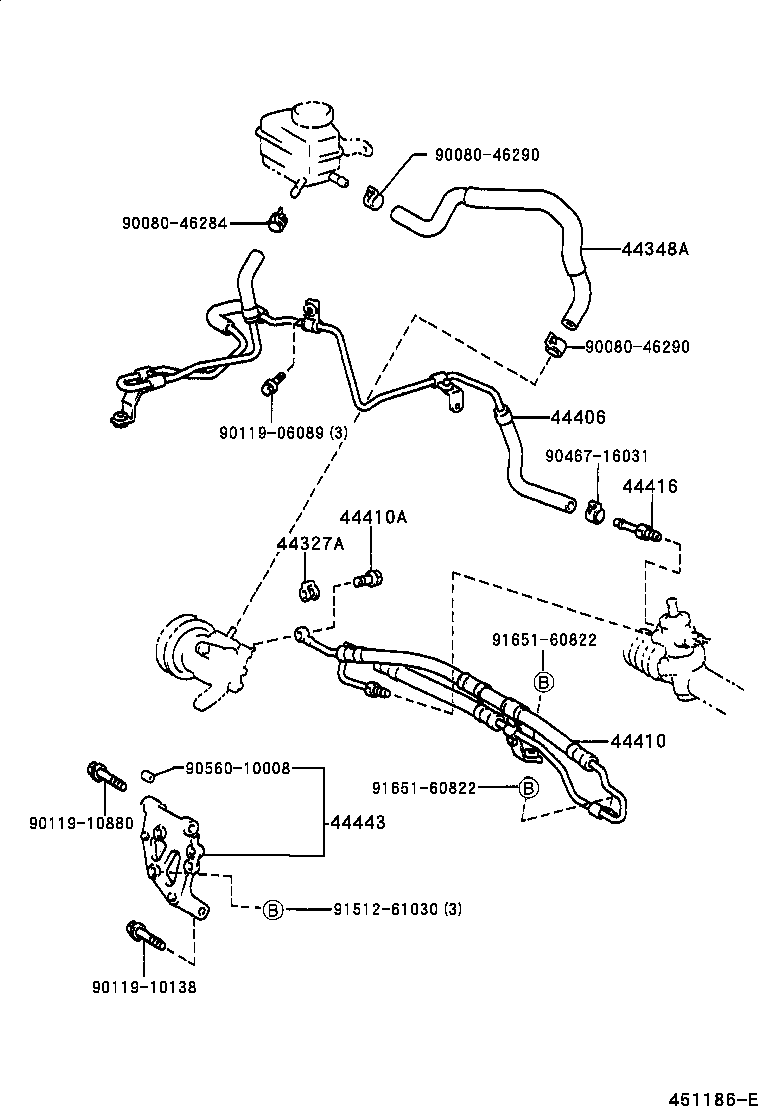

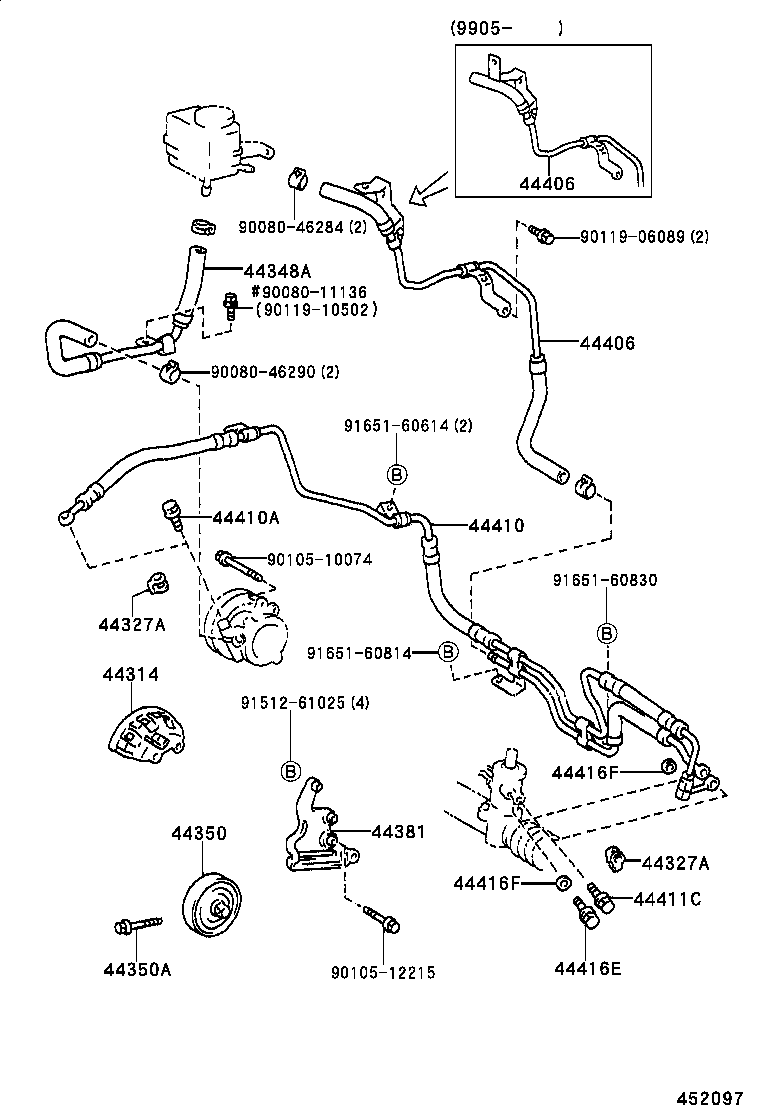

Illustrations
Part groups
| PNC | Description |
|---|---|
| 44314 | Cover, Pulley |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44350A | Bolt(FOR POWER STEERING IDLE PULLEY) |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44406D | Tube Sub-assy, Return, NO.1 |
| 44406E | Tube Sub-assy, Return, NO.2 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44412 | Hose, Return |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44416E | Bolt, Union(FOR RETURN TUBE) |
| 44416F | Gasket(FOR RETURN TUBE) |
| 44442 | Bracket, Pump, Rear |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
