Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

14 part groups · 2 illustrations

Illustrations

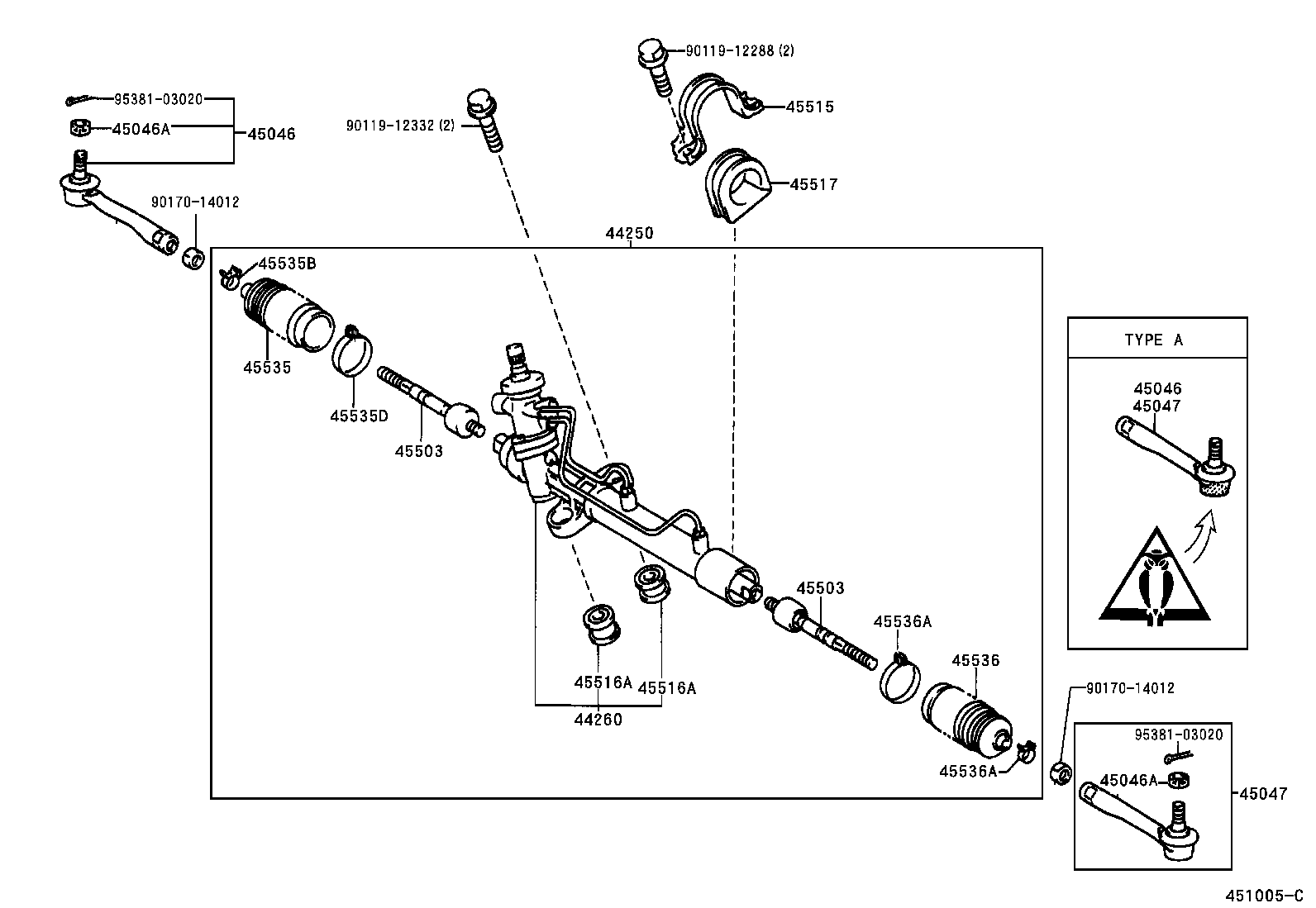

Figure 451007D 451007D 1997-10 → — Figure 451005C 451005C 1997-10 → —

Part groups

PNCDescription
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44260 Cylinder Assy, Power Steering Power
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45515 Bracket, Steering Rack Housing, NO.2
45516A Bush, Steering Rack Housing, NO.1
45517 Grommet, Steering Rack Housing, NO.2
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
