Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

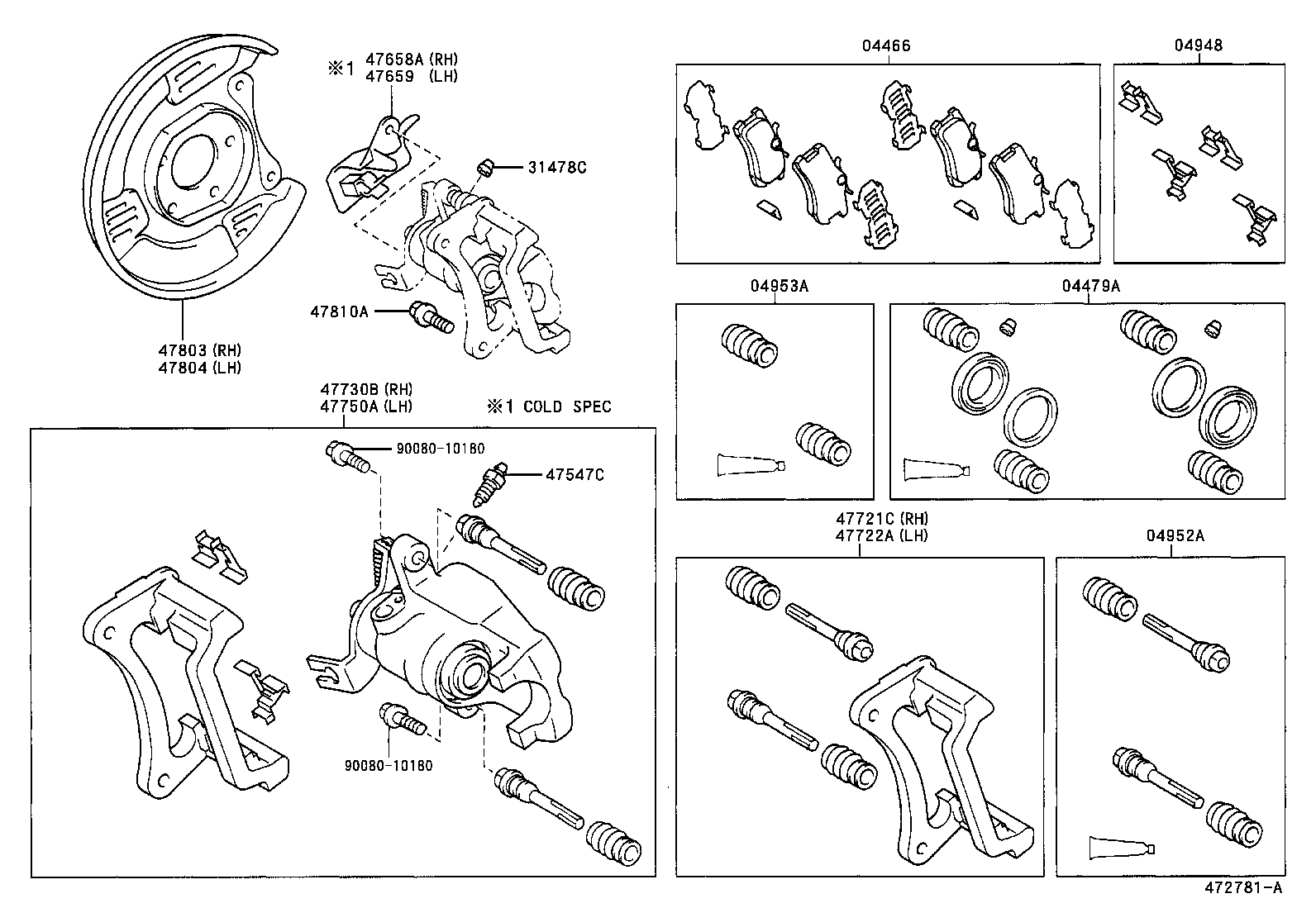

Rear Disc Brake Caliper & Dust Cover
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 04952A | Pin Kit, Rear Disc Brake Cylinder Slide |
| 04953A | Boot Kit, Rear Disc Brake Cylinder Slide Pin |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47658A | Protector, Parking Brake Lever, RH |
| 47659 | Protector, Parking Brake Lever, LH |
| 47713A | Plug, Hole(FOR REAR DISC BRAKE CYLINDER) |
| 47715C | Pin, Cylinder Slide(FOR REAR DISC BRAKE) |
| 47716A | Plate, Pad Support, NO.1(FOR REAR DISC BRAKE) |
| 47717A | Plate, Pad Support, NO.2(FOR REAR DISC BRAKE) |
| 47718B | Plate, Pad Support, NO.3(FOR REAR DISK BRAKE) |
| 47719B | Plate, Pad Support, NO.4(FOR REAR DISK BRAKE) |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47721D | Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47730B | Cylinder Assy, Rear Disc Brake, RH |
| 47731B | Piston, Rear Disc Brake |
| 47731C | Ring, Set(FOR REAR DISC BRAKE PISTON) |
| 47750A | Cylinder Assy, Disc Brake, Rear LH |
| 47769A | Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47775D | Boot, Bush Dust(FOR REAR DISC BRAKE) |
| 47803 | Cover Sub-assy, Disc Brake Dust, Rear RH |
| 47804 | Cover Sub-assy, Disc Brake Dust, Rear LH |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
