Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

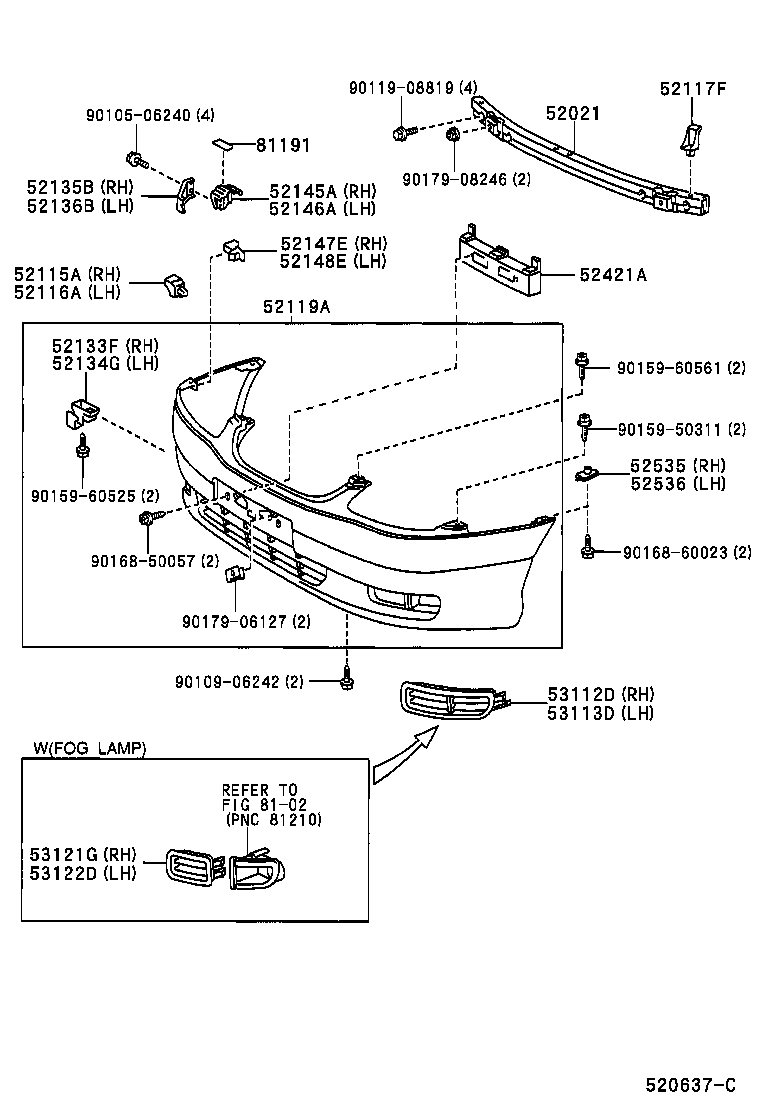

Front Bumper & Bumper Stay
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52117F | Support, Front Bumper, Upper |
| 52119A | Cover, Front Bumper |
| 52129B | Cover, Front Bumper, Lower |
| 52133F | Bracket, Front Bumper, RH |
| 52134G | Bracket, Front Bumper, LH |
| 52135B | Bracket, Front Bumper, NO.1 RH |
| 52136B | Bracket, Front Bumper, NO.1 LH |
| 52145A | Stay, Front Bumper, NO.2 RH |
| 52146A | Stay, Front Bumper, NO.2 LH |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52239 | Plate, Body Mounting |
| 52421A | Pad, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 53112D | Grille, Radiator, Lower RH |
| 53113D | Grille, Radiator, Lower LH |
| 53121G | Plate, Radiator Grille Finish, RH |
| 53122D | Plate, Radiator Grille Finish, LH |
| 81191 | Tape, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
