Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

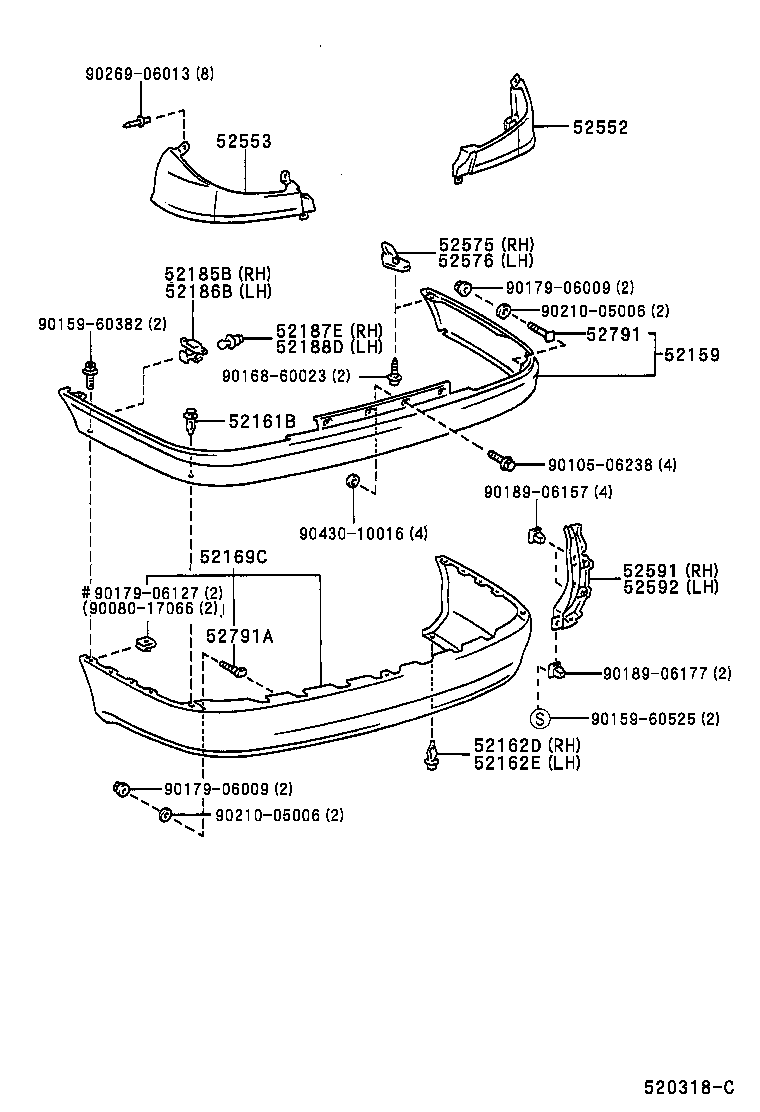

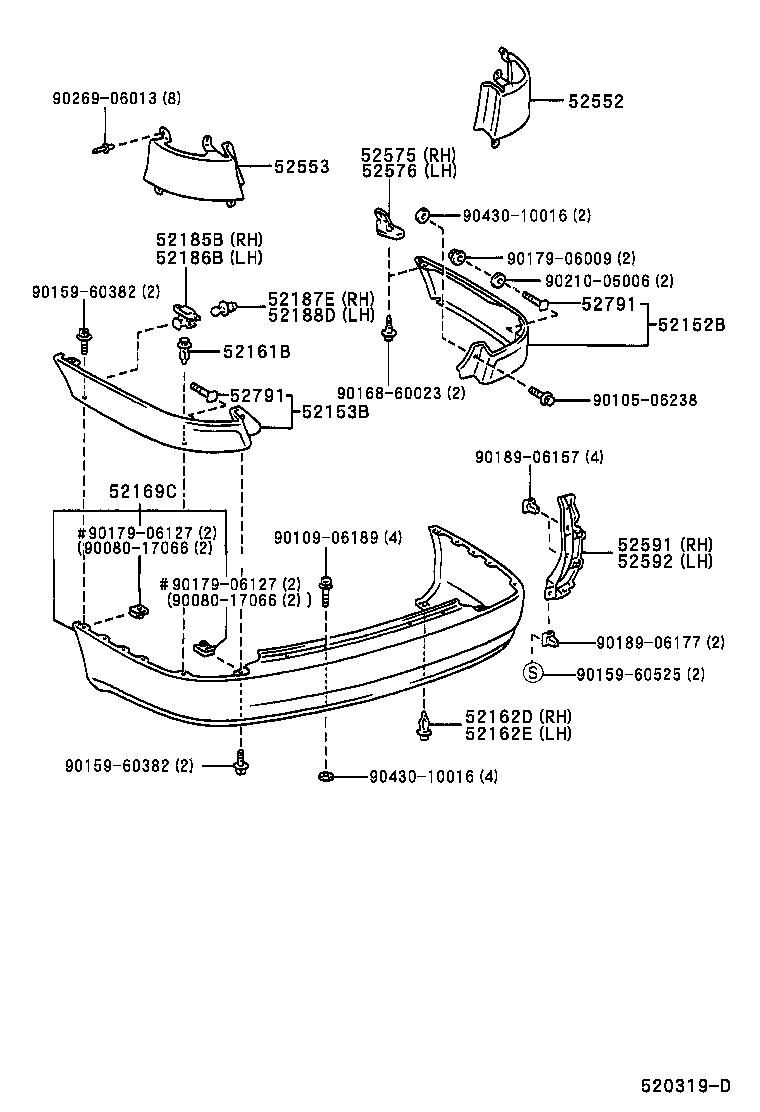

Rear Bumper & Bumper Stay
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52162E | Piece, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52187E | Guide, Rear Bumper Location, RH |
| 52188D | Guide, Rear Bumper Location, LH |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
| 52791A | Bolt, Bumper Moulding Set, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
