Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

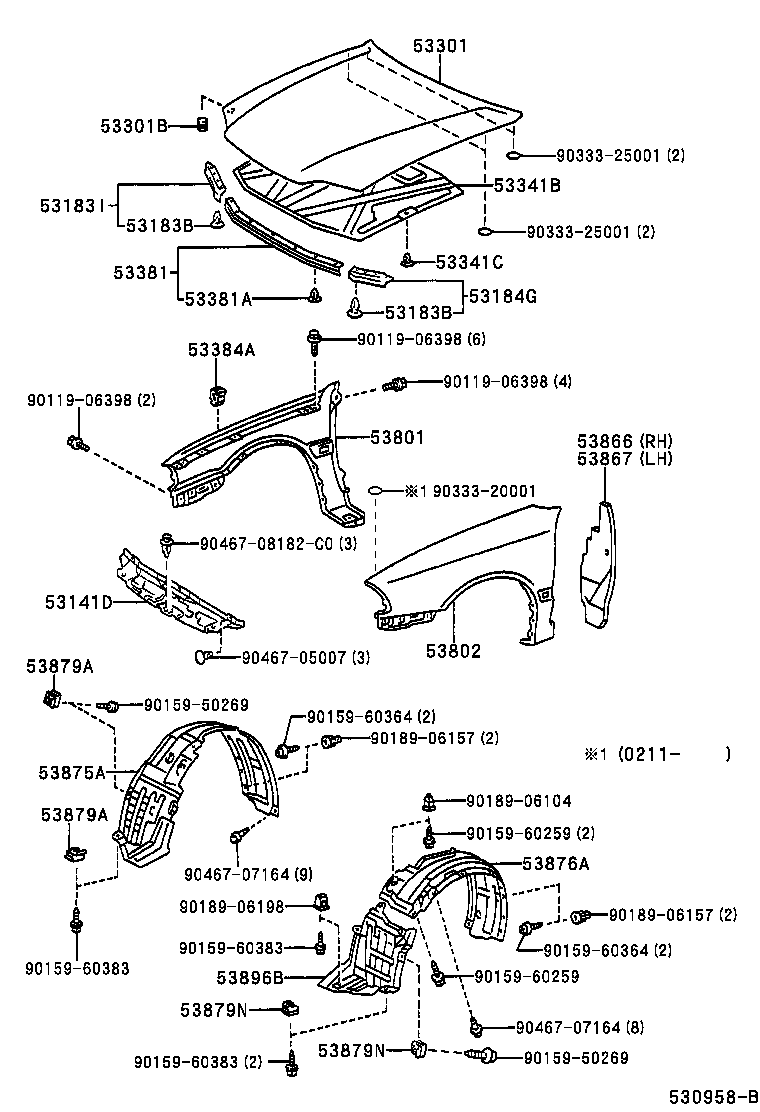

Hood & Front Fender
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53141D | Cover, Radiator |
| 53183B | Clip(FOR HEADLAMP COVER SEAL) |
| 53183I | Seal, Headlamp Cover, RH |
| 53184G | Seal, Headlamp Cover, LH |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384A | Bumper, Fender TO Hood |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879N | Retainer, Front Fender Liner, LH |
| 53896B | Shield, Front Fender Splash, Front LH |
| 53931B | Panel, Front End, RH |
| 53932B | Panel, Front End, LH |
| 53935B | Protector, Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
