Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

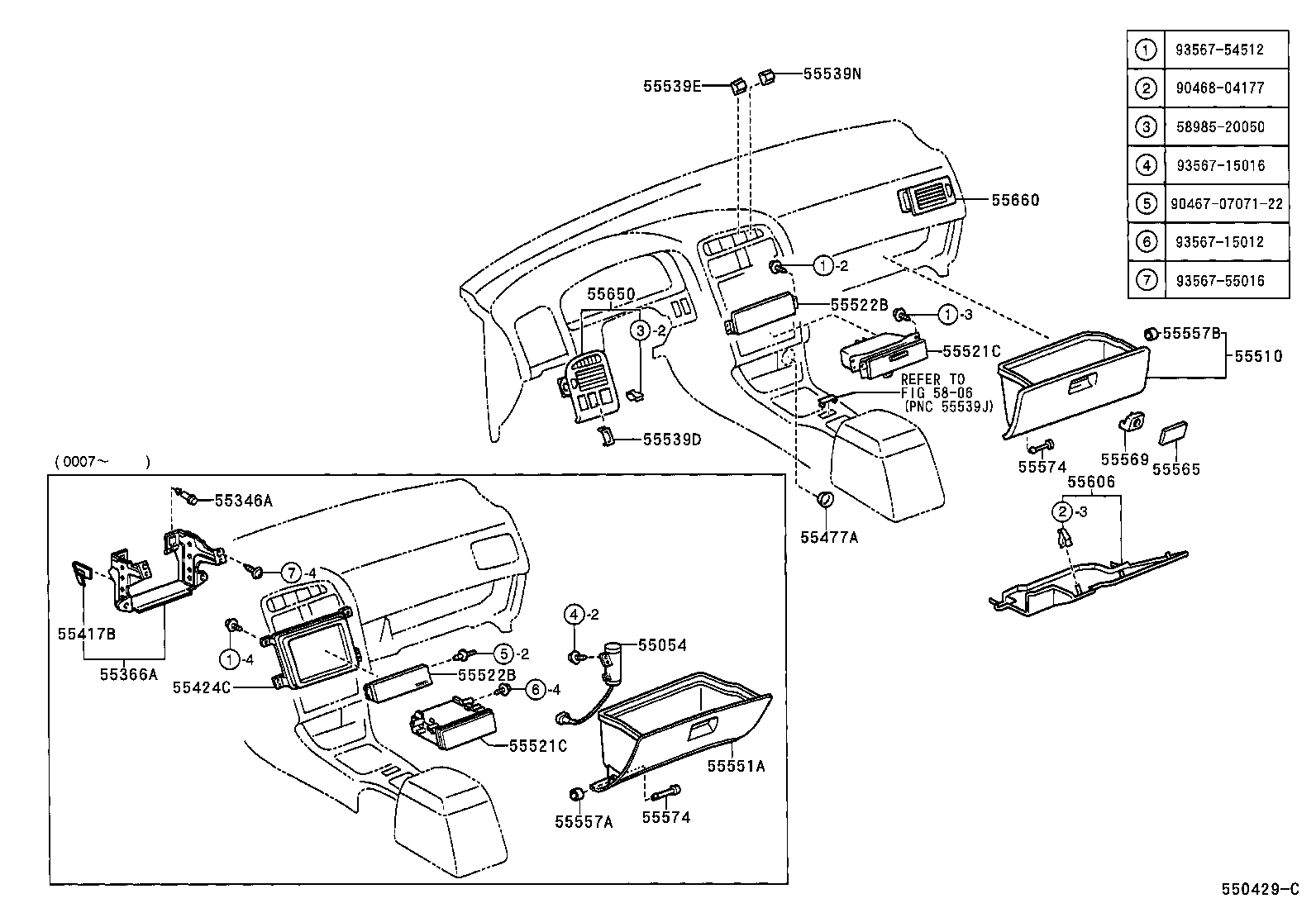

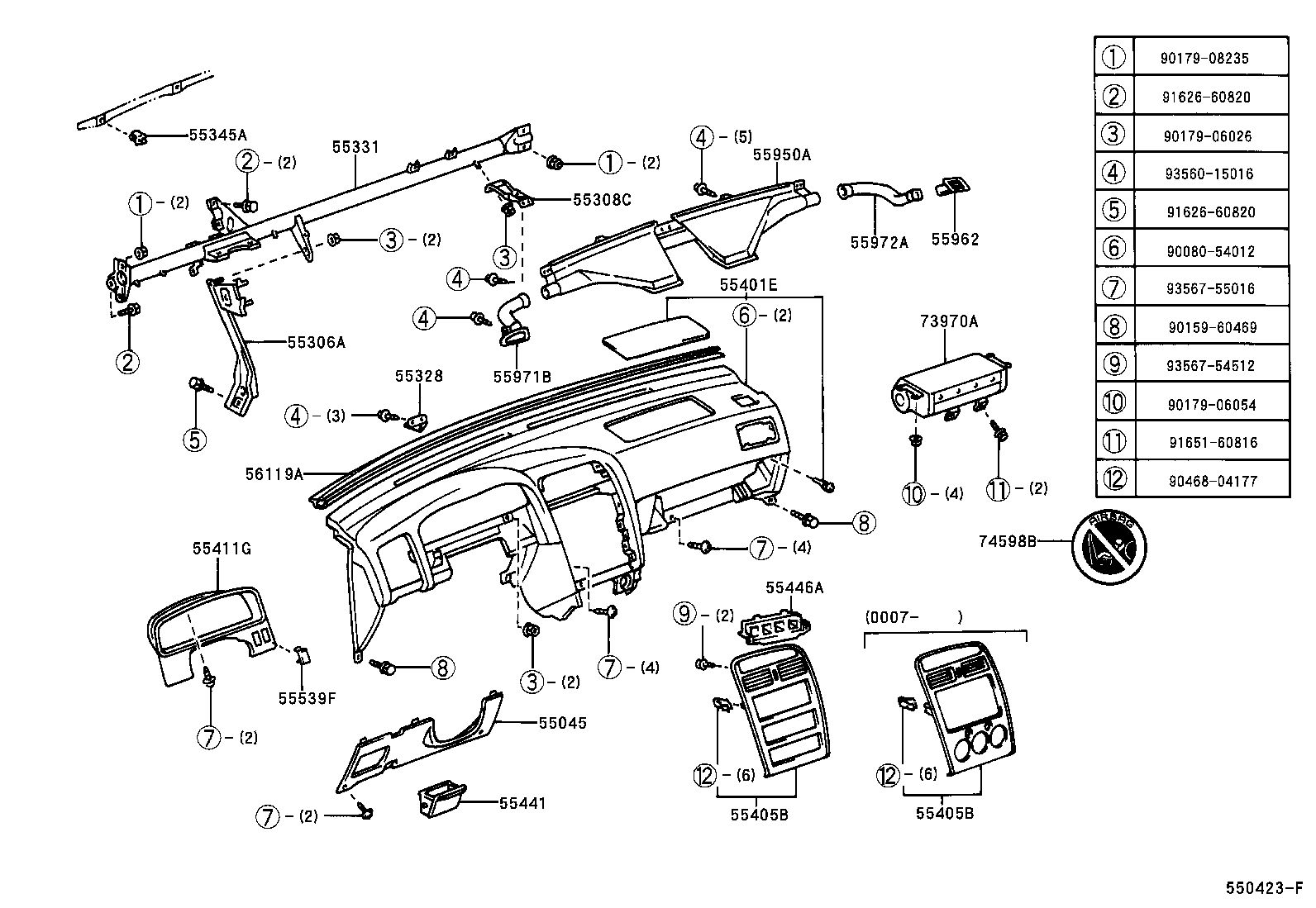

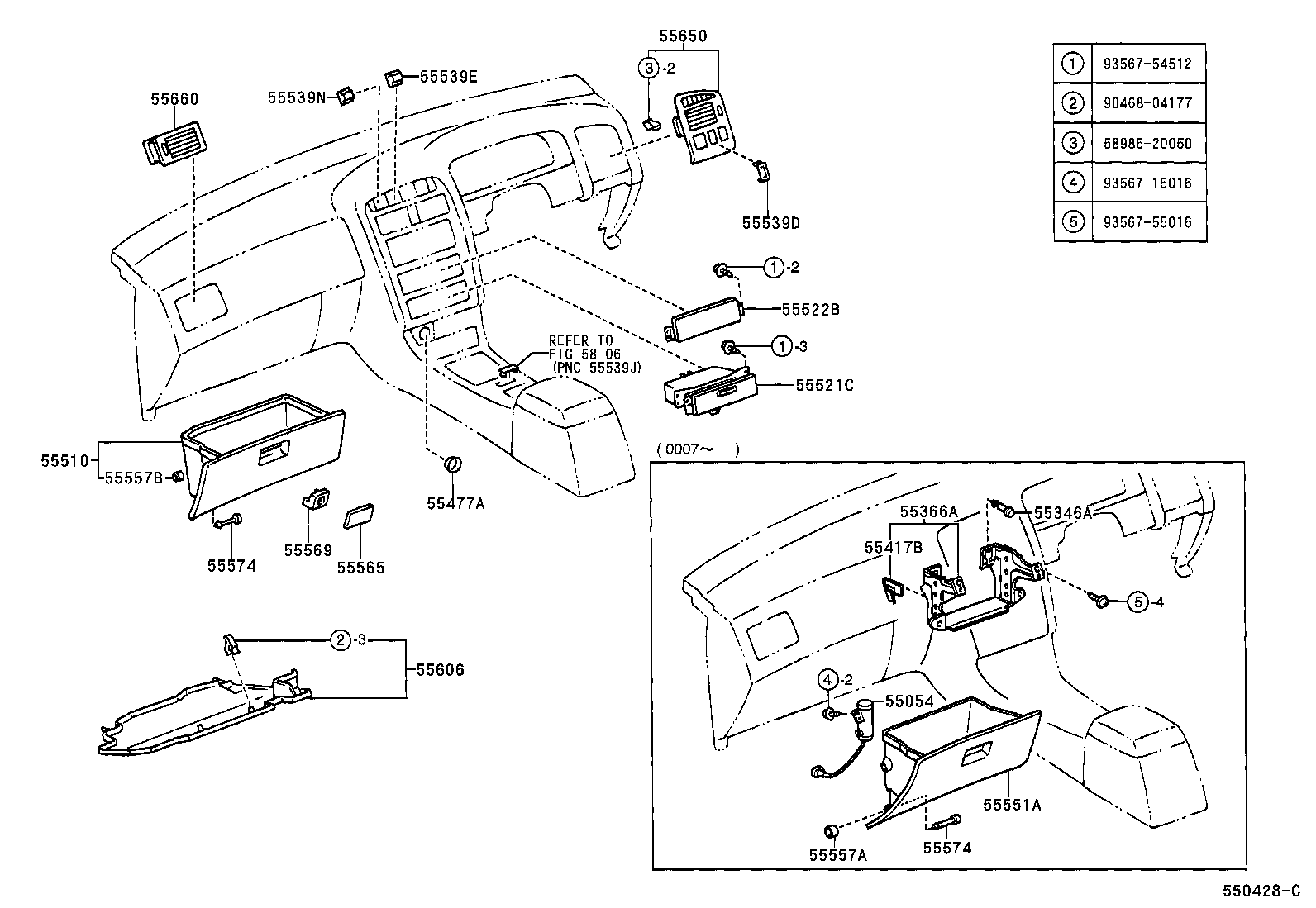

Instrument Panel & Glove Compartment
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55417B | Retainer, Radio Tuner Finish |
| 55424C | Panel, Radio Tuner Finish |
| 55441 | Box, Instrument Panel |
| 55446A | Base, Switch Hole, NO.1 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55539N | Cover, Spare Switch Hole |
| 55539P | Cover, Spare Switch Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55557A | Cushion, Glove Compartment Door Check |
| 55557B | Stopper, Glove Compertment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 56119A | Seal, Windshield Glass |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
