Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

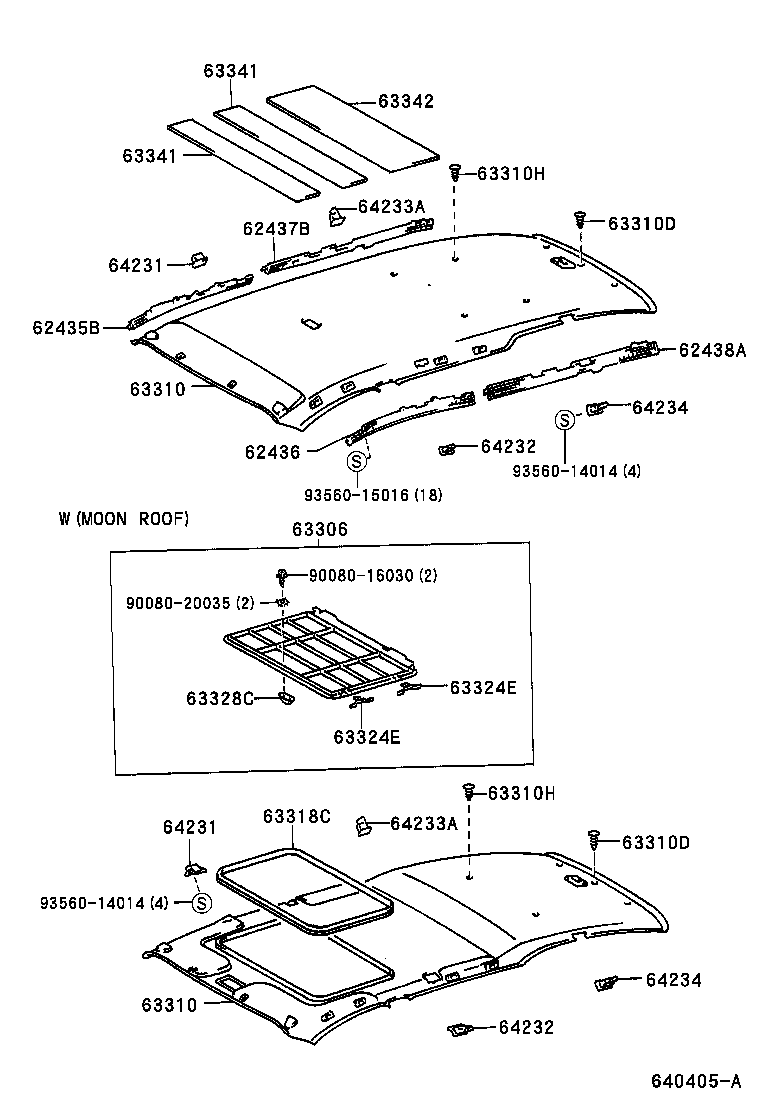

Roof Headlining & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62435B | Pad, Roof Side Rail, Front RH |
| 62436 | Pad, Roof Side Rail, Front LH |
| 62437B | Pad, Roof Side Rail, Rear RH |
| 62438A | Pad, Roof Side Rail, Rear LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63324E | Spring, Sunshade Lock |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 64231 | Hook, Room Partition Net, Front RH |
| 64232 | Hook, Room Partition Net, Front LH |
| 64233A | Hook, Room Partition Net, Rear RH |
| 64234 | Hook, Room Partition Net, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
