Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

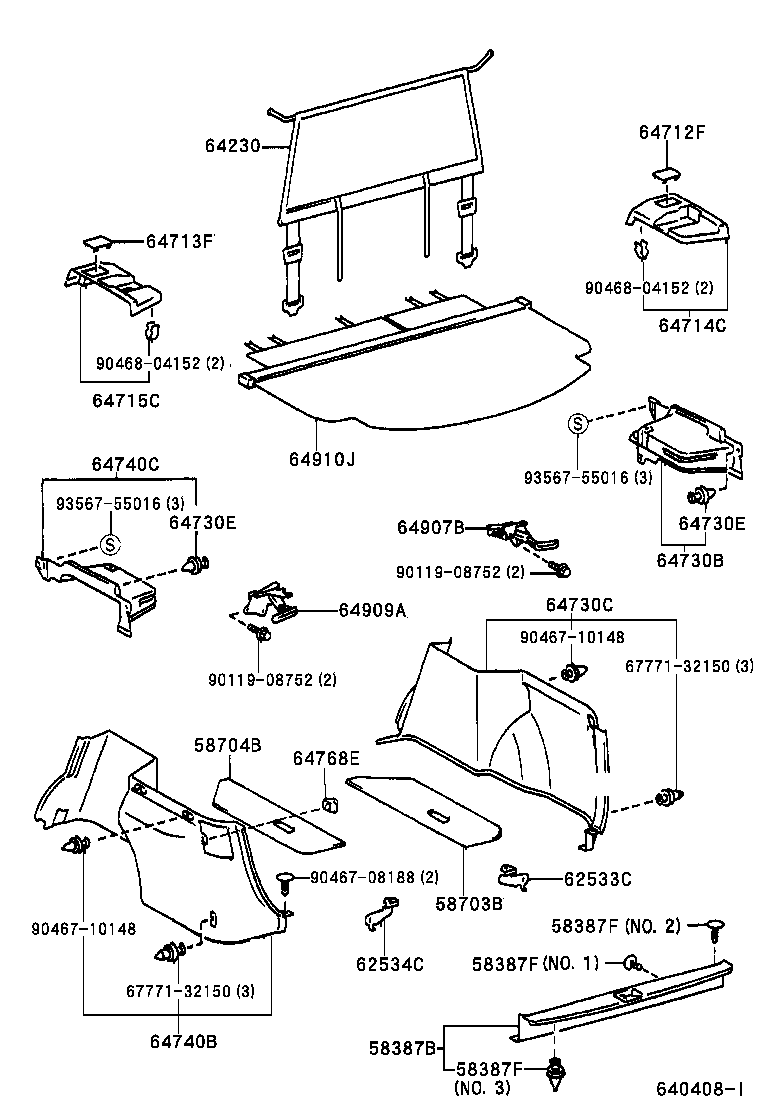

Deck Board & Deck Trim Cover
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58703B | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704B | Cover Sub-assy, Luggage Compartment Side, LH |
| 62533C | Bracket, Deck Side Trim RH, Front |
| 62534C | Bracket, Deck Side Trim LH, Front |
| 63709B | Band Sub-assy, Room Rack |
| 64230 | Net Assy, Room Partition |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64323A | Clamp, Package Tray Trim, RH |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64395 | Pin, Package Tray Trim Hinge |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730C | Board, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740B | Board, Deck Trim Side, LH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64748A | Hook, Side Trim Tool Cover, NO.1 |
| 64749G | Hook, Side Trim Tool Cover, NO.2 |
| 64768E | Stopper, Quarter Trim Lid |
| 64907B | Stopper Sub-assy, Tonneau Cover, RH |
| 64909A | Stopper Sub-assy, Tonneau Cover, LH |
| 64910J | Cover Assy, Tonneau |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
