Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 3 illustrations

Illustrations

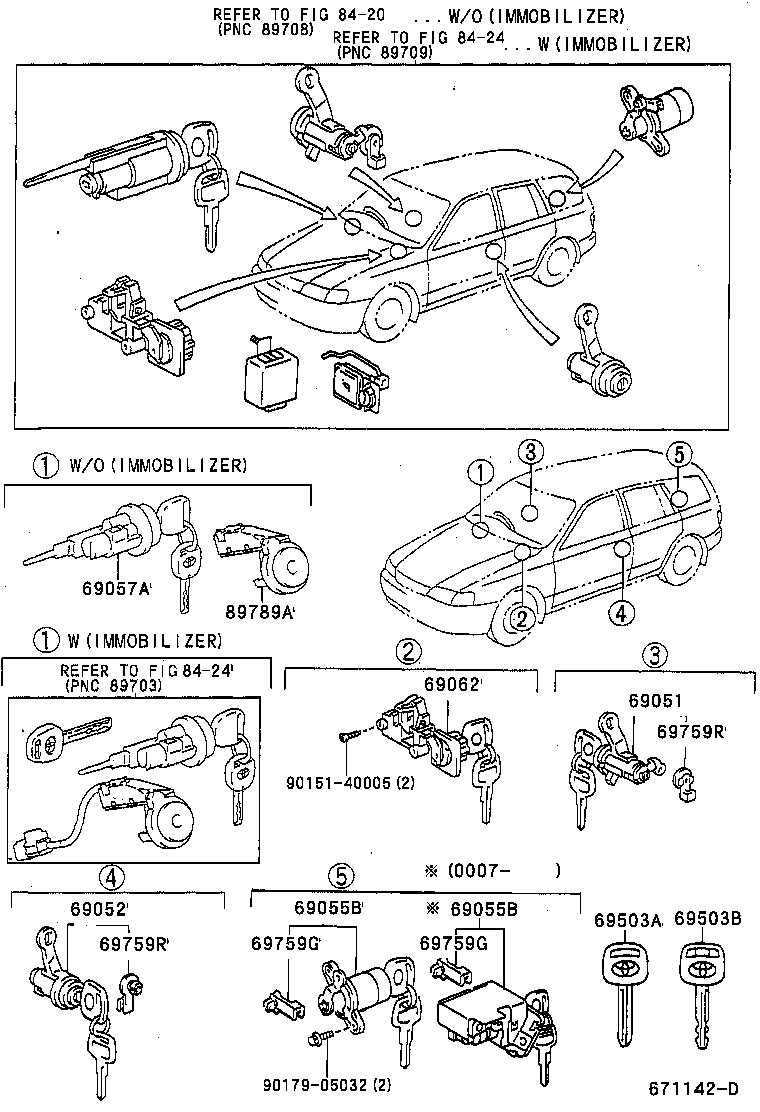

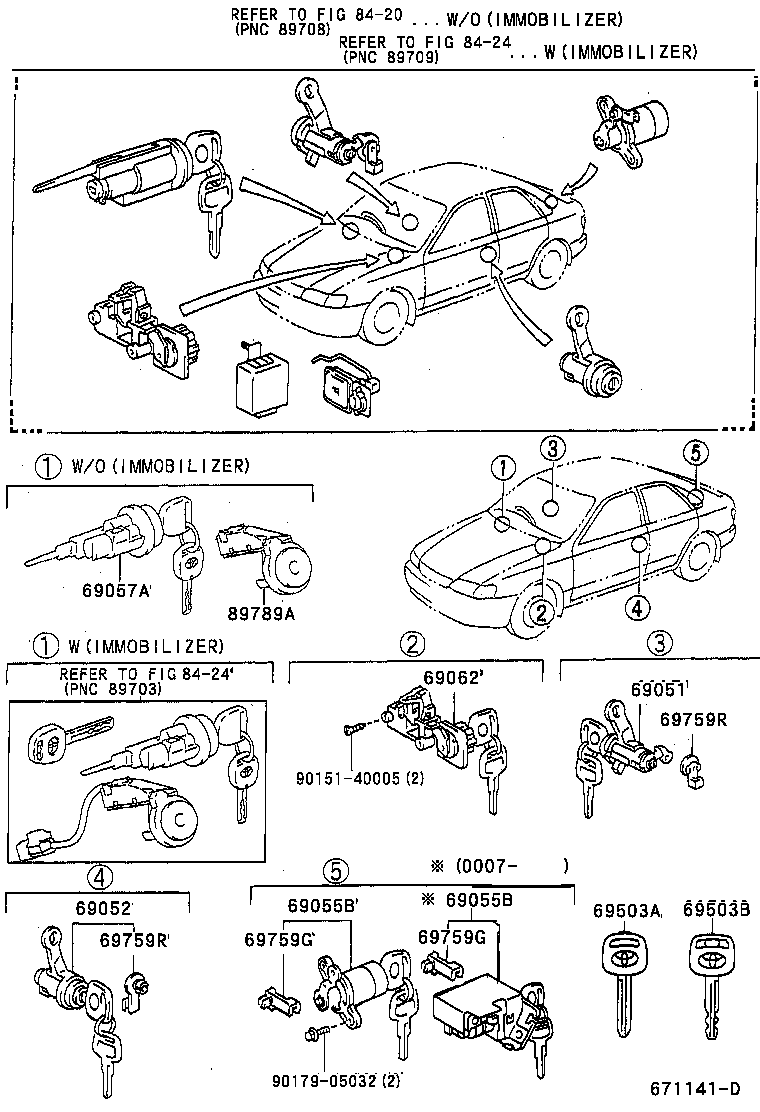

Figure 671140D 671140D 1997-10 → — Figure 671141D 671141D 1997-10 → — Figure 671142D 671142D 1997-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503A Key, Blank
69503B Key, Cut
69553 Protector, Luggage Compartment Key Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
89789A Case, Transponder Key Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
