Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

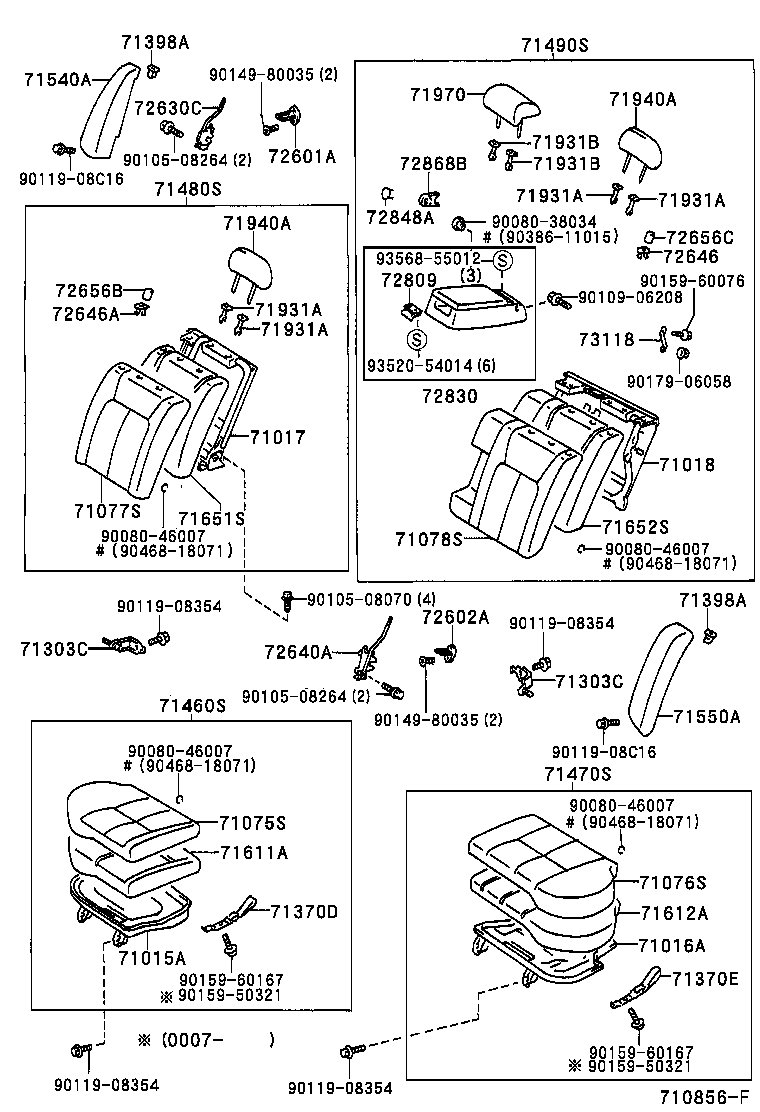

Rear Seat & Seat Track
53 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71370D | Holder Assy, Rear Seat Cushion, RH |
| 71370E | Holder Assy, Rear Seat Cushion, LH |
| 71398A | Holder, Rear Seatback |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71460S | Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE) |
| 71470S | Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71880B | Clip(FOR REAR SEATBACK CARPET) |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71970 | Headrest Assy, Rear Seat |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72653A | Snap, Rear Seatback Lock Rod |
| 72656B | Button, Rear Seatback Stop Release |
| 72656C | Button, Rear Seatback Stop Release |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72668A | Bezel, Rear Seatback Lock, Lower |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72809 | Lock Sub-assy, Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72868B | Cover, Center Armrest Hinge |
| 73118 | Plate, Belt Support |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
