Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

12 part groups · 3 illustrations

Illustrations

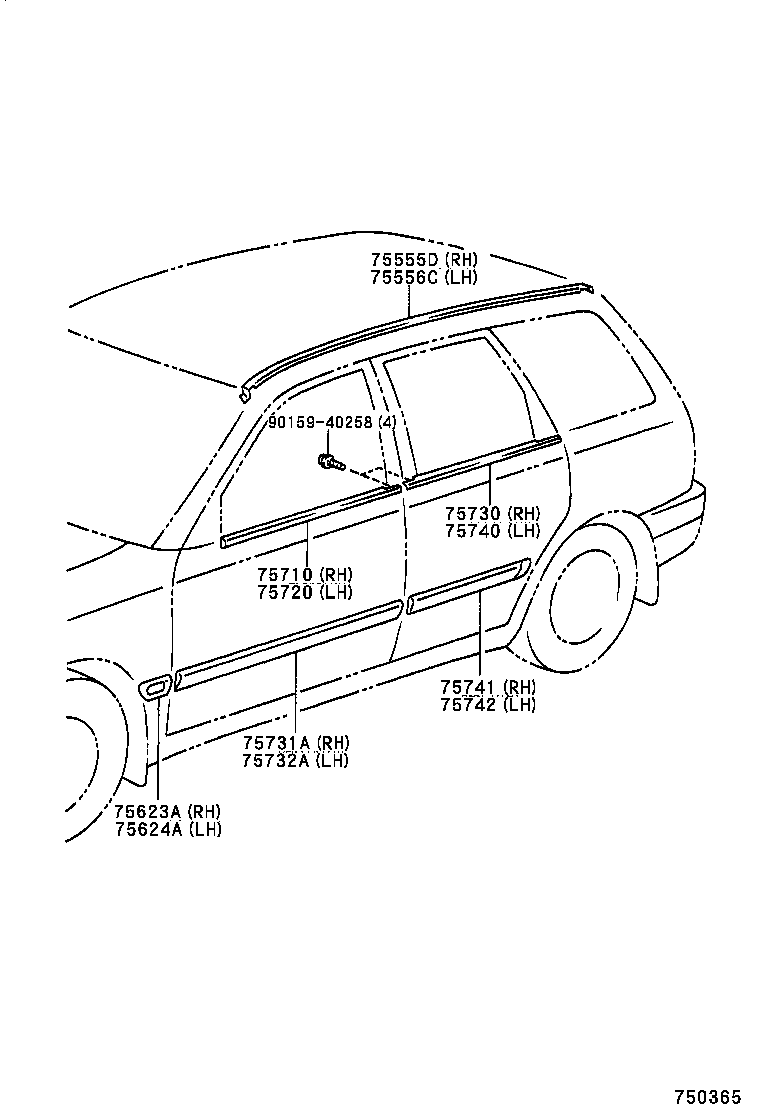

Figure 750364 750364 1997-10 → — Figure 750365 750365 1997-10 → — Figure 750366 750366 1997-10 → —

Part groups

PNCDescription
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
