Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 22 illustrations

Illustrations

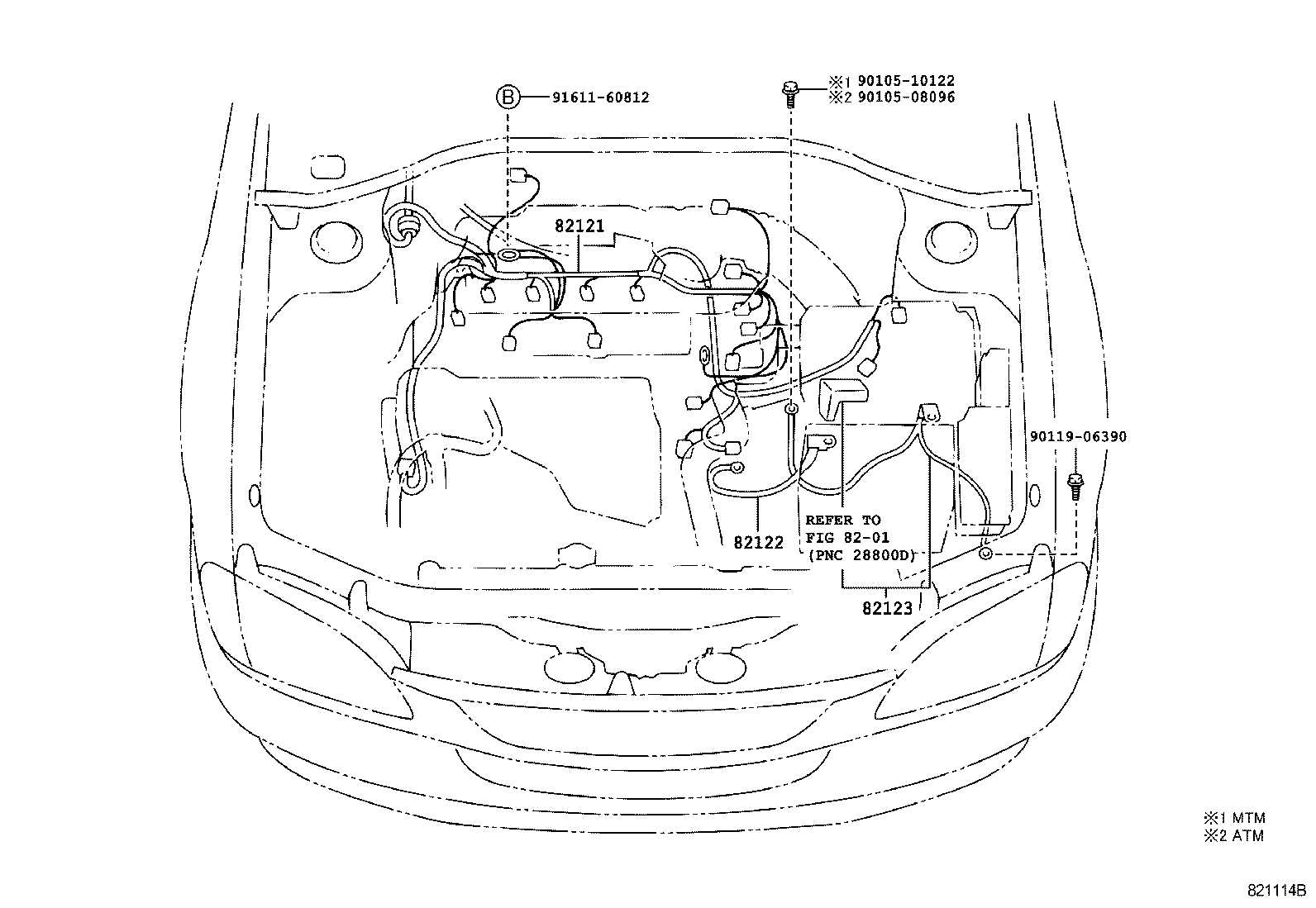

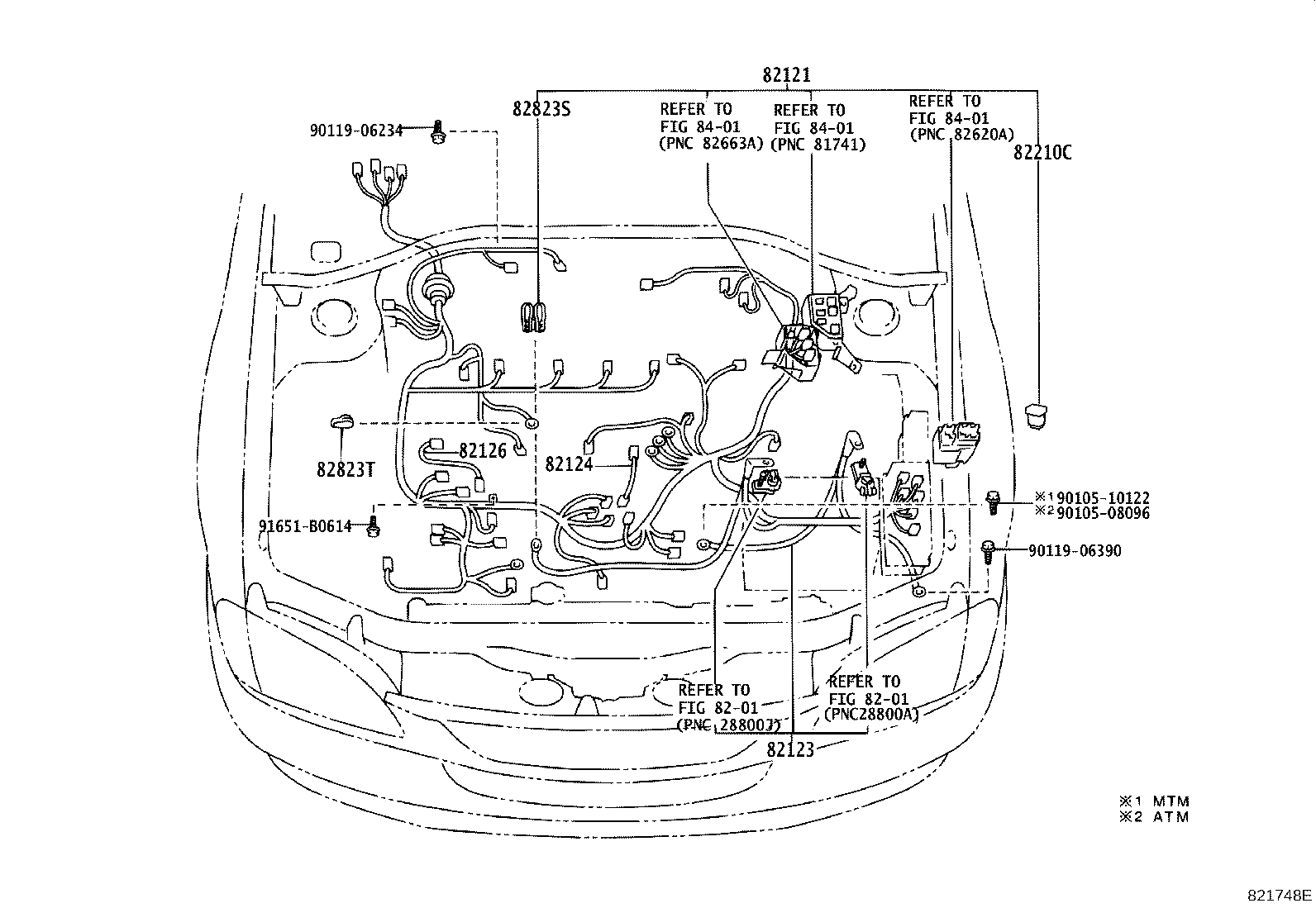

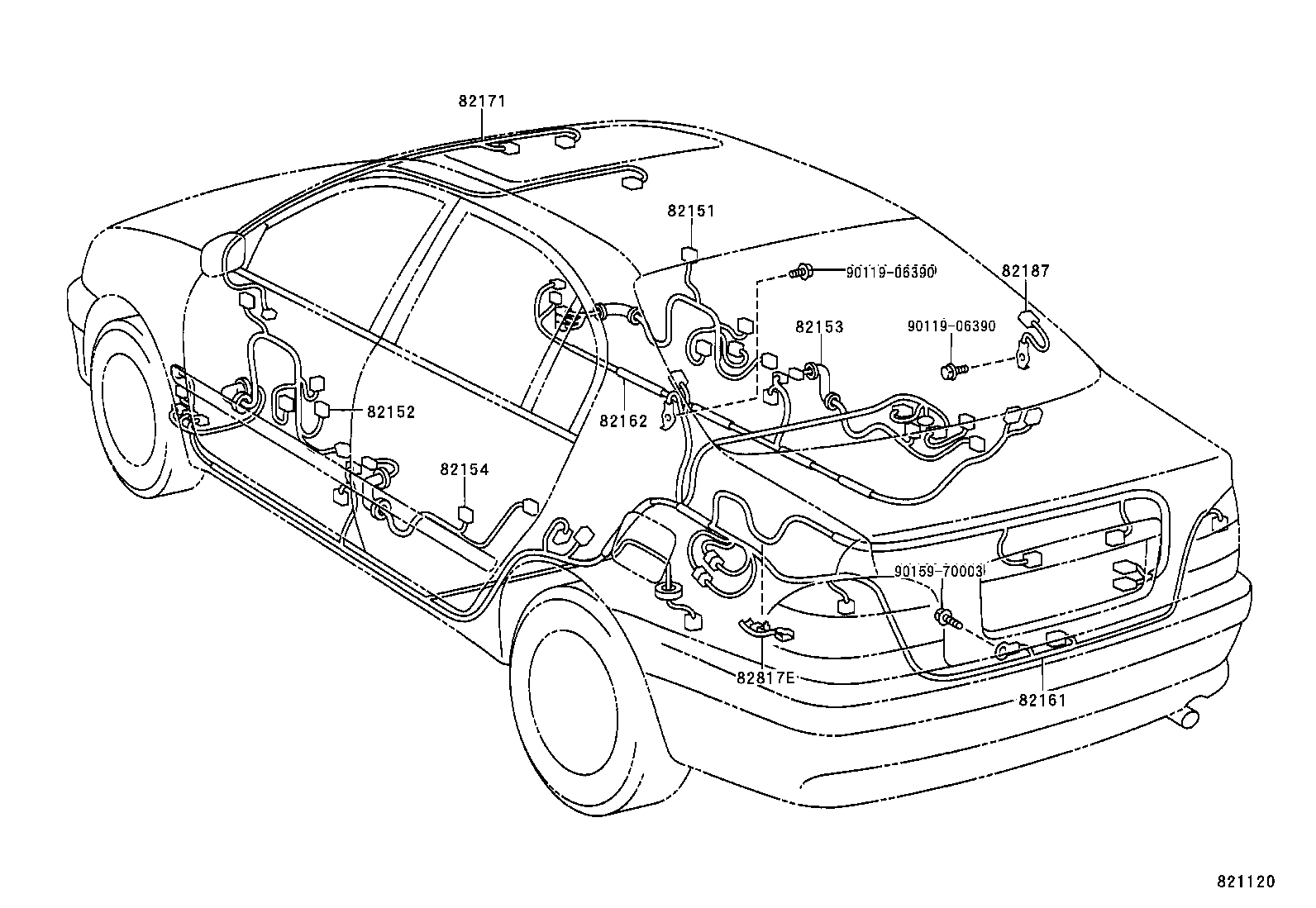

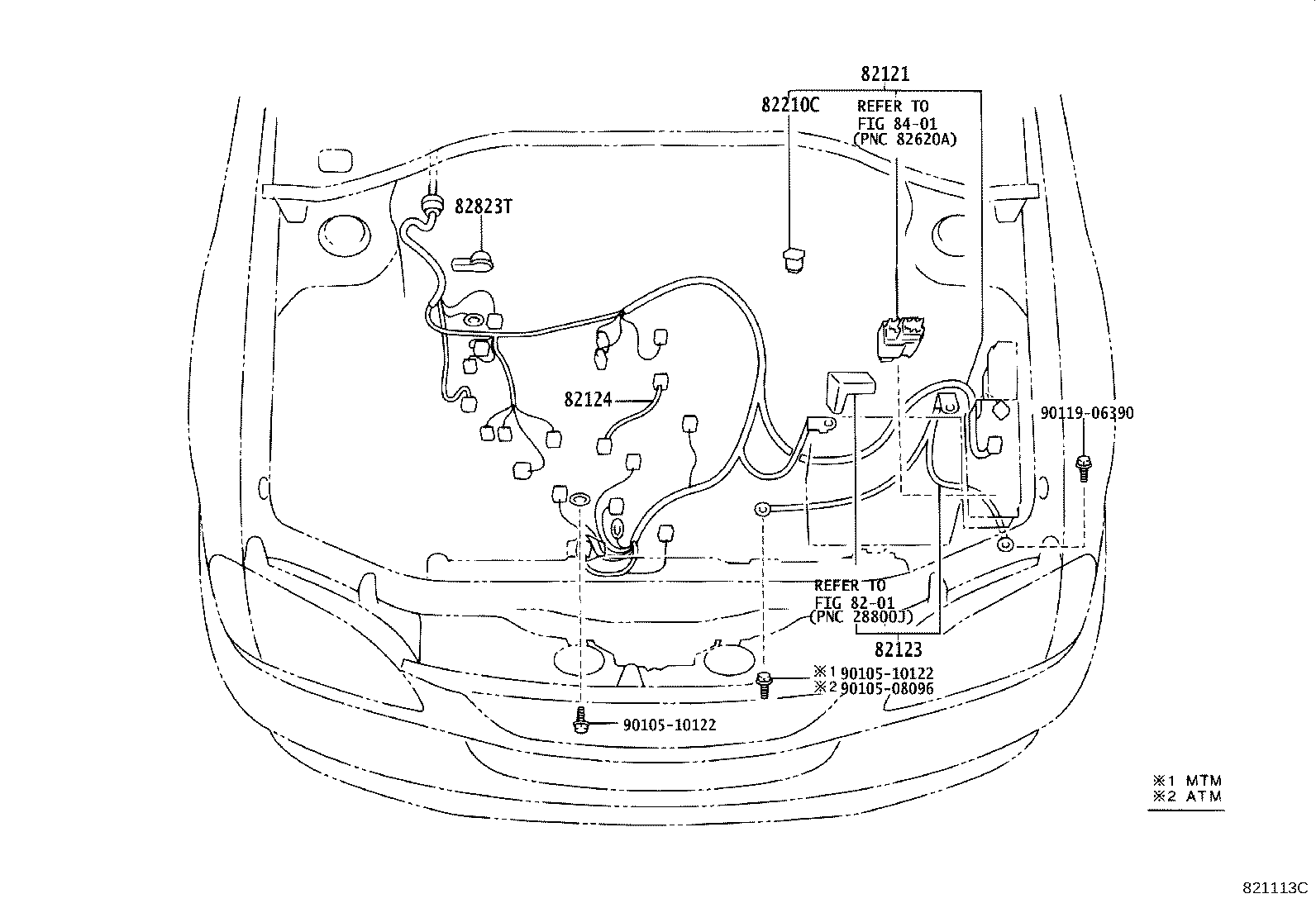

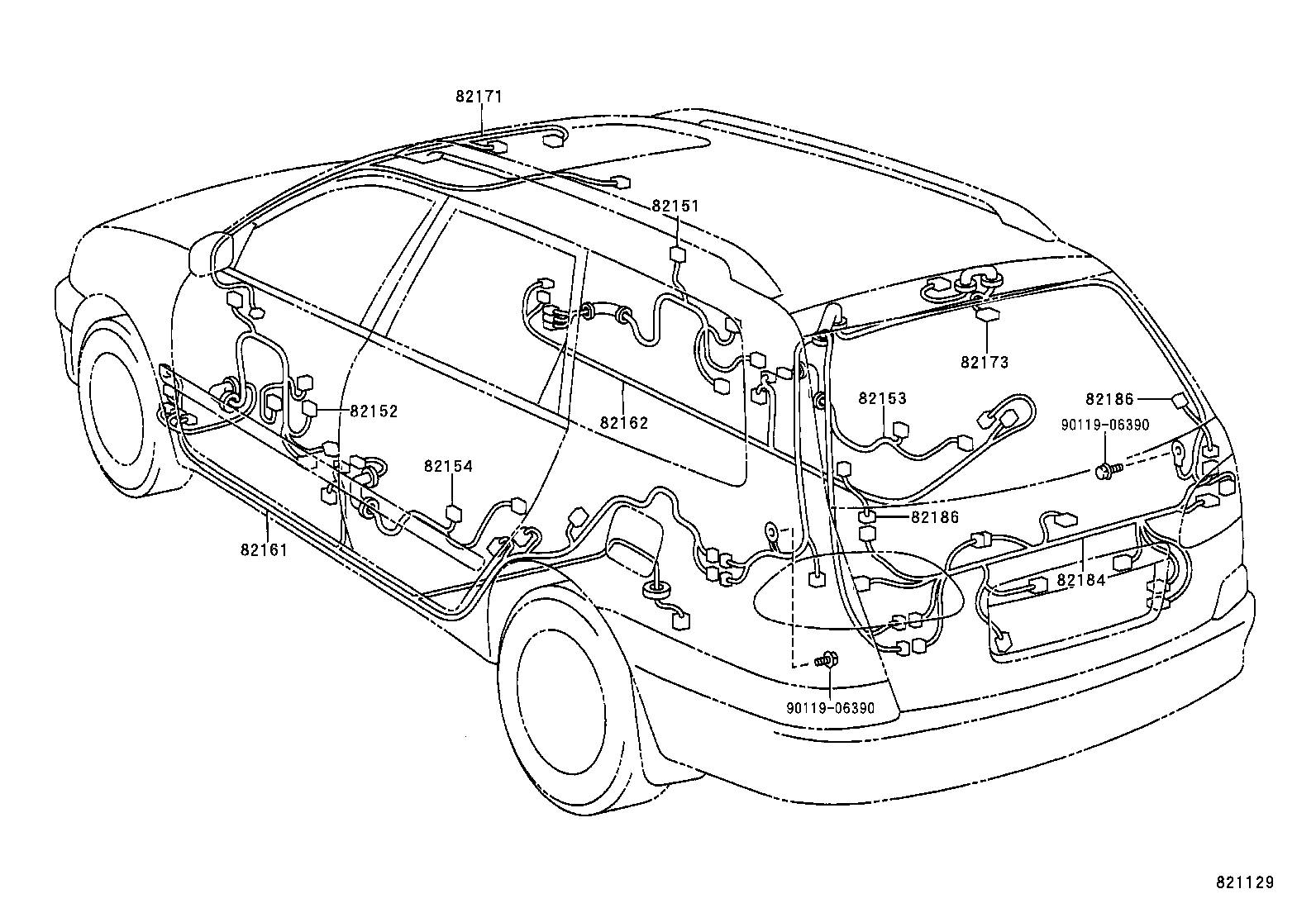

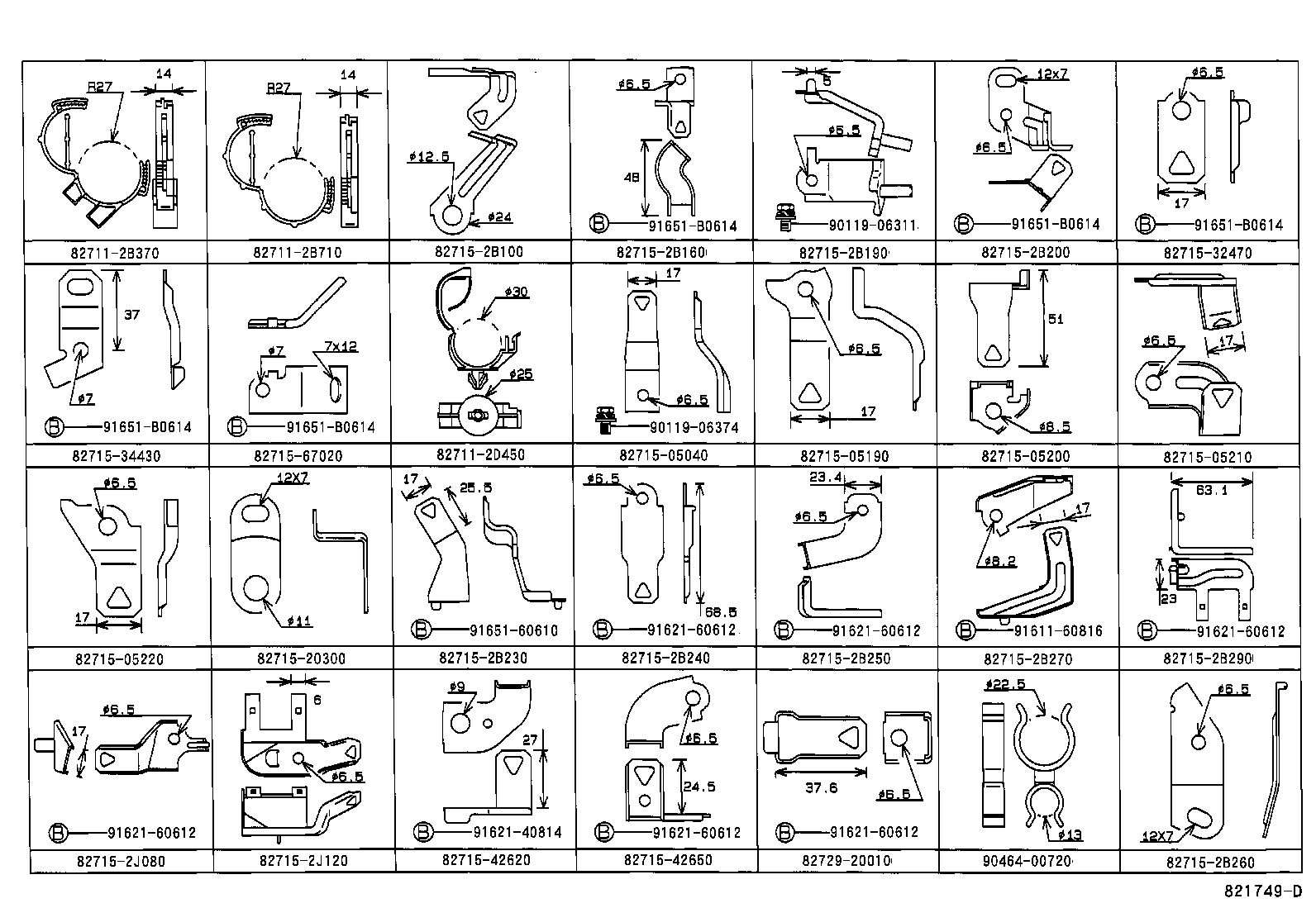

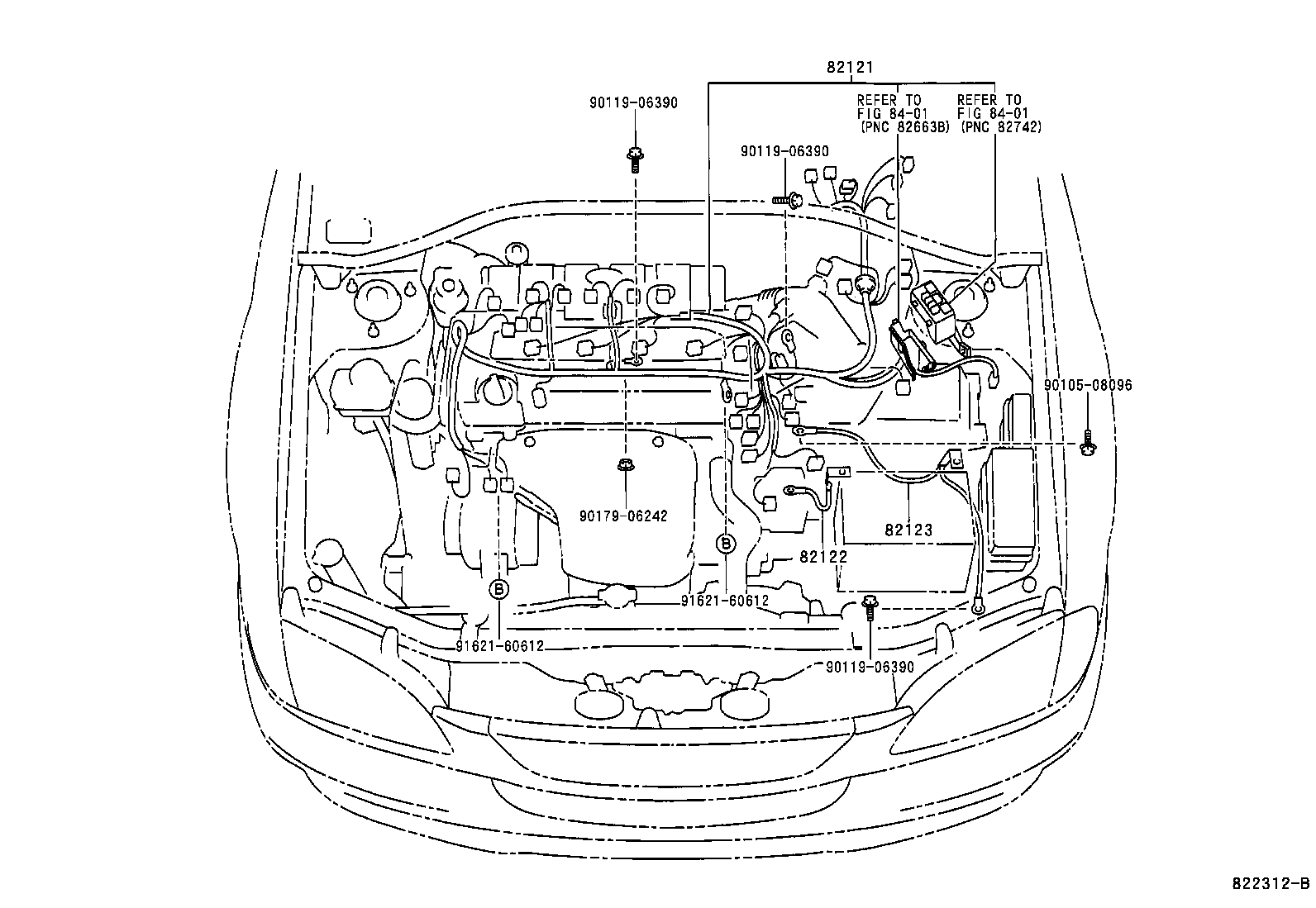

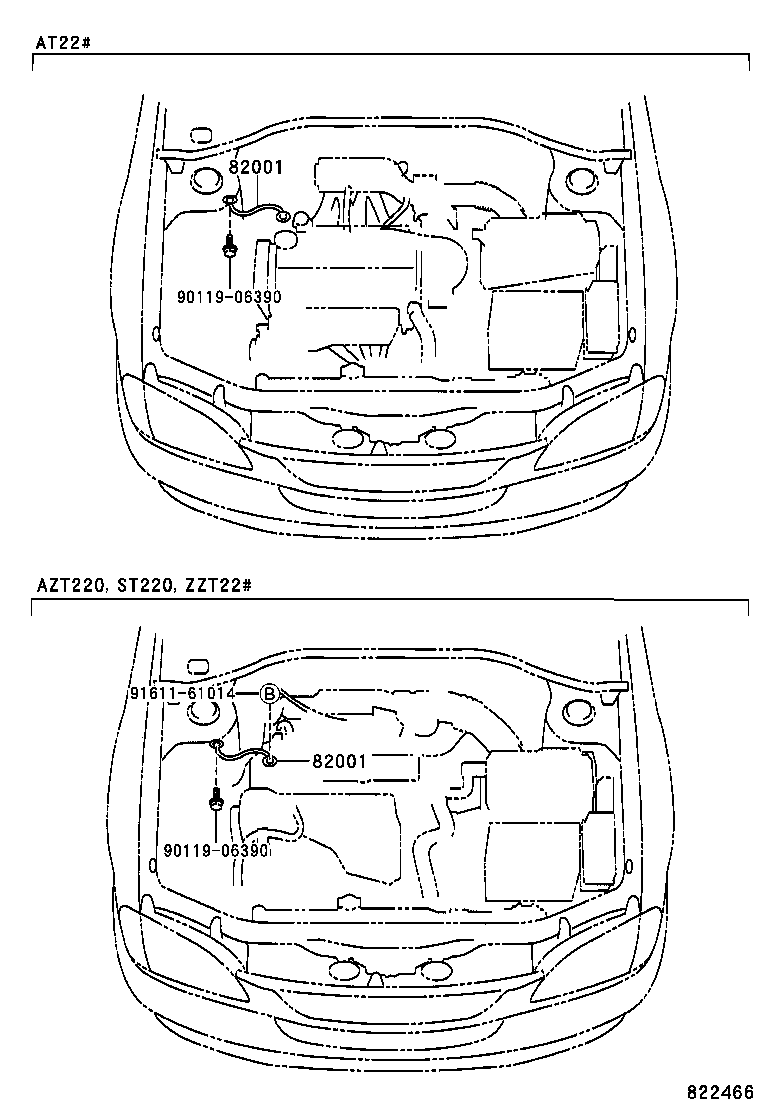

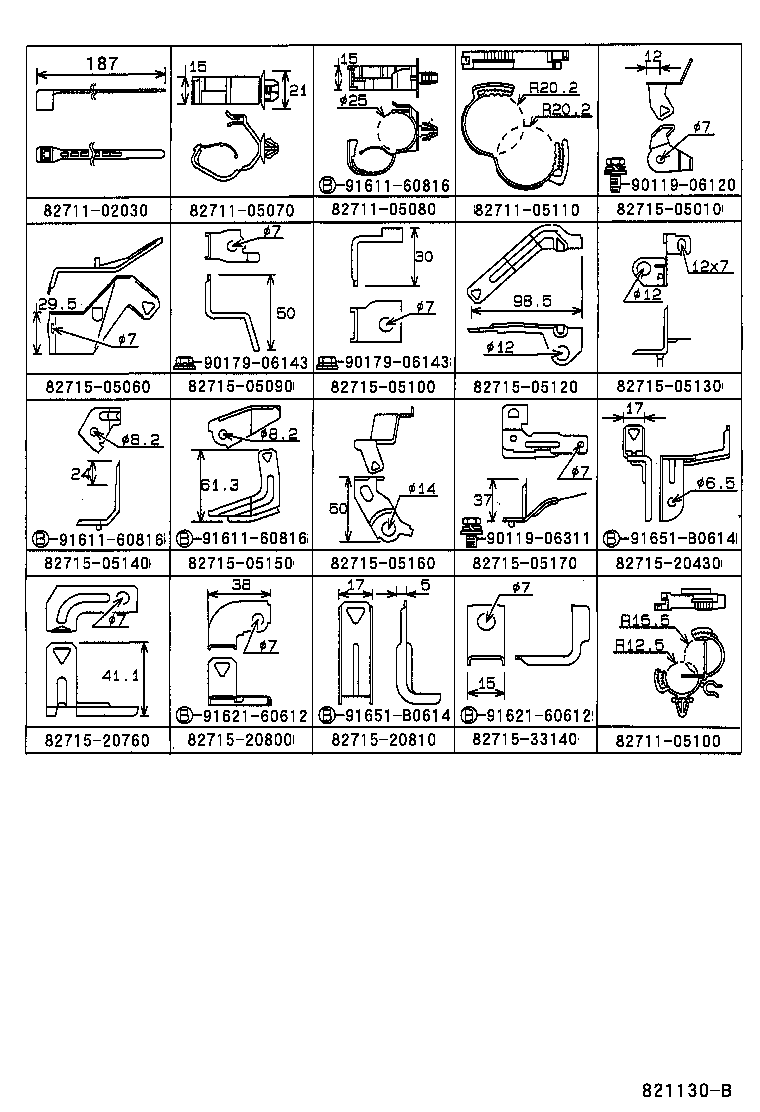

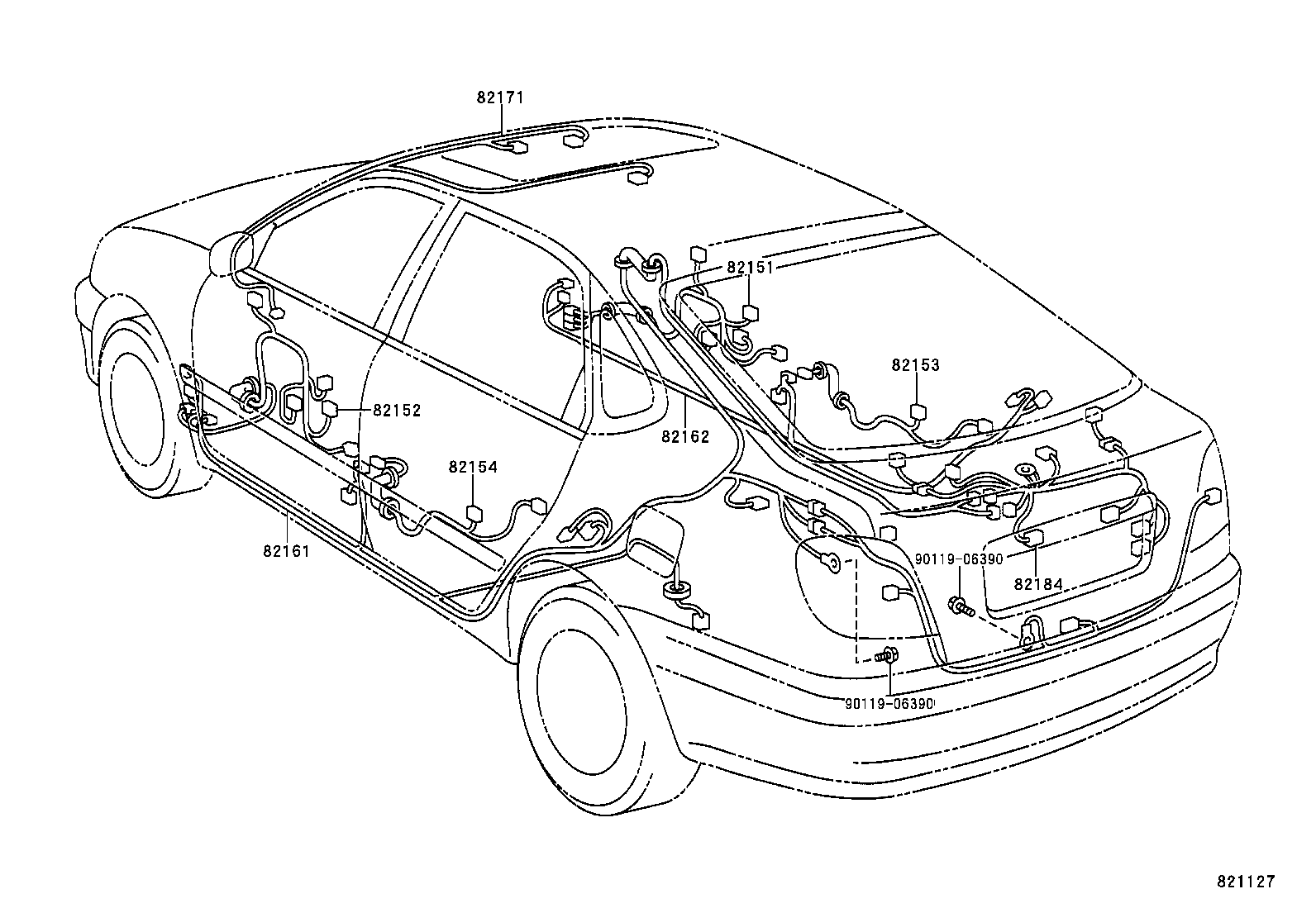

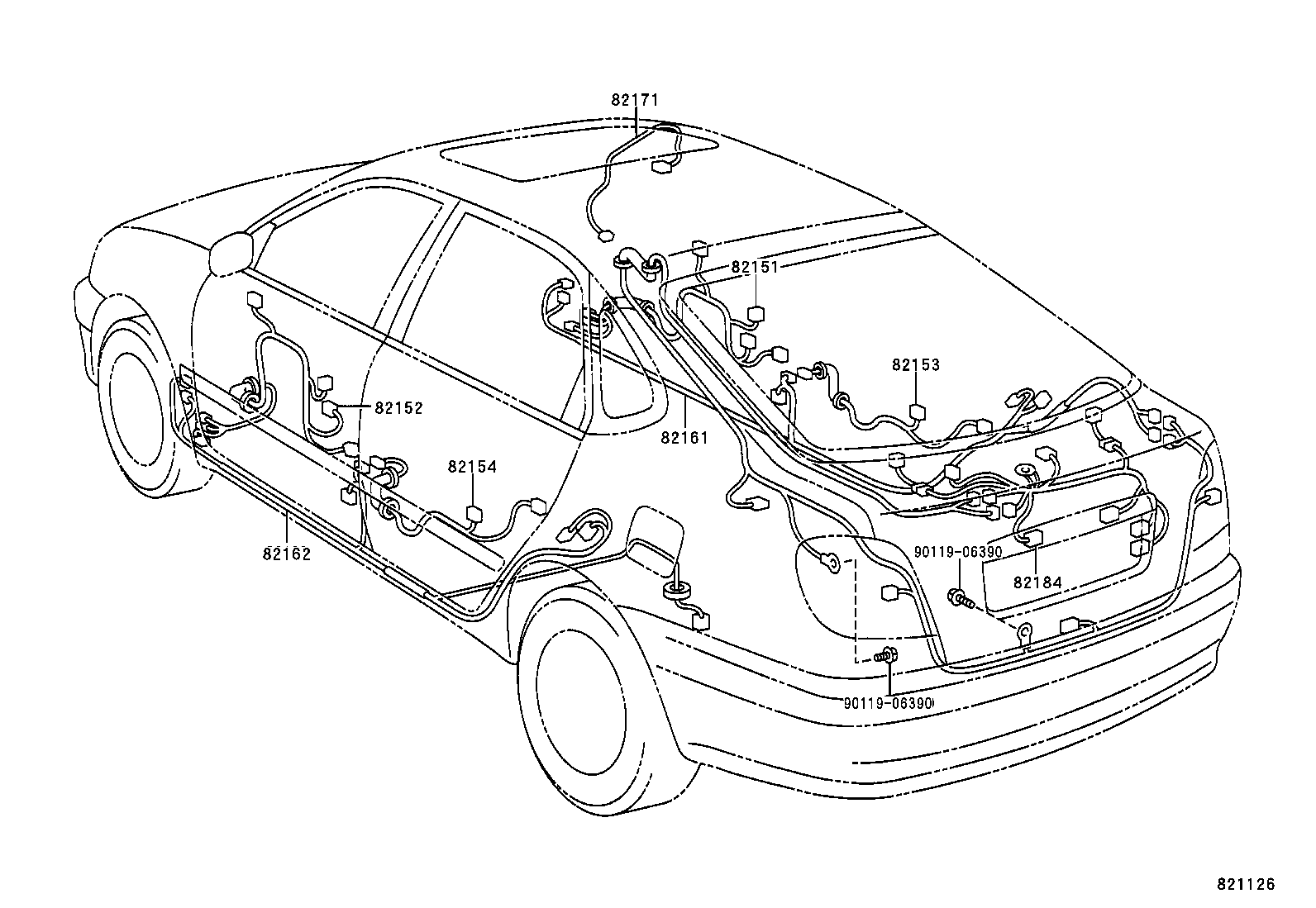

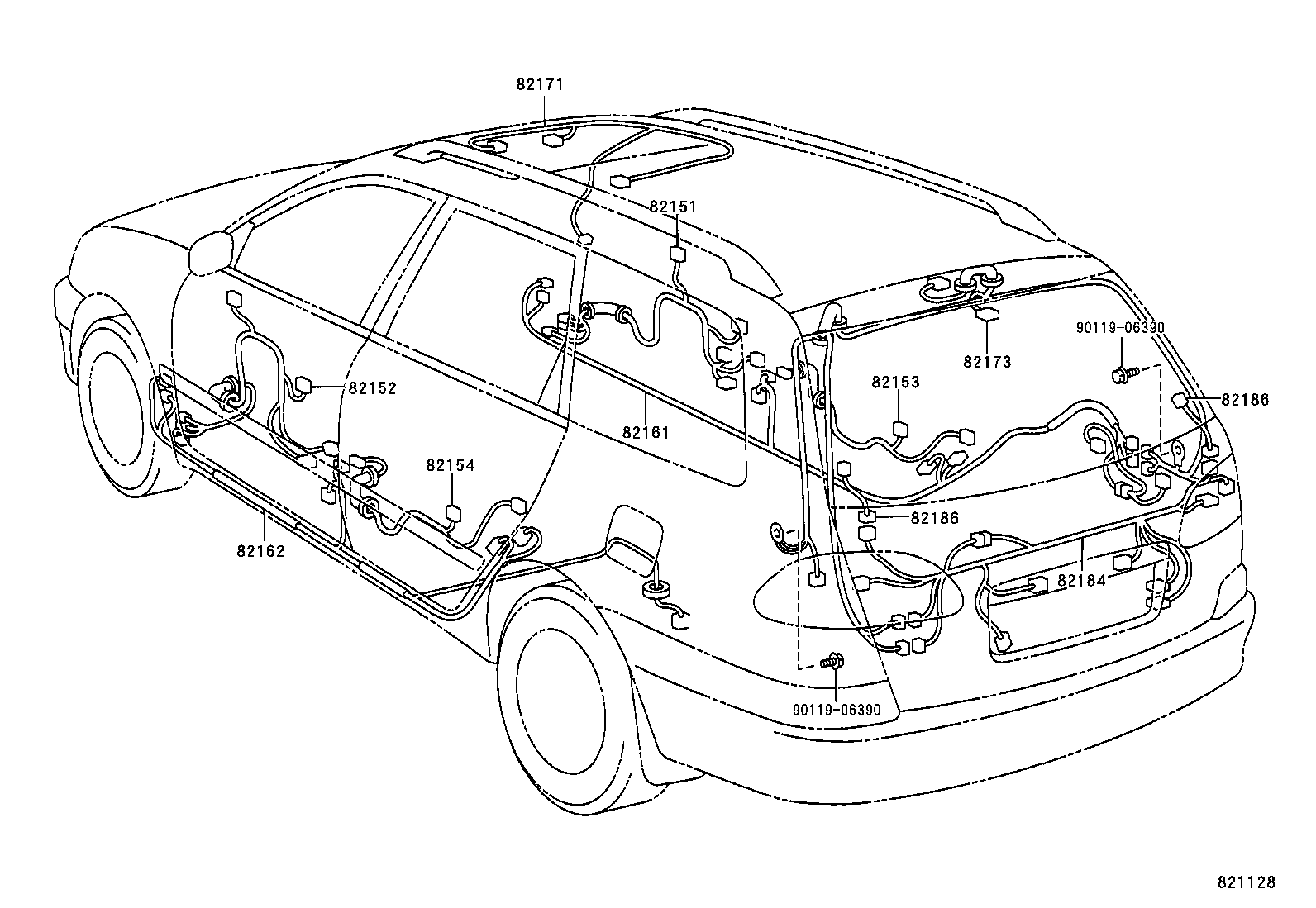

Figure 821124D 821124D 1997-10 → — Figure 821748E 821748E 1999-05 → — Figure 821112A 821112A 1997-10 → 2000-07 Figure 821113C 821113C 1997-10 → 2000-07 Figure 821114B 821114B 1997-10 → — Figure 822312B 822312B 2000-07 → — Figure 822313A 822313A 2000-07 → — Figure 821168C 821168C 1997-10 → — Figure 821170C 821170C 1997-10 → — Figure 821153B 821153B 1997-10 → — Figure 821118C 821118C 1997-10 → — Figure 821119 821119 1997-10 → — Figure 821120 821120 1997-10 → — Figure 821126 821126 1997-10 → — Figure 821127 821127 1997-10 → — Figure 821128 821128 1997-10 → — Figure 821129 821129 1997-10 → — Figure 821130B 821130B 1997-10 → — Figure 821131B 821131B 1997-10 → — Figure 821749D 821749D 1997-10 → — Figure 822466 822466 1997-10 → 2000-07 Figure 822466 822466 2000-07 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

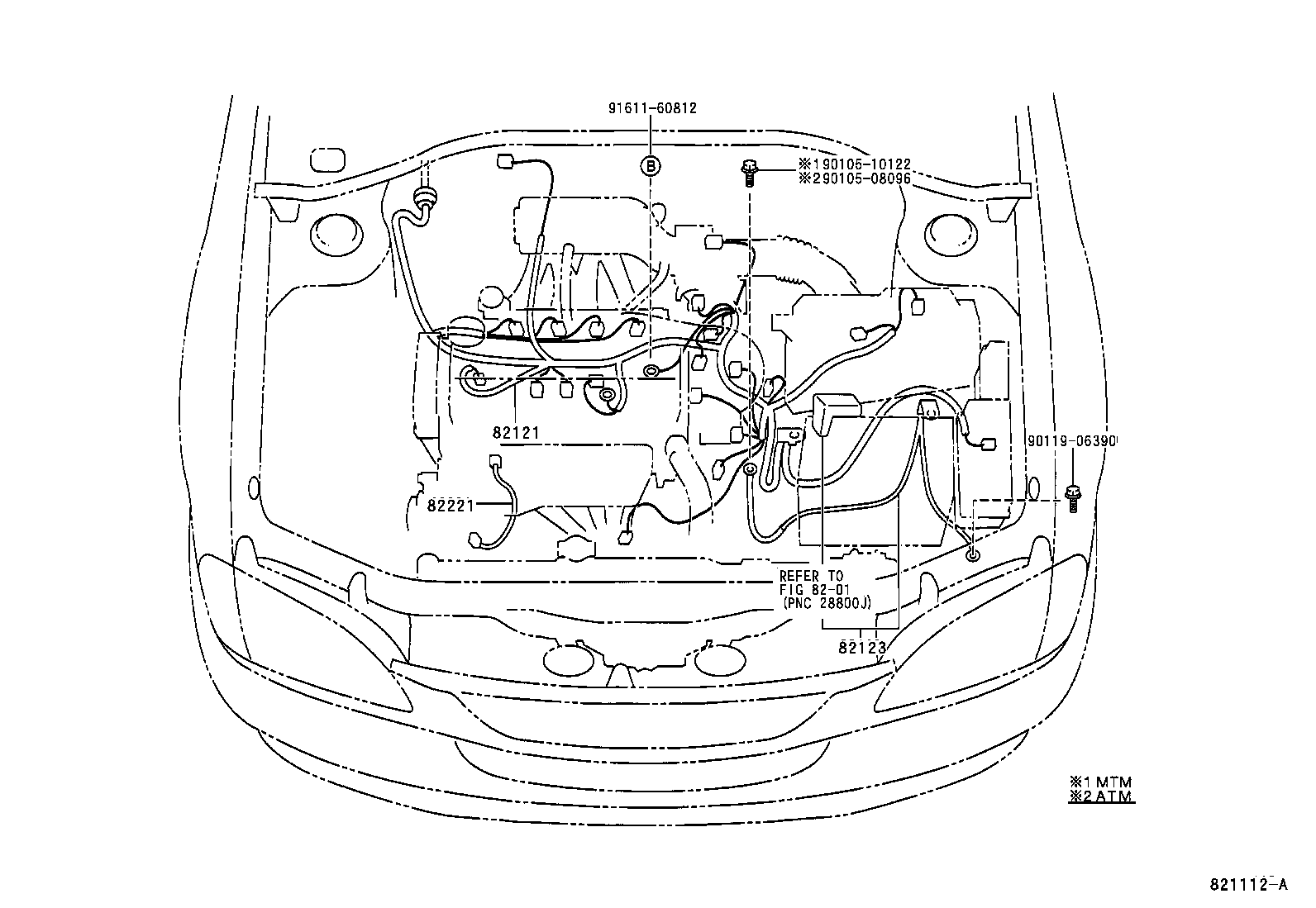

82111 Wire, Engine Room Main

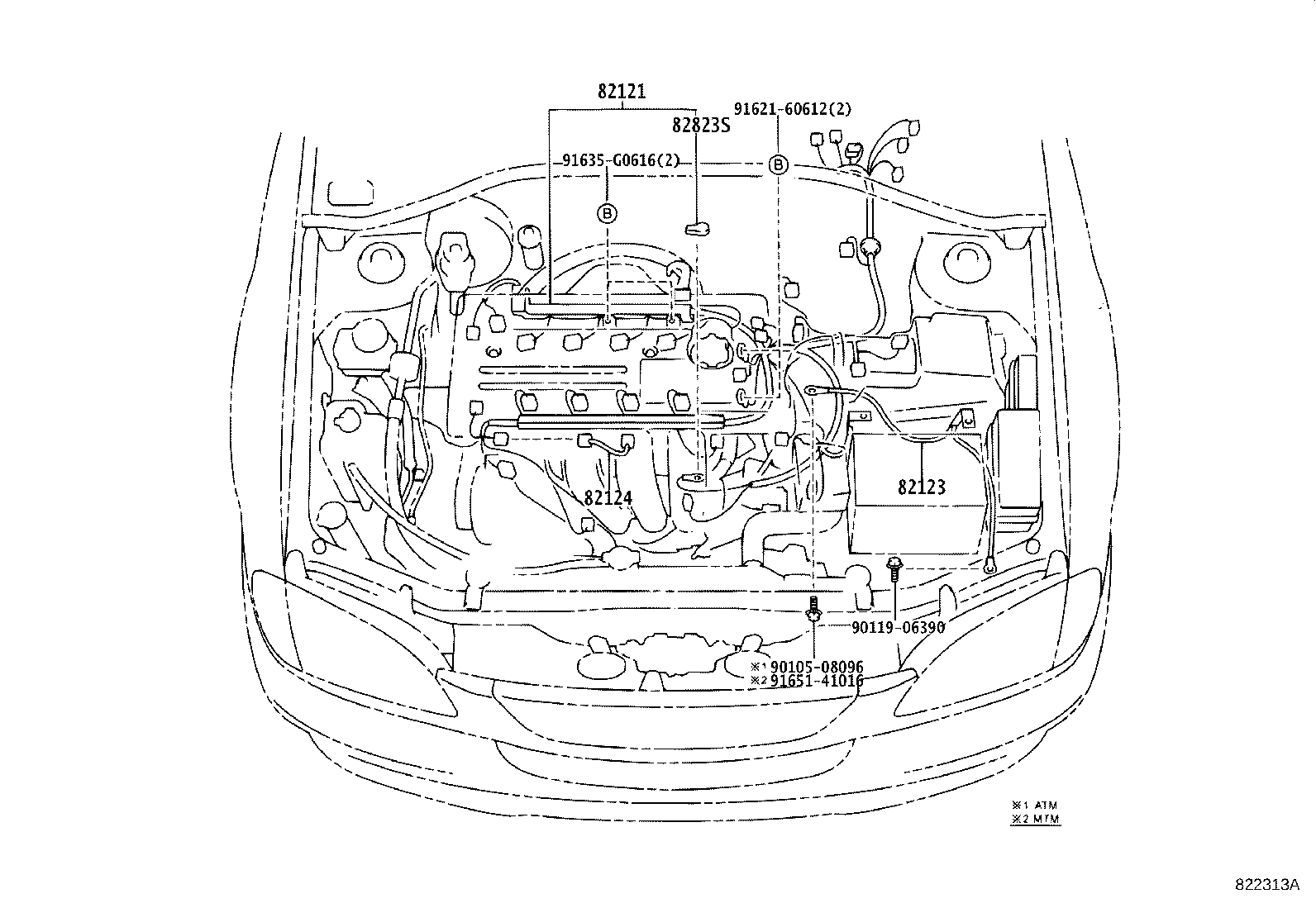

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine

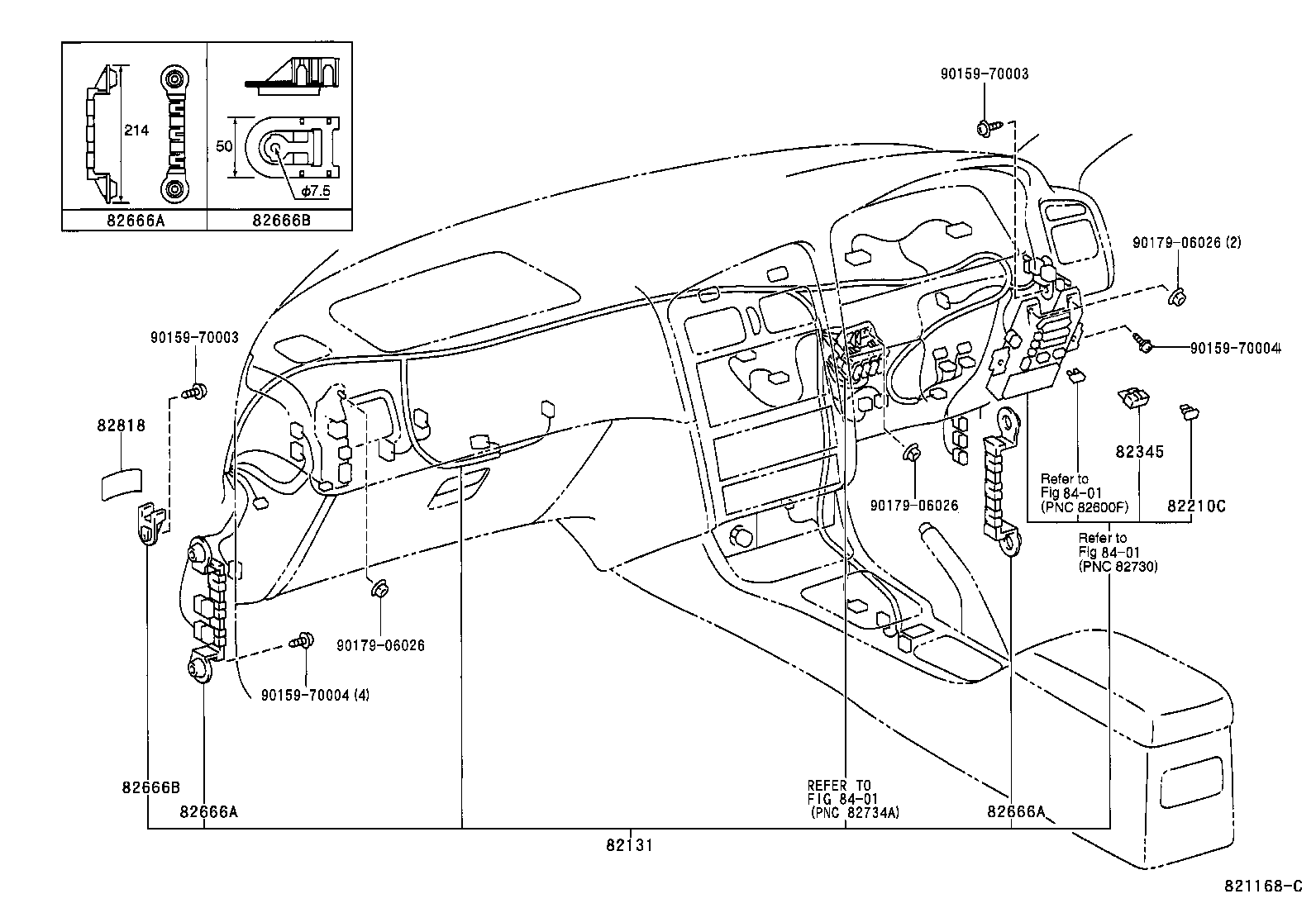

82131 Wire, Cowl

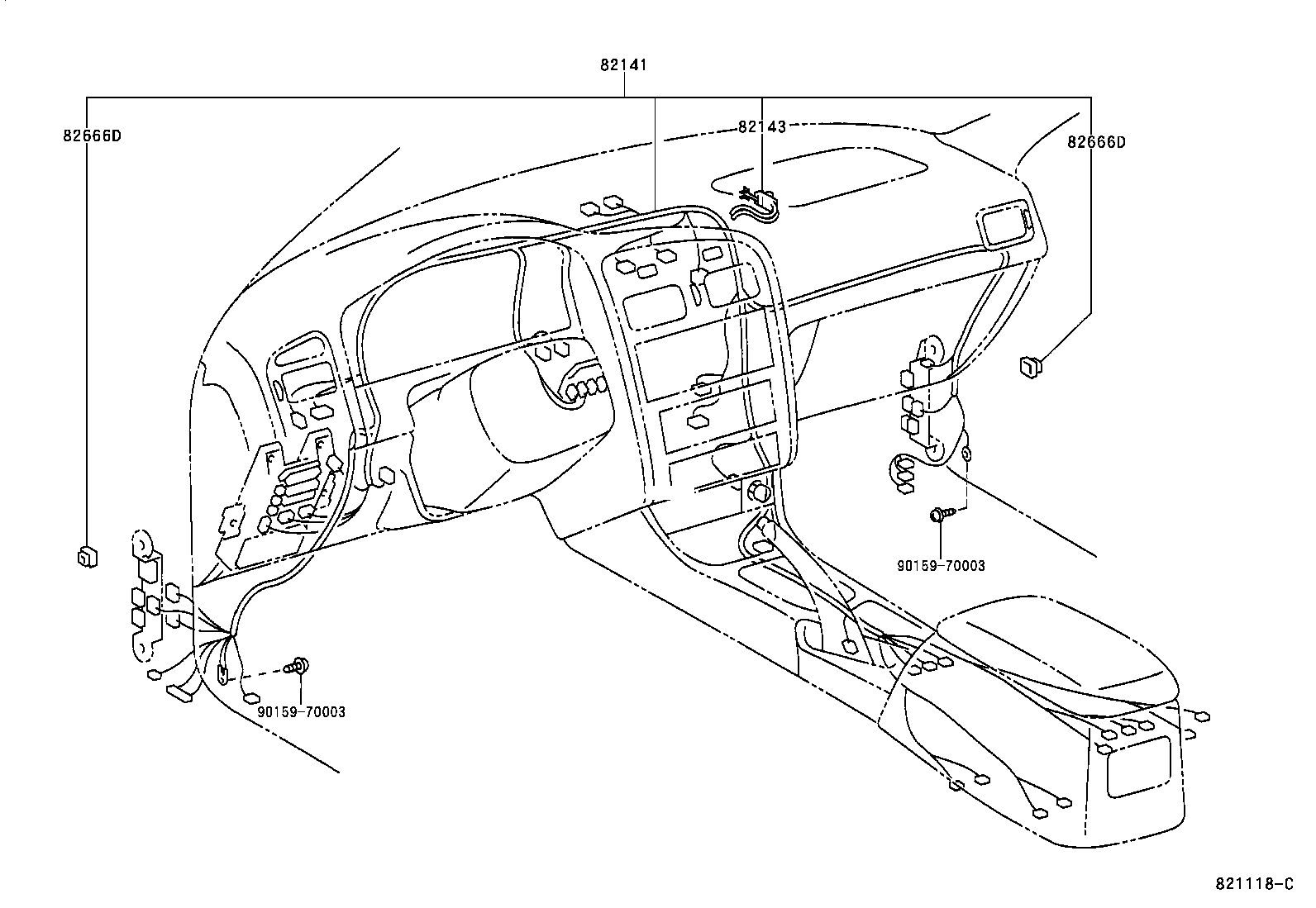

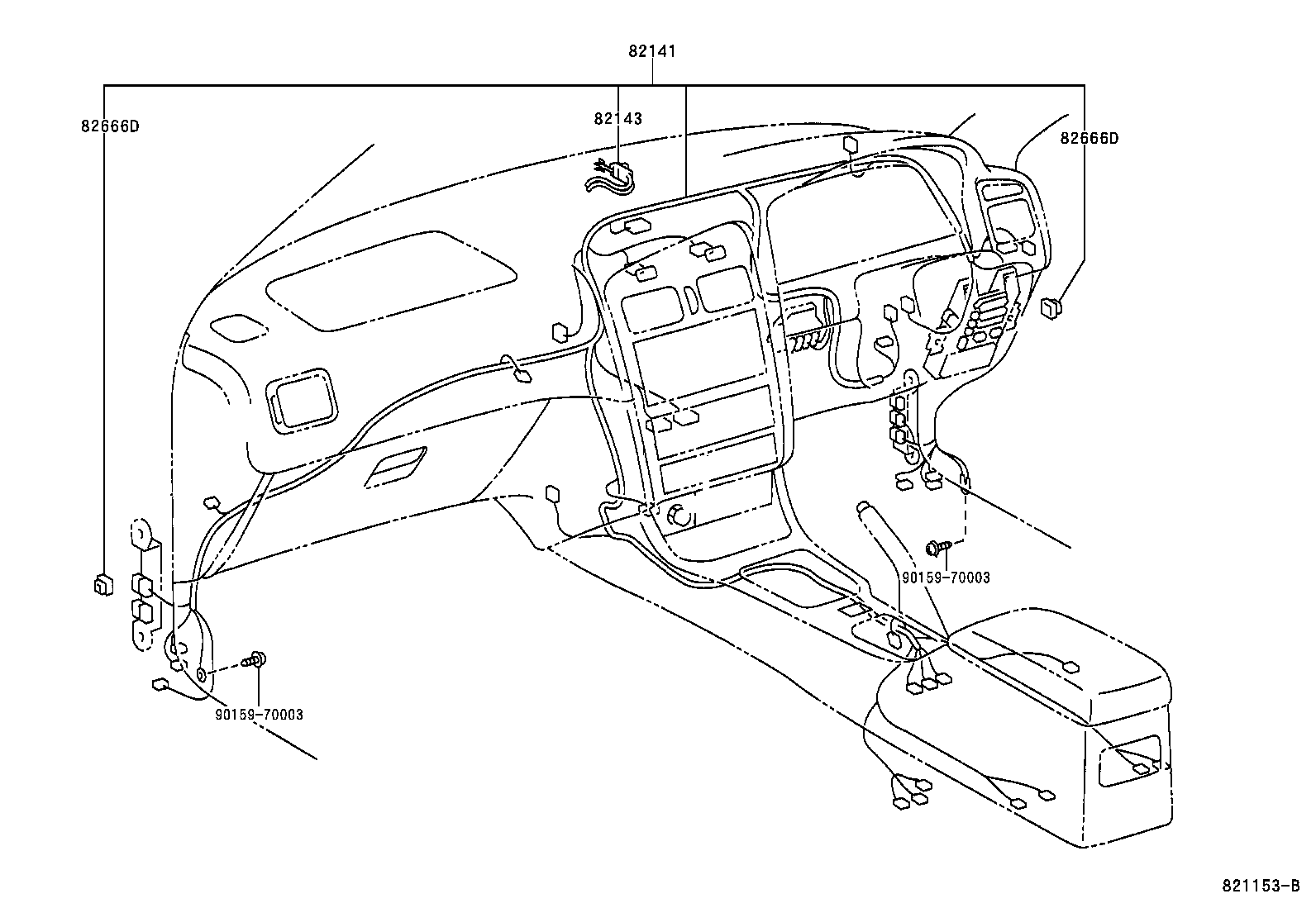

82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

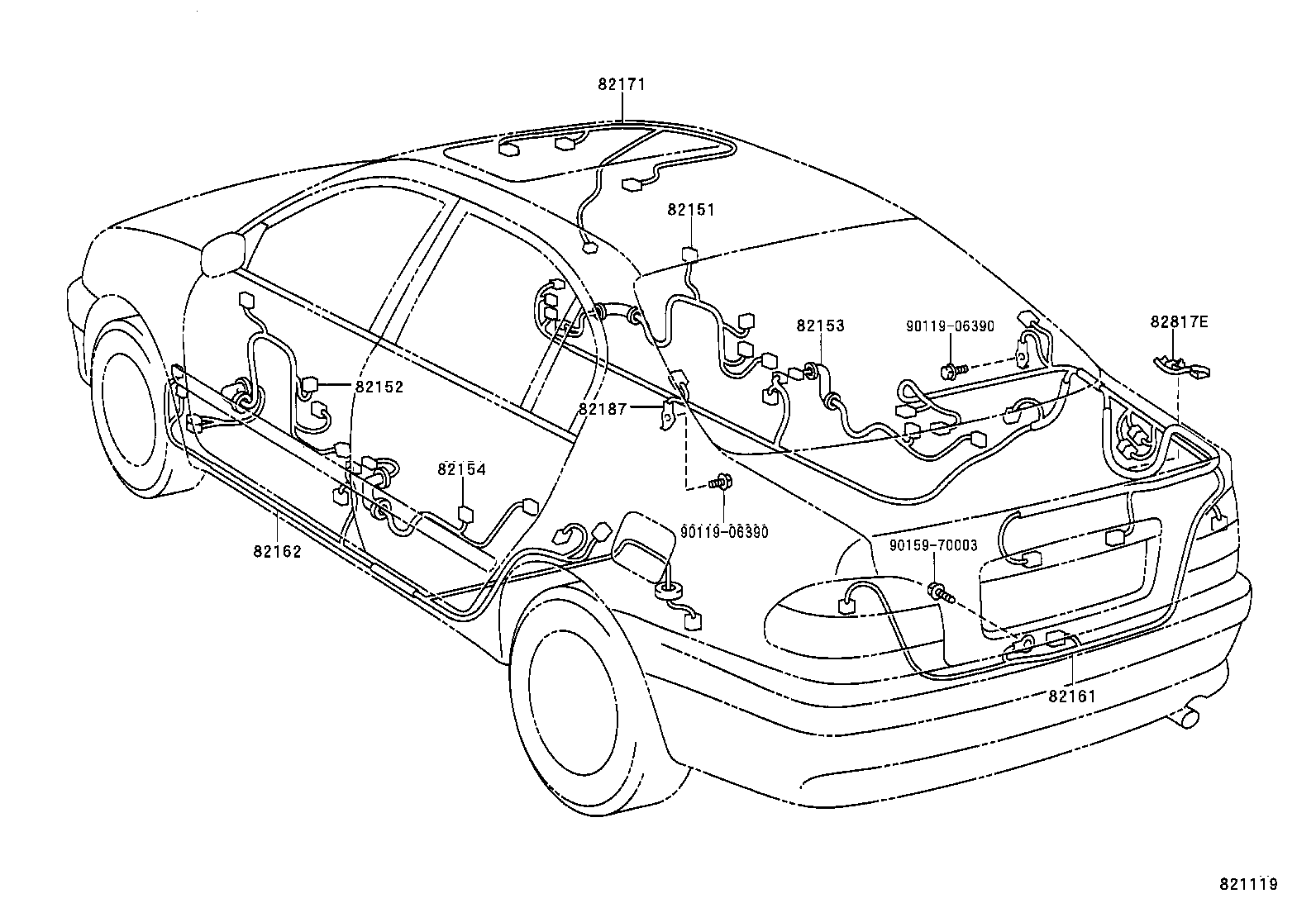

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link

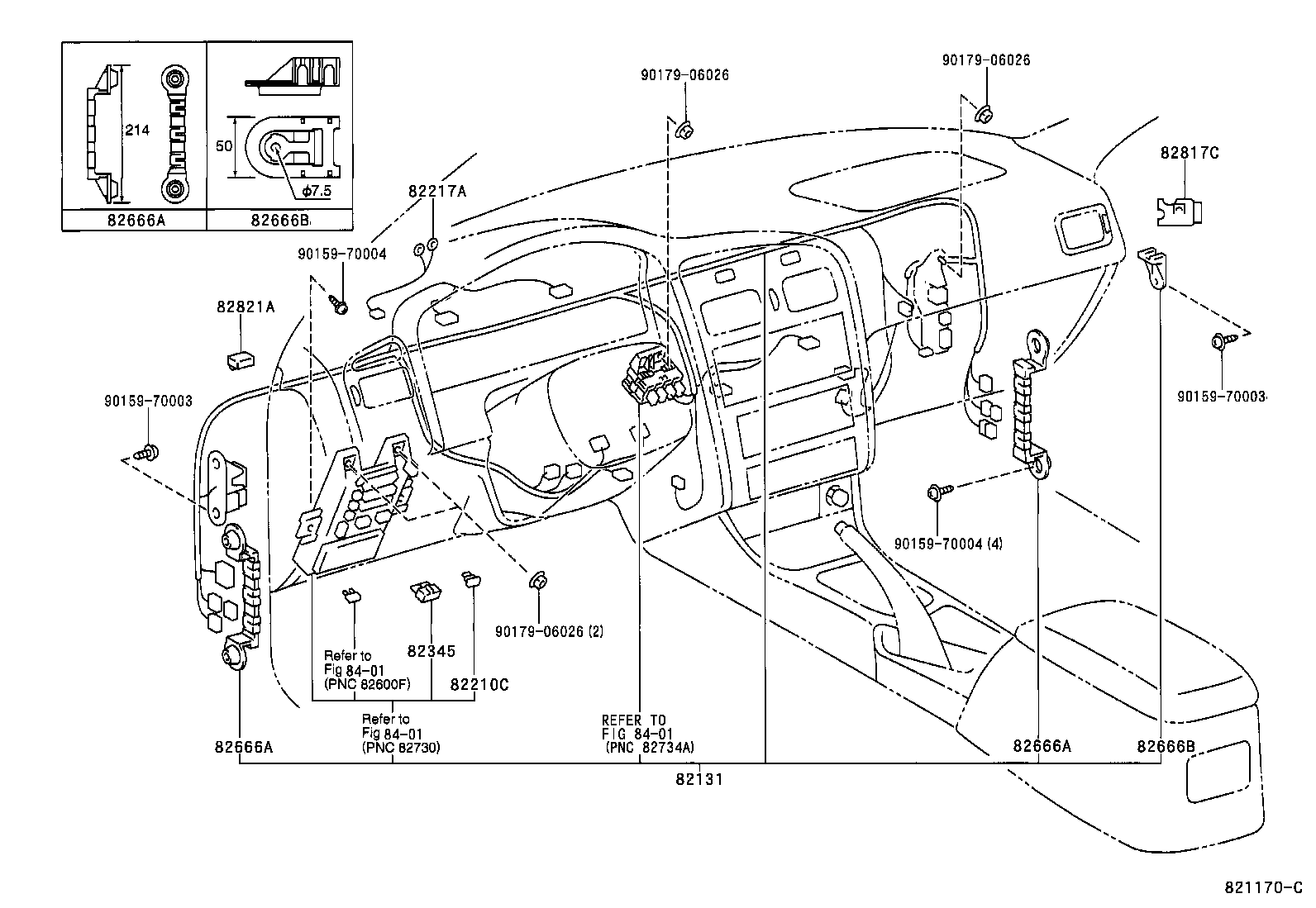

82217A Wire, Front Window Defogger
82221 Wire, Oil Pressure Switch
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82818 Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823B Cap, Terminal, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
