Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Electronic Controled Diesel (ECD)

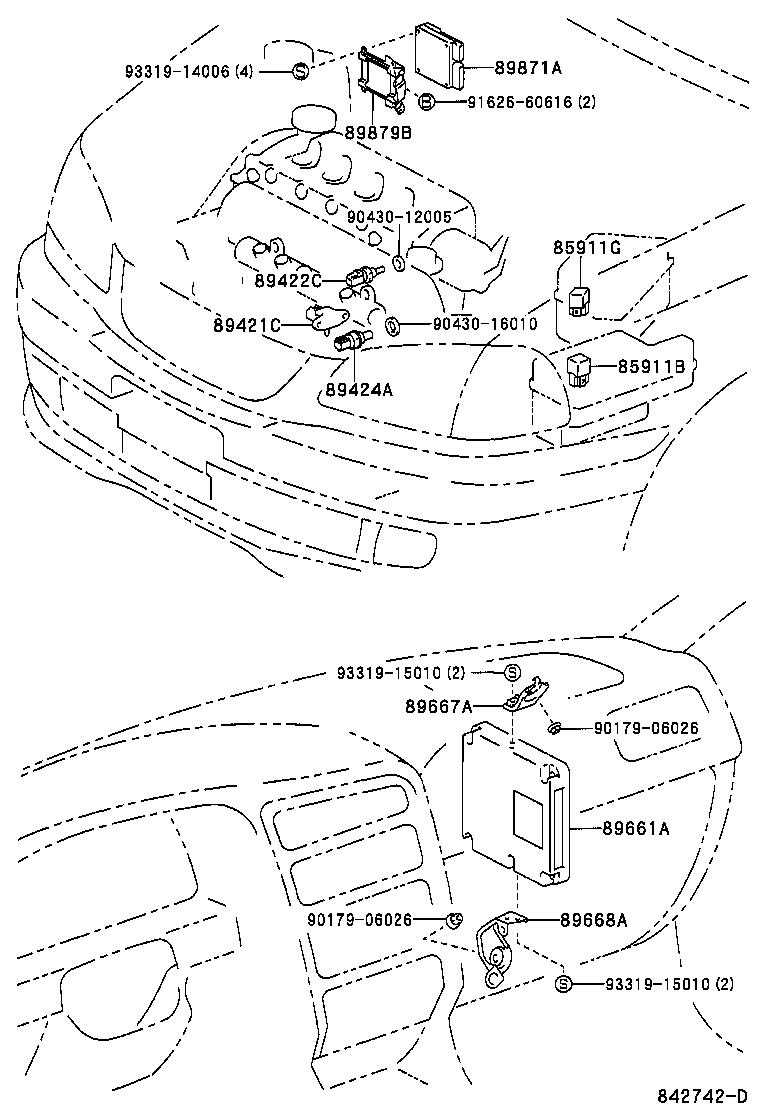

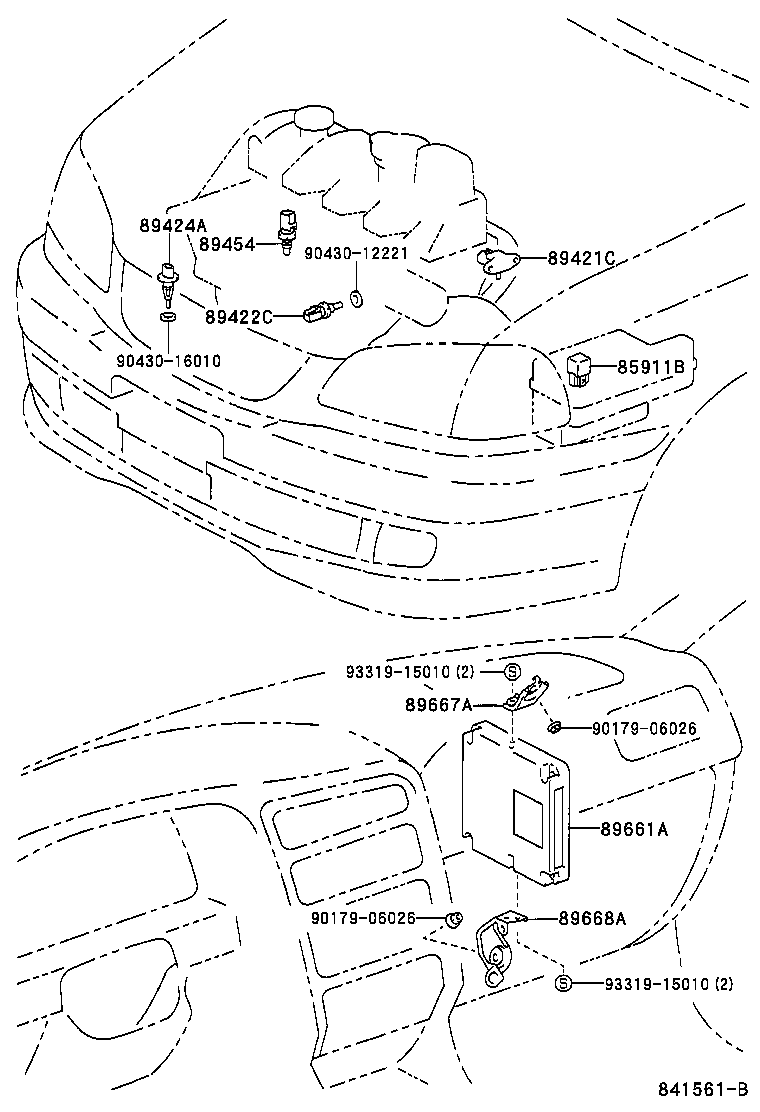

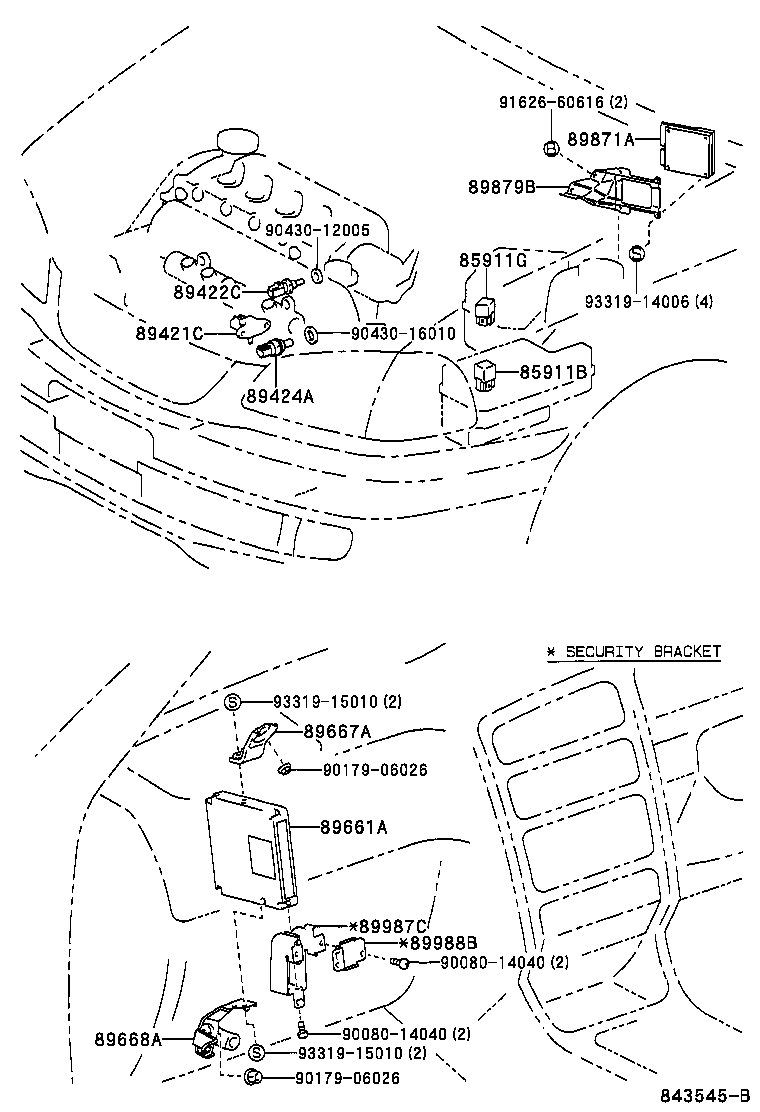

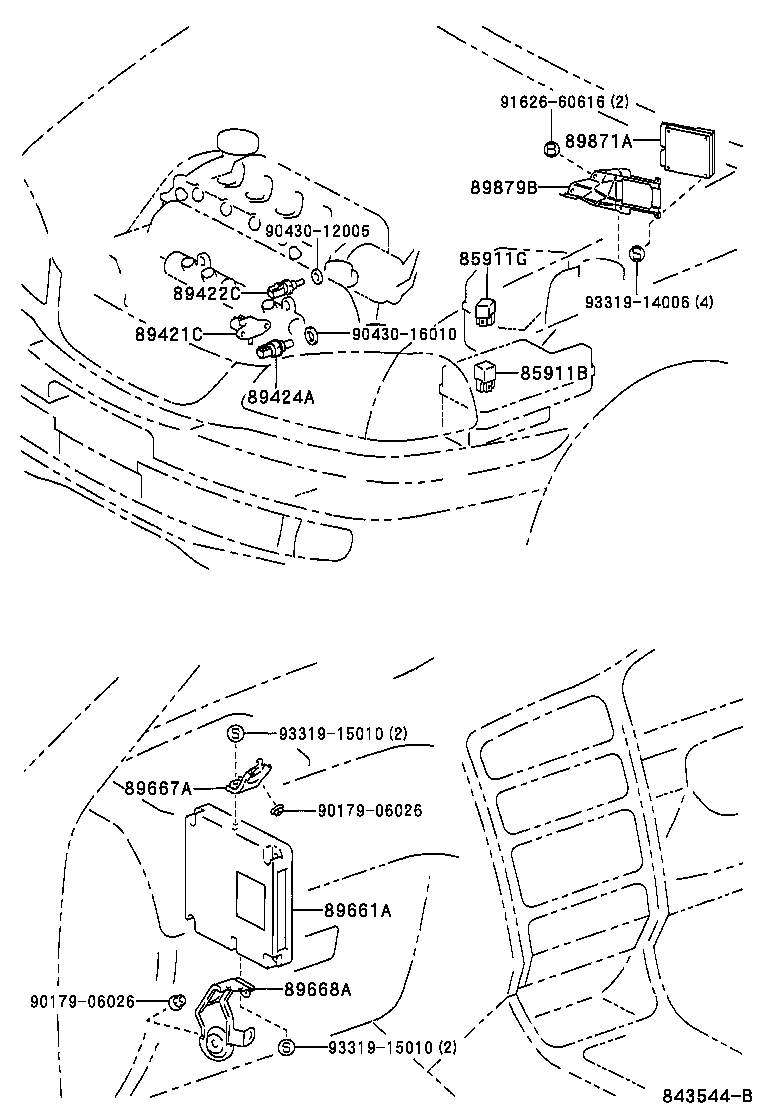

13 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 85911B | Relay, Computer (FOR DIESEL TURBO) |
| 85911G | Relay, Injector Driver |
| 89421C | Sensor, Turbo Pressure (FOR DIESEL TURBO) |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89424A | Sensor, Inlet Air Temperature (FOR DIESEL TURBO) |
| 89454 | Sensor, Fuel Temperature |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89871A | Driver, Injector |
| 89879B | Bracket, Injector Driver |
| 89987C | Bracket, Computer, NO.1 |
| 89988B | Bracket, Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
