Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Overdrive & Electronic Controlled Transmission

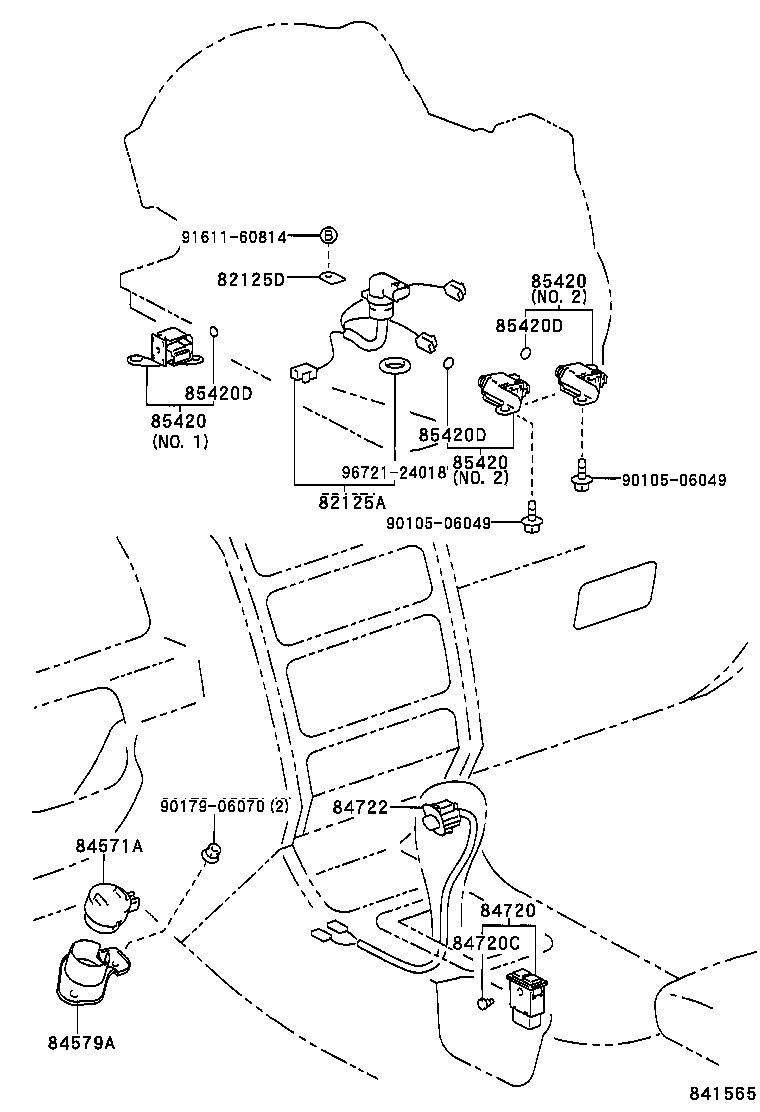

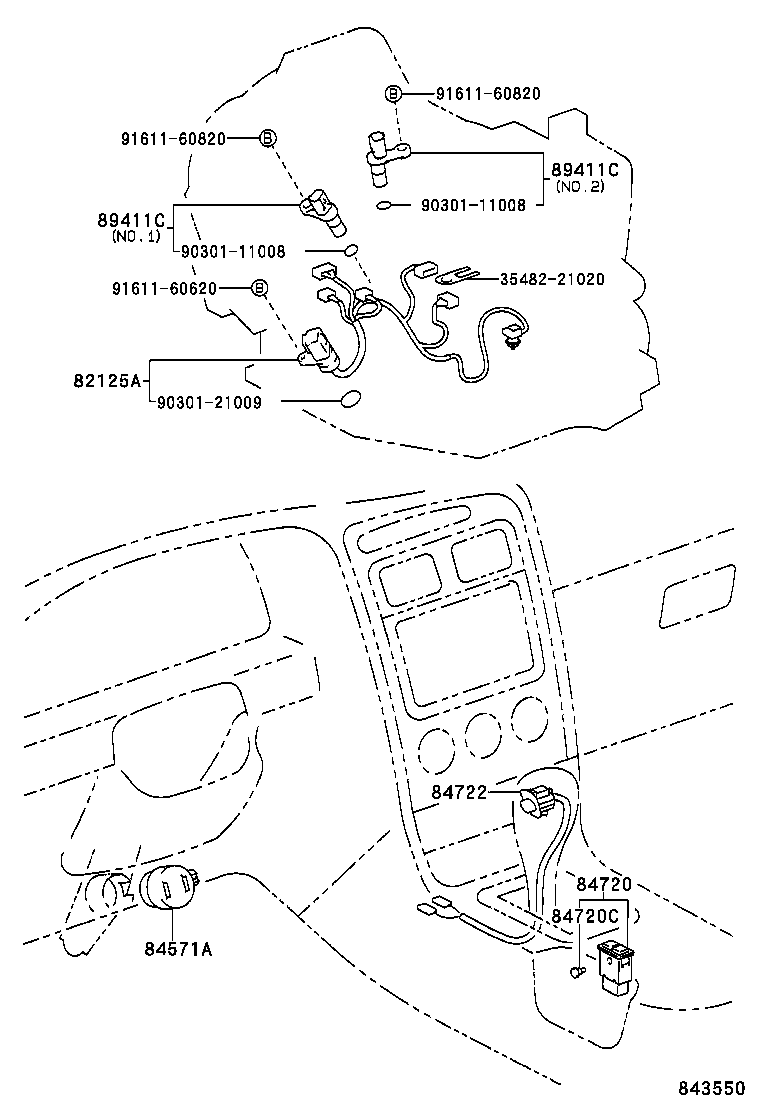

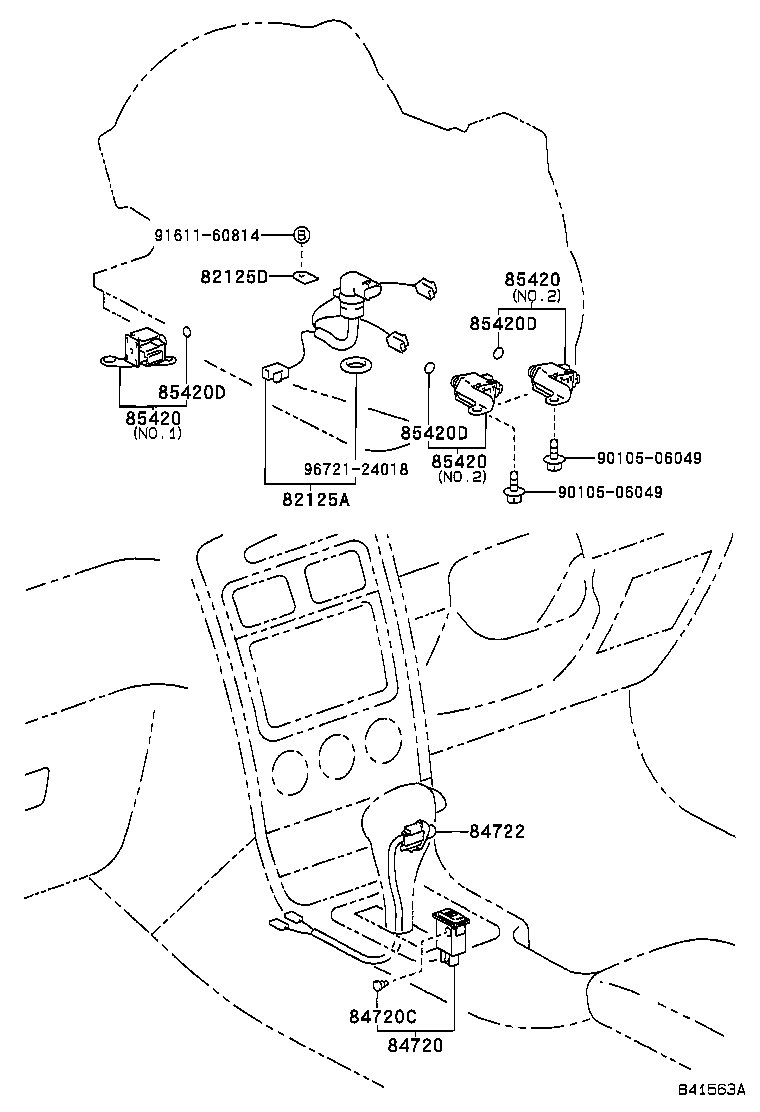

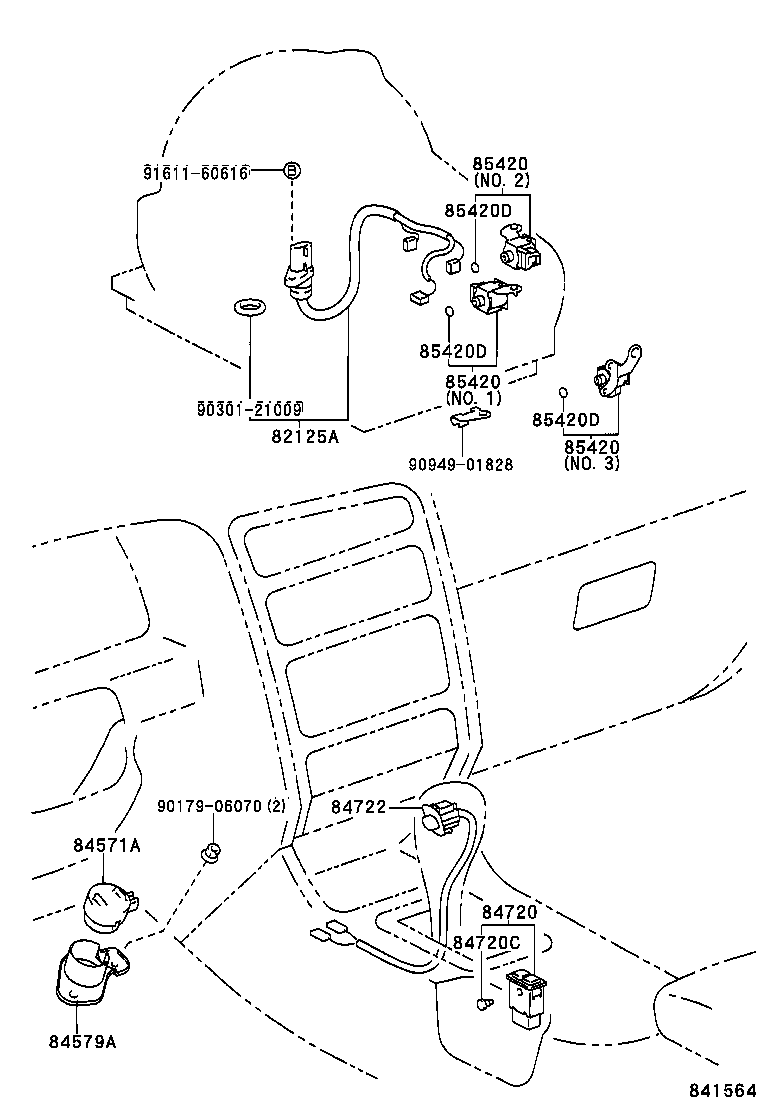

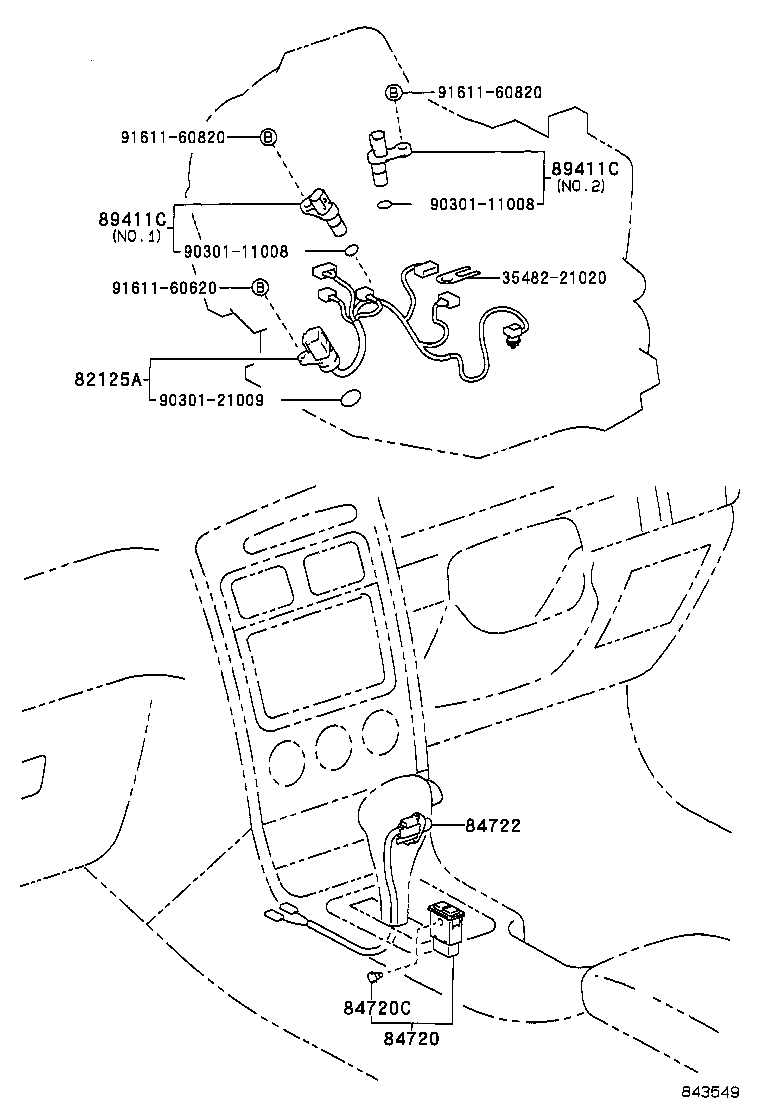

10 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84571A | Switch, Kick Down |
| 84579A | Bracket, Kick Down Switch |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
