Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 5 illustrations

Illustrations

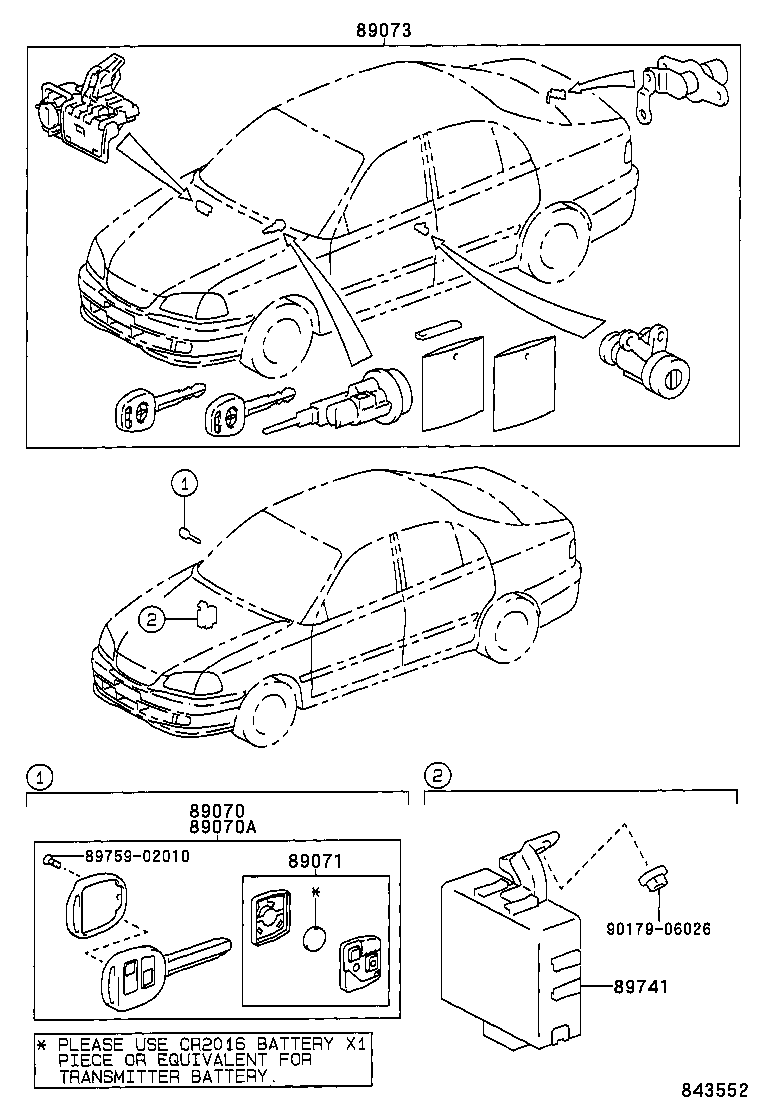

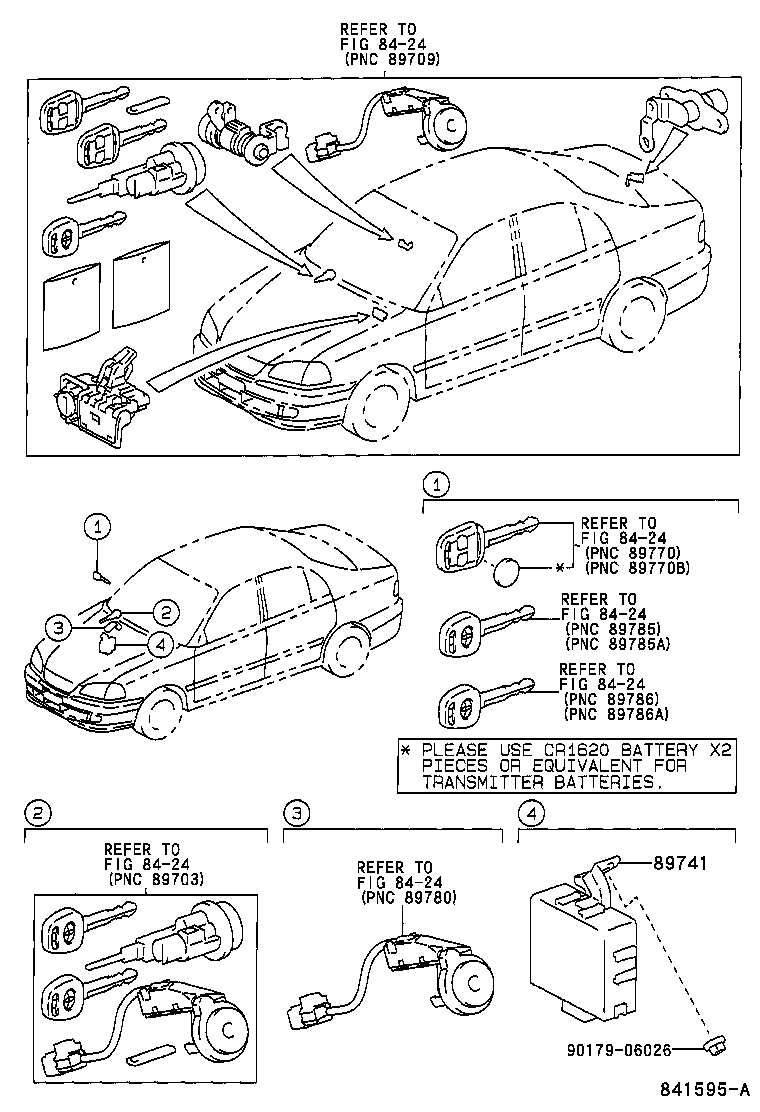

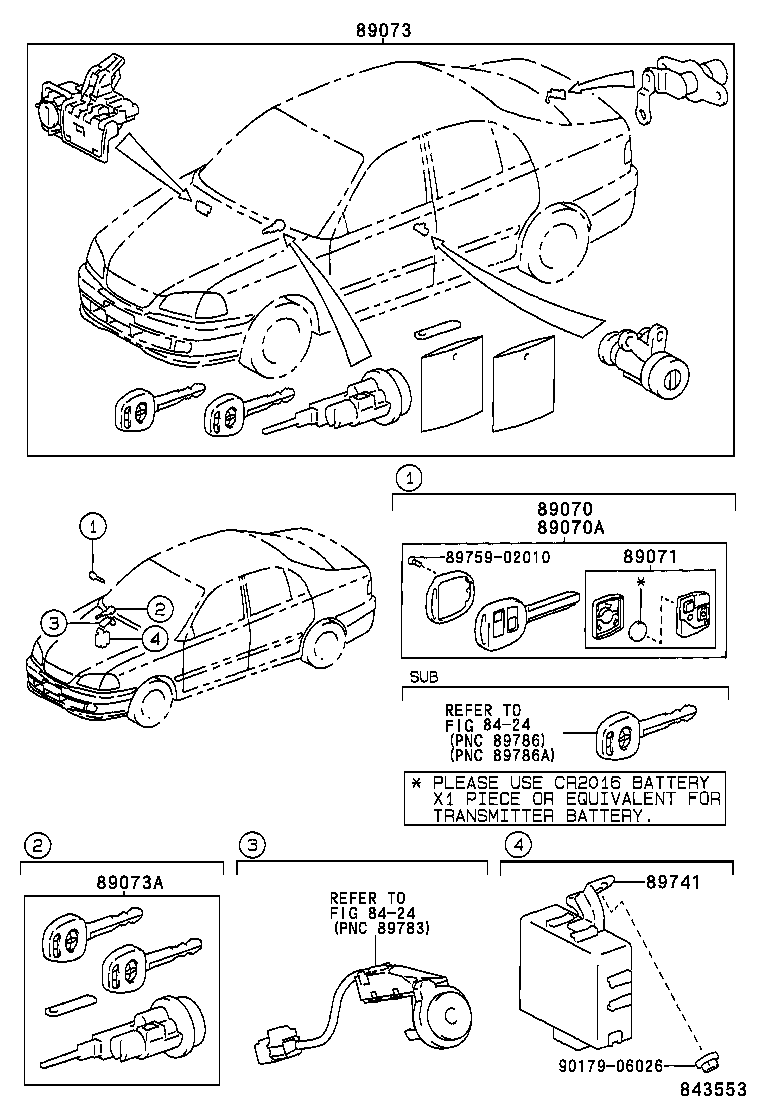

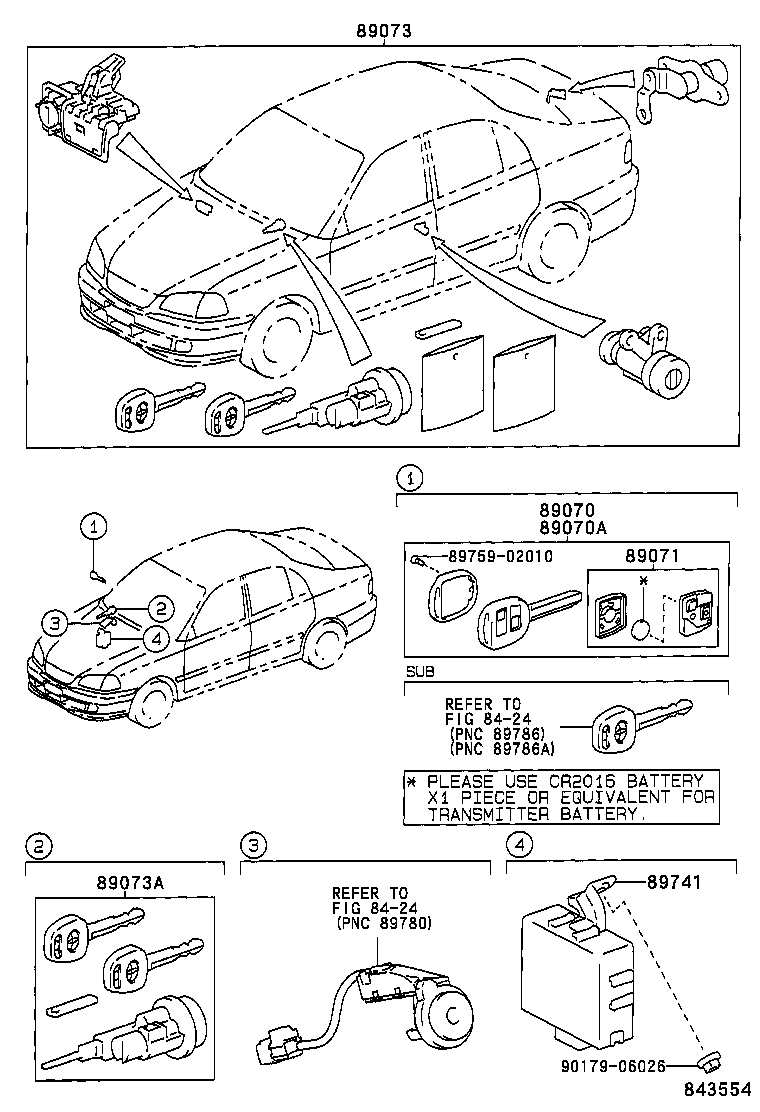

Figure 841594A 841594A 1997-10 → 2000-07 Figure 843552 843552 2000-07 → — Figure 841595A 841595A 1997-10 → 2000-07 Figure 843553 843553 2000-07 → — Figure 843554 843554 2000-07 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89708 Cylinder Set, Wireless Door Lock
89741 Receiver, Door Control
89770A Transmitter Assy, Transponder W/O Immobilizer(BLANK)
89770C Transmitter Assy, Transponder W/O Immobilizer(CUT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
