Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

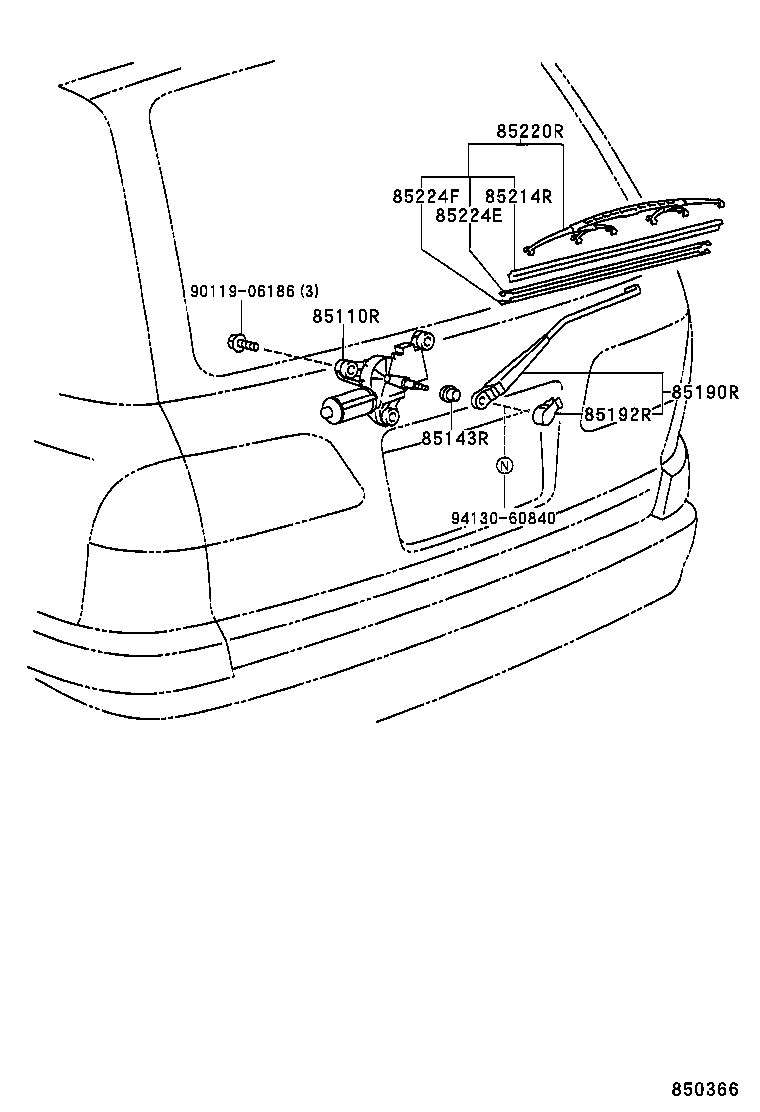

Rear Wiper
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
