Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

7 part groups · 2 illustrations

Illustrations

Figure 850368B

850368B 1997-10 → —

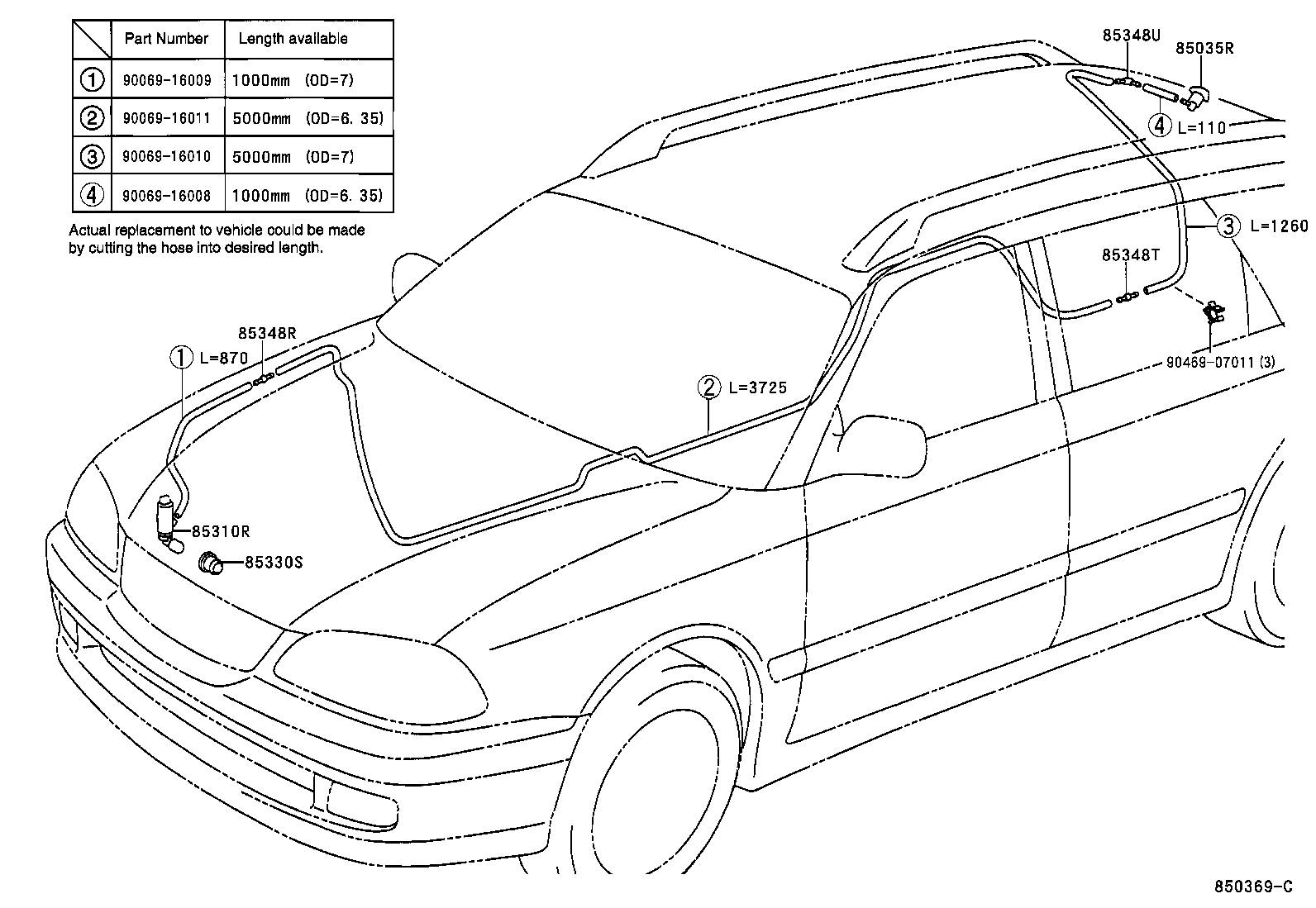

Figure 850369C

850369C 1997-10 → —

Part groups

PNC	Description
85035R	Nozzle Sub-assy, Rear Washer
85310R	Motor Assy, Rear Washer
85330S	Bush, Rear Washer Jar
85348R	Joint, Rear Washer Hose, NO.1
85348T	Joint, Rear Washer Hose, NO.2
85348U	Joint, Rear Washer Hose, NO.3
85372D	Grommet, Rear Washer Hose

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
