Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 3 illustrations

Illustrations

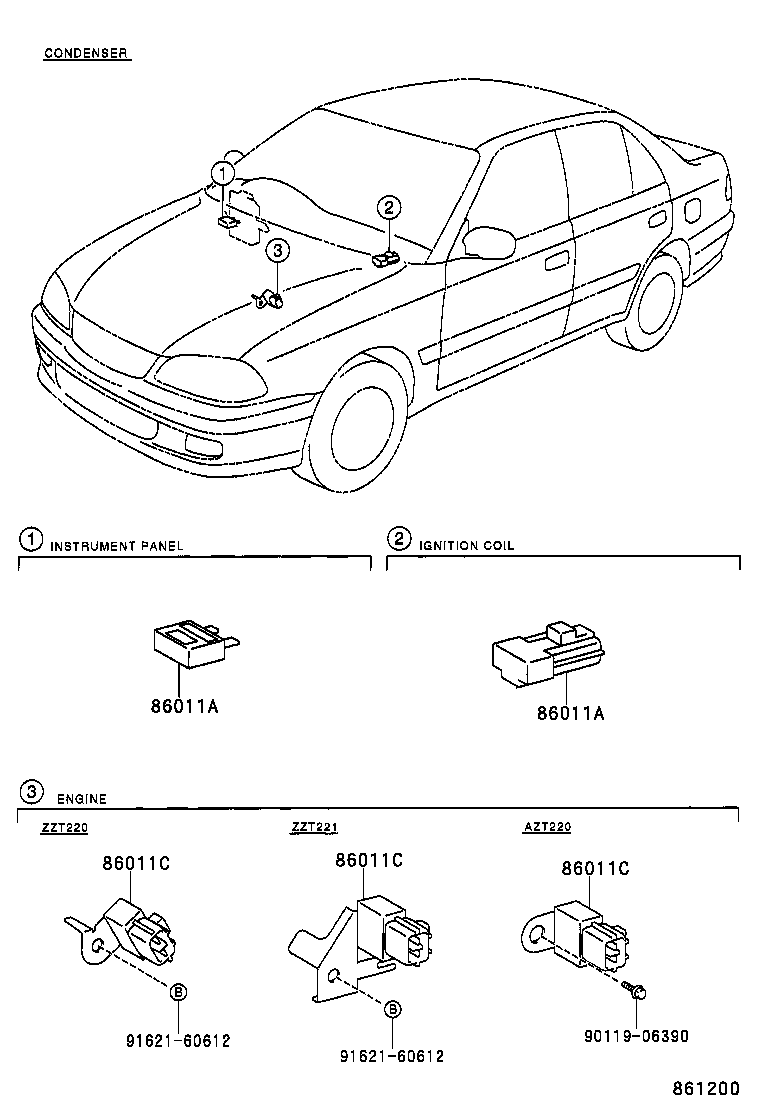

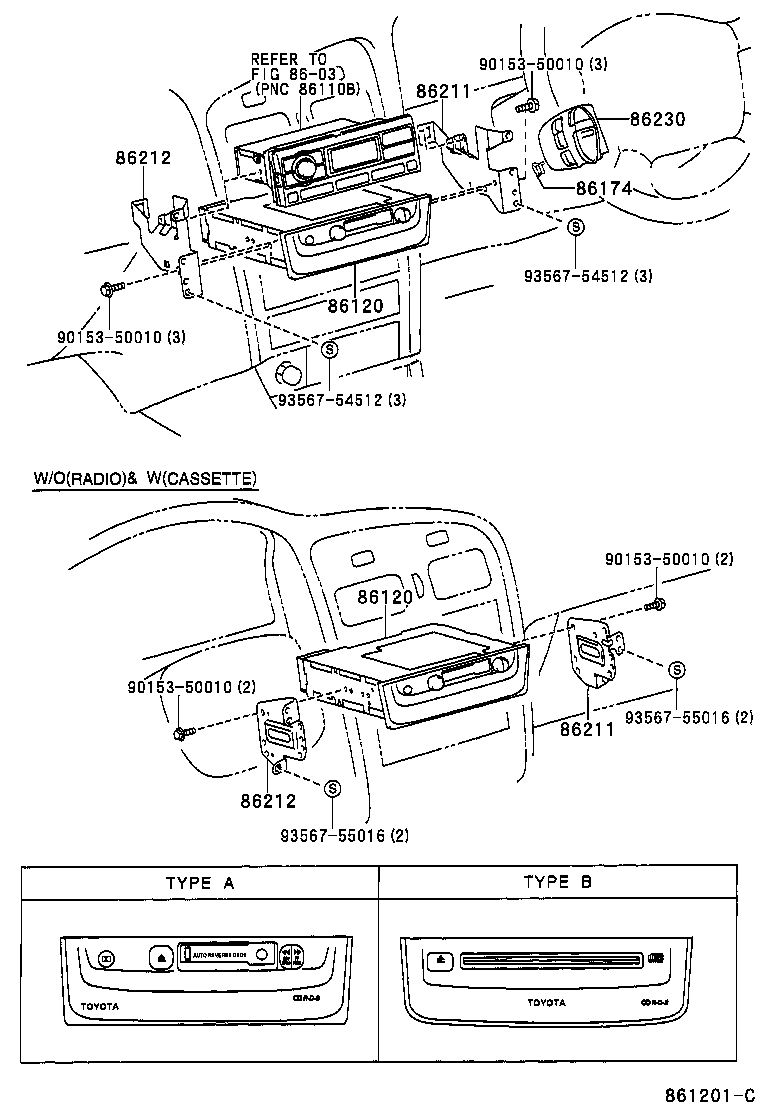

Figure 860532B 860532B 1997-10 → 2000-07 Figure 861201C 861201C 2000-07 → — Figure 861200 861200 1997-10 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86174 Case, Switch & Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86230 Controller Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
