Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Heating & Air Conditioning - Control & Air Duct
32 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

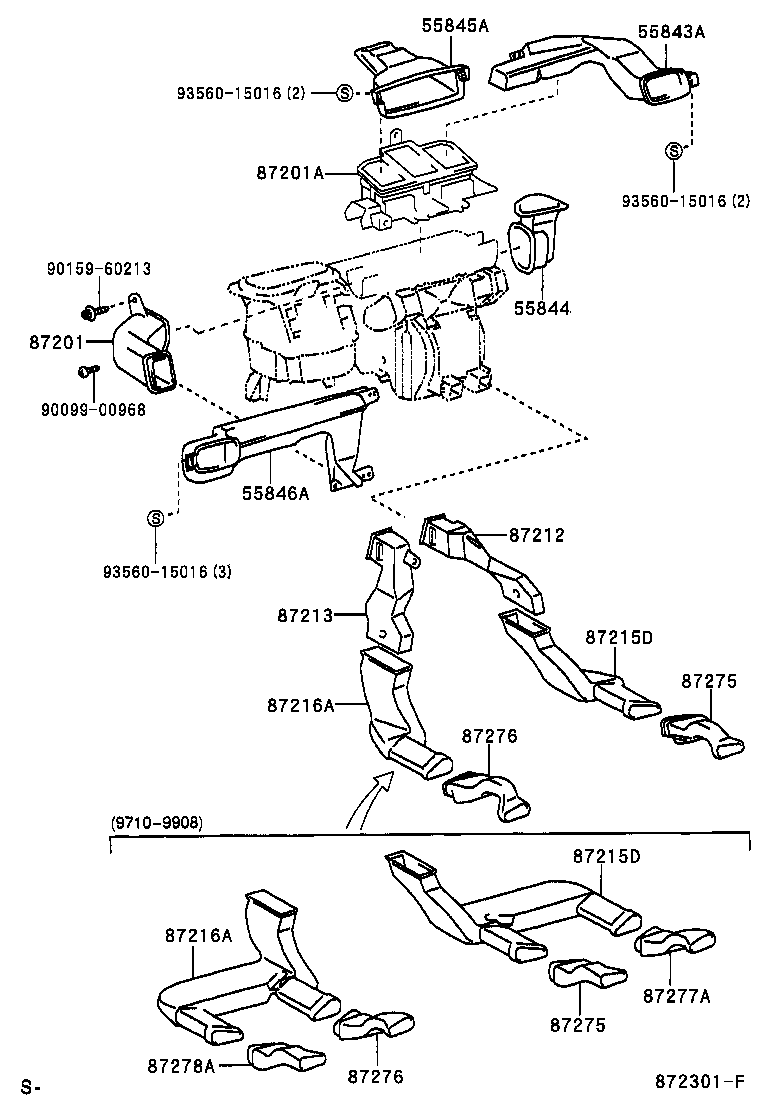

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55900B | Bulb, Air Conditioner Control |

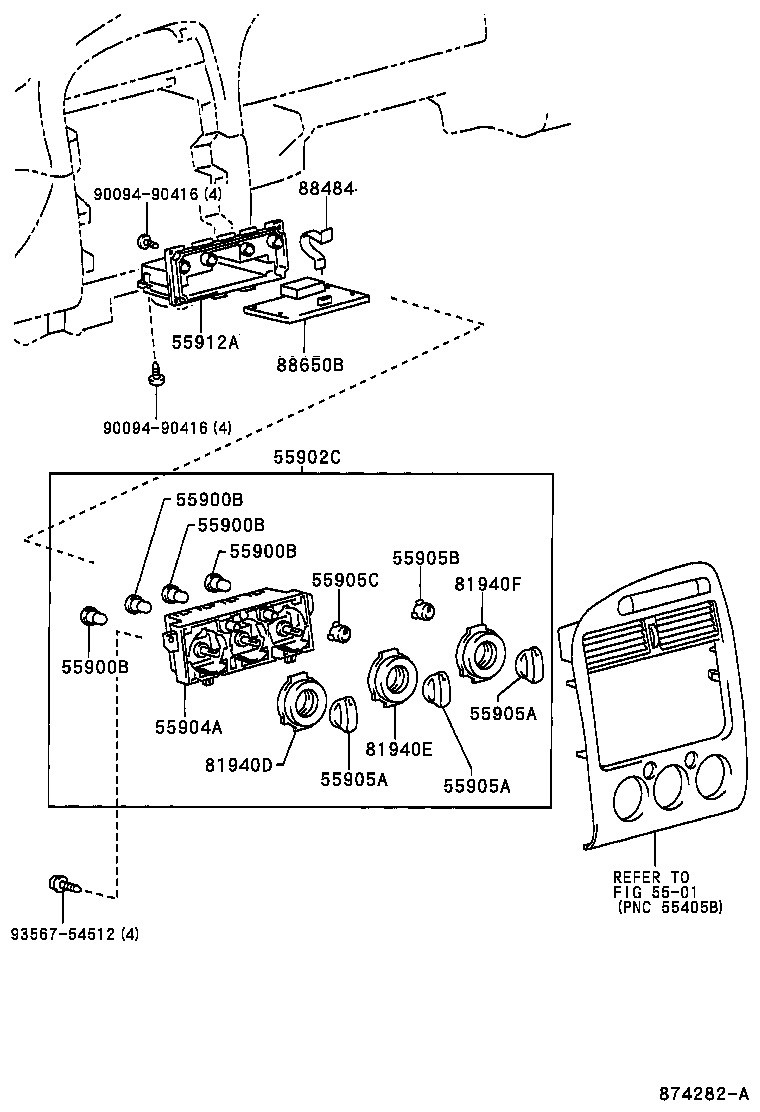

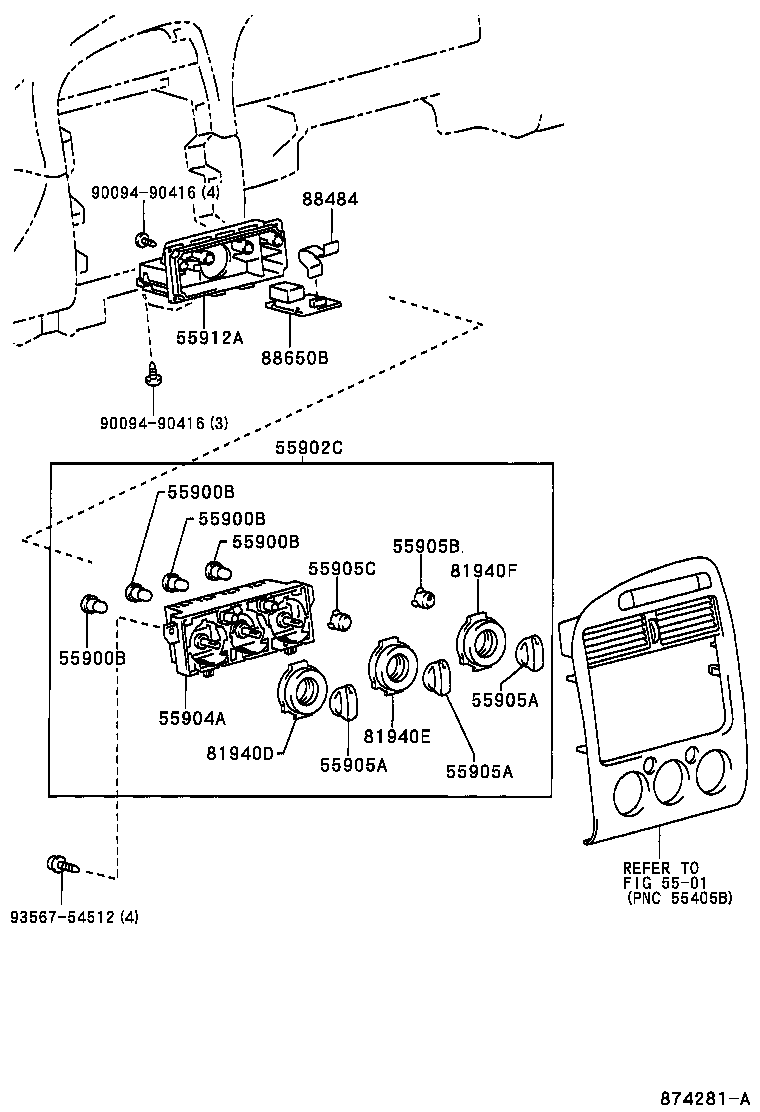

| 55902C | Panel Sub-assy, Air Conditioner |
| 55904A | Housing Sub-assy, Heater Control |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55905C | Knob, Heater Control, NO.3 |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55912A | Housing, Heater Control |
| 81940D | Lens Assy, Heater Control |
| 81940E | Lens Assy, Heater Control |
| 81940F | Lens Assy, Heater Control |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201A | Duct Sub-assy, Air |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215D | Duct, Air, Rear NO.4 |
| 87216A | Duct, Air, Rear NO.5 |
| 87275 | Duct, Floor Heater Air, NO.1 RH |
| 87276 | Duct, Floor Heater Air, NO.1 LH |
| 87277A | Duct, Floor Heater Air, NO.2 RH |
| 87278A | Duct, Floor Heater Air, NO.2 LH |
| 88484 | Wire, Cooler, NO.1 |

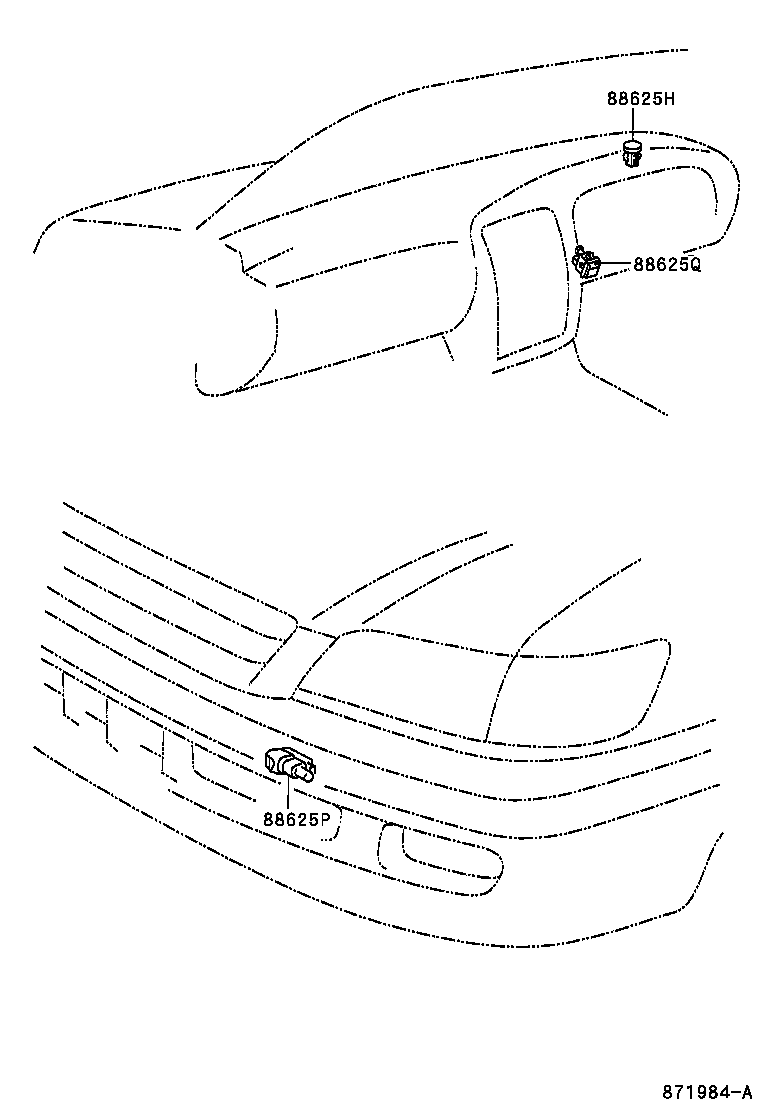

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88650B | Amplifier Assy, Airconditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
