Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 29 illustrations

Illustrations

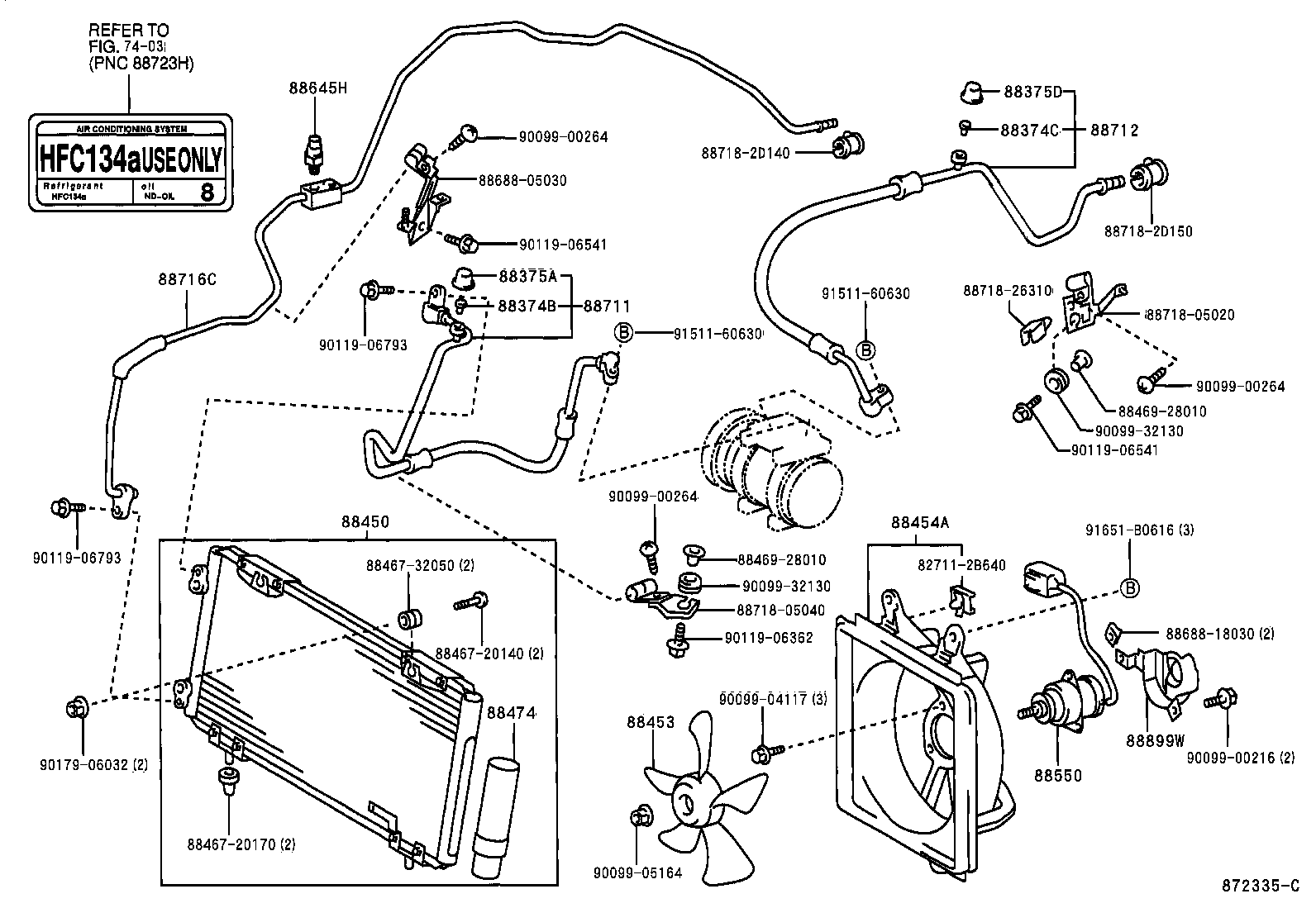

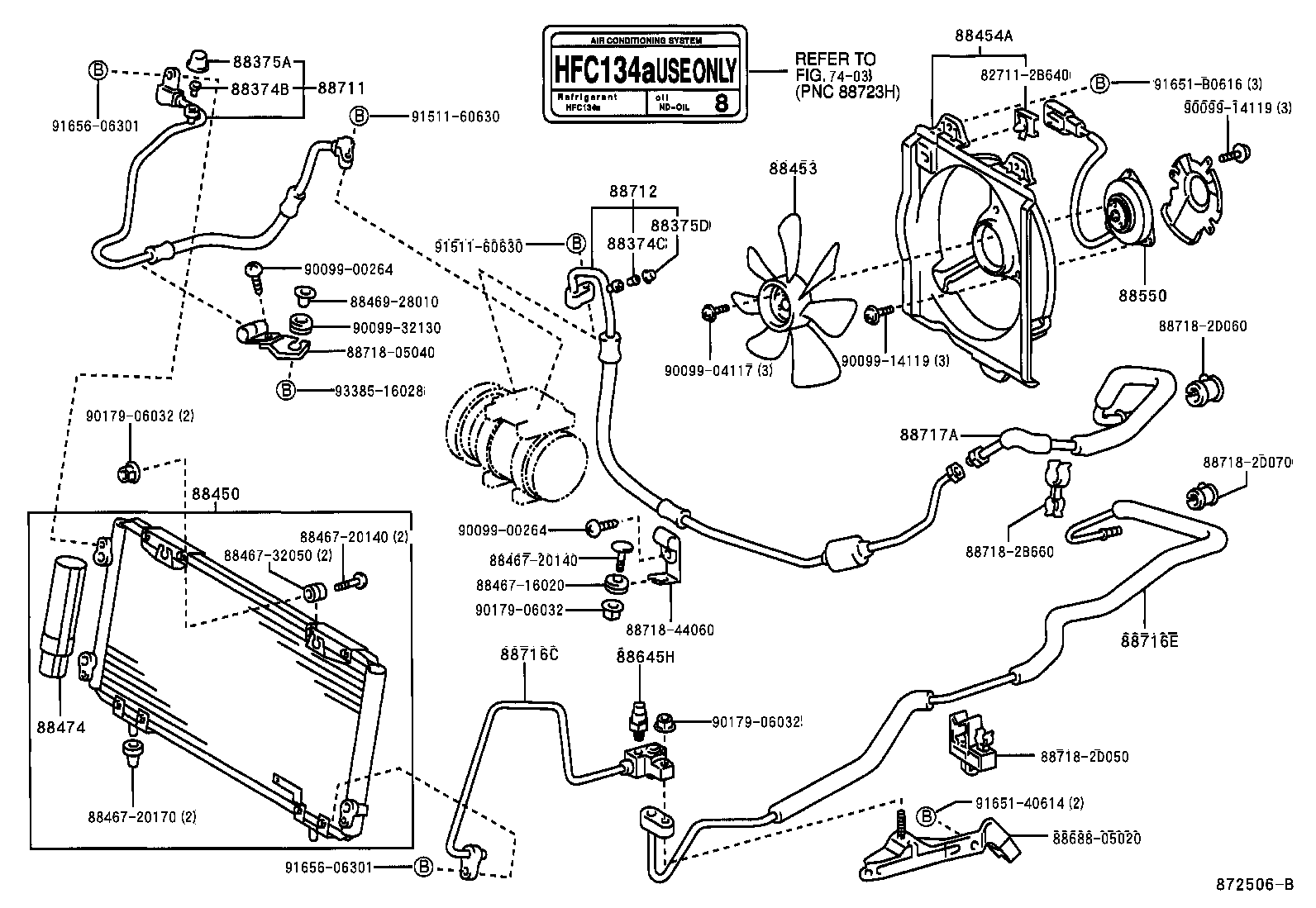

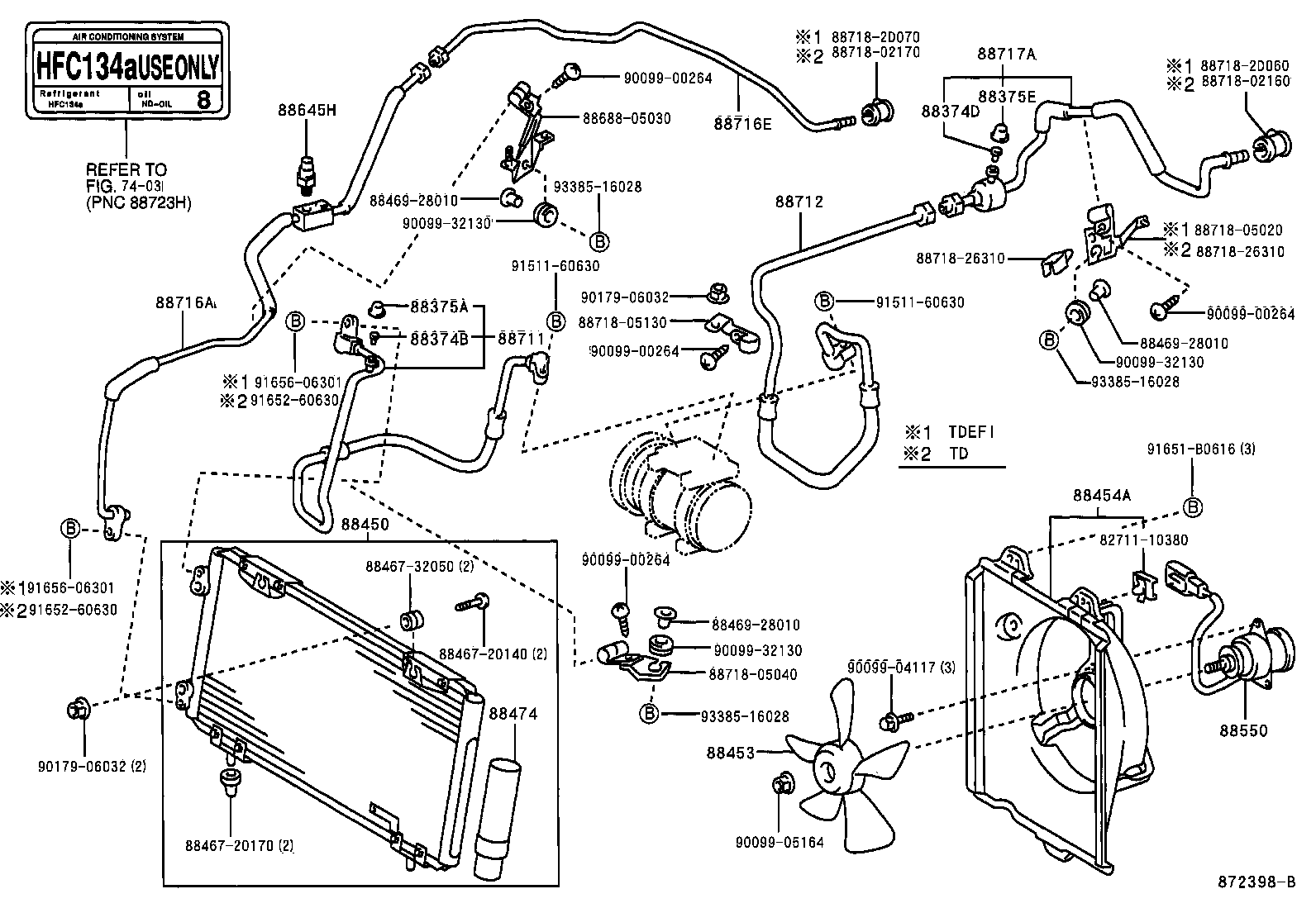

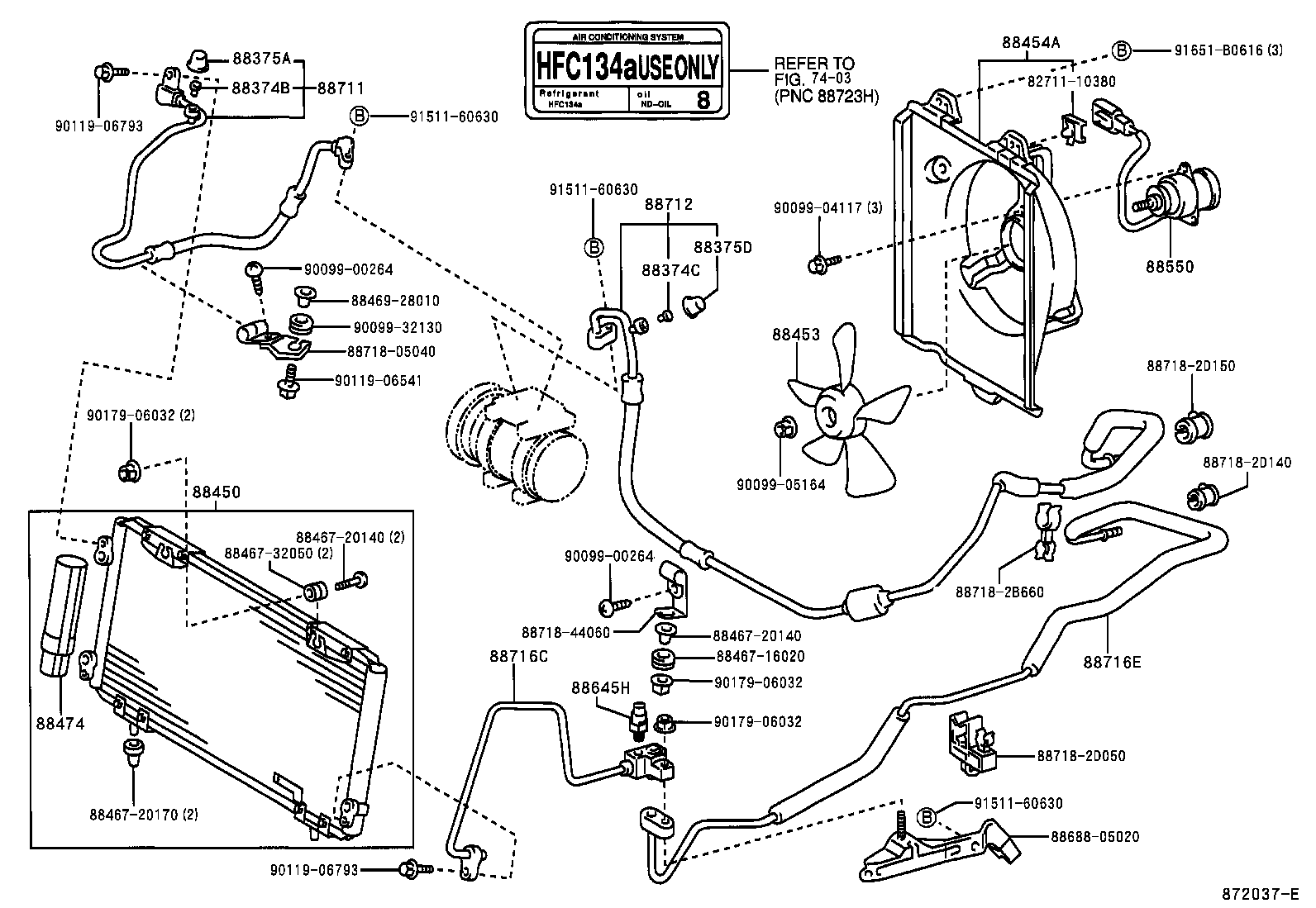

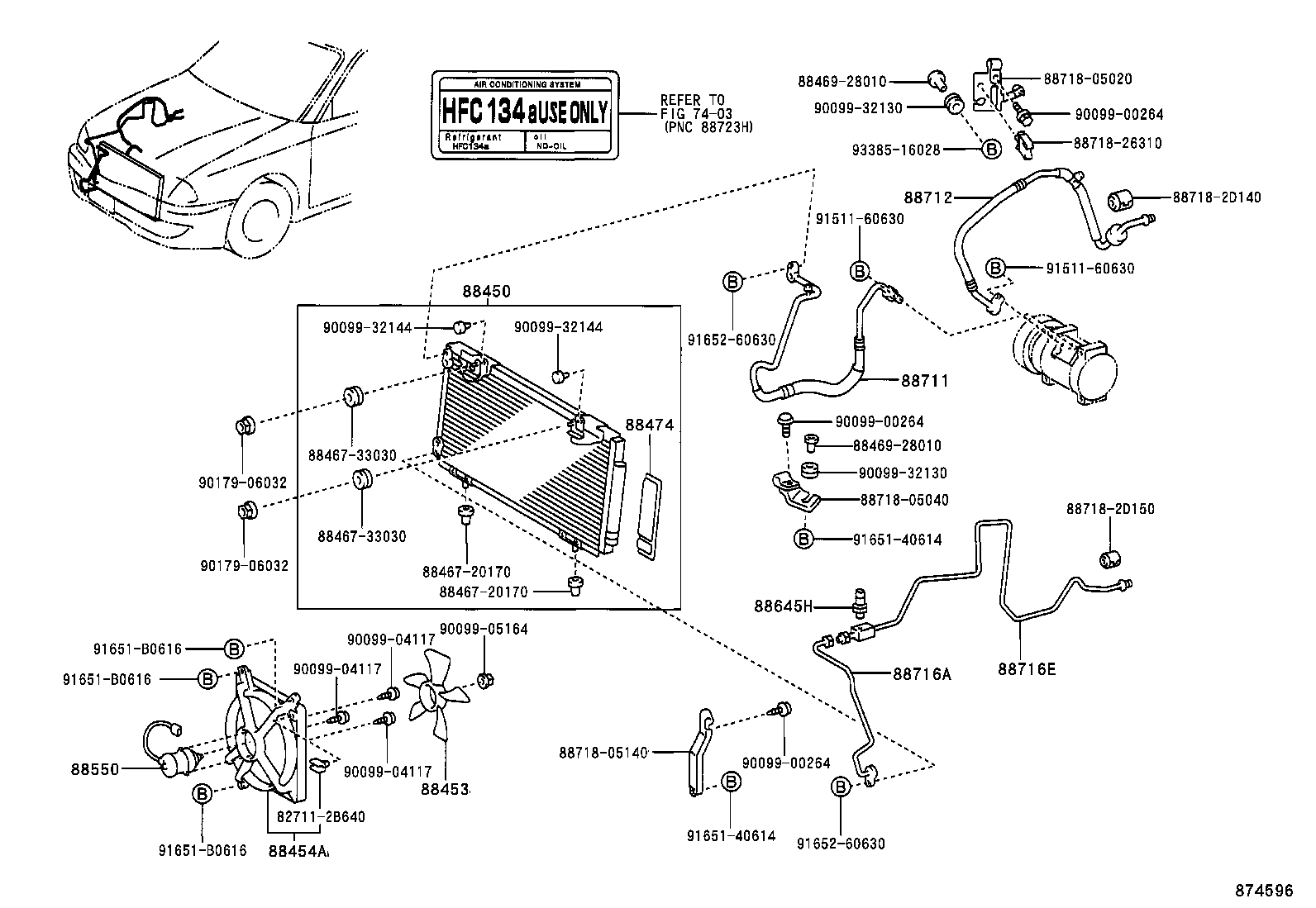

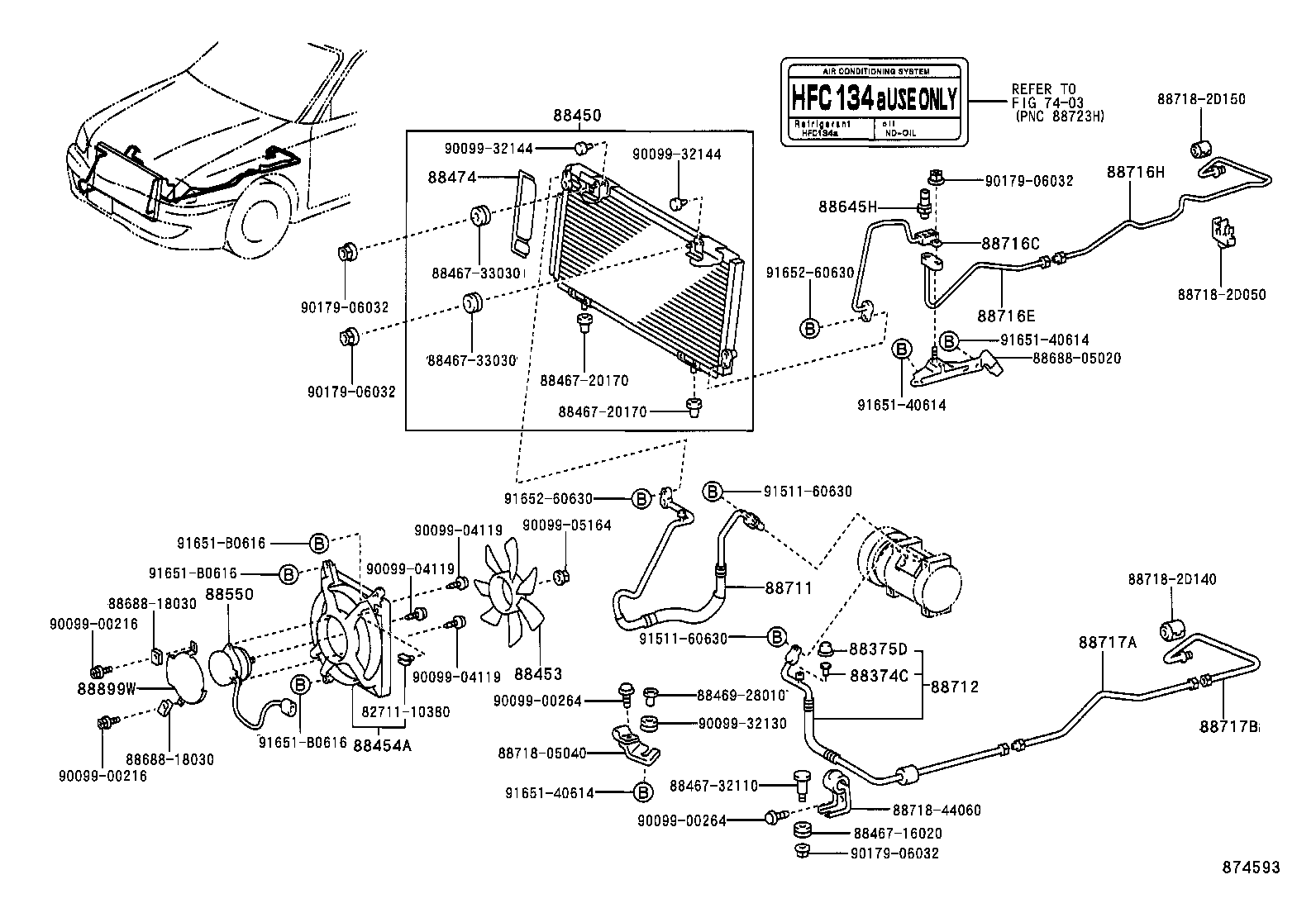

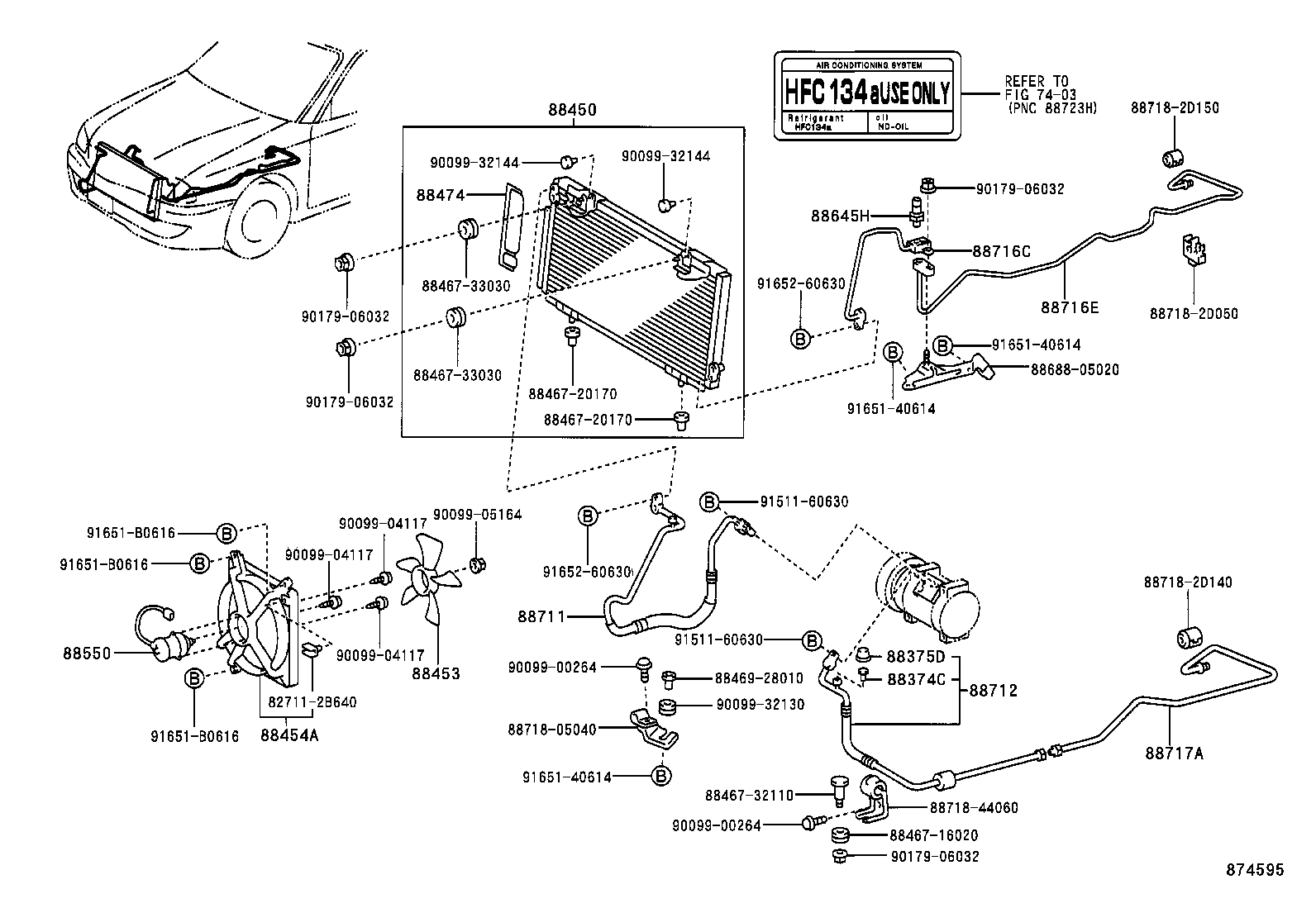

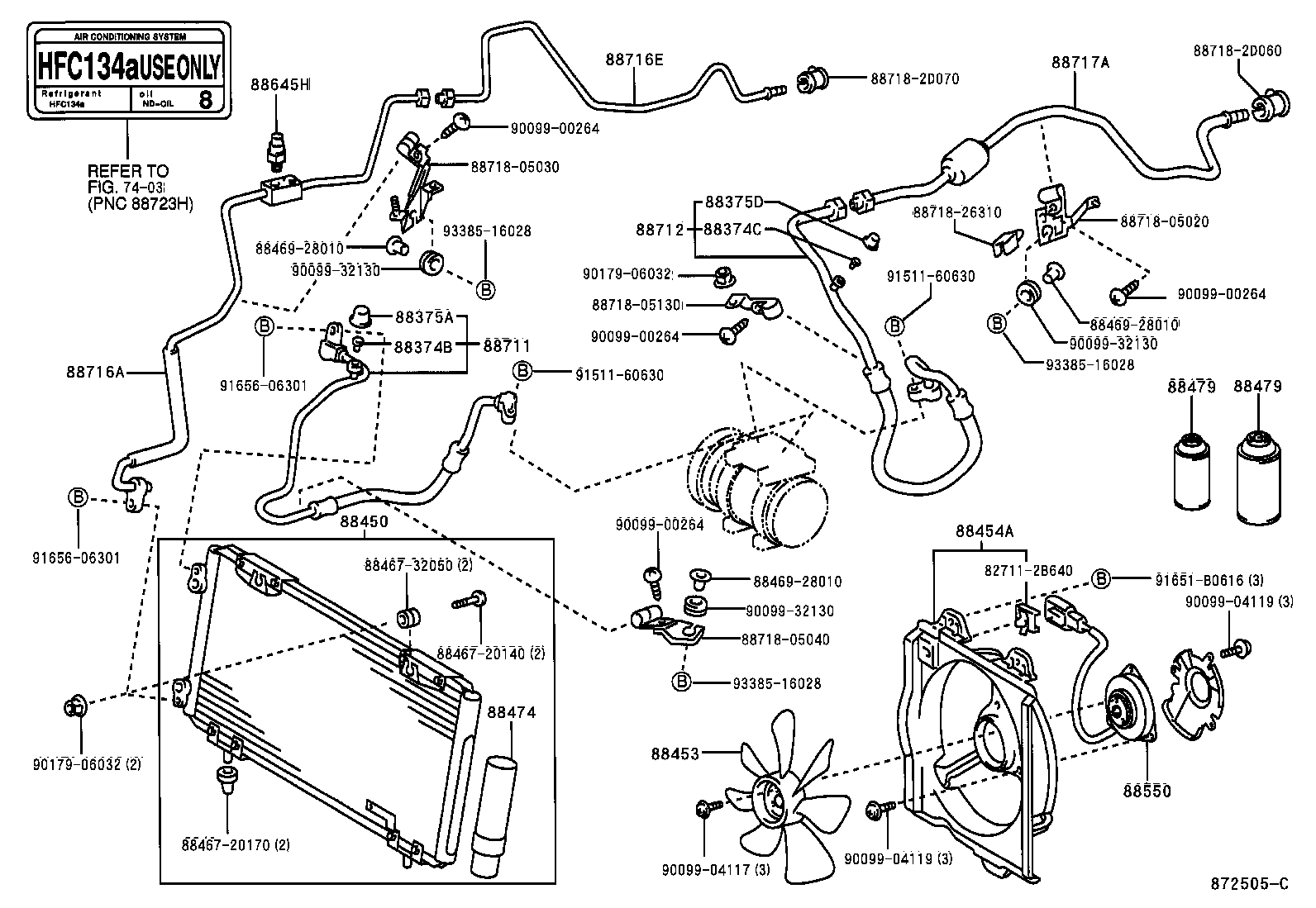

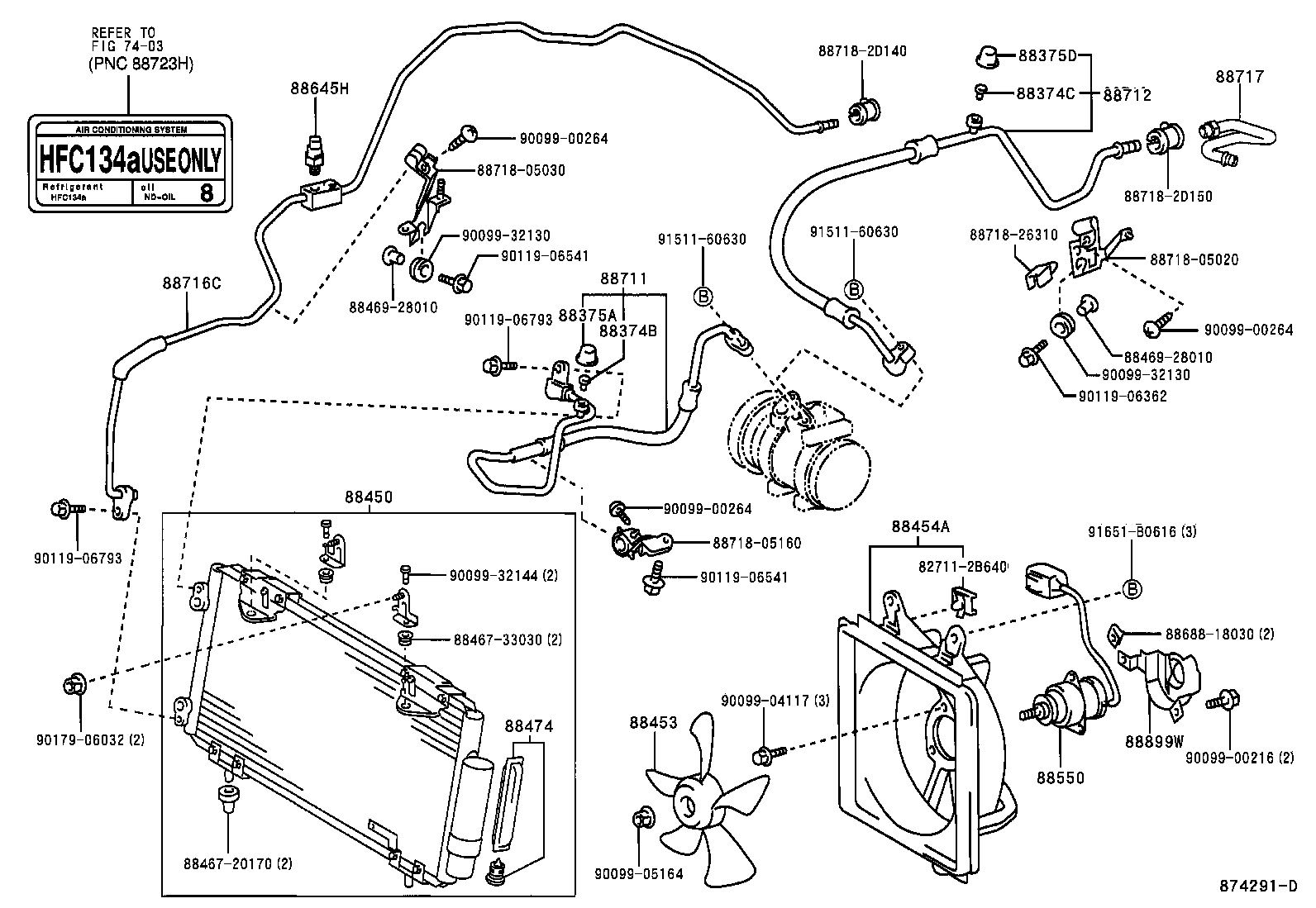

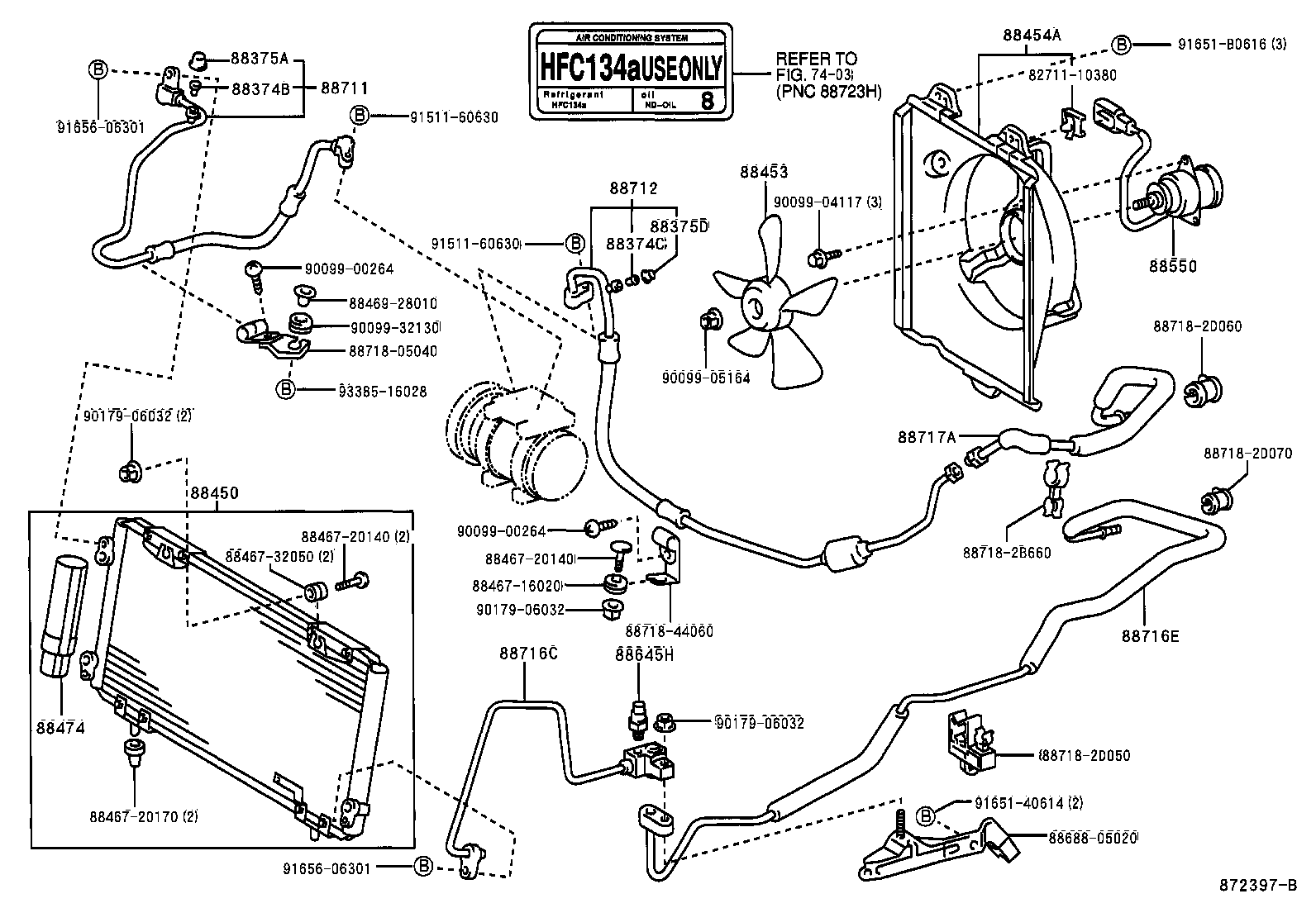

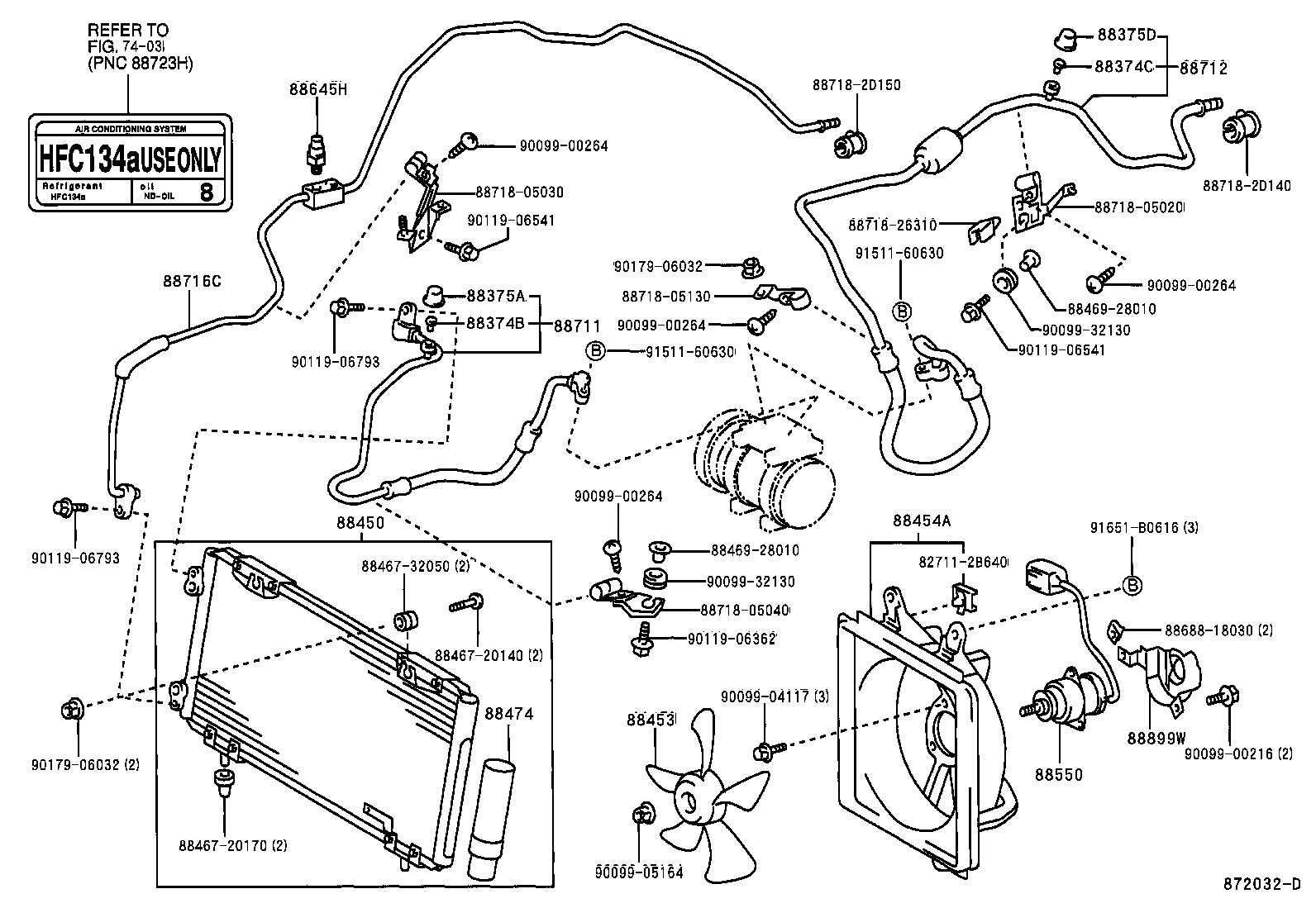

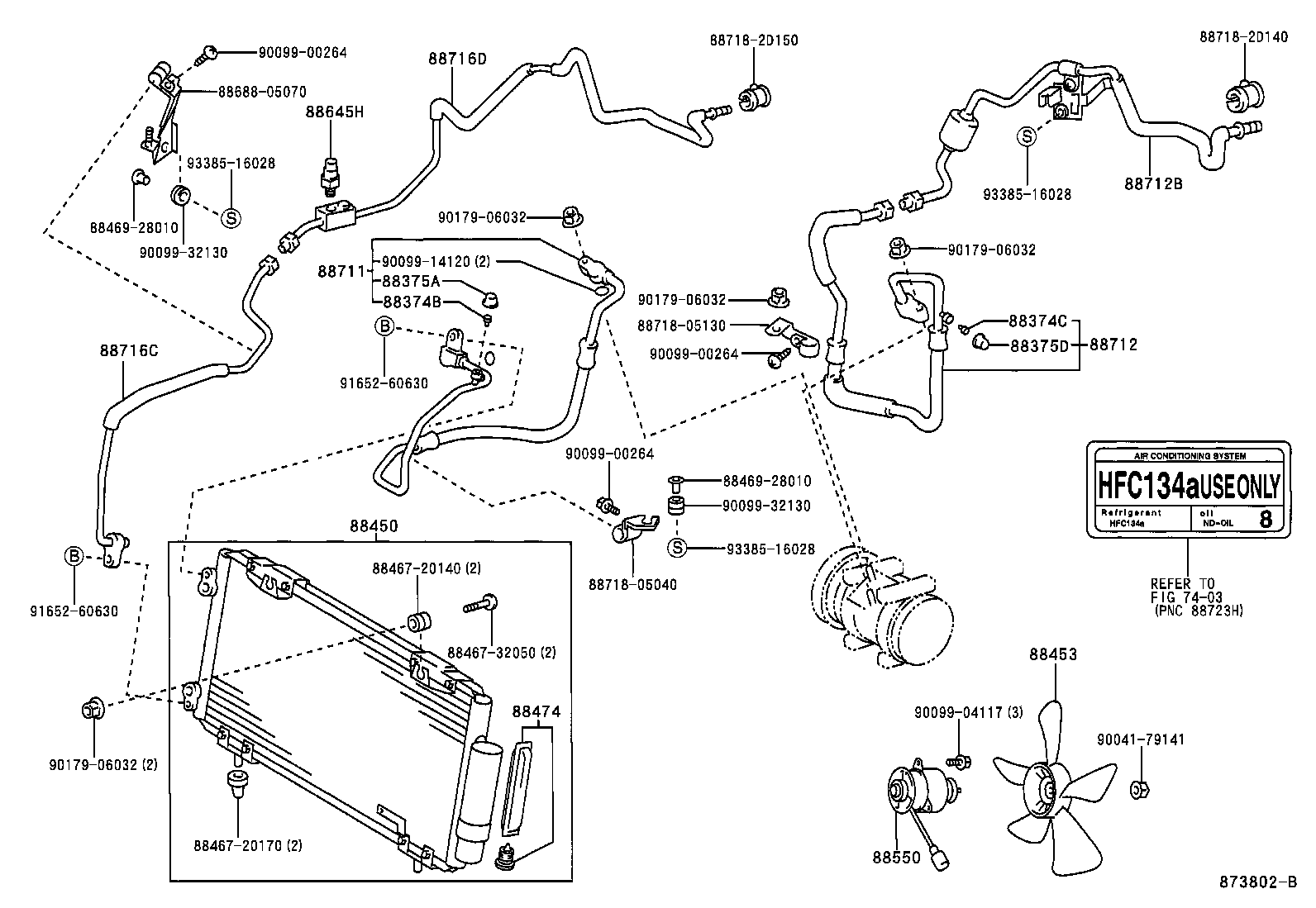

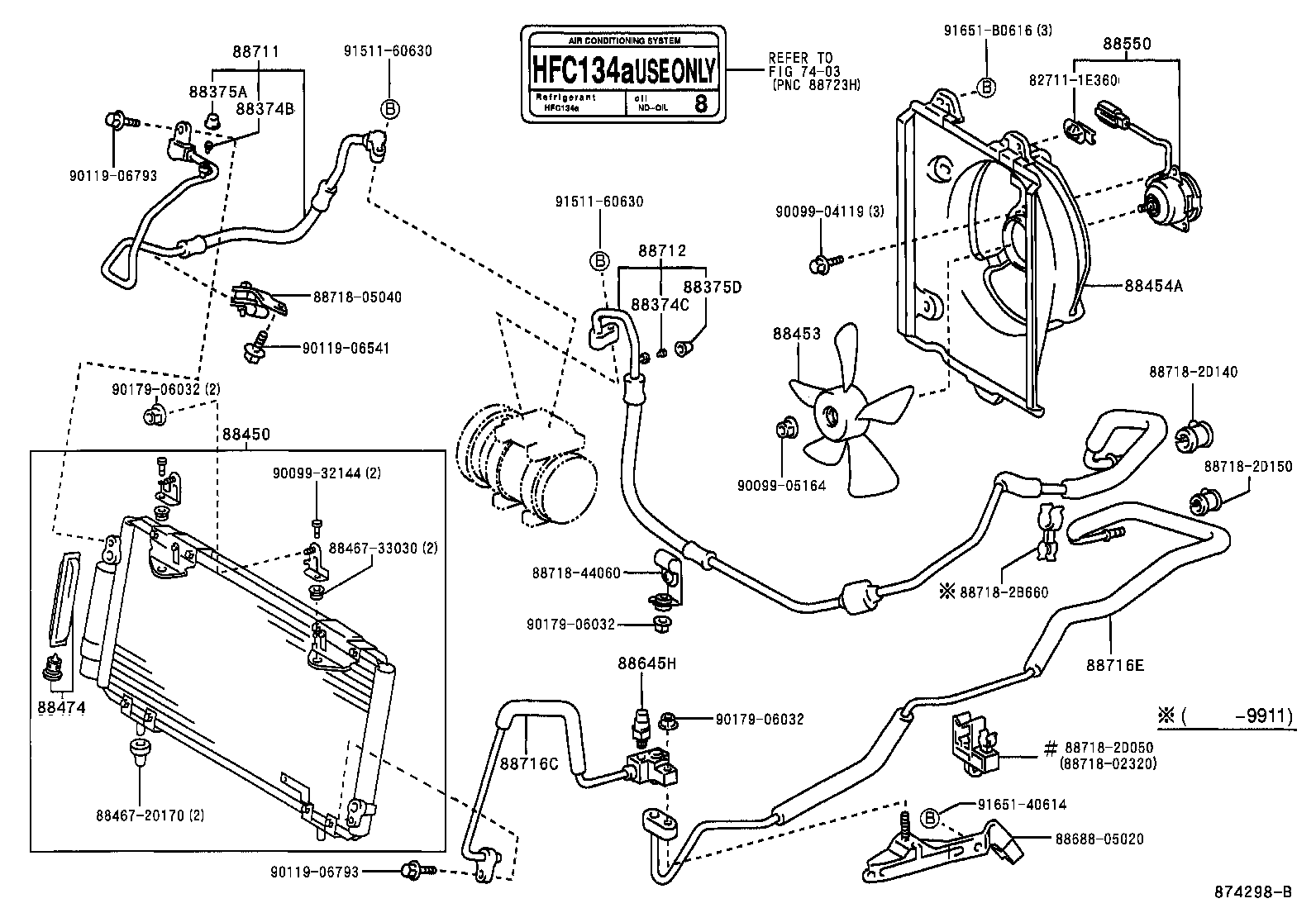

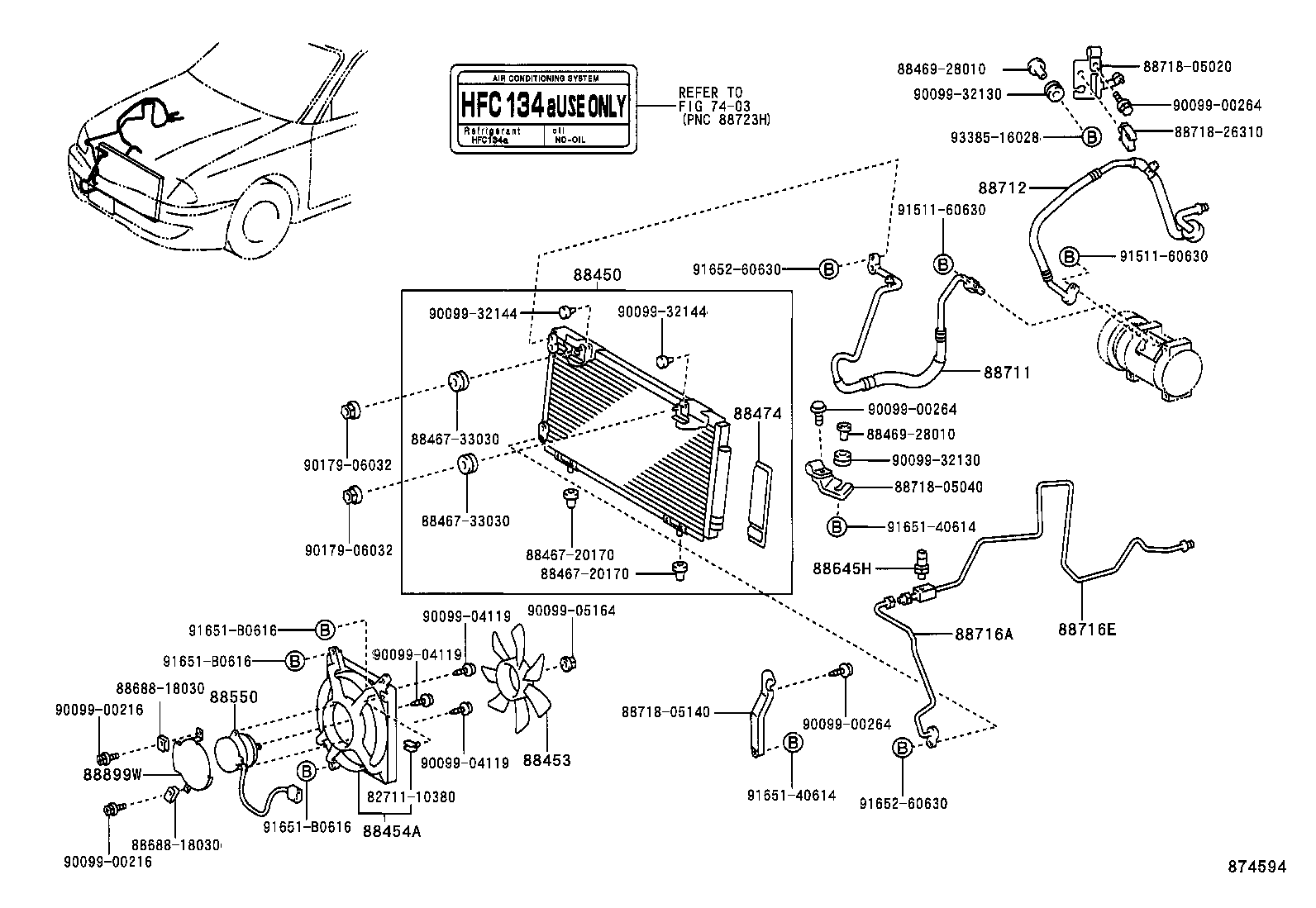

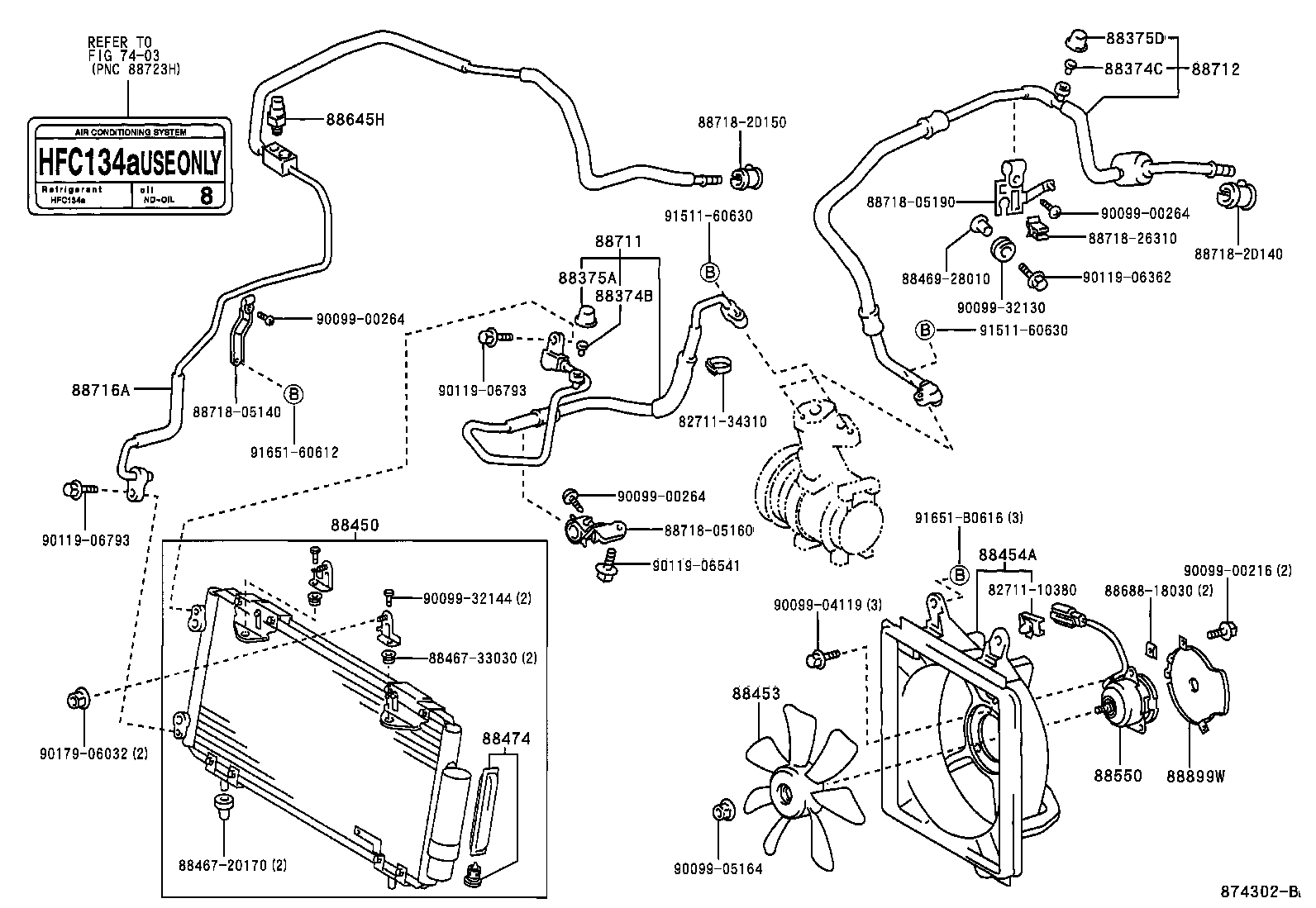

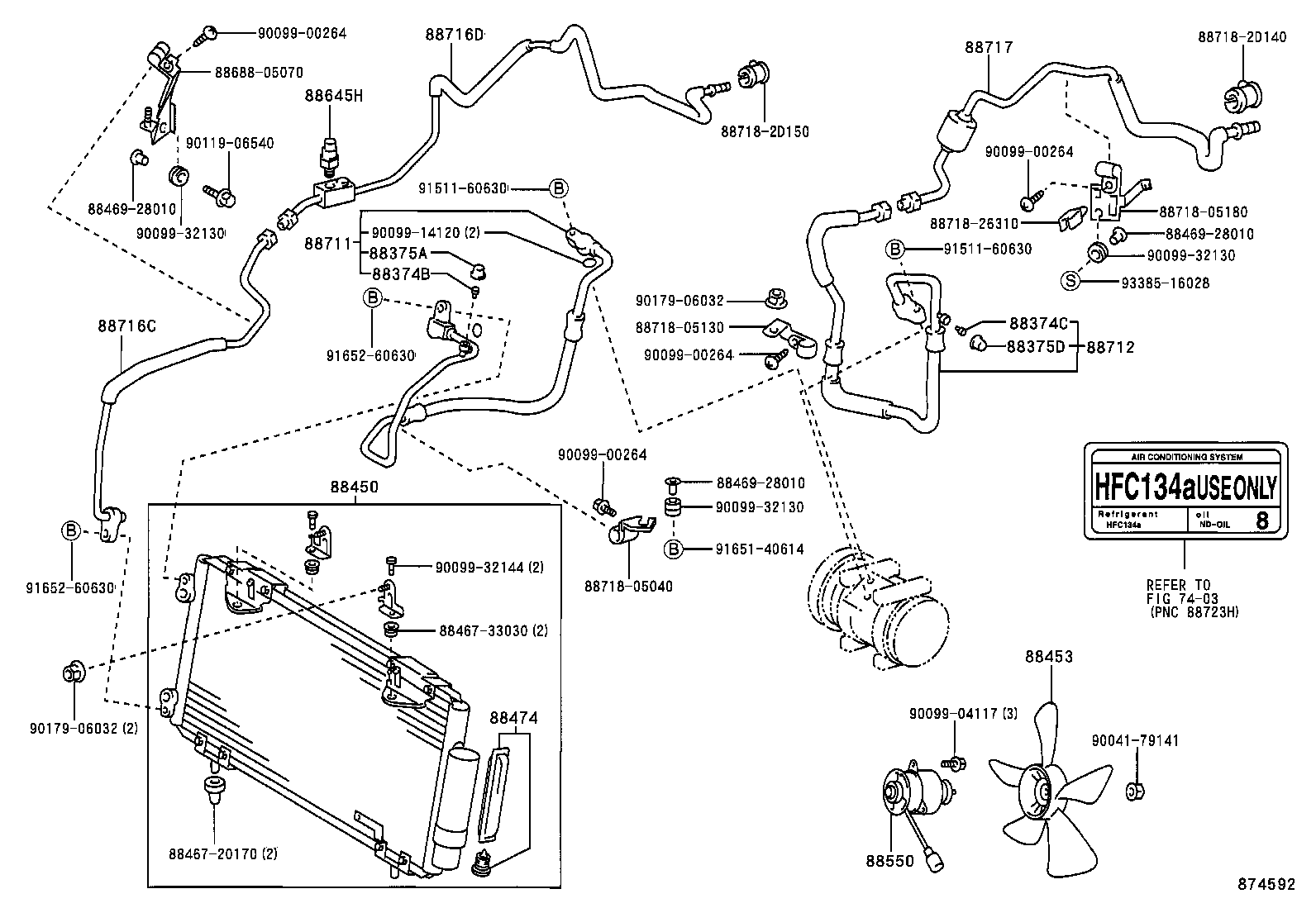

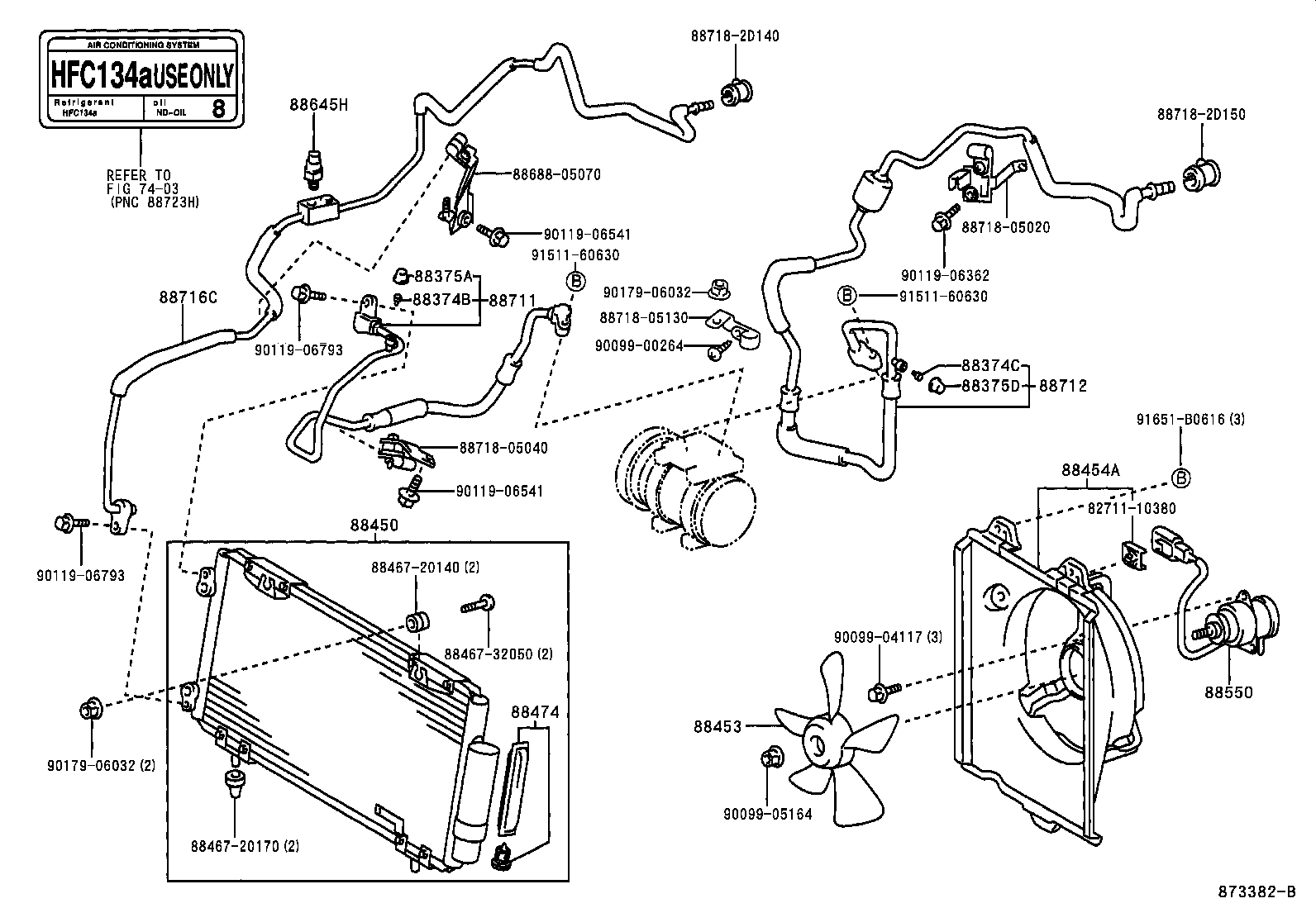

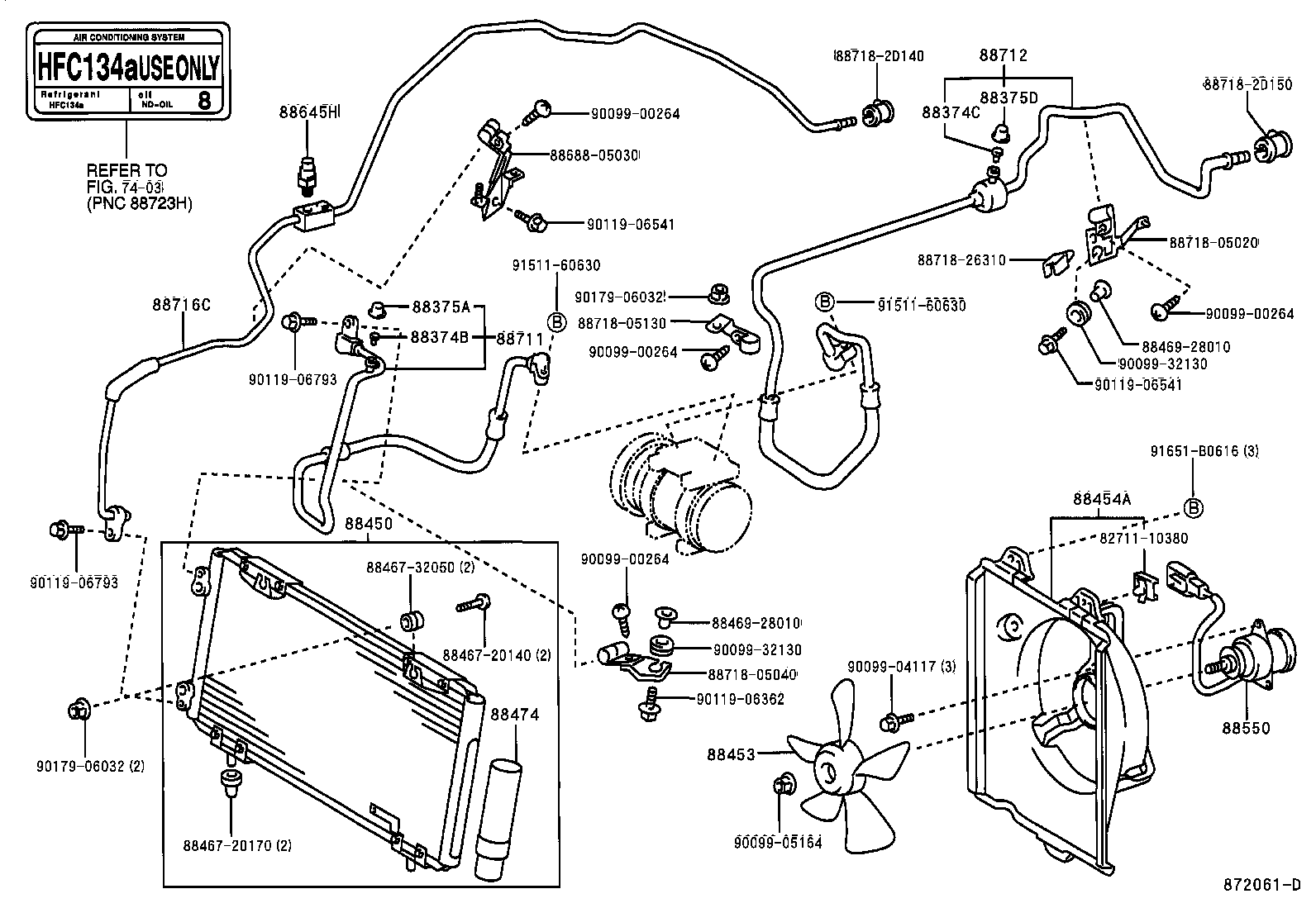

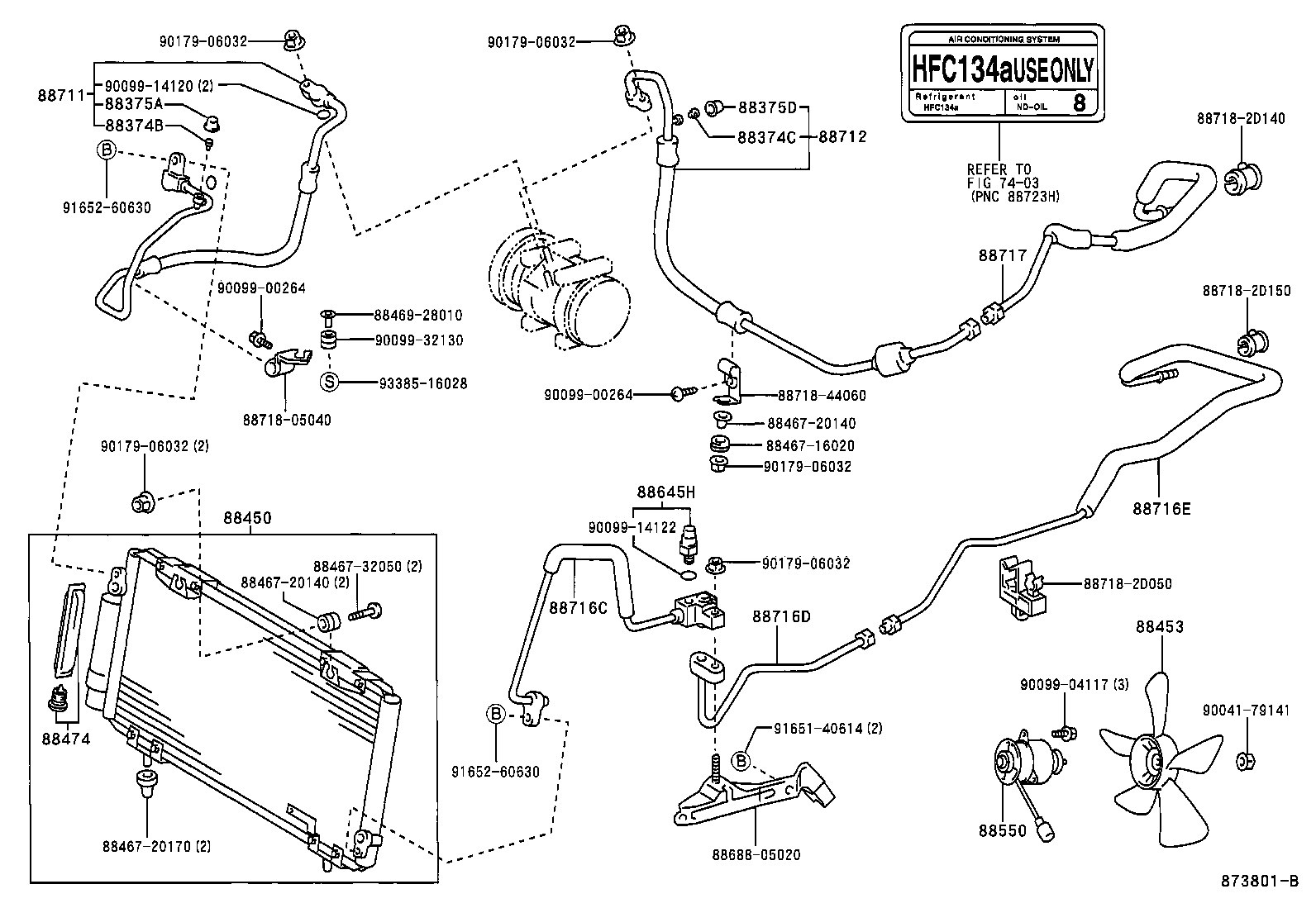

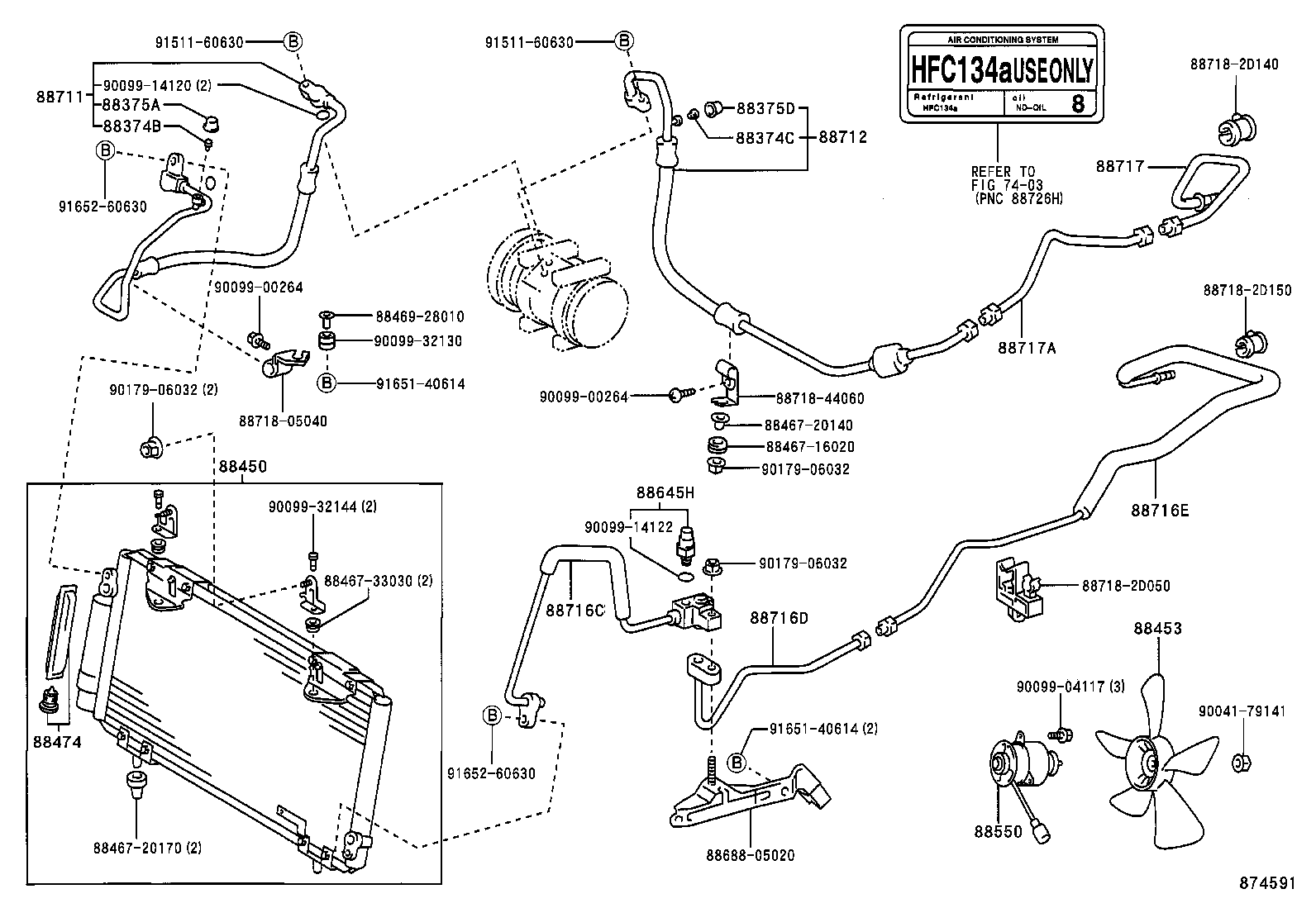

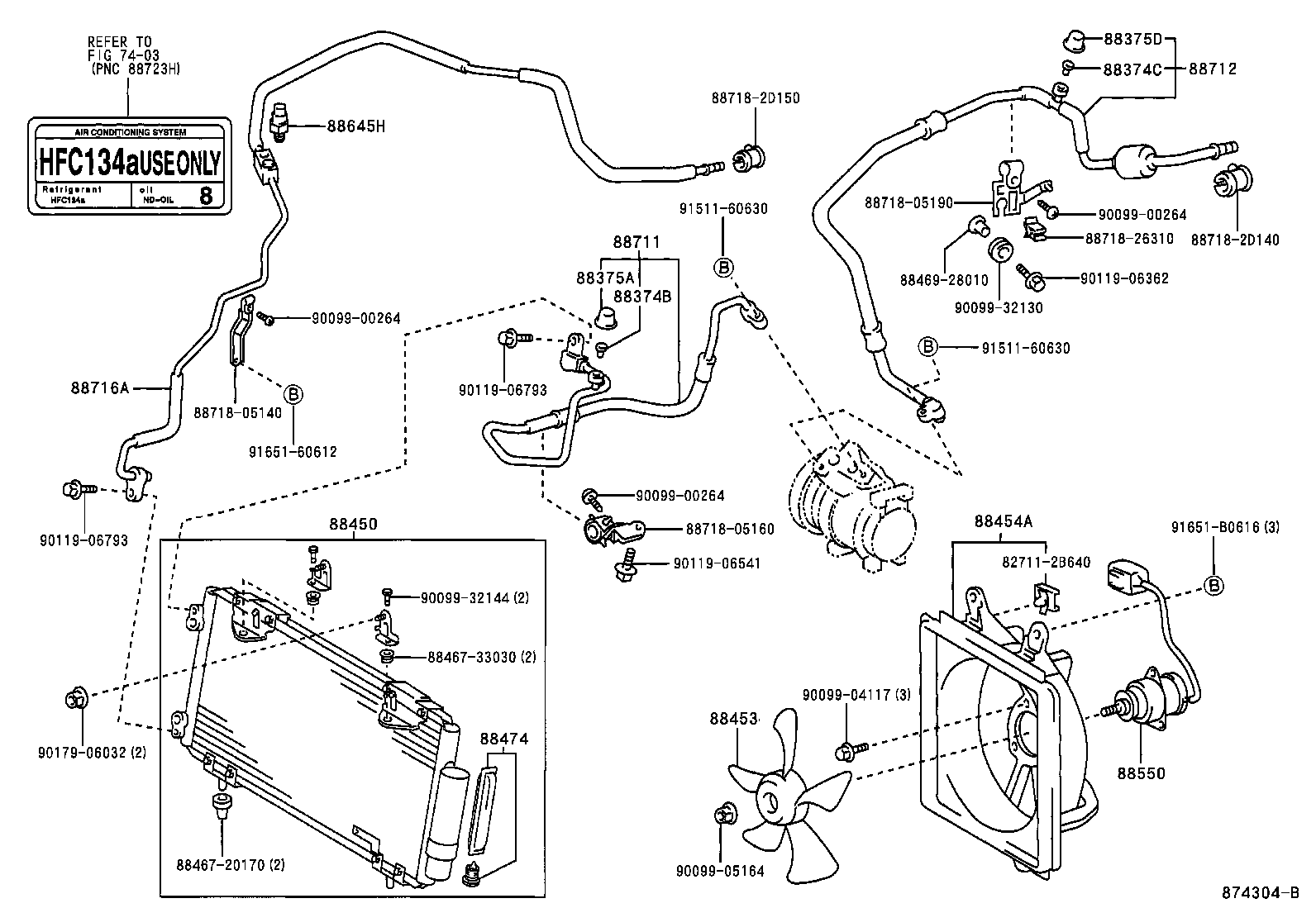

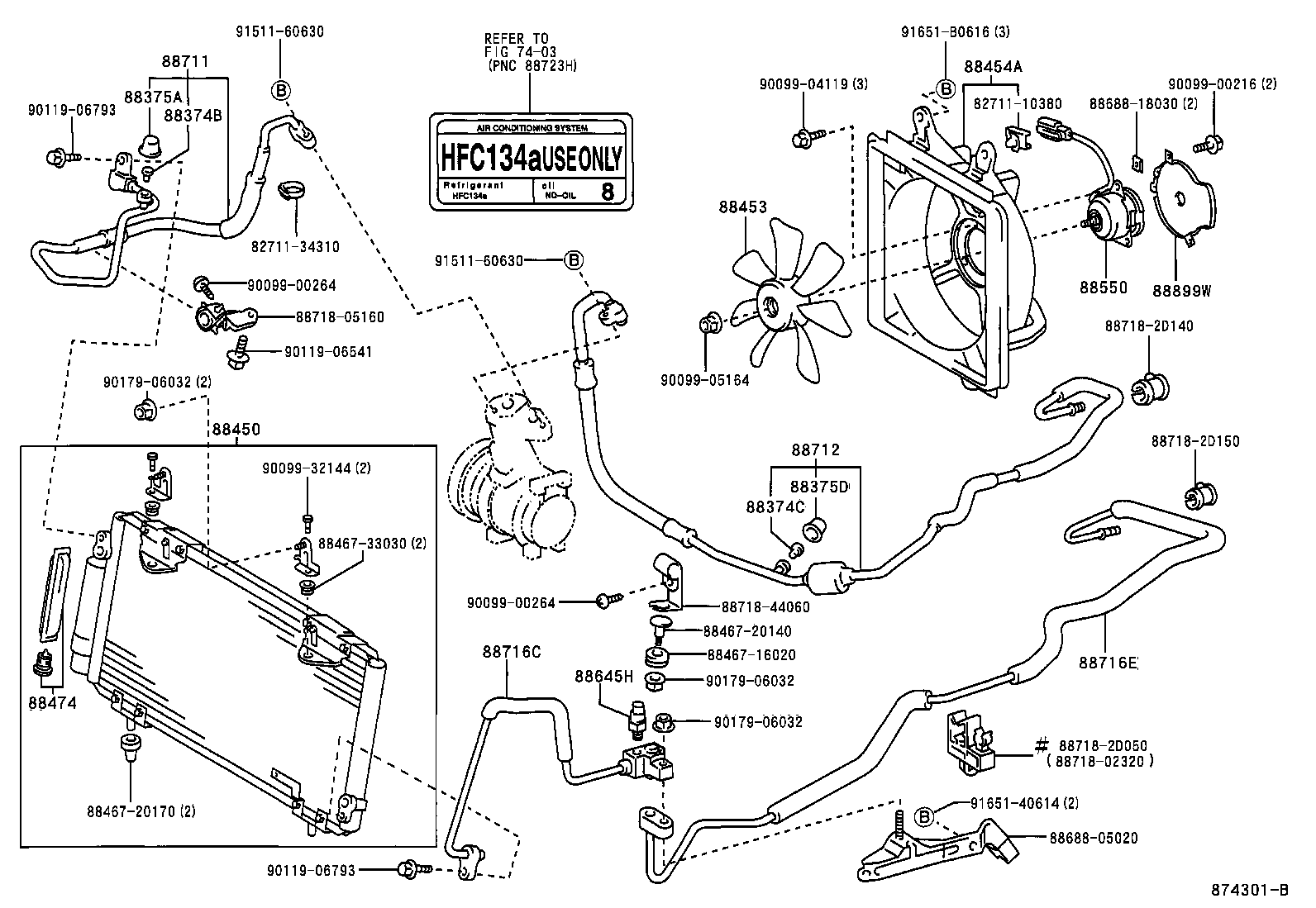

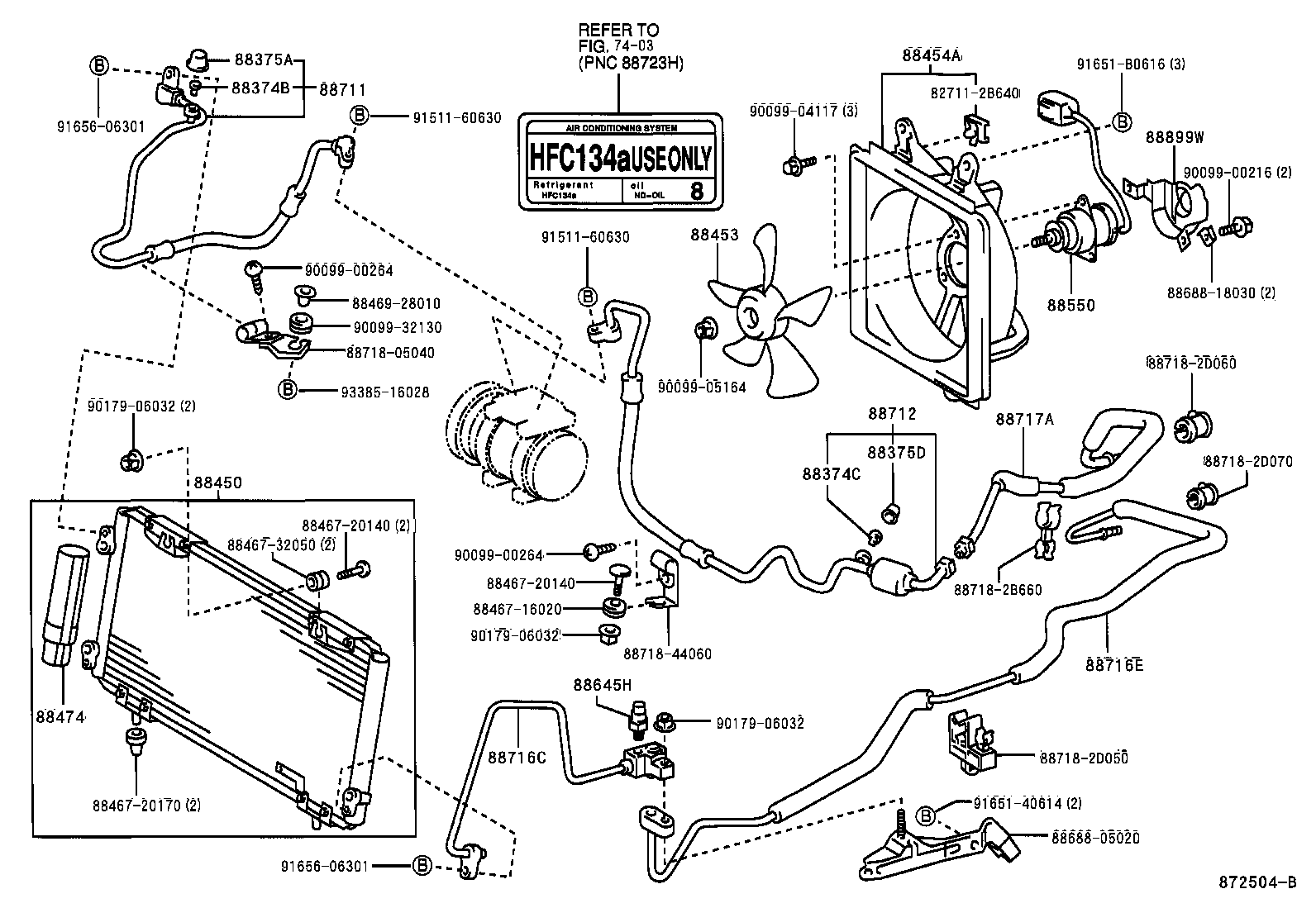

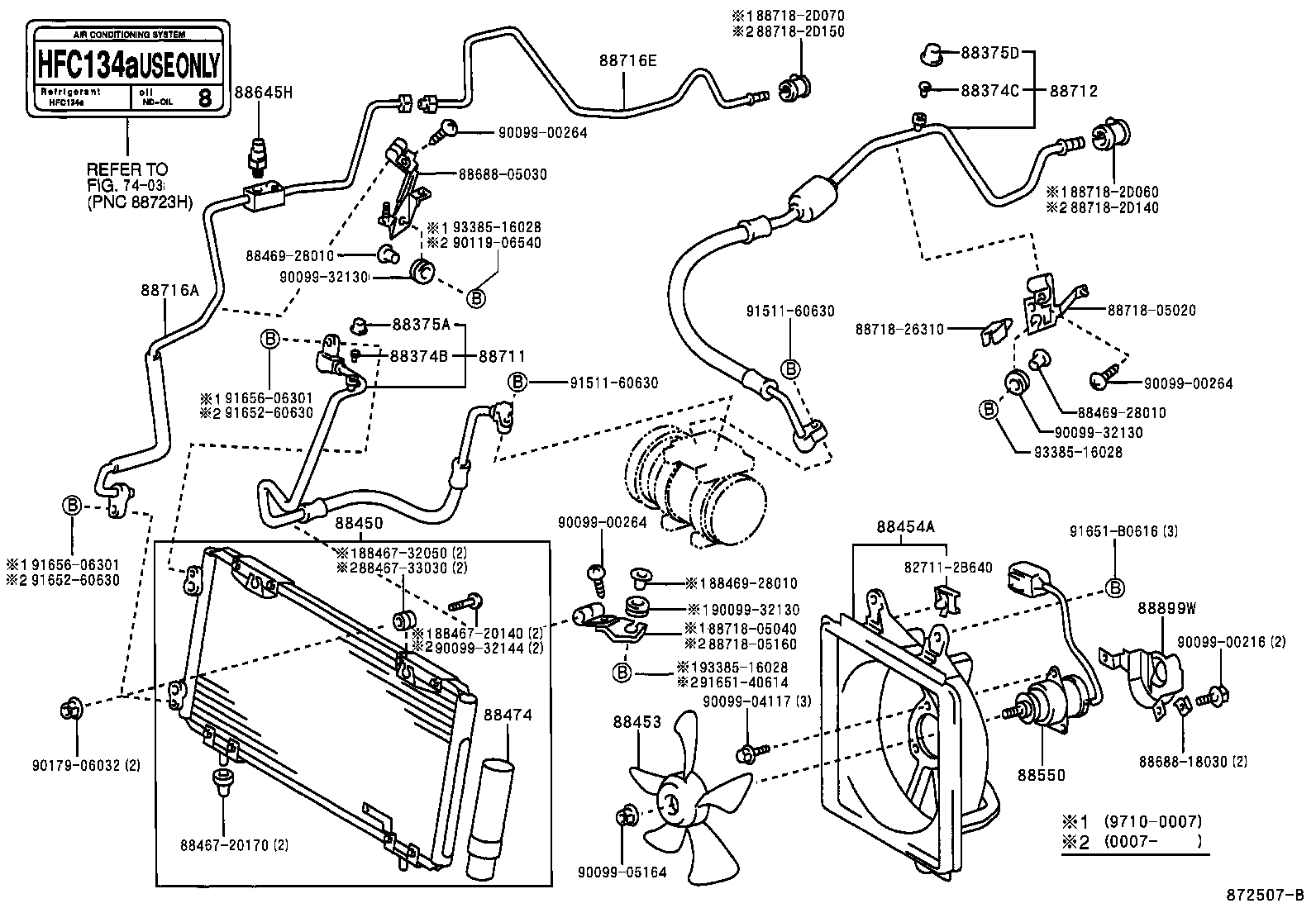

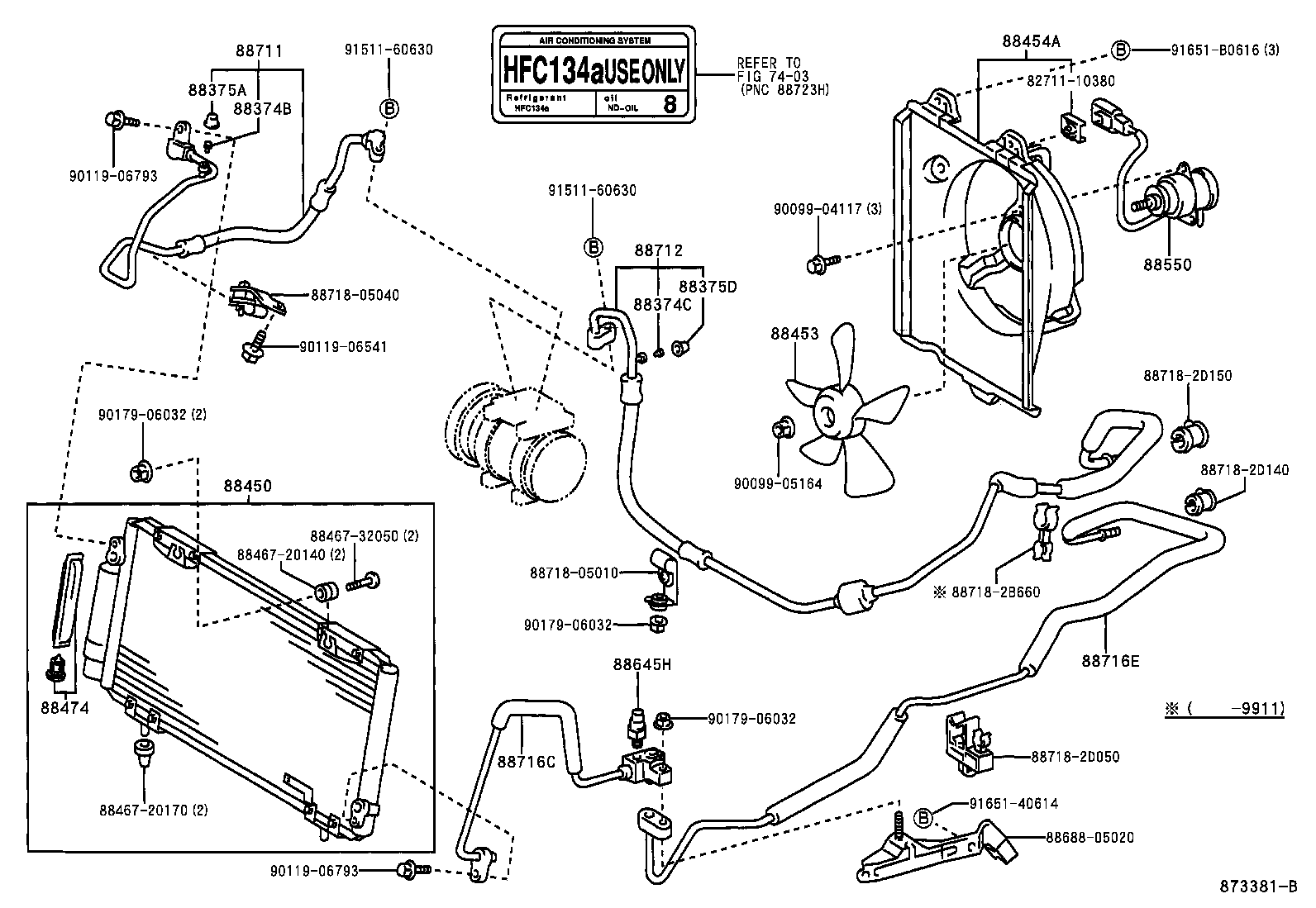

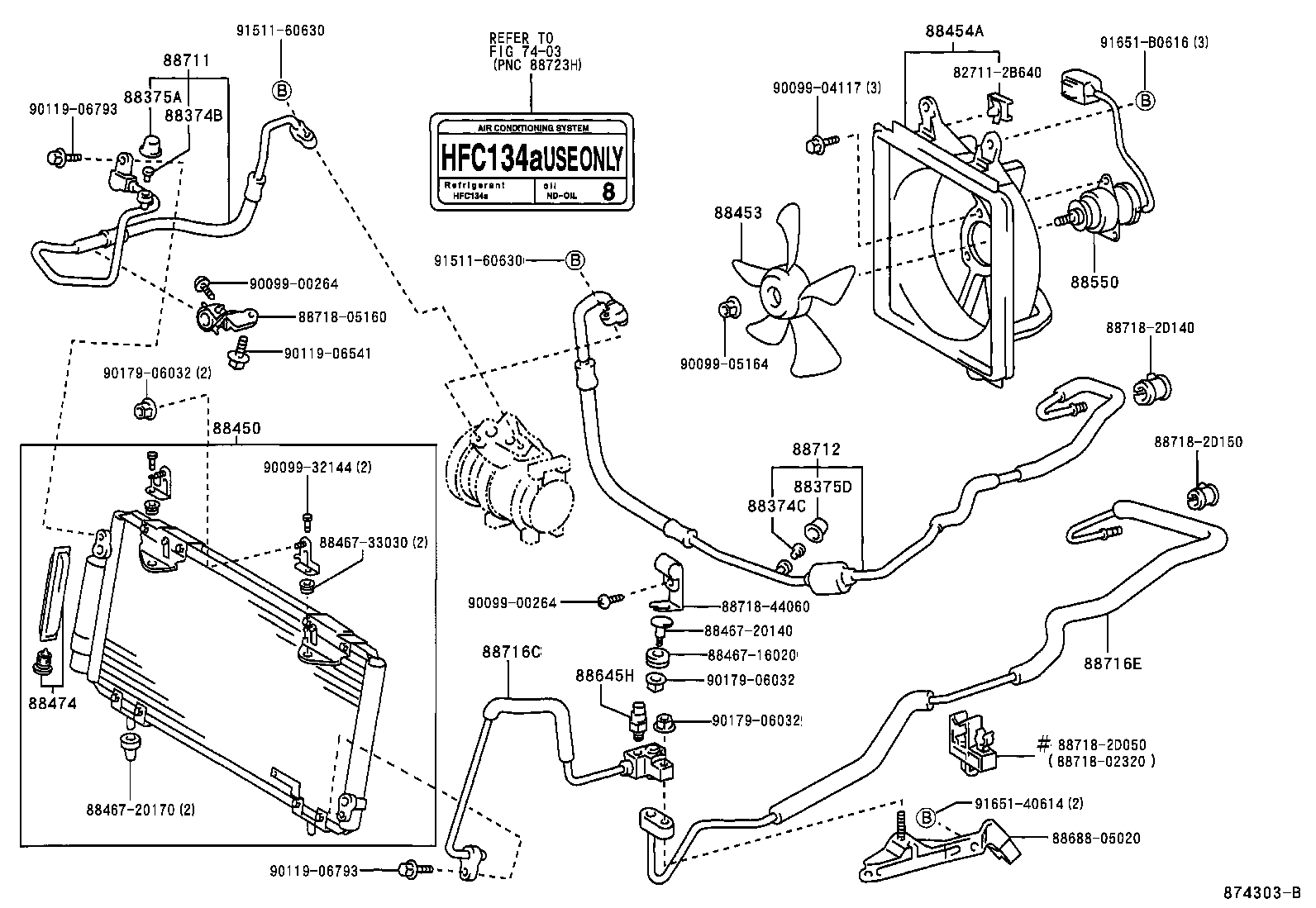

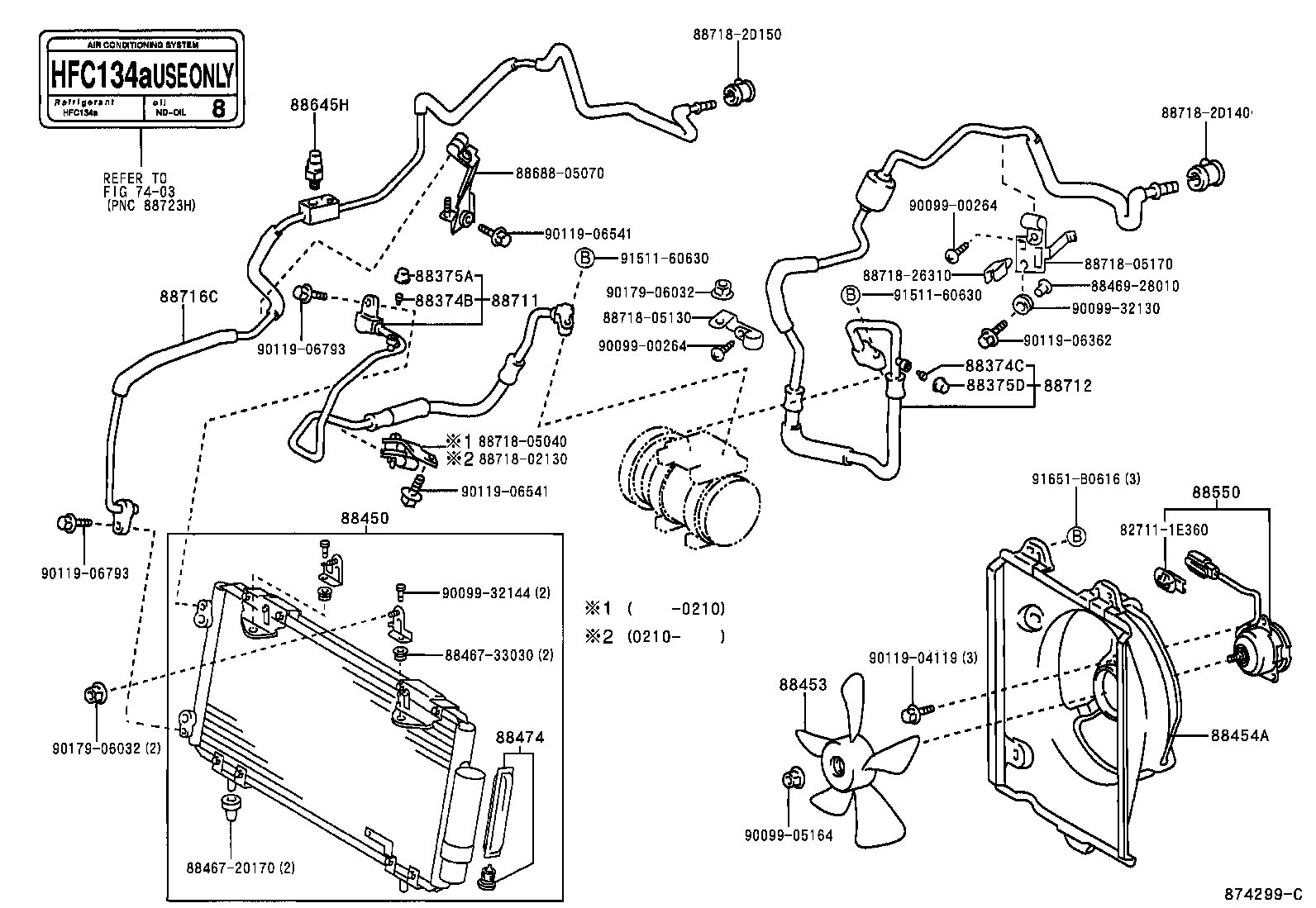

Figure 872060D 872060D 1997-10 → 2000-07 Figure 872032D 872032D 1997-10 → 2000-07 Figure 872037E 872037E 1997-10 → 2000-07 Figure 872061D 872061D 1997-10 → 2000-07 Figure 872335C 872335C 1997-10 → 2000-07 Figure 874291D 874291D 2000-07 → — Figure 873381B 873381B 1999-05 → 2000-07 Figure 873382B 873382B 1999-05 → 2000-07 Figure 874298B 874298B 2000-07 → — Figure 874299C 874299C 2000-07 → — Figure 874301B 874301B 2000-07 → — Figure 874302B 874302B 2000-07 → — Figure 874303B 874303B 2000-07 → — Figure 874304B 874304B 2000-07 → — Figure 872504B 872504B 1997-10 → 2000-07 Figure 872505C 872505C 1997-10 → 2000-07 Figure 872397B 872397B 1997-10 → 2000-07 Figure 872398B 872398B 1997-10 → 2000-07 Figure 872506B 872506B 1997-10 → 2000-07 Figure 872507B 872507B 1997-10 → — Figure 873801B 873801B 1999-08 → 2000-07 Figure 873802B 873802B 1999-08 → 2000-07 Figure 874591 874591 2000-07 → — Figure 874592 874592 2000-07 → — Figure 874593 874593 2000-07 → — Figure 874594 874594 2000-07 → — Figure 874595 874595 2000-07 → — Figure 874596 874596 2000-07 → — Figure 870233 870233 1997-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375A Cap, Service Valve (FOR COOLER PIPE)
88375D Cap, Service Valve, NO.2
88375E Plug
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88899W Support Sub-assy, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
