Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

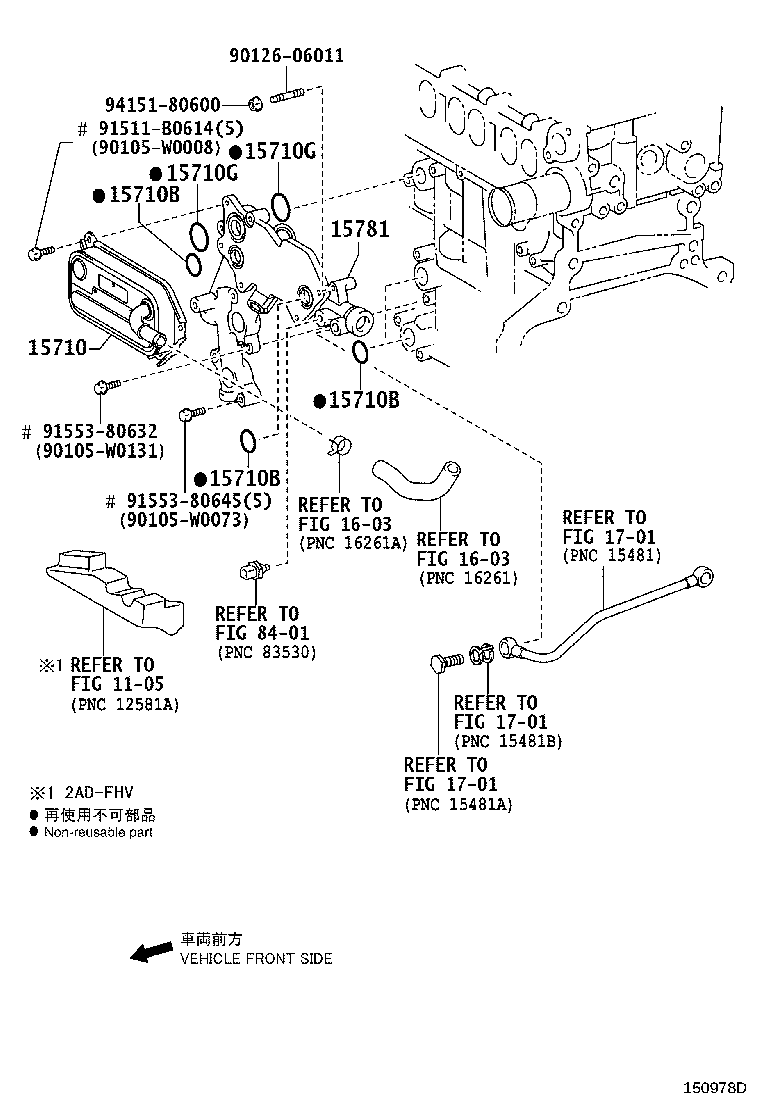

Exploded illustration 150978D 91511B0614 — not listed in this catalogue 90105W0008 — not listed in this catalogue 9155380645 — not listed in this catalogue 90105W0073 — not listed in this catalogue 9155380632 — not listed in this catalogue 90105W0131 — not listed in this catalogue 15710 — COOLER ASSY, OIL (5 parts) 15781 — BRACKET, OIL COOLER, NO.1 (5 parts) 9012606011 — not listed in this catalogue 9415180600 — not listed in this catalogue 15710B — RING, O(FOR OIL COOLER) (5 parts) 15710G — RING, O, NO.2 (3 parts) 1603 — not listed in this catalogue 1603 — not listed in this catalogue 15710G — RING, O, NO.2 (3 parts) 15710B — RING, O(FOR OIL COOLER) (5 parts) 15710B — RING, O(FOR OIL COOLER) (5 parts) 1105 — not listed in this catalogue 8401 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue
150978D · 7 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
15710 — Cooler Assy, Oil
15710-0R010 Cooler Assy, Oil
2005-04 → 2006-04 ended
2AD# ADT251 —
15710-27030 Cooler Assy, Oil
2003-03 → 2006-04 ended
1CDFTV CDT250 —
15710-28020 Cooler Assy, Oil
2003-09 → 2006-04 ended
2AZFSE AZT251 —
15710-0R010 Cooler Assy, Oil
2006-04 → —
1ADFTV,2AD# ADT25# —
15710-28020 Cooler Assy, Oil
2006-04 → —
2AZFSE AZT251 —
15710B — Ring, O(FOR OIL COOLER)
90301-24018 Ring, O(FOR OIL COOLER)
2005-04 → 2006-04 ended
2AD# ADT251 —
90301-52006 Ring, O(FOR OIL COOLER)
2003-09 → 2006-04 ended
2AZFSE AZT251 —
90301-24018 Ring, O(FOR OIL COOLER)
2006-04 → —
1ADFTV,2AD# ADT25# —
90301-24018 note Ring, O(FOR OIL COOLER)
2006-04 → —
2ADFTV ADT251 RHD SED +1 —
90301-52006 Ring, O(FOR OIL COOLER)
2006-04 → —
2AZFSE AZT251 —
15710G — Ring, O, NO.2
90301-29013 Ring, O, NO.2
2005-04 → 2006-04 ended
2AD# ADT251 —
90301-29013 Ring, O, NO.2
2006-04 → —
1ADFTV,2AD# ADT25# —
90301-29013 note Ring, O, NO.2
2006-04 → —
2ADFTV ADT251 RHD SED +1 —
15781 — Bracket, Oil Cooler, NO.1
15781-26010 Bracket, Oil Cooler, NO.1
2005-04 → 2006-04 ended
2AD# ADT251 —
15781-26010 Bracket, Oil Cooler, NO.1
2006-04 → 2006-11 ended
1ADFTV,2AD# ADT25# —
15781-26010 note Bracket, Oil Cooler, NO.1
2006-04 → 2006-11 ended
2ADFTV ADT251 RHD SED +1 —
15781-26011 Bracket, Oil Cooler, NO.1
2006-11 → 2008-11 ended
1ADFTV,2AD# ADT25# —
15781-26011 note Bracket, Oil Cooler, NO.1
2006-11 → 2008-11 ended
2ADFTV ADT251 RHD SED +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
