Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

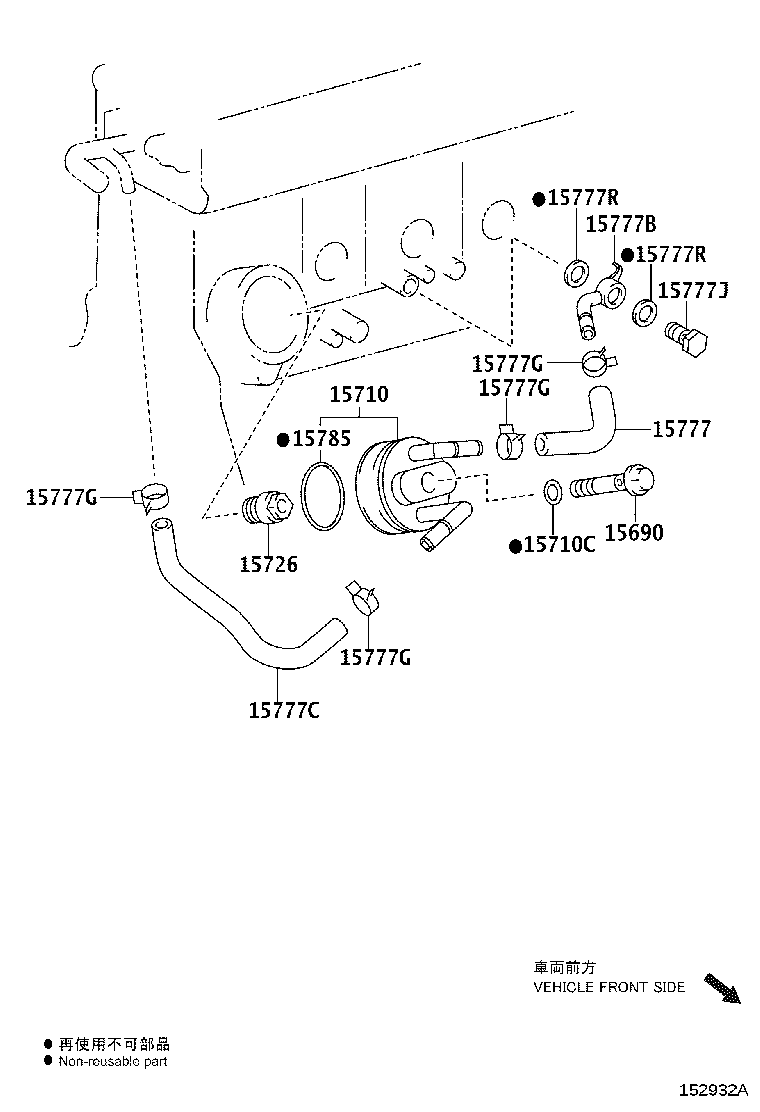

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15690 — Valve Assy, Oil Cooler Relief | ||||
| 90401-19009 |
Valve Assy, Oil Cooler Relief
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15710 — Cooler Assy, Oil | ||||
| 15710-0R010 |
Cooler Assy, Oil
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 15710-27030 |
Cooler Assy, Oil
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15710-28020 |
Cooler Assy, Oil
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 15710-0R010 |
Cooler Assy, Oil
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 15710-28020 |
Cooler Assy, Oil
2006-04 → —
|
2AZFSE AZT251 | — | |
| 15710C — Gasket(FOR OIL COOLER) | ||||
| 90301-24017 |
Gasket(FOR OIL COOLER)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15726 — Connector, Oil Cooler Union Bolt | ||||
| 15726-27010 |
Connector, Oil Cooler Union Bolt
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15777 — Hose, Oil Cooler | ||||
| 15777-0G010 |
Hose, Oil Cooler
2003-03 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 15777-27020 |
Hose, Oil Cooler
2003-09 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 16267-28020 |
Hose, Oil Cooler
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 16267-28020 |
Hose, Oil Cooler
2006-04 → —
|
2AZFSE AZT251 | — | |
| 15777B — Pipe, Oil Cooler | ||||
| 15768-27020 |
Pipe, Oil Cooler
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16288-28020 |
Pipe, Oil Cooler
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 16288-28020 |
Pipe, Oil Cooler
2006-04 → —
|
2AZFSE AZT251 | — | |
| 15777C — Hose, Oil Cooler | ||||
| 15778-0G010 |
Hose, Oil Cooler
2003-03 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 15778-27040 |
Hose, Oil Cooler
2003-09 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 16281-28010 |
Hose, Oil Cooler
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 16281-28010 |
Hose, Oil Cooler
2006-04 → —
|
2AZFSE AZT251 | — | |
| 15777G — Clamp OR Crip, Hose | ||||
| 96134-41900 |
Clamp OR Crip, Hose
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15777J — Bolt, Union(FOR OIL COOLER PIPE) | ||||
| 90401-20004 |
Bolt, Union(FOR OIL COOLER PIPE)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15777R — Gasket(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20014 |
Gasket(FOR OIL COOLER PIPE UNION BOLT)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-27010 |
Gasket, Oil Cooler
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
