Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

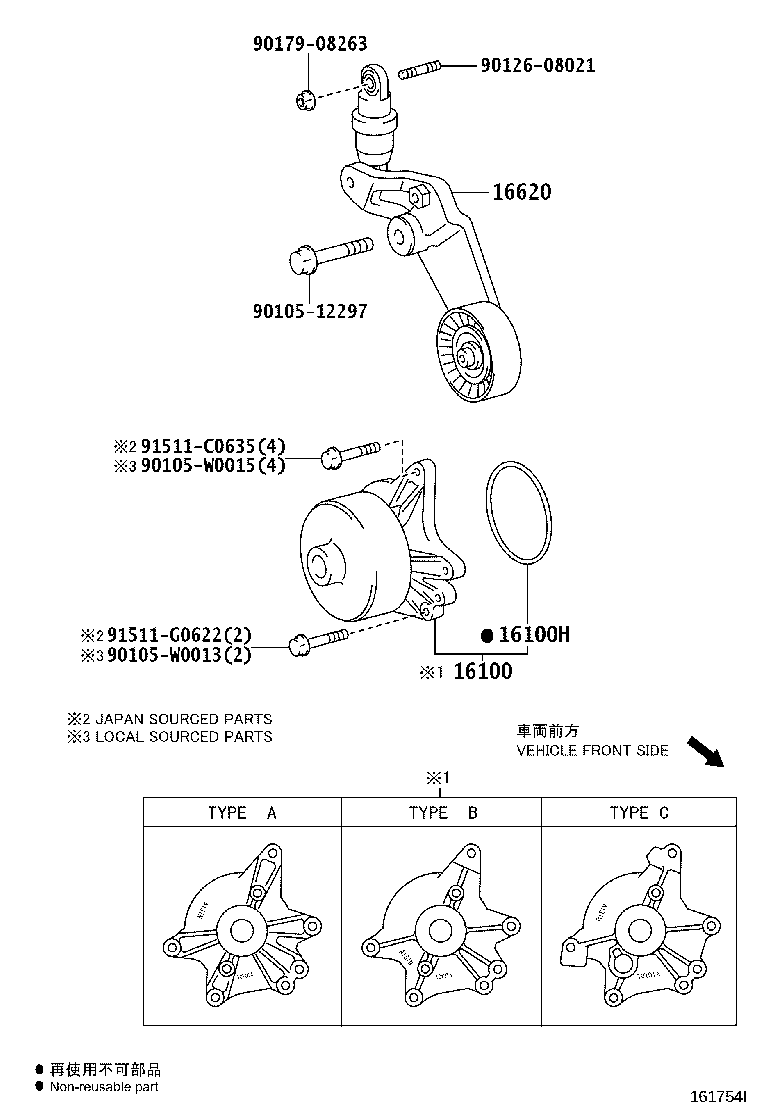

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09130 note |
Pump Assy, Engine Water
2003-01 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-09310 note |
Pump Assy, Engine Water
2004-02 → 2006-04
ended
|
3ZZFE D WG ZZT250;1ZZFE +13 | — | |
| 16100-09340 |
Pump Assy, Engine Water
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16100-28040 |
Pump Assy, Engine Water
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-29175 note |
Pump Assy, Engine Water
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-29185 |
Pump Assy, Engine Water
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2003-08 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2004-02 → 2006-04
ended
|
3ZZFE D ZZT250;1ZZFE WG +13 | — | |
| 16100-09310 note |
Pump Assy, Engine Water
2006-04 → 2008-11
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-09340 |
Pump Assy, Engine Water
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16100-28040 |
Pump Assy, Engine Water
2006-04 → 2007-01
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-28041 |
Pump Assy, Engine Water
2007-01 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2006-04 → 2008-11
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100H — Ring, O(FOR WATER PUMP) | ||||
| 90301-69006 |
Ring, O(FOR WATER PUMP)
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90301-69006 |
Ring, O(FOR WATER PUMP)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0R010 |
Tensioner Assy, V-ribbed Belt
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16620-22012 |
Tensioner Assy, V-ribbed Belt
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16620-28011 |
Tensioner Assy, V-ribbed Belt
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-0R010 |
Tensioner Assy, V-ribbed Belt
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16620-0W093 |
Tensioner Assy, V-ribbed Belt
2006-10 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16620-0W110 |
Tensioner Assy, V-ribbed Belt
2006-05 → 2006-08
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-22012 |
Tensioner Assy, V-ribbed Belt
2006-04 → 2006-10
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16620-28011 |
Tensioner Assy, V-ribbed Belt
2006-04 → 2006-05
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-28070 |
Tensioner Assy, V-ribbed Belt
2006-08 → 2007-03
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-28071 |
Tensioner Assy, V-ribbed Belt
2007-07 → 2008-01
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-28090 |
Tensioner Assy, V-ribbed Belt
2007-03 → 2007-07
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16620-28090 |
Tensioner Assy, V-ribbed Belt
2008-01 → —
|
1AZ#,2AZFSE AZT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
