Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

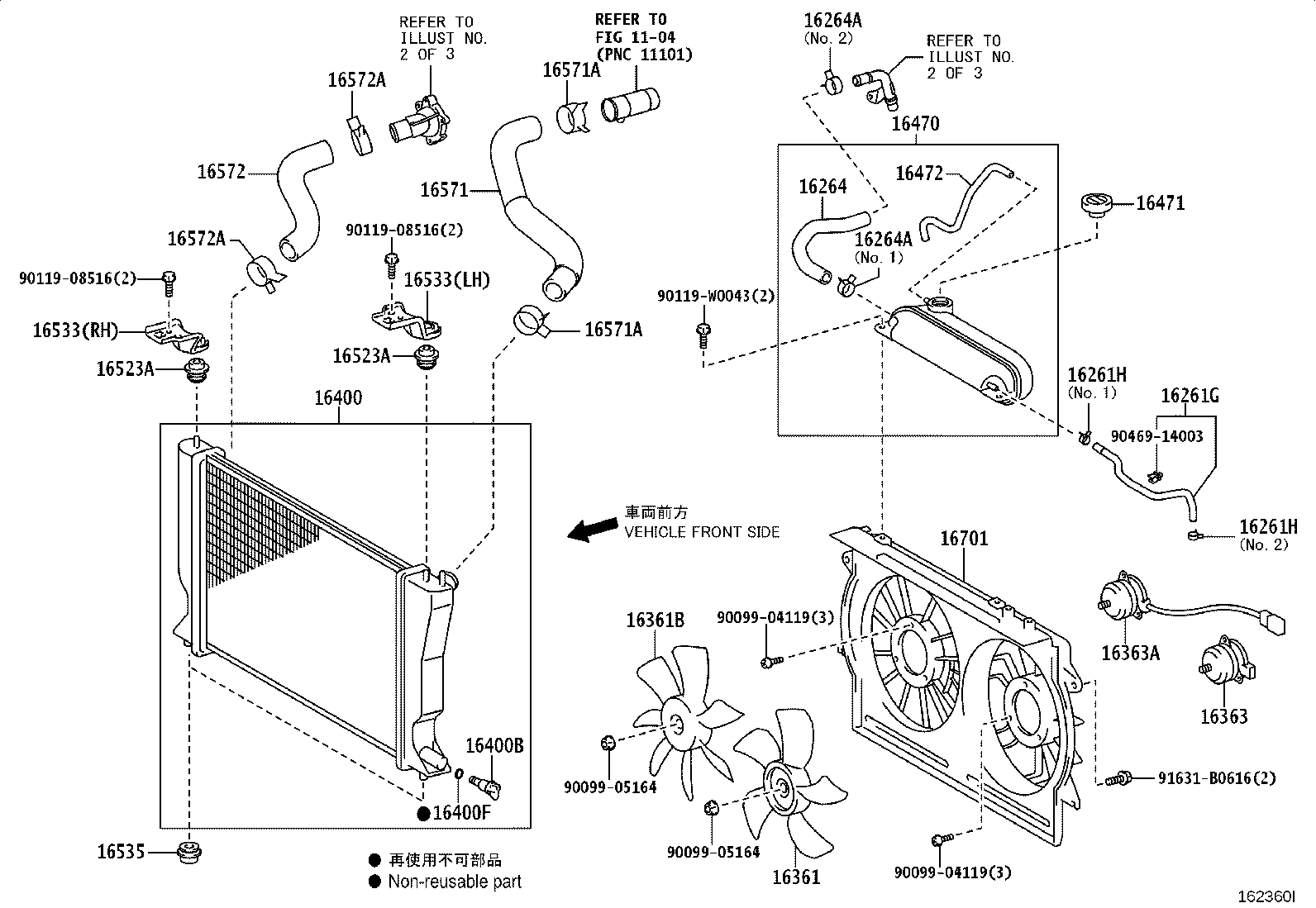

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-0R010 |
Hose, Water By-pass, NO.1
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16261-0R010 |
Hose, Water By-pass, NO.1
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-13003 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90466-W0003 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90466-13003 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90466-W0003 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0D080 note |
Hose, Water By-pass, NO.2
2003-01 → 2004-02
ended
|
1ZZFE ZZT251 | — | |
| 16264-0D090 note |
Hose, Water By-pass, NO.2
2003-01 → 2004-02
ended
|
3ZZFE ZZT250 | — | |
| 16264-0D121 note |
Hose, Water By-pass, NO.2
2004-02 → 2005-03
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-0D122 note |
Hose, Water By-pass, NO.2
2005-03 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-0G010 |
Hose, Water By-pass, NO.2
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16264-0H060 |
Hose, Water By-pass, NO.2
2003-01 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 16264-0R010 |
Hose, Water By-pass, NO.2
2006-03 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16264-0R010 |
Hose, Water By-pass, NO.2
2005-04 → 2006-02
ended
|
2AD# ADT251 | — | |
| 16264-22090 note |
Hose, Water By-pass, NO.2
2003-01 → 2004-02
ended
|
1ZZFE ZZT251 | — | |
| 16264-22110 note |
Hose, Water By-pass, NO.2
2003-01 → 2004-02
ended
|
3ZZFE ZZT250 | — | |
| 16264-22121 note |
Hose, Water By-pass, NO.2
2004-02 → 2004-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-22122 note |
Hose, Water By-pass, NO.2
2004-04 → 2005-03
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-22123 note |
Hose, Water By-pass, NO.2
2005-03 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-0D122 note |
Hose, Water By-pass, NO.2
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264-0H060 |
Hose, Water By-pass, NO.2
2006-04 → —
|
1AZFE AZT250 | — | |
| 16264-0R010 |
Hose, Water By-pass, NO.2
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16264-22123 note |
Hose, Water By-pass, NO.2
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2004-02 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0002 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-10 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 90466-W0010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-03 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90466-W0010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2005-04 → 2006-02
ended
|
2AD# ADT251 | — | |
| 90466-W0010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-08 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2005-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-04 → 2003-08
ended
|
1CDFTV CDT250 | — | |
| 96135-51300 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-01 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 96135-51300 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-10 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 96135-51300 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-01 → 2003-10
ended
|
1AZFE AZT250 | — | |
| 90466-W0002 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1AZFE AZT250 | — | |
| 90466-W0002 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 96135-51300 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1AZFE AZT250 | — | |
| 16361 — Fan | ||||
| 16361-0D080 |
Fan
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16361-0G010 |
Fan
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16361-0G010 |
Fan
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16361-0H050 |
Fan
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16361-21070 |
Fan
2003-01 → 2006-04
ended
|
1ZZFE ZZT251 4FC | — | |
| 16361-0D080 |
Fan
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16361-0G010 |
Fan
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16361-0H050 |
Fan
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16361-21070 |
Fan
2006-04 → —
|
1ZZFE ZZT251 4FC | — | |
| 16361B — Fan, NO.2 | ||||
| 16361-0D050 |
Fan, NO.2
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16361-0G020 |
Fan, NO.2
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16361-0G020 |
Fan, NO.2
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16361-0D050 |
Fan, NO.2
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16361-0G020 |
Fan, NO.2
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-0G050 |
Motor, Cooling Fan
2003-01 → 2006-04
ended
|
1ZZFE ZZT251 4FC | — | |
| 16363-0G050 |
Motor, Cooling Fan
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16363-0G050 |
Motor, Cooling Fan
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16363-0H030 |
Motor, Cooling Fan
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16363-0H030 |
Motor, Cooling Fan
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16363-0G050 |
Motor, Cooling Fan
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16363-0G050 |
Motor, Cooling Fan
2006-04 → —
|
1ZZFE ZZT251 4FC | — | |
| 16363-0H030 |
Motor, Cooling Fan
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16363-0H030 |
Motor, Cooling Fan
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16363A — Motor, Cooling Fan, NO.2 | ||||
| 16363-0G060 |
Motor, Cooling Fan, NO.2
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16363-0G060 |
Motor, Cooling Fan, NO.2
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16363-0H040 |
Motor, Cooling Fan, NO.2
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16363-0G060 |
Motor, Cooling Fan, NO.2
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16363-0H040 |
Motor, Cooling Fan, NO.2
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16400 — Radiator Assy | ||||
| 16400-0D210 |
Radiator Assy
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16400-0D220 |
Radiator Assy
2003-01 → 2006-04
ended
|
1ZZFE ZZT251 4FC | — | |
| 16400-0G030 |
Radiator Assy
2003-03 → 2004-11
ended
|
1CDFTV CDT250 | — | |
| 16400-0G031 |
Radiator Assy
2004-11 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16400-0H110 |
Radiator Assy
2003-01 → 2006-04
ended
|
1AZ# AZT250 5F | — | |
| 16400-0H120 |
Radiator Assy
2003-01 → 2004-07
ended
|
1AZ# AZT250 4FC | — | |
| 16400-0H121 |
Radiator Assy
2004-08 → 2006-04
ended
|
1AZ# AZT250 4FC | — | |
| 16400-0H180 |
Radiator Assy
2003-09 → 2004-07
ended
|
2AZFSE AZT251 | — | |
| 16400-0H181 |
Radiator Assy
2004-08 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 16400-0R020 |
Radiator Assy
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16400-0D210 |
Radiator Assy
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# 5F | — | |
| 16400-0D220 |
Radiator Assy
2006-04 → —
|
1ZZFE ZZT251 4FC | — | |
| 16400-0H110 |
Radiator Assy
2006-04 → —
|
1AZ# AZT250 5F | — | |
| 16400-0H121 |
Radiator Assy
2006-06 → —
|
2AZFSE AZT251 | — | |
| 16400-0H121 |
Radiator Assy
2006-04 → —
|
1AZ# AZT250 4FC | — | |
| 16400-0H181 |
Radiator Assy
2006-04 → 2006-06
ended
|
2AZFSE AZT251 | — | |
| 16400-0R021 |
Radiator Assy
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-0R010 |
Plug, Radiator Drain Cock
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 23322-54010 |
Plug, Radiator Drain Cock
2004-08 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# ATM | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2003-03 → 2004-02
ended
|
1CDFTV CDT250 | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2003-01 → 2004-08
ended
|
1AZ#,2AZFSE AZT25# ATM | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2003-01 → 2006-04
ended
|
1AZ# AZT250 5F | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2003-03 → 2006-04
ended
|
1CDFTV CDT250 RHD WG +1 | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2004-11 → 2006-04
ended
|
1CDFTV RY) CDT250 LB,SED;1CDFTV +7 | — | |
| 16417-0R010 |
Plug, Radiator Drain Cock
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 23322-54010 |
Plug, Radiator Drain Cock
2006-04 → —
|
1AZ#,2AZFSE AZT25# ATM | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2006-04 → —
|
1AZ# AZT250 5F | — | |
| 90080-34010 |
Plug, Radiator Drain Cock
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2003-03 → 2004-02
ended
|
1CDFTV CDT250 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2004-11 → 2006-04
ended
|
1CDFTV RY) CDT250 LB,SED;1CDFTV +7 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 RHD WG +1 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-0H030 |
Tank Assy, Radiator Reserve
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16480-0G020 |
Tank Assy, Radiator Reserve
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16480-0R010 |
Tank Assy, Radiator Reserve
2005-04 → 2006-03
ended
|
2AD# ADT251 | — | |
| 16480-0R011 |
Tank Assy, Radiator Reserve
2006-03 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16470-0H030 |
Tank Assy, Radiator Reserve
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16480-0R011 |
Tank Assy, Radiator Reserve
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16401-53010 |
Cap Sub-assy, Reserve Tank
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16401-53010 |
Cap Sub-assy, Reserve Tank
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16405-0D040 |
Cap Sub-assy, Reserve Tank
2003-08 → 2004-07
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16405-0D080 |
Cap Sub-assy, Reserve Tank
2004-08 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16405-0H030 |
Cap Sub-assy, Reserve Tank
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16471-0J010 |
Cap Sub-assy, Reserve Tank
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16401-53010 |
Cap Sub-assy, Reserve Tank
2006-04 → 2007-09
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16405-0D080 |
Cap Sub-assy, Reserve Tank
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16405-0H030 |
Cap Sub-assy, Reserve Tank
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16475-28120 |
Cap Sub-assy, Reserve Tank
2007-10 → 2008-03
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16475-51010 |
Cap Sub-assy, Reserve Tank
2008-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16472 — Hose, Breather | ||||
| 16472-0G020 |
Hose, Breather
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16472-0R010 |
Hose, Breather
2006-03 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16472-0R010 |
Hose, Breather
2005-04 → 2006-02
ended
|
2AD# ADT251 | — | |
| 16472-0R010 |
Hose, Breather
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-0D020 |
Cushion, Radiator Support
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16523-0D020 |
Cushion, Radiator Support
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16523-0D020 |
Cushion, Radiator Support
2003-03 → 2006-04
ended
|
1AZ#,2AD#,2AZFSE ADT251,AZT25# | — | |
| 16523-0D020 |
Cushion, Radiator Support
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16523-0D020 |
Cushion, Radiator Support
2006-04 → —
|
1ADFTV,1AZ#,2AD#,2AZFSE ADT25#,AZT25# | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16533-0R010 note |
Support, Radiator, Upper
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16533-22050 |
Support, Radiator, Upper
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16534-0R010 note |
Support, Radiator, Upper
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16533-0R010 note |
Support, Radiator, Upper
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16534-0R010 note |
Support, Radiator, Upper
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16535 — Support, Radiator, Lower | ||||
| 16535-0D031 |
Support, Radiator, Lower
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16535-0H020 |
Support, Radiator, Lower
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16535-0R010 |
Support, Radiator, Lower
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16535-27010 |
Support, Radiator, Lower
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16535-0D031 |
Support, Radiator, Lower
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16535-0H020 |
Support, Radiator, Lower
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16535-0R010 |
Support, Radiator, Lower
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-0D130 |
Hose, Radiator, Inlet
2003-01 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16571-0D180 |
Hose, Radiator, Inlet
2004-02 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16571-0G010 |
Hose, Radiator, Inlet
2003-03 → 2004-01
ended
|
1CDFTV CDT250 | — | |
| 16571-0G011 |
Hose, Radiator, Inlet
2004-01 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16571-0H070 |
Hose, Radiator, Inlet
2003-01 → 2003-07
ended
|
1AZ# AZT250 | — | |
| 16571-0R010 |
Hose, Radiator, Inlet
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16571-28230 |
Hose, Radiator, Inlet
2003-07 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16571-0D180 |
Hose, Radiator, Inlet
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16571-0R010 |
Hose, Radiator, Inlet
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16571-28230 |
Hose, Radiator, Inlet
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90466-37002 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-37002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-01 → 2003-08
ended
|
1AZ# AZT250 | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90466-W0011 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-08 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0012 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-08 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0012 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-08 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 90467-34004 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90466-W0011 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0012 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0012 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-0D110 |
Hose, Radiator, Outlet
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16572-0G010 |
Hose, Radiator, Outlet
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16572-0H060 |
Hose, Radiator, Outlet
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16572-0R010 |
Hose, Radiator, Outlet
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16572-0D110 |
Hose, Radiator, Outlet
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16572-0H060 |
Hose, Radiator, Outlet
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16572-0R010 |
Hose, Radiator, Outlet
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-37002 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-01 → 2003-05
ended
|
1AZ# AZT250 | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90466-W0013 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-08 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0013 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-08 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 90467-37005 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-05 → 2003-08
ended
|
1AZ# AZT250 | — | |
| 90467-37005 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90467-37005 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2003-01 → 2003-05
ended
|
1AZ# AZT250 | — | |
| 90466-41008 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90466-W0013 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0013 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-0G020 |
Shroud Sub-assy, Fan
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16711-0G050 note |
Shroud Sub-assy, Fan
2004-01 → 2005-03
ended
|
1CDFTV CDT250 ENTRY | — | |
| 16711-0G050 note |
Shroud Sub-assy, Fan
2004-01 → 2005-03
ended
|
1CDFTV CDT250 ENTRY | — | |
| 16711-0R010 |
Shroud Sub-assy, Fan
2005-04 → 2006-03
ended
|
2AD# ADT251 | — | |
| 16711-0R011 |
Shroud Sub-assy, Fan
2006-03 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16711-0R011 |
Shroud Sub-assy, Fan
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
