Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

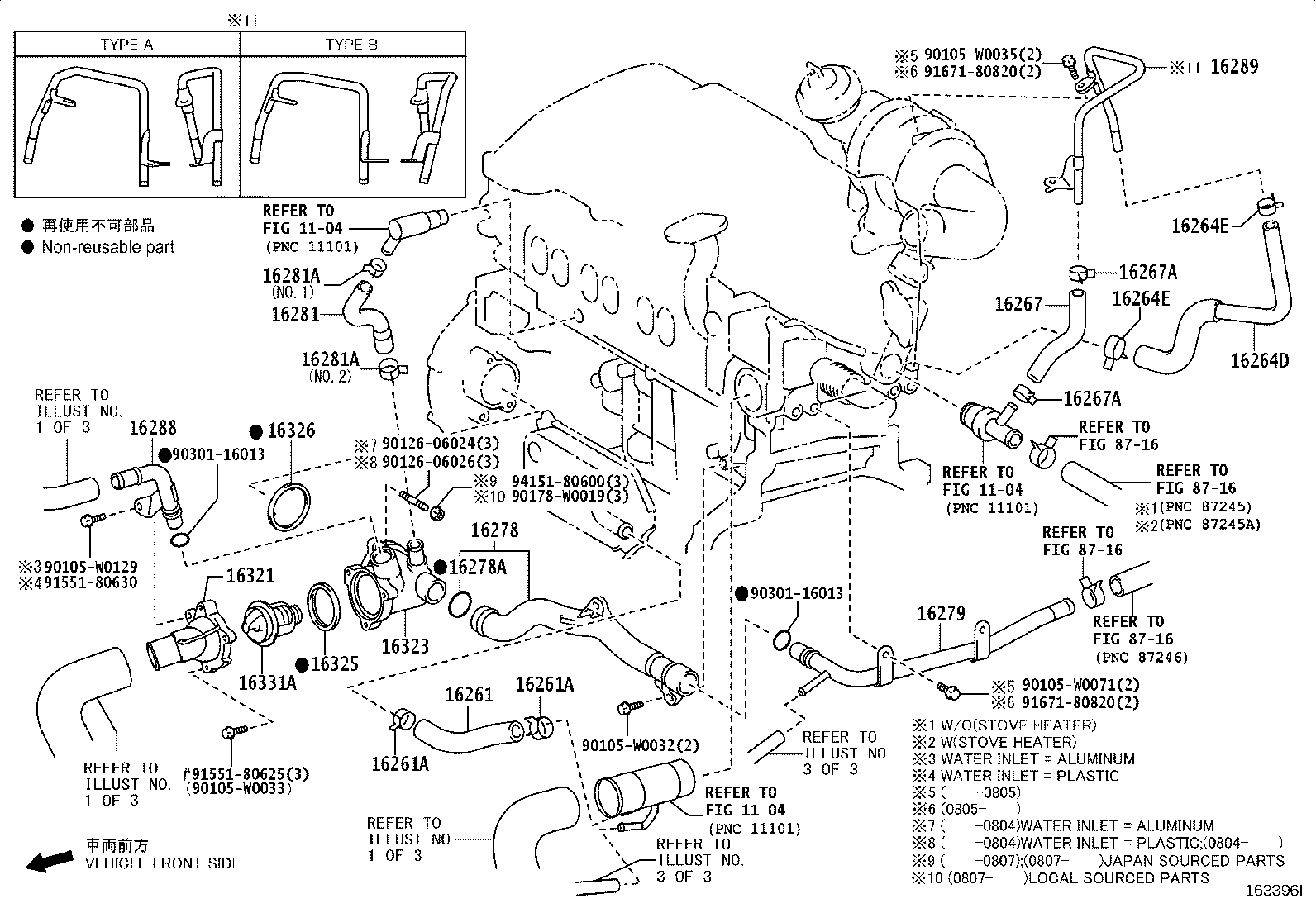

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0D070 note |
Hose, Water By-pass
2003-01 → 2004-02
ended
|
1ZZFE ZZT251 | — | |
| 16261-0D080 note |
Hose, Water By-pass
2003-01 → 2004-02
ended
|
3ZZFE ZZT250 | — | |
| 16261-0D122 note |
Hose, Water By-pass
2004-02 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16261-0G020 |
Hose, Water By-pass
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16261-0H060 |
Hose, Water By-pass
2003-01 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 16261-0R020 |
Hose, Water By-pass
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16261-22080 note |
Hose, Water By-pass
2003-01 → 2004-02
ended
|
1ZZFE ZZT251 | — | |
| 16261-22100 note |
Hose, Water By-pass
2003-01 → 2004-02
ended
|
3ZZFE ZZT250 | — | |
| 16261-22142 note |
Hose, Water By-pass
2004-02 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16261-0D122 note |
Hose, Water By-pass
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16261-0H060 |
Hose, Water By-pass
2006-04 → —
|
1AZFE AZT250 | — | |
| 16261-0R020 note |
Hose, Water By-pass
2006-04 → 2008-02
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16261-0R020 |
Hose, Water By-pass
2006-04 → 2008-02
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16261-0R081 |
Hose, Water By-pass
2008-02 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16261-0R081 note |
Hose, Water By-pass
2008-02 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16261-22142 note |
Hose, Water By-pass
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2004-02 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90466-W0002 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-10 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 90466-W0003 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-08 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 96135-51300 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-03 → 2003-08
ended
|
1CDFTV CDT250 | — | |
| 96135-51300 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-10 → 2006-04
ended
|
1AZFE AZT250 | — | |
| 96135-51300 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-01 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 96135-51300 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-01 → 2003-10
ended
|
1AZFE AZT250 | — | |
| 90466-W0002 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2006-04 → —
|
1AZFE AZT250 | — | |
| 90466-W0002 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90467-21006 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 96135-51300 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2006-04 → —
|
1AZFE AZT250 | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-26020 |
Hose, Water By-pass, NO.2
2005-04 → 2006-04
ended
|
2ADFTV ADT251 | — | |
| 16264-26020 note |
Hose, Water By-pass, NO.2
2006-04 → 2008-08
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16264-26020 |
Hose, Water By-pass, NO.2
2006-04 → 2008-08
ended
|
1ADFTV,2ADFTV ADT25# | — | |
| 16264-26080 |
Hose, Water By-pass, NO.2
2008-08 → —
|
1ADFTV,2ADFTV ADT25# | — | |
| 16264-26080 note |
Hose, Water By-pass, NO.2
2008-08 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2005-04 → 2006-04
ended
|
2ADFTV ADT251 | — | |
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
1ADFTV,2ADFTV ADT25# | — | |
| 90467-15022 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0G020 |
Hose, Water By-pass, NO.3
2003-03 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 16267-26020 |
Hose, Water By-pass, NO.3
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16267-27020 |
Hose, Water By-pass, NO.3
2003-09 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 16267-26020 |
Hose, Water By-pass, NO.3
2006-04 → 2008-08
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16267-26020 note |
Hose, Water By-pass, NO.3
2006-04 → 2008-08
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16267-26021 |
Hose, Water By-pass, NO.3
2008-08 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16267-26021 note |
Hose, Water By-pass, NO.3
2008-08 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90467-15022 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16278 — Pipe, Water By-pass, NO.2 | ||||
| 16278-0R010 |
Pipe, Water By-pass, NO.2
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16278-27060 |
Pipe, Water By-pass, NO.2
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16278-0R010 |
Pipe, Water By-pass, NO.2
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16278A — Gasket, Water By-pass | ||||
| 16258-0R010 |
Gasket, Water By-pass
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16347-0G010 |
Gasket, Water By-pass
2003-03 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 16347-27020 |
Gasket, Water By-pass
2003-09 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 16258-0R010 |
Gasket, Water By-pass
2006-04 → 2008-11
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16258-0R010 note |
Gasket, Water By-pass
2006-04 → 2008-11
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16279 — Pipe, Water By-pass, NO.3 | ||||
| 16279-0R010 |
Pipe, Water By-pass, NO.3
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16279-0R010 |
Pipe, Water By-pass, NO.3
2006-04 → 2008-02
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16279-0R010 note |
Pipe, Water By-pass, NO.3
2006-04 → 2008-02
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16279-0R040 |
Pipe, Water By-pass, NO.3
2008-02 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16279-0R040 note |
Pipe, Water By-pass, NO.3
2008-02 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0G010 |
Hose, Water By-pass, NO.4
2003-03 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 16281-0R010 |
Hose, Water By-pass, NO.4
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16281-27020 |
Hose, Water By-pass, NO.4
2003-09 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 16281-0R010 |
Hose, Water By-pass, NO.4
2006-04 → 2006-06
ended
|
1ADFTV,2AD# ADT25# | — | |
| 16281-0R010 note |
Hose, Water By-pass, NO.4
2006-06 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16281-0R010 note |
Hose, Water By-pass, NO.4
2006-04 → 2006-06
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16281-0R030 note |
Hose, Water By-pass, NO.4
2006-06 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13073 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 96134-52100 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-06 → —
|
1ADFTV,2AD# ADT25# | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-04 → 2006-06
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 96134-52100 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-04 → 2006-06
ended
|
1ADFTV,2AD# ADT25# | — | |
| 96134-52100 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-04 → 2006-06
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 96134-52100 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2006-06 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16288 — Pipe, Water By-pass, NO.4 | ||||
| 16288-0R010 |
Pipe, Water By-pass, NO.4
2005-04 → 2005-09
ended
|
2AD# ADT251 ELEGT,ENTRY,TEC | — | |
| 16288-0R011 |
Pipe, Water By-pass, NO.4
2005-09 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16288-0R011 note |
Pipe, Water By-pass, NO.4
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16288-0R011 |
Pipe, Water By-pass, NO.4
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16289 — Pipe, Water By-pass, NO.5 | ||||
| 16289-26010 |
Pipe, Water By-pass, NO.5
2005-04 → 2006-04
ended
|
2ADFTV ADT251 | — | |
| 16289-26010 note |
Pipe, Water By-pass, NO.5
2006-04 → 2008-05
ended
|
1ADFTV,2ADFTV ADT25# | — | |
| 16289-26010 note |
Pipe, Water By-pass, NO.5
2006-04 → 2008-05
ended
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16289-26011 note |
Pipe, Water By-pass, NO.5
2008-05 → —
|
1ADFTV,2ADFTV ADT25# | — | |
| 16289-26011 note |
Pipe, Water By-pass, NO.5
2008-05 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16321 — Inlet, Water | ||||
| 16321-0D030 |
Inlet, Water
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16321-26010 note |
Inlet, Water
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16321-27040 |
Inlet, Water
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16321-28010 |
Inlet, Water
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16321-0D030 |
Inlet, Water
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16321-0R011 note |
Inlet, Water
2006-07 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16321-26010 note |
Inlet, Water
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16321-28010 |
Inlet, Water
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16323 — Housing, Water Inlet | ||||
| 16323-26010 note |
Housing, Water Inlet
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16323-0R011 note |
Housing, Water Inlet
2006-07 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16323-0R011 note |
Housing, Water Inlet
2006-07 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16323-26010 note |
Housing, Water Inlet
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16323-26010 note |
Housing, Water Inlet
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-0D010 note |
Gasket, Water Inlet Housing, NO.1
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16325-27010 |
Gasket, Water Inlet Housing, NO.1
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2003-08 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2003-01 → 2003-08
ended
|
1AZ# AZT250 | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16325-0D010 note |
Gasket, Water Inlet Housing, NO.1
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2006-07 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2006-07 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-26020 note |
Gasket, Water Inlet Housing, NO.2
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16326-26011 note |
Gasket, Water Inlet Housing, NO.2
2006-07 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16326-26020 note |
Gasket, Water Inlet Housing, NO.2
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16331A — Thermostat | ||||
| 90916-03084 note |
Thermostat
2003-01 → 2004-09
ended
|
1AZFE,2AZFSE AZT25# | — | |
| 90916-03123 |
Thermostat
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 90916-03125 note |
Thermostat
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90916-03127 note |
Thermostat
2003-01 → 2006-04
ended
|
1AZFSE AZT250 | — | |
| 90916-03129 note |
Thermostat
2004-09 → 2005-10
ended
|
1AZFE,2AZFSE AZT25# | — | |
| 90916-03129 note |
Thermostat
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90916-03136 note |
Thermostat
2005-10 → 2006-04
ended
|
1AZFE,2AZFSE AZT25# | — | |
| 90916-03125 note |
Thermostat
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 90916-03125 note |
Thermostat
2006-04 → —
|
2ADFTV ADT251 RHD SED +1 | — | |
| 90916-03127 note |
Thermostat
2006-04 → —
|
1AZFSE AZT250 | — | |
| 90916-03129 note |
Thermostat
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 90916-03136 note |
Thermostat
2006-04 → —
|
1AZFE,2AZFSE AZT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
