Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

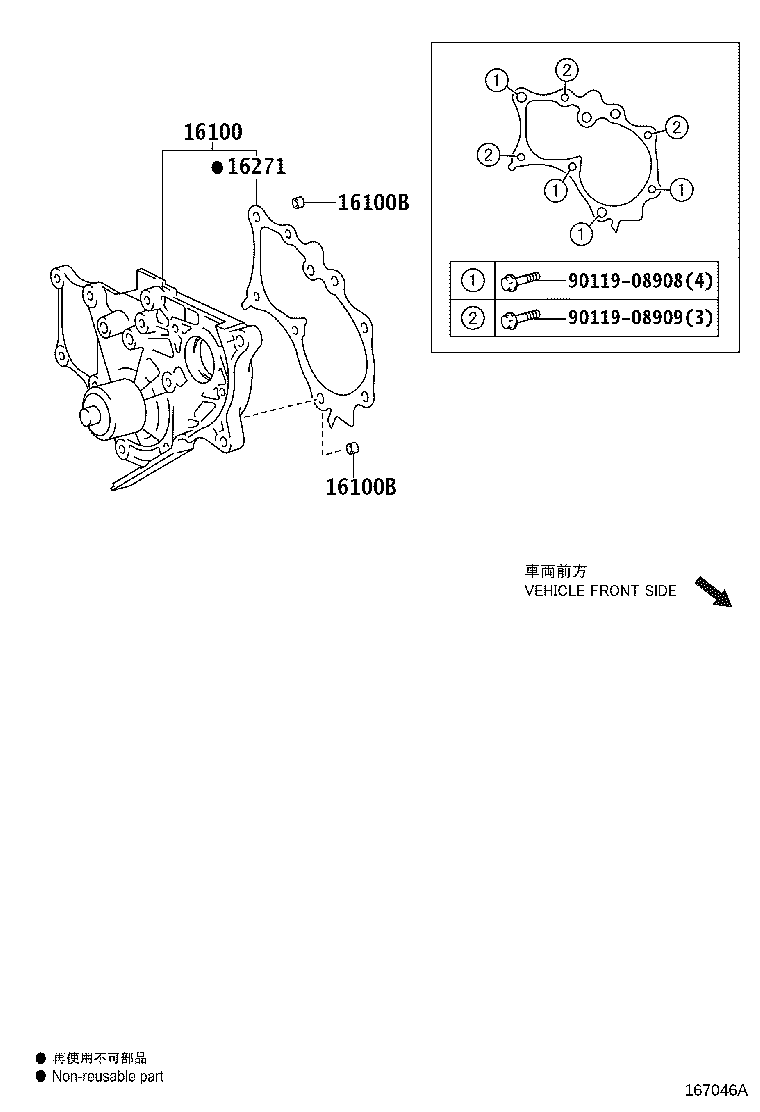

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09130 note |
Pump Assy, Engine Water
2003-01 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-09310 note |
Pump Assy, Engine Water
2004-02 → 2006-04
ended
|
D 3ZZFE ZZT250;1ZZFE WG +13 | — | |
| 16100-09340 |
Pump Assy, Engine Water
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16100-28040 |
Pump Assy, Engine Water
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-29175 note |
Pump Assy, Engine Water
2003-01 → 2003-08
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-29185 |
Pump Assy, Engine Water
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2003-08 → 2004-02
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2004-02 → 2006-04
ended
|
3ZZFE D ZZT250;1ZZFE WG +13 | — | |
| 16100-09310 note |
Pump Assy, Engine Water
2006-04 → 2008-11
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100-09340 |
Pump Assy, Engine Water
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 16100-28040 |
Pump Assy, Engine Water
2006-04 → 2007-01
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-28041 |
Pump Assy, Engine Water
2007-01 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 16100-29415 note |
Pump Assy, Engine Water
2006-04 → 2008-11
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 16100B — Pin, Ring(FOR WATER PUMP SET) | ||||
| 90253-11021 |
Pin, Ring(FOR WATER PUMP SET)
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-26010 |
Gasket, Water Pump
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 16271-27010 |
Gasket, Water Pump
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 16271-26010 |
Gasket, Water Pump
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
