Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

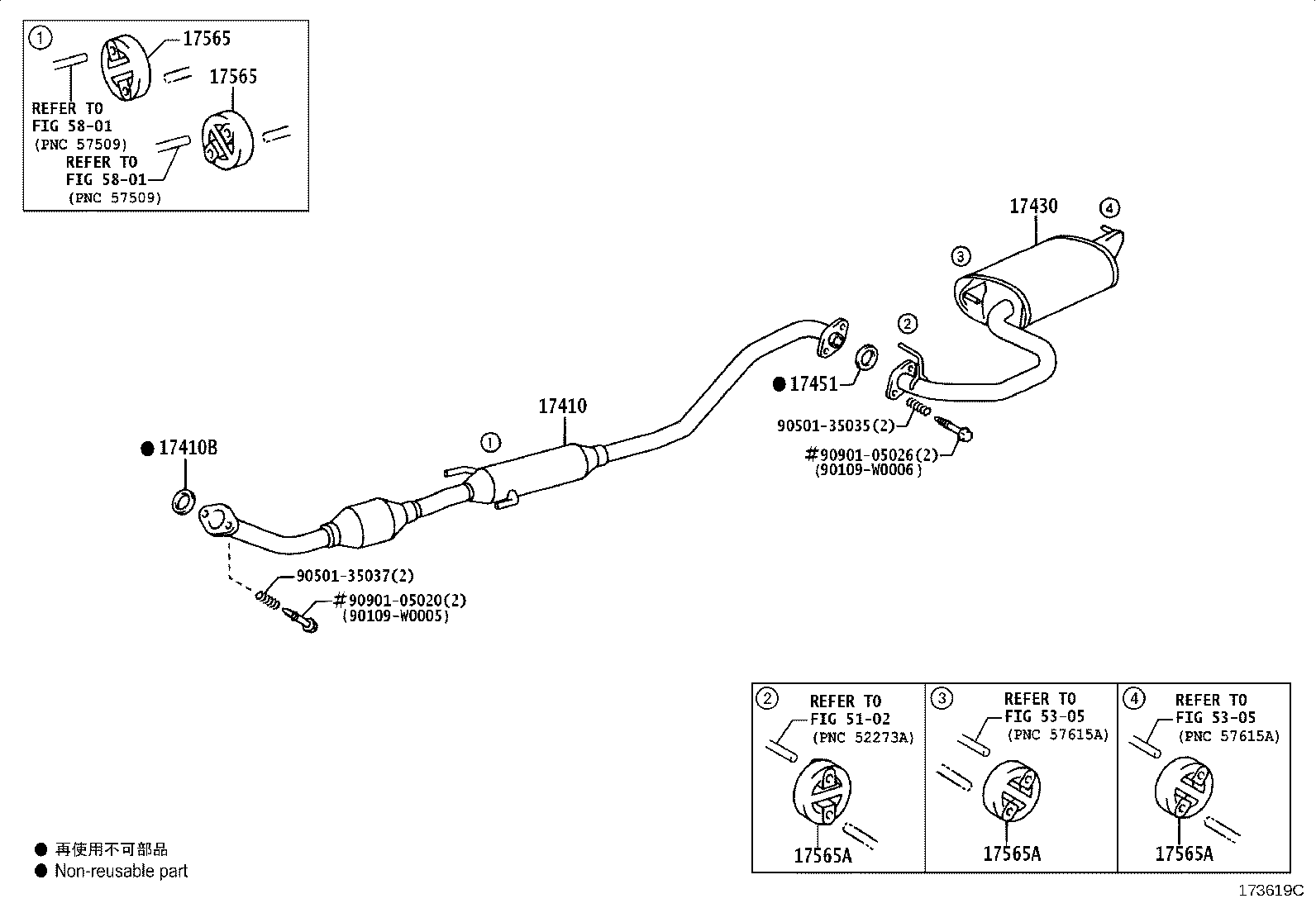

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0D200 note |
Pipe Assy, Exhaust, Front
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17410-0G040 note |
Pipe Assy, Exhaust, Front
2003-03 → 2004-04
ended
|
1CDFTV CDT250 DCR | — | |
| 17410-0G041 note |
Pipe Assy, Exhaust, Front
2004-05 → 2006-04
ended
|
1CDFTV CDT250 DCR | — | |
| 17410-0G090 note |
Pipe Assy, Exhaust, Front
2003-09 → 2004-05
ended
|
1CDFTV CDT250 DCRL | — | |
| 17410-0G091 note |
Pipe Assy, Exhaust, Front
2004-05 → 2004-11
ended
|
1CDFTV CDT250 DCRL | — | |
| 17410-0H070 |
Pipe Assy, Exhaust, Front
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 17410-0H080 |
Pipe Assy, Exhaust, Front
2003-01 → 2006-04
ended
|
1AZ# AZT250 | — | |
| 17410-0R010 note |
Pipe Assy, Exhaust, Front
2005-04 → 2006-04
ended
|
2ADFTV ADT251 | — | |
| 17410-0R020 note |
Pipe Assy, Exhaust, Front
2005-04 → 2006-04
ended
|
2ADFHV ADT251 | — | |
| 17410-0D200 note |
Pipe Assy, Exhaust, Front
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17410-0H070 |
Pipe Assy, Exhaust, Front
2006-04 → —
|
2AZFSE AZT251 | — | |
| 17410-0H080 |
Pipe Assy, Exhaust, Front
2006-04 → —
|
1AZ# AZT250 | — | |
| 17410-0R010 note |
Pipe Assy, Exhaust, Front
2006-04 → —
|
1ADFTV,2ADFTV ADT25# | — | |
| 17410-0R020 note |
Pipe Assy, Exhaust, Front
2006-04 → —
|
2ADFHV ADT251 | — | |
| 17410-0R080 note |
Pipe Assy, Exhaust, Front
2006-09 → —
|
1ADFTV ADT250 LHD | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-0D090 |
Gasket, Exhaust Pipe
2003-01 → 2006-04
ended
|
1CDFTV,1ZZFE,3ZZFE CDT250,ZZT25# | — | |
| 17451-0H010 |
Gasket, Exhaust Pipe
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 17451-0D090 |
Gasket, Exhaust Pipe
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17451-0H010 |
Gasket, Exhaust Pipe
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0D220 |
Pipe Assy, Exhaust, Tail
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17430-0G050 |
Pipe Assy, Exhaust, Tail
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 17430-0H050 |
Pipe Assy, Exhaust, Tail
2003-01 → 2006-04
ended
|
1AZ# AZT250 | — | |
| 17430-0H100 |
Pipe Assy, Exhaust, Tail
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 17430-0R010 |
Pipe Assy, Exhaust, Tail
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 17430-0D220 |
Pipe Assy, Exhaust, Tail
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17430-0H050 |
Pipe Assy, Exhaust, Tail
2006-04 → —
|
1AZ# AZT250 | — | |
| 17430-0H100 |
Pipe Assy, Exhaust, Tail
2006-04 → —
|
2AZFSE AZT251 | — | |
| 17430-0R010 |
Pipe Assy, Exhaust, Tail
2006-04 → —
|
1ADFTV,2AD# ADT25# | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-02030 |
Gasket, Exhaust Pipe
2003-01 → 2006-04
ended
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17451-0B010 |
Gasket, Exhaust Pipe
2003-03 → 2006-04
ended
|
1CDFTV CDT250 | — | |
| 17451-0R020 |
Gasket, Exhaust Pipe
2005-04 → 2006-04
ended
|
2AD# ADT251 | — | |
| 90917-06078 |
Gasket, Exhaust Pipe
2003-01 → 2006-04
ended
|
1AZ#,2AZFSE AZT25# | — | |
| 17451-02030 |
Gasket, Exhaust Pipe
2006-04 → —
|
1ZZFE,3ZZFE ZZT25# | — | |
| 17451-0R020 |
Gasket, Exhaust Pipe
2006-04 → 2008-11
ended
|
1ADFTV,2AD# ADT25# | — | |
| 90917-06078 |
Gasket, Exhaust Pipe
2006-04 → —
|
1AZ#,2AZFSE AZT25# | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-0D060 |
Support, Exhaust Pipe, NO.5
2003-01 → 2006-04
ended
|
1AZ#,2AD#,1CDFTV,1ZZFE,3ZZFE ADT251,AZT250,CDT250,ZZT25# | — | |
| 17565-0D060 |
Support, Exhaust Pipe, NO.5
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 17565-0D060 |
Support, Exhaust Pipe, NO.5
2006-04 → —
|
1ADFTV,1AZ#,2AD#,1ZZFE,3ZZFE ADT25#,AZT250,ZZT25# | — | |
| 17565-0D060 |
Support, Exhaust Pipe, NO.5
2006-04 → —
|
2AZFSE AZT251 | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-0D030 |
Support, Exhaust Pipe, NO.4
2003-01 → 2006-04
ended
|
1AZ#,2AD#,1CDFTV,1ZZFE,3ZZFE ADT251,AZT250,CDT250,ZZT25# | — | |
| 17565-0D030 |
Support, Exhaust Pipe, NO.4
2003-09 → 2006-04
ended
|
2AZFSE AZT251 | — | |
| 17565-0D030 |
Support, Exhaust Pipe, NO.4
2006-04 → —
|
2AZFSE AZT251 | — | |
| 17565-0D030 |
Support, Exhaust Pipe, NO.4
2006-04 → —
|
1ADFTV,1AZ#,2AD#,1ZZFE,3ZZFE ADT25#,AZT250,ZZT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
