Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

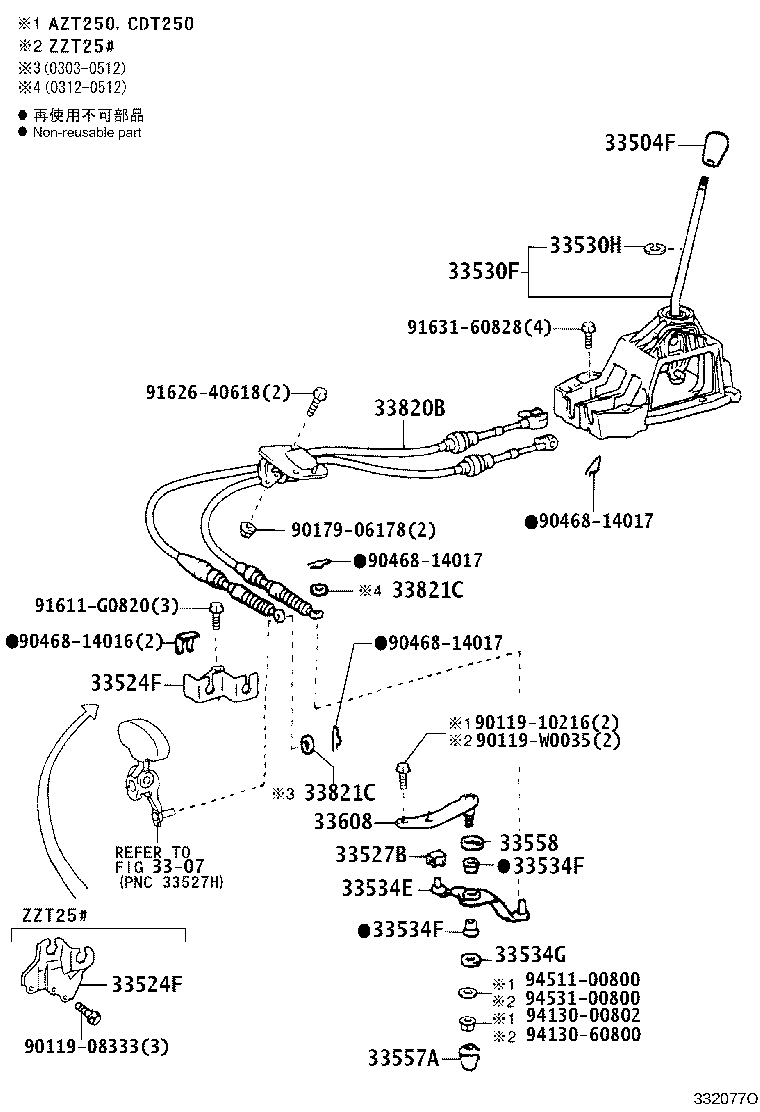

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-02030-B0 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-08
ended
|
CDT250,ZZT25# 5F ENTRY | — | |
| 33504-02030-B0 note |
Knob Sub-assy, Shift Lever
2003-08 → 2006-04
ended
|
CDT250,ZZT25# 5F ENTRY | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-08
ended
|
AZT250,ZZT251 4FC ELEGT | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-08
ended
|
AZT250,ZZT251 4FC TEC | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2003-08 → 2006-04
ended
|
AZT25#,ZZT251 ATM TEC | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2003-08 → 2006-04
ended
|
AZT25#,ZZT251 ATM ELEGT | — | |
| 33504-05040-B0 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-05
ended
|
AZT250,CDT250,ZZT25# 5F TEC | — | |
| 33504-05040-B0 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-05
ended
|
AZT250,CDT250,ZZT25# 5F ELEGT | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2003-05 → 2003-12
ended
|
CDT250 TEC DCRL | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2003-05 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F ELEGT (D4,DCR,HTWC) | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2003-05 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F TEC (D4,DCR,HTWC) | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2003-05 → 2003-12
ended
|
CDT250 ELEGT DCRL | — | |
| 33504-13010-B0 note |
Knob Sub-assy, Shift Lever
2003-08 → 2006-04
ended
|
CDT250,ZZT25# 5F ENTRY | — | |
| 33504-20230-B0 note |
Knob Sub-assy, Shift Lever
2005-04 → 2006-04
ended
|
ADT251 ENTRY | — | |
| 33504-20240-B0 note |
Knob Sub-assy, Shift Lever
2005-04 → 2006-04
ended
|
ADT251 TEC | — | |
| 33504-20240-B0 note |
Knob Sub-assy, Shift Lever
2005-04 → 2006-04
ended
|
ADT251 ELEGT | — | |
| 33504-22170-B1 note |
Knob Sub-assy, Shift Lever
2003-01 → 2006-04
ended
|
ZZT251 4FC ENTRY | — | |
| 33504-22170-B1 note |
Knob Sub-assy, Shift Lever
2005-08 → 2006-04
ended
|
AZT250 LHD SED 4FC +2 | — | |
| 33504-30281-B1 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-08
ended
|
AZT250,ZZT251 4FC ELEGT | — | |
| 33504-30281-B1 note |
Knob Sub-assy, Shift Lever
2003-01 → 2003-08
ended
|
AZT250,ZZT251 4FC TEC | — | |
| 33504-02030-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT25# 5F ENTRY | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT251 RHD 4FC TEC | — | |
| 33504-05030-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
AZT25# ATM;ZZT251 LHD 4FC | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT251 RHD 5F TEC | — | |
| 33504-05041-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT251 LHD 5F TEC;AZT250,ZZT250 +2 | — | |
| 33504-13010-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT25# 5F ENTRY | — | |
| 33504-20230-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ADT25# ENTRY | — | |
| 33504-20240-B0 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ADT25# PAG,TEC | — | |
| 33504-22170-B1 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
ZZT251 4FC ENTRY | — | |
| 33504-22170-B1 note |
Knob Sub-assy, Shift Lever
2006-04 → —
|
AZT250 LHD SED 4FC +1 | — | |
| 33524F — Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) | ||||
| 33524-20040 |
Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2003-01 → 2006-04
ended
|
ZZT25# 5F | — | |
| 33524-28020 |
Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2003-01 → 2006-04
ended
|
AZT250,CDT250 5F | — | |
| 33524-20040 |
Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2006-04 → —
|
ZZT25# 5F | — | |
| 33524-28020 |
Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2006-04 → —
|
AZT250 5F | — | |
| 33527B — Bush (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
Bush (FOR CONTROL SHIFT LEVER)
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 33557-33010 |
Bush (FOR CONTROL SHIFT LEVER)
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33530F — Lever Assy, Shift (FOR FLOOR SHIFT) | ||||
| 33530-05070 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2003-01 → 2003-12
ended
|
AZT250,CDT250,ZZT25# LHD 5F | — | |
| 33530-05071 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2003-12 → 2006-04
ended
|
AZT250,CDT250,ZZT25# LHD 5F | — | |
| 33530-05080 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2003-01 → 2003-12
ended
|
AZT250,CDT250,ZZT25# RHD 5F | — | |
| 33530-05081 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2003-12 → 2006-04
ended
|
AZT250,CDT250,ZZT25# RHD 5F | — | |
| 33530-05090 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2005-04 → 2006-04
ended
|
ADT251 LHD | — | |
| 33530-05100 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2005-04 → 2006-04
ended
|
ADT251 RHD | — | |
| 33530-05071 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2006-04 → —
|
AZT250,ZZT25# LHD 5F | — | |
| 33530-05081 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2006-04 → —
|
AZT250,ZZT25# RHD 5F | — | |
| 33530-05090 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2006-04 → —
|
ADT25# LHD | — | |
| 33530-05100 |
Lever Assy, Shift (FOR FLOOR SHIFT)
2006-04 → —
|
ADT25# RHD | — | |
| 33530H — Ring, Snap (FOR SHIFT LEVER) | ||||
| 3352A-05010 |
Ring, Snap (FOR SHIFT LEVER)
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 3352A-05010 |
Ring, Snap (FOR SHIFT LEVER)
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33534E — Crank, Selecting Bell, NO.2 | ||||
| 33534-20090 |
Crank, Selecting Bell, NO.2
2003-01 → 2006-04
ended
|
ZZT25# 5F | — | |
| 33534-28090 |
Crank, Selecting Bell, NO.2
2003-01 → 2006-04
ended
|
AZT250,CDT250 5F | — | |
| 33534-20090 |
Crank, Selecting Bell, NO.2
2006-04 → —
|
ZZT25# 5F | — | |
| 33534-28090 |
Crank, Selecting Bell, NO.2
2006-04 → —
|
AZT250 5F | — | |
| 33534F — Bush (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
Bush (FOR SELECTING BELLCRANK NO.2)
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 90386-12022 |
Bush (FOR SELECTING BELLCRANK NO.2)
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33534G — Washer, Plate (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 90201-08028 |
Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33557A — Cover, Selecting Bellcrank Dust, NO.1 | ||||
| 33557-20010 note |
Cover, Selecting Bellcrank Dust, NO.1
2005-04 → 2006-04
ended
|
ADT251 | — | |
| 33557-32010 |
Cover, Selecting Bellcrank Dust, NO.1
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 33557-33010 note |
Cover, Selecting Bellcrank Dust, NO.1
2005-04 → 2006-04
ended
|
ADT251 | — | |
| 33557-20010 note |
Cover, Selecting Bellcrank Dust, NO.1
2006-04 → —
|
ADT25# | — | |
| 33557-32010 |
Cover, Selecting Bellcrank Dust, NO.1
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33557-33010 note |
Cover, Selecting Bellcrank Dust, NO.1
2006-04 → —
|
ADT25# | — | |
| 33558 — Cover, Selecting Bellcrank Dust, NO.2 | ||||
| 33558-10030 |
Cover, Selecting Bellcrank Dust, NO.2
2003-01 → 2006-04
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 33558-10030 |
Cover, Selecting Bellcrank Dust, NO.2
2006-04 → —
|
AZT250,ZZT25# 5F | — | |
| 33608 — Support Sub-assy, Selecting Bellcrank | ||||
| 33608-12031 |
Support Sub-assy, Selecting Bellcrank
2003-01 → 2006-04
ended
|
AZT250,CDT250 5F | — | |
| 33608-42010 |
Support Sub-assy, Selecting Bellcrank
2003-01 → 2006-04
ended
|
ZZT25# 5F | — | |
| 33608-12031 |
Support Sub-assy, Selecting Bellcrank
2006-04 → —
|
AZT250 5F | — | |
| 33608-42010 |
Support Sub-assy, Selecting Bellcrank
2006-04 → —
|
ZZT25# 5F | — | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-05261 |
Cable Assy, Transmission Control
2003-03 → 2003-09
ended
|
CDT250 | — | |
| 33820-05262 |
Cable Assy, Transmission Control
2003-09 → 2003-12
ended
|
CDT250 | — | |
| 33820-05263 |
Cable Assy, Transmission Control
2003-12 → 2005-02
ended
|
CDT250 | — | |
| 33820-05264 |
Cable Assy, Transmission Control
2005-03 → 2005-11
ended
|
CDT250 | — | |
| 33820-05265 |
Cable Assy, Transmission Control
2005-12 → 2006-04
ended
|
CDT250 | — | |
| 33820-05270 |
Cable Assy, Transmission Control
2003-01 → 2003-03
ended
|
ZZT25# 5F | — | |
| 33820-05271 |
Cable Assy, Transmission Control
2003-03 → 2003-09
ended
|
ZZT25# 5F | — | |
| 33820-05272 |
Cable Assy, Transmission Control
2003-09 → 2003-12
ended
|
ZZT25# 5F | — | |
| 33820-05273 |
Cable Assy, Transmission Control
2003-12 → 2005-02
ended
|
ZZT25# 5F | — | |
| 33820-05274 |
Cable Assy, Transmission Control
2005-03 → 2005-11
ended
|
ZZT25# 5F | — | |
| 33820-05275 |
Cable Assy, Transmission Control
2005-12 → 2006-04
ended
|
ZZT25# 5F | — | |
| 33820-05280 |
Cable Assy, Transmission Control
2003-01 → 2003-03
ended
|
AZT250 5F D4 | — | |
| 33820-05281 |
Cable Assy, Transmission Control
2003-03 → 2003-09
ended
|
AZT250 5F D4 | — | |
| 33820-05282 |
Cable Assy, Transmission Control
2003-09 → 2003-12
ended
|
AZT250 5F D4 | — | |
| 33820-05283 |
Cable Assy, Transmission Control
2003-12 → 2005-02
ended
|
AZT250 5F D4 | — | |
| 33820-05284 |
Cable Assy, Transmission Control
2005-03 → 2005-11
ended
|
AZT250 5F D4 | — | |
| 33820-05285 |
Cable Assy, Transmission Control
2005-12 → 2006-04
ended
|
AZT250 5F D4 | — | |
| 33820-05290 |
Cable Assy, Transmission Control
2003-01 → 2003-03
ended
|
AZT250 5F HTWC | — | |
| 33820-05291 |
Cable Assy, Transmission Control
2003-03 → 2003-09
ended
|
AZT250 5F HTWC | — | |
| 33820-05292 |
Cable Assy, Transmission Control
2003-09 → 2003-12
ended
|
AZT250 5F HTWC | — | |
| 33820-05293 |
Cable Assy, Transmission Control
2003-12 → 2005-02
ended
|
AZT250 5F HTWC | — | |
| 33820-05294 |
Cable Assy, Transmission Control
2005-03 → 2005-11
ended
|
AZT250 5F HTWC | — | |
| 33820-05295 |
Cable Assy, Transmission Control
2005-12 → 2006-04
ended
|
AZT250 5F HTWC | — | |
| 33820-05300 |
Cable Assy, Transmission Control
2005-04 → 2006-04
ended
|
ADT251 | — | |
| 33820-20A00 |
Cable Assy, Transmission Control
2004-02 → 2006-04
ended
|
ZZT251 4FC | — | |
| 33820-2B630 |
Cable Assy, Transmission Control
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 33820-2B640 |
Cable Assy, Transmission Control
2003-01 → 2004-02
ended
|
ZZT251 4FC | — | |
| 33820-2B650 |
Cable Assy, Transmission Control
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 33820-05275 |
Cable Assy, Transmission Control
2006-04 → —
|
ZZT25# 5F | — | |
| 33820-05285 |
Cable Assy, Transmission Control
2006-04 → —
|
AZT250 5F D4 | — | |
| 33820-05295 |
Cable Assy, Transmission Control
2006-04 → —
|
AZT250 5F HTWC | — | |
| 33820-05300 |
Cable Assy, Transmission Control
2006-04 → —
|
ADT251 | — | |
| 33820-05340 |
Cable Assy, Transmission Control
2006-05 → —
|
ADT250 | — | |
| 33820-20A00 |
Cable Assy, Transmission Control
2006-04 → —
|
ZZT251 4FC | — | |
| 33820-2B630 |
Cable Assy, Transmission Control
2006-04 → —
|
AZT250 4FC | — | |
| 33820-2B650 |
Cable Assy, Transmission Control
2006-04 → —
|
AZT251 | — | |
| 33821C — Washer, Plate (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 note |
Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2003-03 → 2003-12
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
| 90201-08267 note |
Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2003-12 → 2005-12
ended
|
AZT250,CDT250,ZZT25# 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
