Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

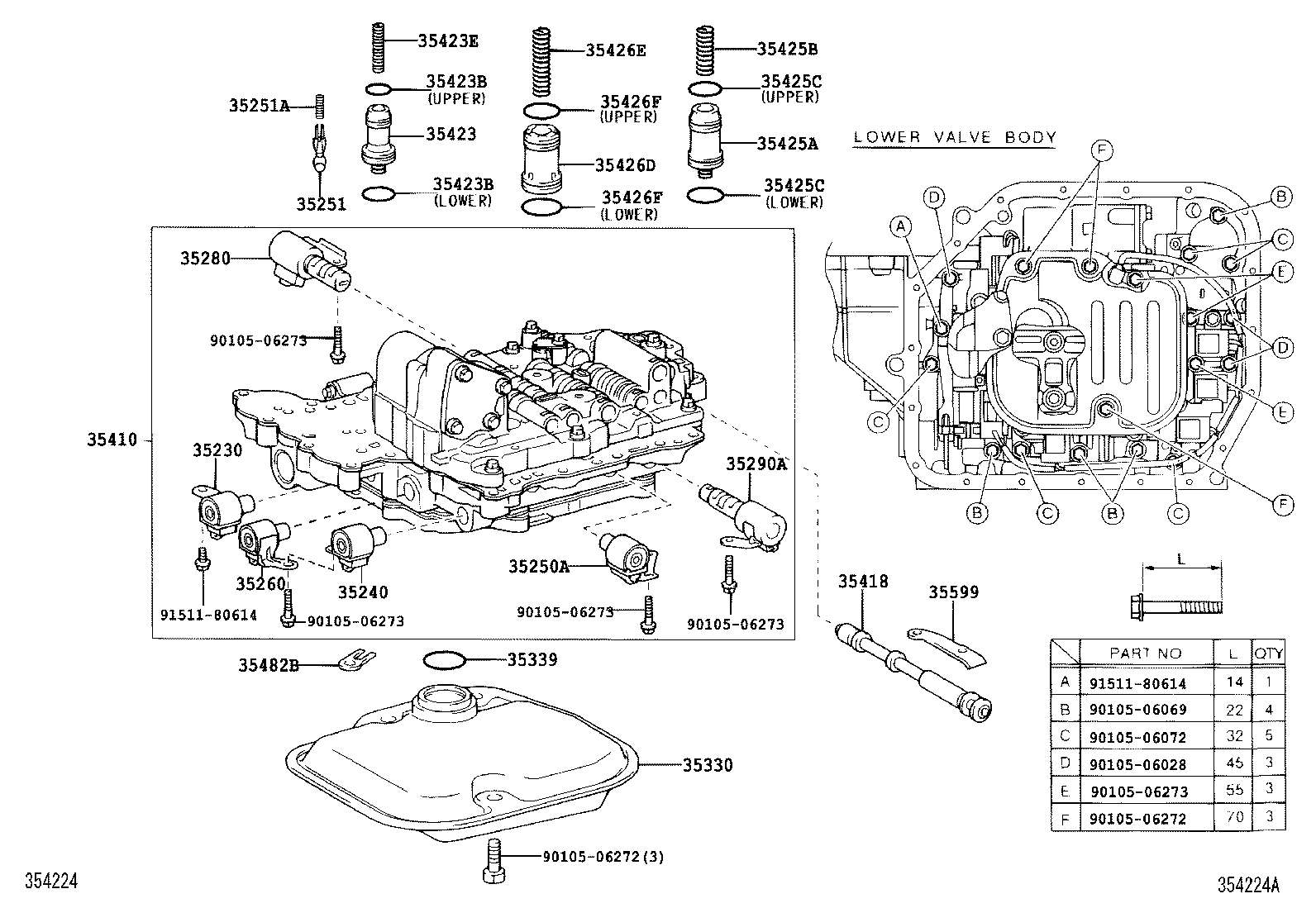

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35230 — Solenoid Assy, Transmission 3Way, NO.2 | ||||
| 35230-21010 |
Solenoid Assy, Transmission 3Way, NO.2
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35230-33010 note |
Solenoid Assy, Transmission 3Way, NO.2
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35230-33020 note |
Solenoid Assy, Transmission 3Way, NO.2
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35230-52011 |
Solenoid Assy, Transmission 3Way, NO.2
2003-01 → 2005-08
ended
|
ZZT251 4FC | — | |
| 35230-52020 |
Solenoid Assy, Transmission 3Way, NO.2
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35230-21010 |
Solenoid Assy, Transmission 3Way, NO.2
2006-04 → —
|
AZT250 4FC | — | |
| 35230-33010 note |
Solenoid Assy, Transmission 3Way, NO.2
2006-04 → —
|
AZT251 | — | |
| 35230-33020 note |
Solenoid Assy, Transmission 3Way, NO.2
2006-04 → —
|
AZT251 | — | |
| 35230-52020 |
Solenoid Assy, Transmission 3Way, NO.2
2006-04 → —
|
ZZT251 4FC | — | |
| 35240 — Solenoid Assy, Automatic Transmission 3Way | ||||
| 35240-21010 |
Solenoid Assy, Automatic Transmission 3Way
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35240-33030 |
Solenoid Assy, Automatic Transmission 3Way
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35240-52011 |
Solenoid Assy, Automatic Transmission 3Way
2003-01 → 2005-08
ended
|
ZZT251 4FC | — | |
| 35240-52050 |
Solenoid Assy, Automatic Transmission 3Way
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35240-21010 |
Solenoid Assy, Automatic Transmission 3Way
2006-04 → —
|
AZT250 4FC | — | |
| 35240-33030 |
Solenoid Assy, Automatic Transmission 3Way
2006-04 → —
|
AZT251 | — | |
| 35240-52050 |
Solenoid Assy, Automatic Transmission 3Way
2006-04 → —
|
ZZT251 4FC | — | |
| 35250A — Solenoid Assy, Transmission, NO.3 | ||||
| 35250-52010 |
Solenoid Assy, Transmission, NO.3
2003-01 → 2005-08
ended
|
ZZT251 4FC | — | |
| 35250-52080 |
Solenoid Assy, Transmission, NO.3
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35250-52080 |
Solenoid Assy, Transmission, NO.3
2006-04 → —
|
ZZT251 4FC | — | |
| 35251 — Body, Check Ball | ||||
| 35251-30020 |
Body, Check Ball
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 35251-30020 |
Body, Check Ball
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
| 35251A — Spring, Compression (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
Spring, Compression (FOR CHECK BALL BODY)
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 90501-03005 |
Spring, Compression (FOR CHECK BALL BODY)
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
| 35260 — Accumlator Assy, Throttle Pressure | ||||
| 35260-52010 |
Accumlator Assy, Throttle Pressure
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35260-52010 |
Accumlator Assy, Throttle Pressure
2006-04 → —
|
ZZT251 4FC | — | |
| 35280 — Solenoid Assy, Lock UP Control | ||||
| 35270-52011 |
Solenoid Assy, Lock UP Control
2003-03 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35270-52011 |
Solenoid Assy, Lock UP Control
2006-04 → —
|
ZZT251 4FC | — | |
| 35290A — Solenoid Assy, Line Pressure Control | ||||
| 35290-32010 |
Solenoid Assy, Line Pressure Control
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35290-52020 |
Solenoid Assy, Line Pressure Control
2003-03 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35290-32010 |
Solenoid Assy, Line Pressure Control
2006-04 → —
|
AZT250 4FC | — | |
| 35290-52020 |
Solenoid Assy, Line Pressure Control
2006-04 → —
|
ZZT251 4FC | — | |
| 35330 — Strainer Assy, Valve Body Oil | ||||
| 35330-06010 |
Strainer Assy, Valve Body Oil
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35330-08010 |
Strainer Assy, Valve Body Oil
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35330-0W020 |
Strainer Assy, Valve Body Oil
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35330-06010 |
Strainer Assy, Valve Body Oil
2006-04 → —
|
AZT250 4FC | — | |
| 35330-08010 |
Strainer Assy, Valve Body Oil
2006-04 → —
|
AZT251 | — | |
| 35330-0W020 |
Strainer Assy, Valve Body Oil
2006-04 → —
|
ZZT251 4FC | — | |
| 35339 — Gasket, Oil Strainer | ||||
| 90301-32010 |
Gasket, Oil Strainer
2003-01 → 2006-04
ended
|
AZT250,ZZT251 4FC | — | |
| 90301-32012 |
Gasket, Oil Strainer
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 90301-32010 |
Gasket, Oil Strainer
2006-04 → —
|
AZT250,ZZT251 4FC | — | |
| 90301-32012 |
Gasket, Oil Strainer
2006-04 → —
|
AZT251 | — | |
| 35410 — Body Assy, Transmission Valve | ||||
| 35410-20500 |
Body Assy, Transmission Valve
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35410-21071 |
Body Assy, Transmission Valve
2003-01 → 2003-03
ended
|
ZZT251 4FC | — | |
| 35410-21072 |
Body Assy, Transmission Valve
2003-03 → 2005-08
ended
|
ZZT251 4FC | — | |
| 35410-21110 |
Body Assy, Transmission Valve
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35410-33130 |
Body Assy, Transmission Valve
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35410-20500 |
Body Assy, Transmission Valve
2006-04 → —
|
AZT250 4FC | — | |
| 35410-21110 |
Body Assy, Transmission Valve
2006-04 → —
|
ZZT251 4FC | — | |
| 35410-33130 |
Body Assy, Transmission Valve
2006-04 → 2007-01
ended
|
AZT251 | — | |
| 35410-33131 |
Body Assy, Transmission Valve
2007-01 → —
|
AZT251 | — | |
| 35418 — Valve, Manual | ||||
| 35418-21011 |
Valve, Manual
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35418-33010 |
Valve, Manual
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35418-52020 |
Valve, Manual
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35418-21011 |
Valve, Manual
2006-04 → —
|
AZT250 4FC | — | |
| 35418-33010 |
Valve, Manual
2006-04 → —
|
AZT251 | — | |
| 35418-52020 |
Valve, Manual
2006-04 → —
|
ZZT251 4FC | — | |
| 35423 — Piston, B-2 Accumulator | ||||
| 35403-52020 |
Piston, B-2 Accumulator
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35403-52020 |
Piston, B-2 Accumulator
2006-04 → —
|
ZZT251 4FC | — | |
| 35423B — Ring, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 note |
Ring, O (FOR B-2 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-29011 note |
Ring, O (FOR B-2 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-20010 note |
Ring, O (FOR B-2 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 90301-29011 note |
Ring, O (FOR B-2 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 35423E — Spring, Compression (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-18119 |
Spring, Compression (FOR B-2 ACCMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90501-18119 |
Spring, Compression (FOR B-2 ACCMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 35425A — Piston, C-2 Accumulator | ||||
| 35405-52020 |
Piston, C-2 Accumulator
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35405-52020 |
Piston, C-2 Accumulator
2006-04 → —
|
ZZT251 4FC | — | |
| 35425B — Spring, Compression (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90501-24036 |
Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 35425C — Ring, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-22010 note |
Ring, O (FOR C-2 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-35004 note |
Ring, O (FOR C-2 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-22010 note |
Ring, O (FOR C-2 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 90301-35004 note |
Ring, O (FOR C-2 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 35426D — Piston, C-3 Accumulator | ||||
| 35406-21010 |
Piston, C-3 Accumulator
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35426-52020 |
Piston, C-3 Accumulator
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35406-21010 |
Piston, C-3 Accumulator
2006-04 → —
|
AZT25# ATM | — | |
| 35426-52020 |
Piston, C-3 Accumulator
2006-04 → —
|
ZZT251 4FC | — | |
| 35426E — Spring, Compression (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-22056 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 90501-23149 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90905-01035 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 90501-22056 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
AZT251 | — | |
| 90501-23149 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 90905-01035 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
AZT250 4FC | — | |
| 35426F — Ring, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 note |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-29011 note |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 90301-30007 |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 90301-24016 note |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 90301-29011 note |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
ZZT251 4FC | — | |
| 90301-30007 |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
2006-04 → —
|
AZT25# ATM | — | |
| 35482B — Clamp, Temperature Sensor | ||||
| 35482-52020 |
Clamp, Temperature Sensor
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35482-52020 |
Clamp, Temperature Sensor
2006-04 → —
|
ZZT251 4FC | — | |
| 35599 — Cover, Manual Detent Spring | ||||
| 35599-21010 |
Cover, Manual Detent Spring
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35599-52010 |
Cover, Manual Detent Spring
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35599-21010 |
Cover, Manual Detent Spring
2006-04 → —
|
AZT25# ATM | — | |
| 35599-52010 |
Cover, Manual Detent Spring
2006-04 → —
|
ZZT251 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
