Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

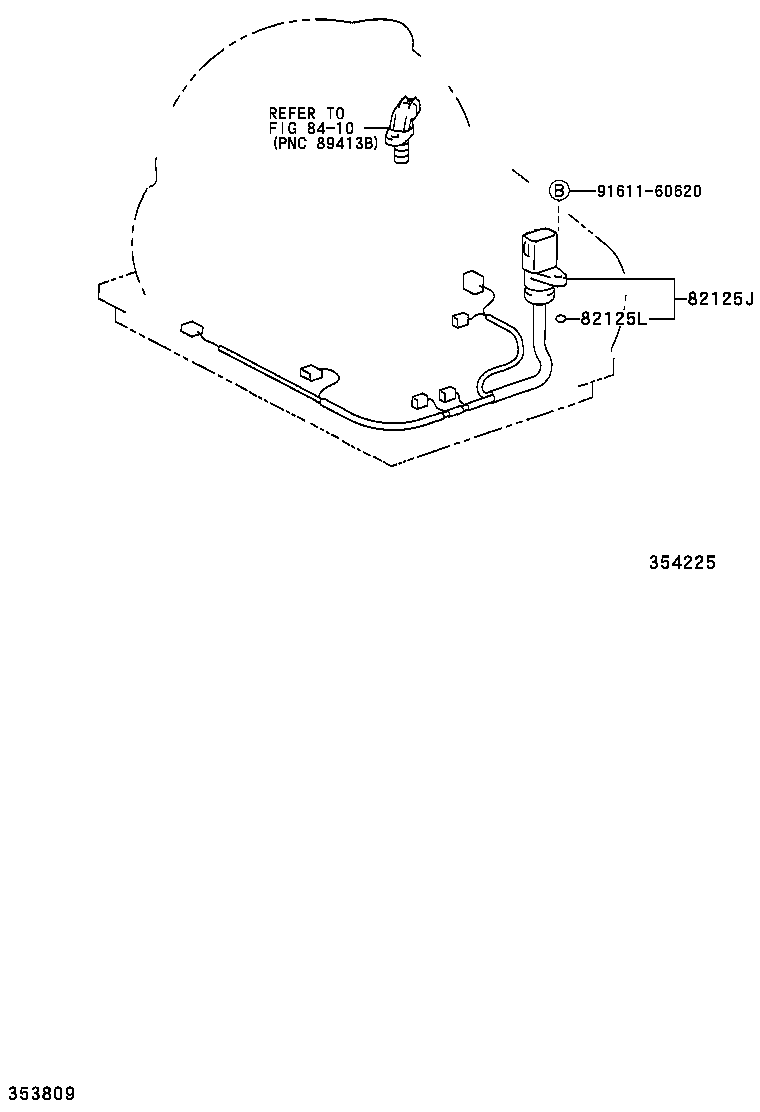

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125J — Wire, Transmission | ||||
| 82125-20280 |
Wire, Transmission
2003-01 → 2005-08
ended
|
ZZT251 4FC | — | |
| 82125-20310 |
Wire, Transmission
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 82125-28180 |
Wire, Transmission
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 82125-33060 |
Wire, Transmission
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 82125-20310 |
Wire, Transmission
2006-04 → —
|
ZZT251 4FC | — | |
| 82125-28180 |
Wire, Transmission
2006-04 → —
|
AZT250 4FC | — | |
| 82125-33060 |
Wire, Transmission
2006-04 → 2007-03
ended
|
AZT251 | — | |
| 82125-48010 |
Wire, Transmission
2007-04 → —
|
AZT251 | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
