Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

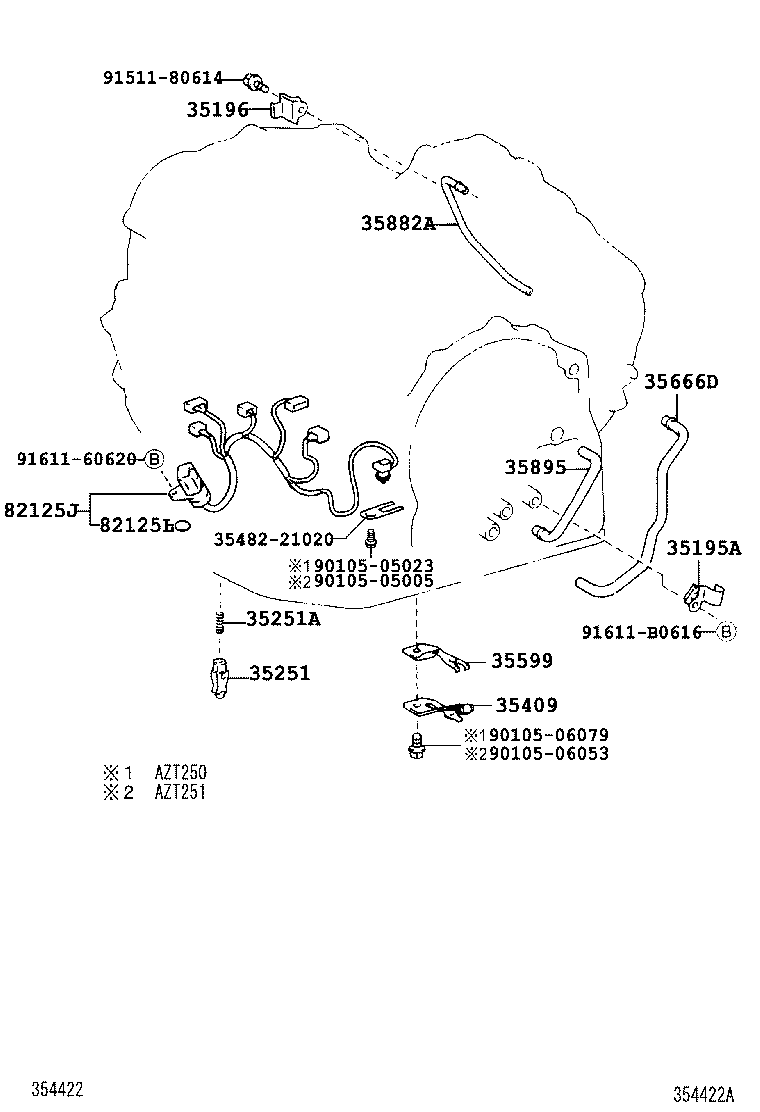

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35195A — Clamp, Transaxle Apply Tube, NO.1 | ||||
| 35195-21010 |
Clamp, Transaxle Apply Tube, NO.1
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35195-21010 |
Clamp, Transaxle Apply Tube, NO.1
2006-04 → —
|
AZT25# ATM | — | |
| 35196 — Clamp, Transaxle Apply Tube, NO.2 | ||||
| 35196-21010 |
Clamp, Transaxle Apply Tube, NO.2
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35196-21010 |
Clamp, Transaxle Apply Tube, NO.2
2006-04 → —
|
AZT25# ATM | — | |
| 35251 — Body, Check Ball | ||||
| 35251-30020 |
Body, Check Ball
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 35251-30020 |
Body, Check Ball
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
| 35251A — Spring, Compression (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
Spring, Compression (FOR CHECK BALL BODY)
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 90501-03005 |
Spring, Compression (FOR CHECK BALL BODY)
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
| 35409 — Spring Sub-assy, Manual Detent | ||||
| 35409-21010 |
Spring Sub-assy, Manual Detent
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35409-21010 |
Spring Sub-assy, Manual Detent
2006-04 → —
|
AZT25# ATM | — | |
| 35599 — Cover, Manual Detent Spring | ||||
| 35599-21010 |
Cover, Manual Detent Spring
2003-01 → 2006-04
ended
|
AZT25# ATM | — | |
| 35599-52010 |
Cover, Manual Detent Spring
2003-01 → 2006-04
ended
|
ZZT251 4FC | — | |
| 35599-21010 |
Cover, Manual Detent Spring
2006-04 → —
|
AZT25# ATM | — | |
| 35599-52010 |
Cover, Manual Detent Spring
2006-04 → —
|
ZZT251 4FC | — | |
| 35666D — Tube, Brake Apply | ||||
| 35666-32010 |
Tube, Brake Apply
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35666-33010 |
Tube, Brake Apply
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35666-32010 |
Tube, Brake Apply
2006-04 → —
|
AZT250 4FC | — | |
| 35666-33010 |
Tube, Brake Apply
2006-04 → —
|
AZT251 | — | |
| 35882A — Tube, Differential Gear Lube Apply | ||||
| 35882-28010 |
Tube, Differential Gear Lube Apply
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35882-32020 |
Tube, Differential Gear Lube Apply
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35882-28010 |
Tube, Differential Gear Lube Apply
2006-04 → —
|
AZT251 | — | |
| 35882-32020 |
Tube, Differential Gear Lube Apply
2006-04 → —
|
AZT250 4FC | — | |
| 35895 — Tube, Front Clutch Apply | ||||
| 35895-21010 |
Tube, Front Clutch Apply
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 35895-28010 |
Tube, Front Clutch Apply
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 35895-21010 |
Tube, Front Clutch Apply
2006-04 → —
|
AZT250 4FC | — | |
| 35895-28010 |
Tube, Front Clutch Apply
2006-04 → —
|
AZT251 | — | |
| 82125J — Wire, Transmission | ||||
| 82125-20280 |
Wire, Transmission
2003-01 → 2005-08
ended
|
ZZT251 4FC | — | |
| 82125-20310 |
Wire, Transmission
2005-08 → 2006-04
ended
|
ZZT251 4FC | — | |
| 82125-28180 |
Wire, Transmission
2003-01 → 2006-04
ended
|
AZT250 4FC | — | |
| 82125-33060 |
Wire, Transmission
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 82125-20310 |
Wire, Transmission
2006-04 → —
|
ZZT251 4FC | — | |
| 82125-28180 |
Wire, Transmission
2006-04 → —
|
AZT250 4FC | — | |
| 82125-33060 |
Wire, Transmission
2006-04 → 2007-03
ended
|
AZT251 | — | |
| 82125-48010 |
Wire, Transmission
2007-04 → —
|
AZT251 | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2003-01 → 2006-04
ended
|
AZT25#,ZZT251 ATM | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2006-04 → —
|
AZT25#,ZZT251 ATM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
