Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

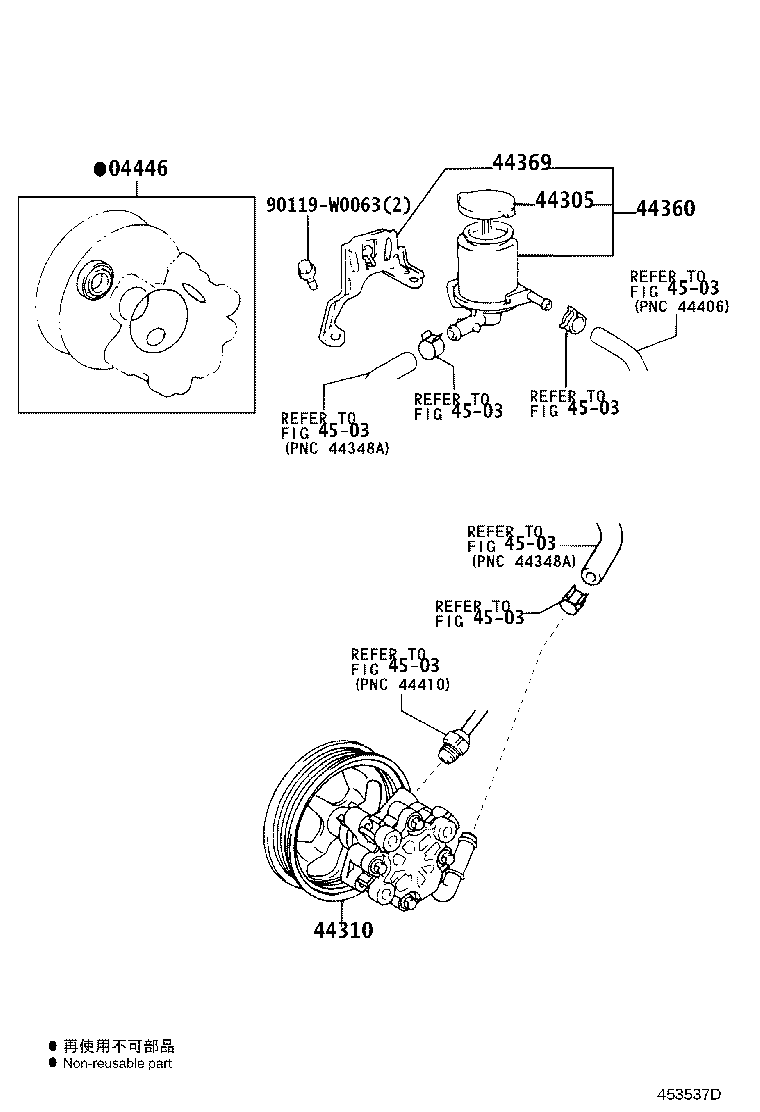

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-02050 |
Gasket Kit, Power Steering Pump
2003-01 → 2006-04
ended
|
ADT251,AZT25#,CDT250 | — | |
| 04446-02050 |
Gasket Kit, Power Steering Pump
2006-04 → —
|
ADT25#,AZT25# | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-20041 |
Cap Sub-assy, Vane Pump Oil Reservoir
2003-01 → 2006-04
ended
|
AZT25# | — | |
| 44305-22040 |
Cap Sub-assy, Vane Pump Oil Reservoir
2005-04 → 2006-04
ended
|
ADT251 | — | |
| 44305-28030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2003-03 → 2006-04
ended
|
CDT250 | — | |
| 44305-20041 |
Cap Sub-assy, Vane Pump Oil Reservoir
2006-04 → 2007-11
ended
|
AZT25# | — | |
| 44305-20050 |
Cap Sub-assy, Vane Pump Oil Reservoir
2007-12 → —
|
AZT25# | — | |
| 44305-22040 |
Cap Sub-assy, Vane Pump Oil Reservoir
2006-04 → 2008-01
ended
|
ADT25# | — | |
| 44305-22060 |
Cap Sub-assy, Vane Pump Oil Reservoir
2008-02 → —
|
ADT25# | — | |
| 44310 — Pump Assy, Vane | ||||
| 44310-05090 |
Pump Assy, Vane
2003-01 → 2006-04
ended
|
AZT25# | — | |
| 44310-05100 |
Pump Assy, Vane
2003-03 → 2006-04
ended
|
CDT250 | — | |
| 44310-05120 |
Pump Assy, Vane
2005-04 → 2006-04
ended
|
ADT251 | — | |
| 44310-05090 |
Pump Assy, Vane
2006-04 → —
|
AZT25# | — | |
| 44310-05120 |
Pump Assy, Vane
2006-04 → —
|
ADT25# | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-20150 |
Reservoir Assy, Vane Pump Oil
2003-01 → 2006-04
ended
|
AZT25# | — | |
| 44360-20250 |
Reservoir Assy, Vane Pump Oil
2003-03 → 2006-04
ended
|
CDT250 | — | |
| 44360-20150 |
Reservoir Assy, Vane Pump Oil
2006-04 → —
|
AZT25# | — | |
| 44369 — Bracket, Oil Reservoir, NO.1 | ||||
| 44369-12060 |
Bracket, Oil Reservoir, NO.1
2003-03 → 2006-04
ended
|
CDT250 | — | |
| 44390-20060 |
Bracket, Oil Reservoir, NO.1
2003-01 → 2006-04
ended
|
AZT25# | — | |
| 44390-20060 |
Bracket, Oil Reservoir, NO.1
2006-04 → —
|
AZT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
