Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

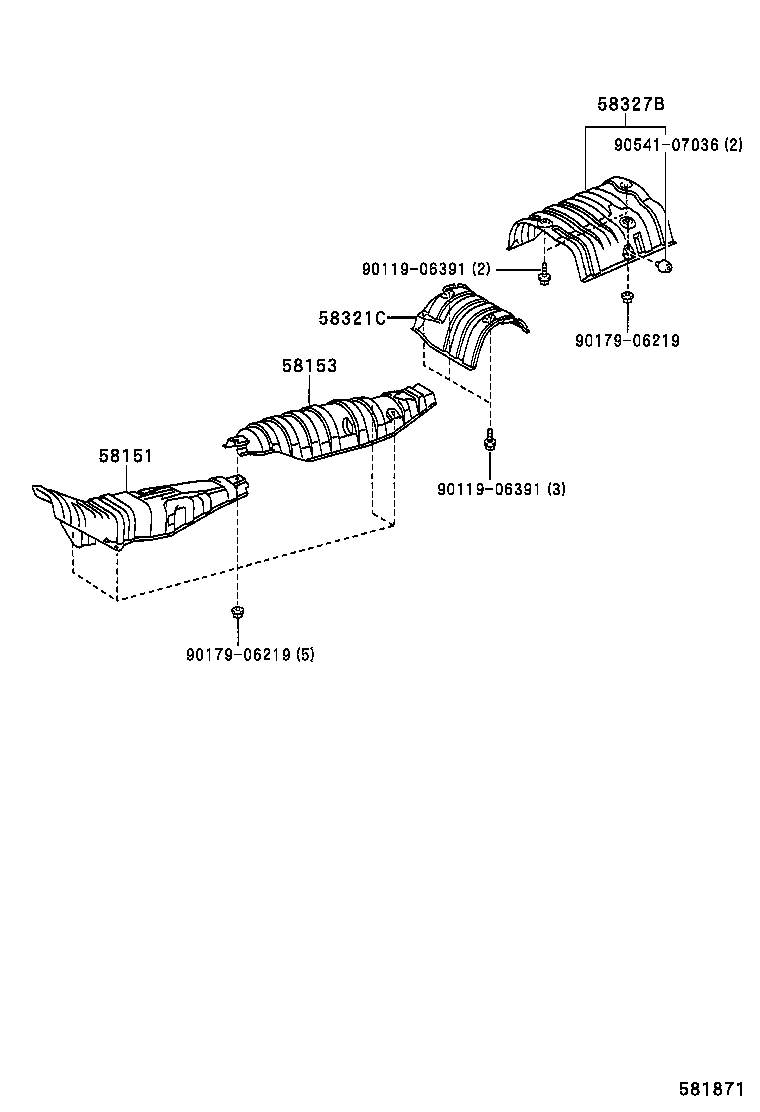

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58041-20050 note |
Insulator, Front Floor Heat, NO.1
2003-01 → 2006-04
ended
|
ZZT251 ELEGT;ZZT251 LHD TEC;ZZT250 +1 | — | |
| 58041-20050 note |
Insulator, Front Floor Heat, NO.1
2003-01 → 2005-04
ended
|
ZZT251 RHD TEC | — | |
| 58041-20060 note |
Insulator, Front Floor Heat, NO.1
2003-01 → 2005-04
ended
|
AZT250 RHD SED;AZT250 RHD +2 | — | |
| 58041-20060 note |
Insulator, Front Floor Heat, NO.1
2003-01 → 2006-04
ended
|
AZT251;AZT250 LHD;AZT250 RHD (LB,WG) +1 | — | |
| 58151-20180 |
Insulator, Front Floor Heat, NO.1
2003-01 → 2006-04
ended
|
ZZT25# | — | |
| 58151-20190 |
Insulator, Front Floor Heat, NO.1
2003-01 → 2006-04
ended
|
AZT25# | — | |
| 58041-20050 note |
Insulator, Front Floor Heat, NO.1
2006-04 → —
|
ZZT25# LHD TEC | — | |
| 58041-20060 note |
Insulator, Front Floor Heat, NO.1
2006-04 → —
|
AZT251;AZT250 LHD | — | |
| 58151-20180 |
Insulator, Front Floor Heat, NO.1
2006-04 → —
|
ZZT25# | — | |
| 58151-20190 |
Insulator, Front Floor Heat, NO.1
2006-04 → —
|
AZT25# | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-05030 note |
Insulator, Front Floor Heat, NO.2
2003-01 → 2005-04
ended
|
AZT250 RHD SED;ZZT251 RHD +4 | — | |
| 58153-05030 |
Insulator, Front Floor Heat, NO.2
2003-01 → 2006-04
ended
|
AZT25#,ZZT25# | — | |
| 58153-05030 |
Insulator, Front Floor Heat, NO.2
2006-04 → —
|
AZT25#,ZZT25# | — | |
| 58321C — Insulator, Rear Floor Heat, Front | ||||
| 58321-05010 |
Insulator, Rear Floor Heat, Front
2003-09 → 2006-04
ended
|
AZT251 | — | |
| 58321-05010 |
Insulator, Rear Floor Heat, Front
2006-04 → —
|
AZT251 | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-20150 |
Insulator, Main Muffler Heat
2003-01 → 2006-04
ended
|
ADT251,AZT25#,CDT250,ZZT25# | — | |
| 58327-20150 |
Insulator, Main Muffler Heat
2006-04 → —
|
ADT25#,AZT25#,ZZT25# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
