Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

48 part groups · 11 illustrations

Illustrations

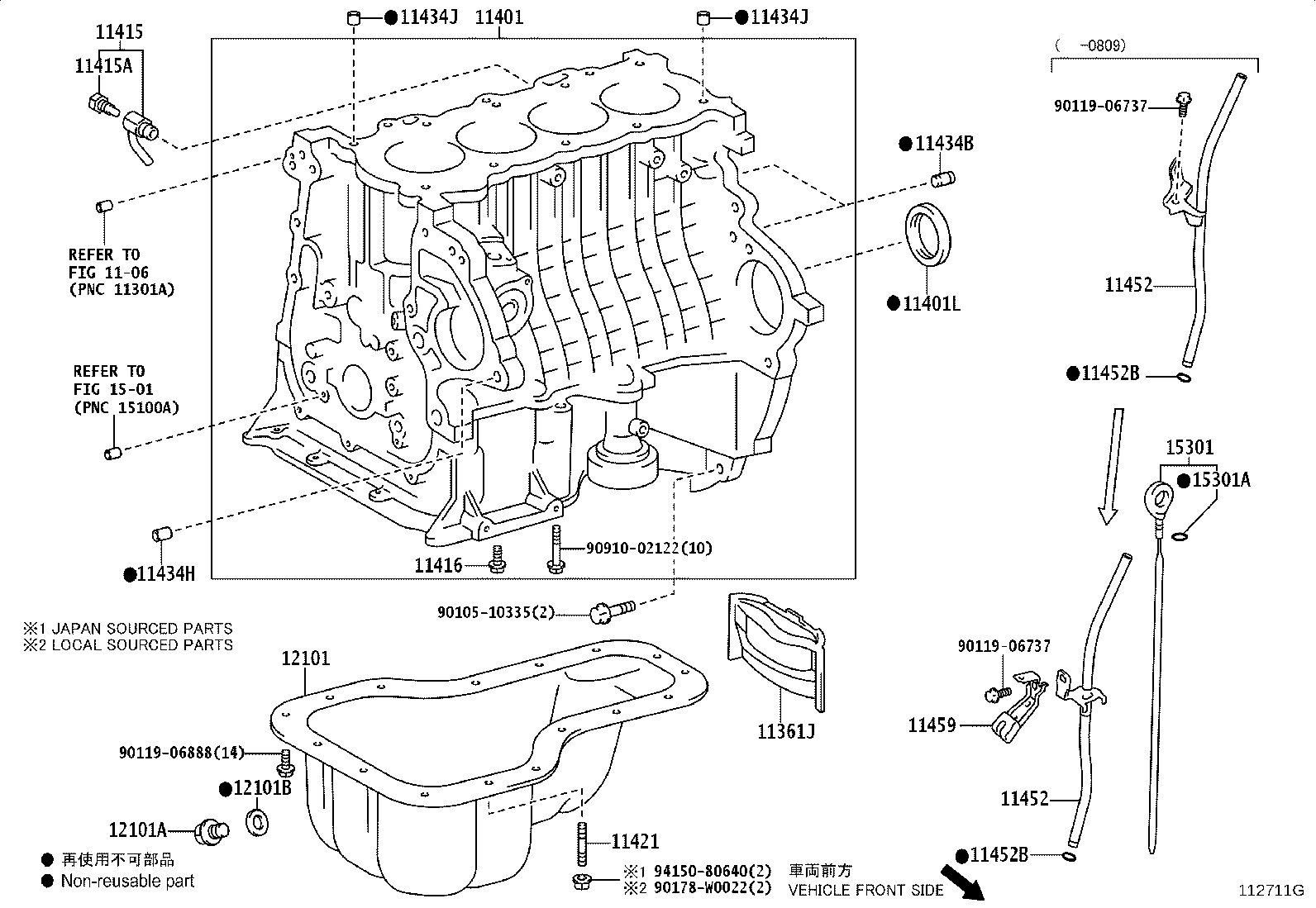

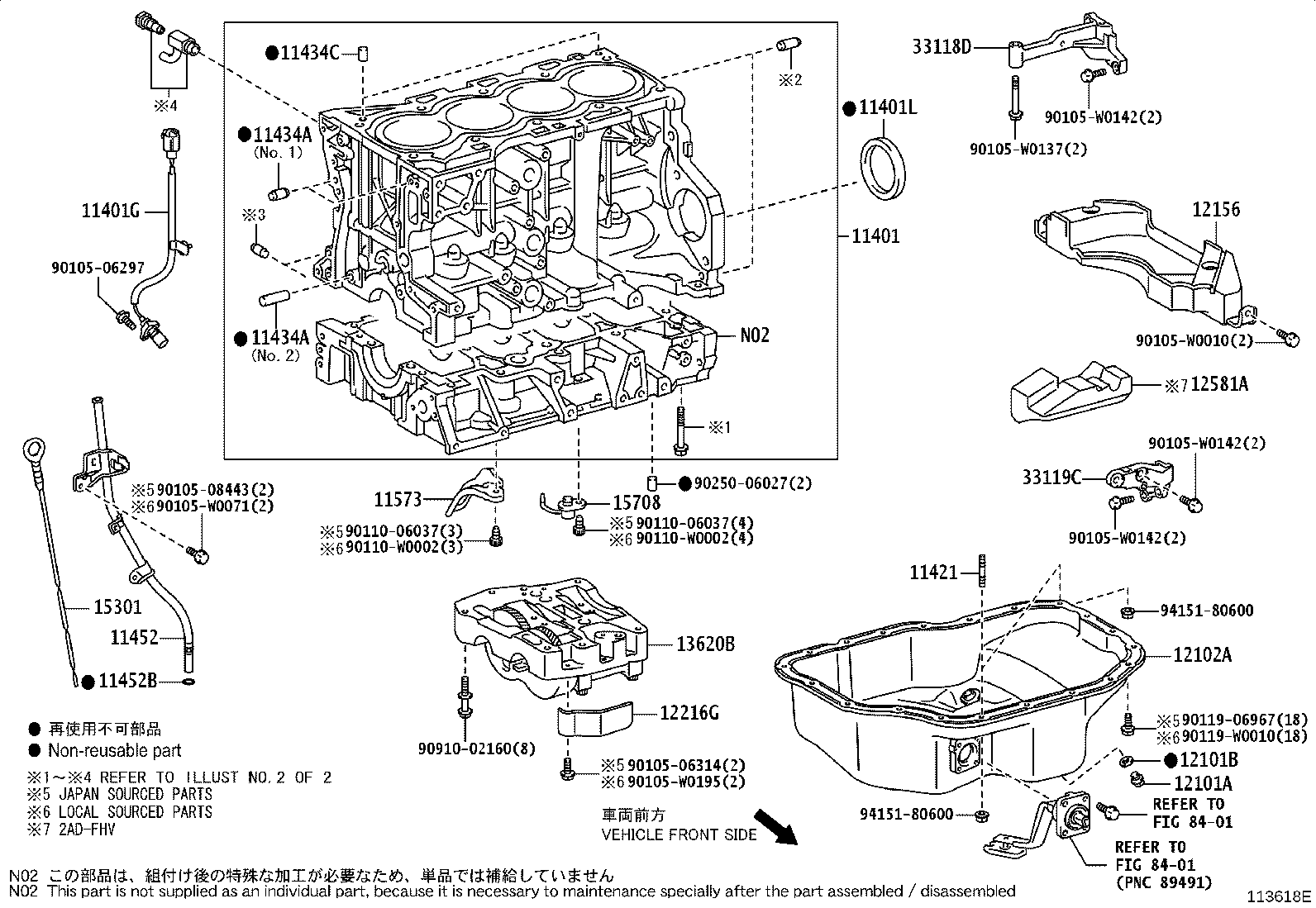

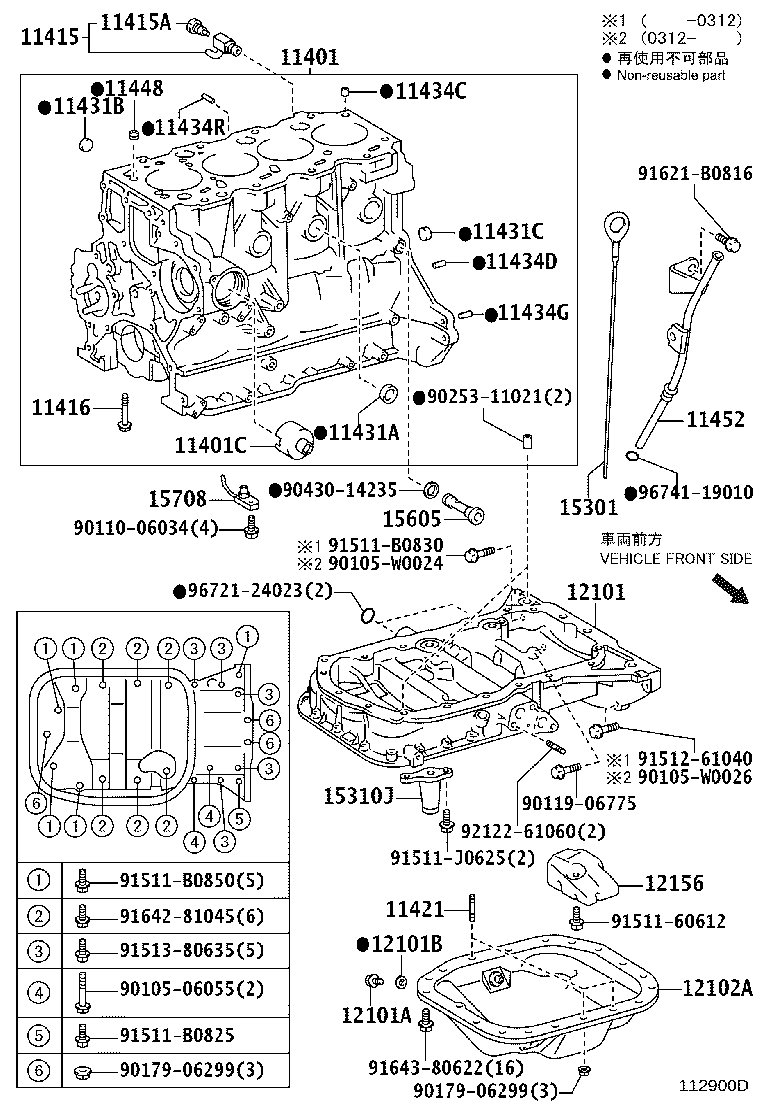

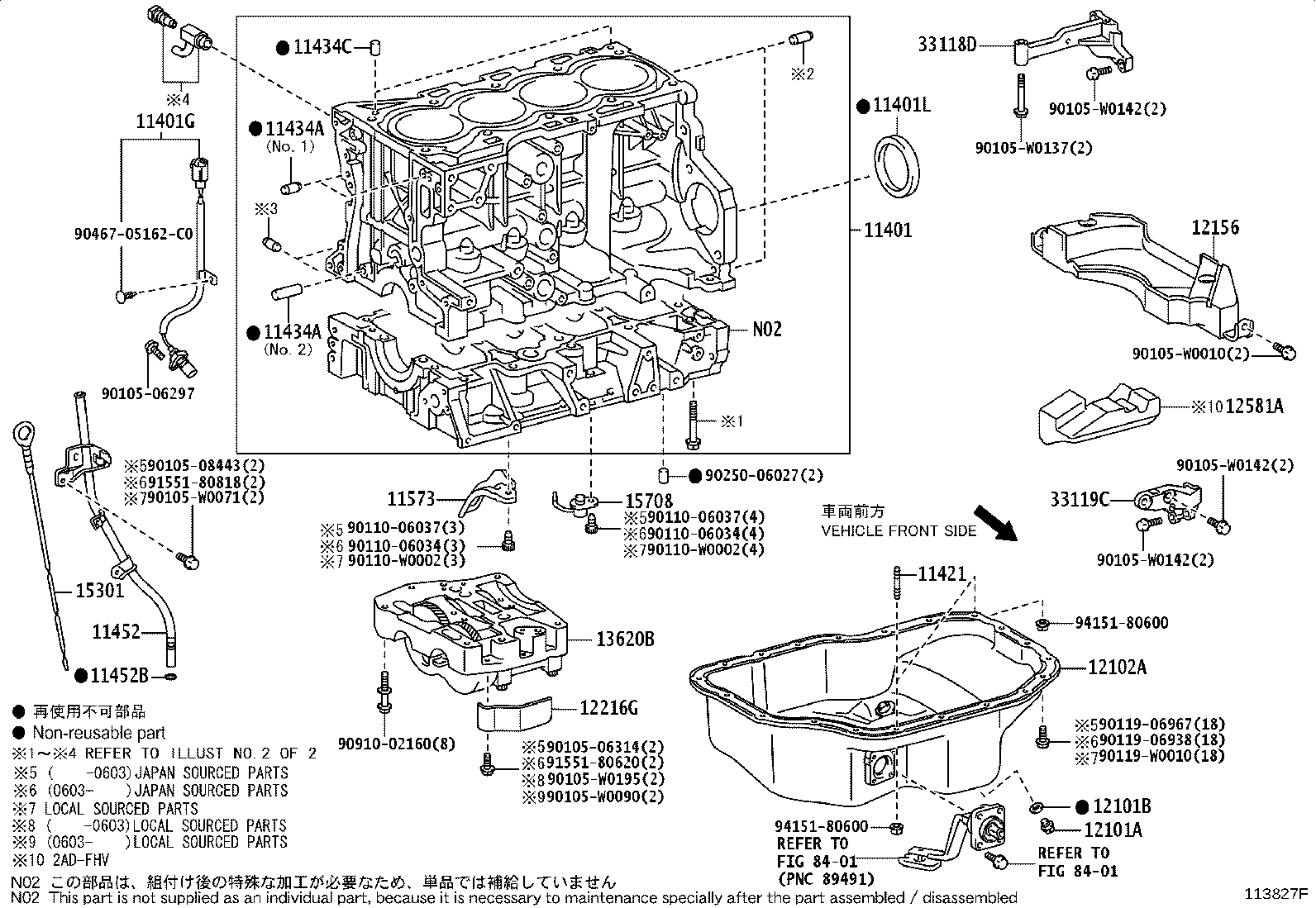

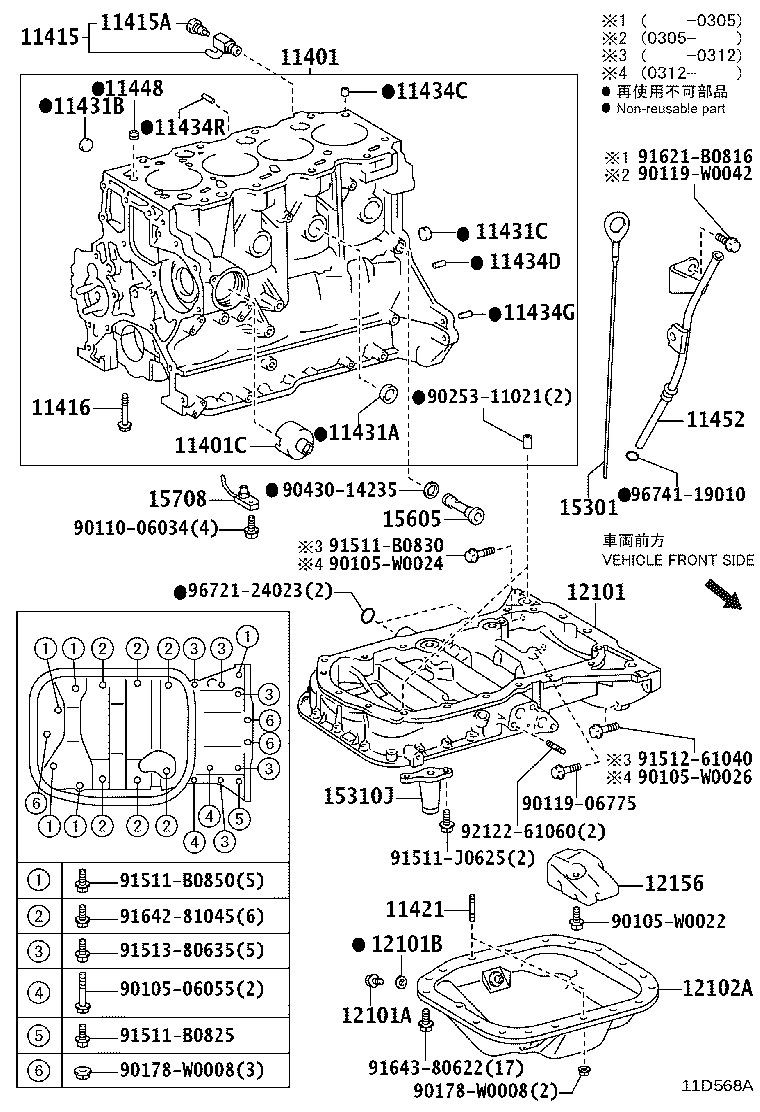

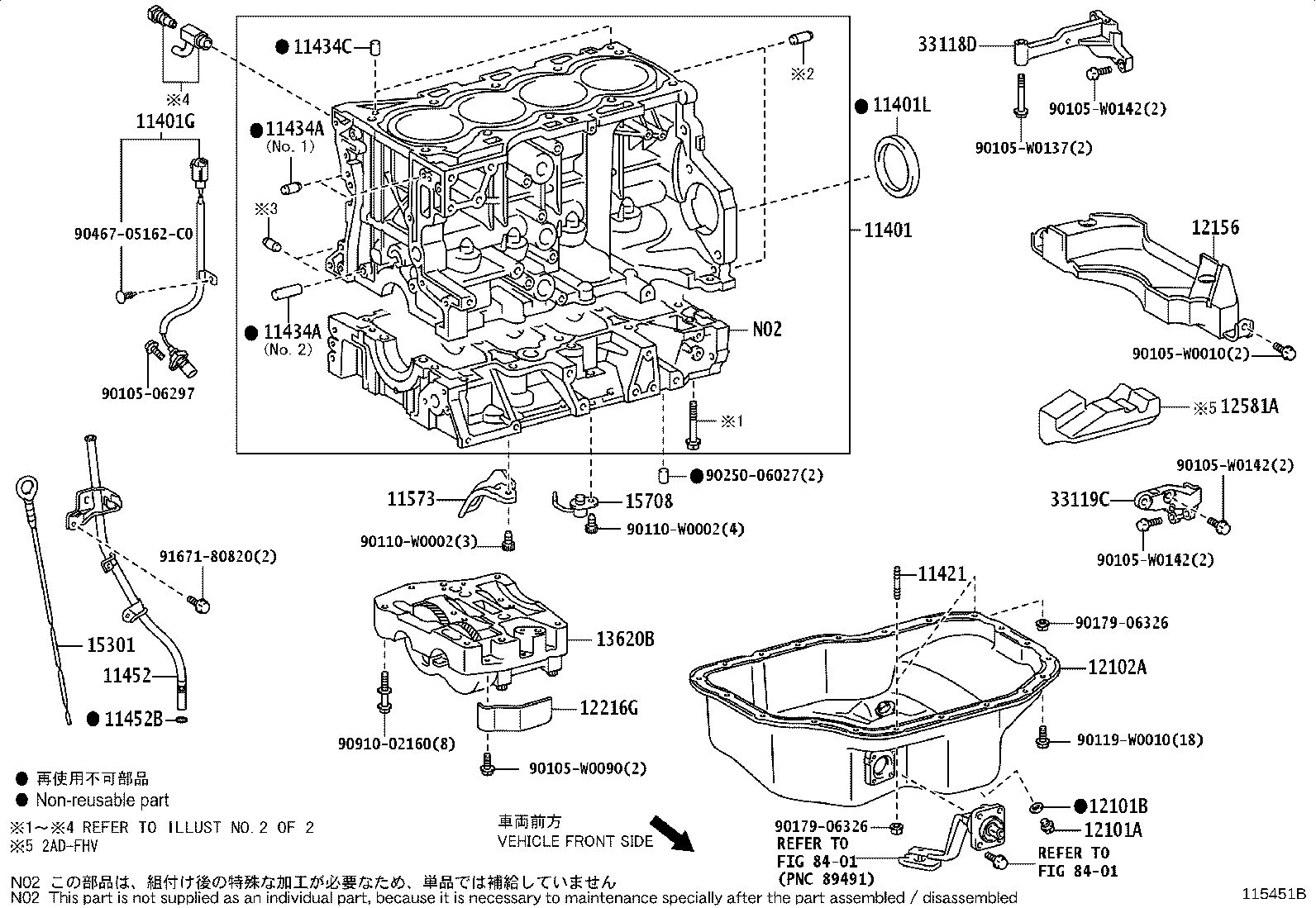

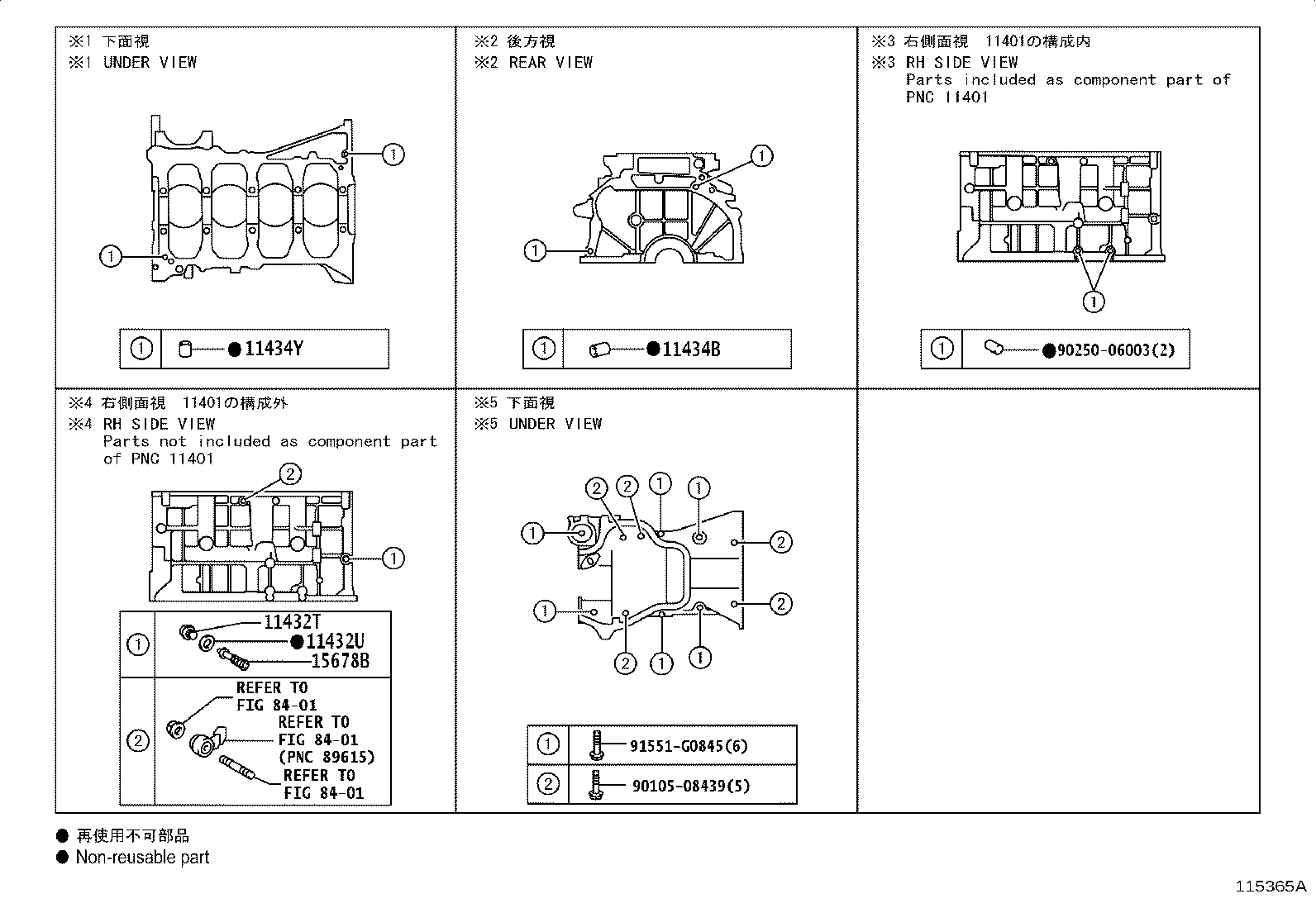

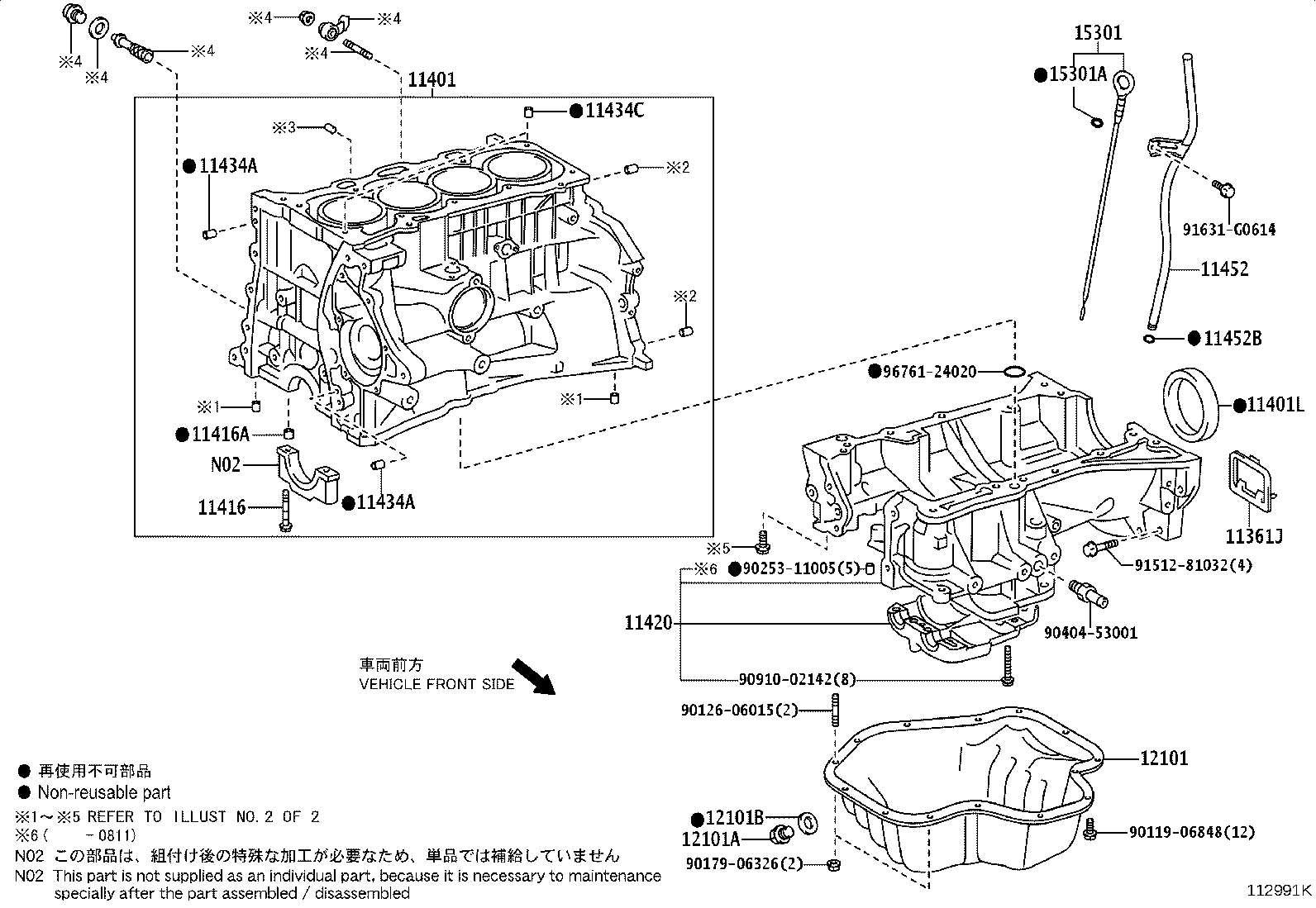

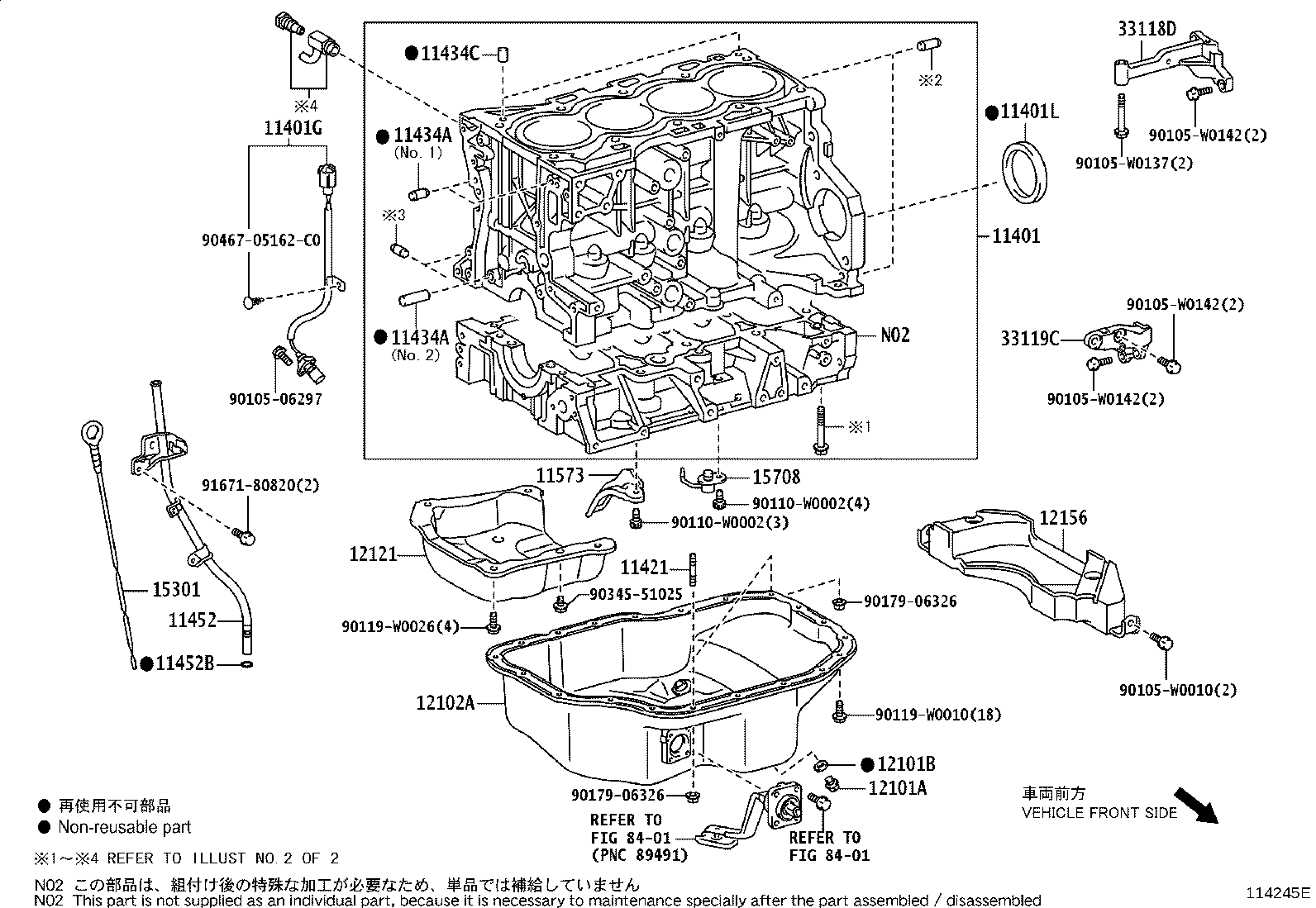

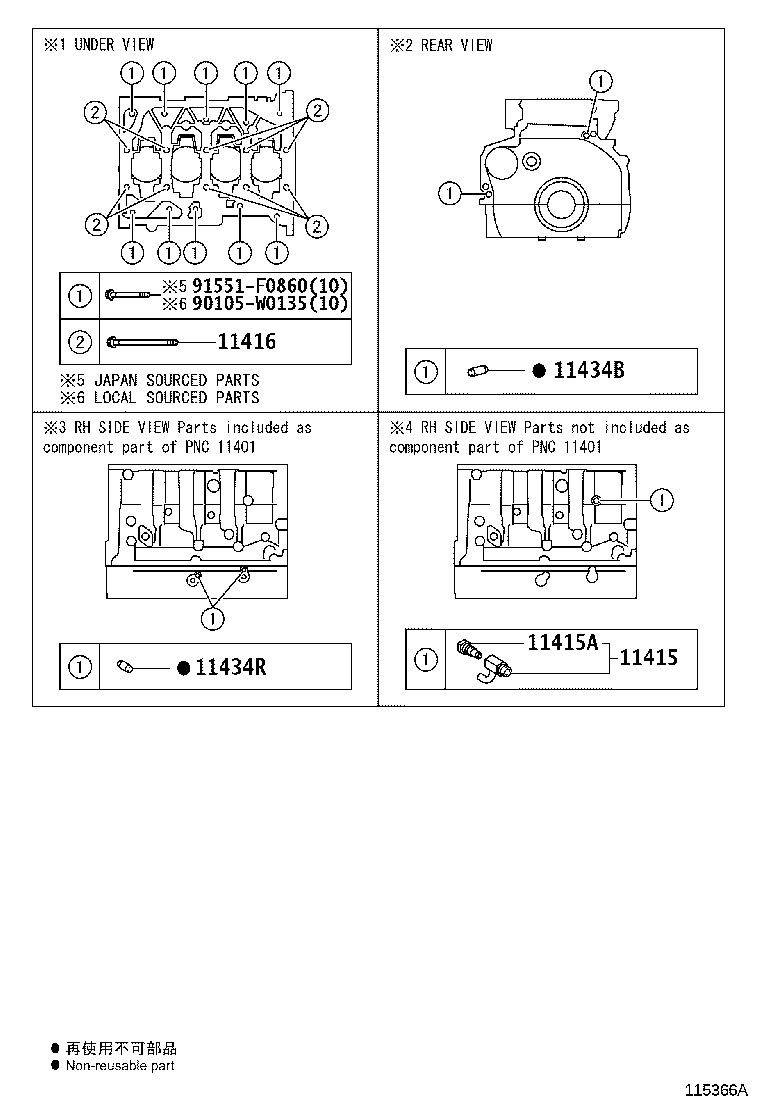

Figure 112753N 112753N 2003-01 → — Figure 112991K 112991K 2003-09 → — Figure 115365A 115365A 2003-01 → — Figure 113618E 113618E 2005-04 → 2005-07 Figure 113827F 113827F 2005-07 → 2008-05 Figure 115451B 115451B 2008-05 → — Figure 114245E 114245E 2006-05 → — Figure 115366A 115366A 2005-04 → — Figure 11D568A 11D568A 2003-03 → 2006-04 Figure 112900D 112900D 2003-09 → 2006-04 Figure 112711G 112711G 2003-01 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11401 Block Sub-assy, Cylinder
11401C Flange(FOR WATER BY-PASS)
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432T Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK)
11432U Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11434Y Pin, Straight(FOR OIL PAN)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11573 Plate, Oil Reflector
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12156 Insulator, Oil Pan
12216G Plate, Oil Baffle
12581A Insulator, Cylinder Block, NO.1
13620B Balancer Assy, Engine
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15310J Regulator Assy, Oil
15605 Valve Sub-assy, Oil Check
15678B Filter, Oil Control Valve
15708 Nozzle Sub-assy, Oil, NO.1
33118D Plate, Stiffener, RH
33119C Plate, Stiffener, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
