Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

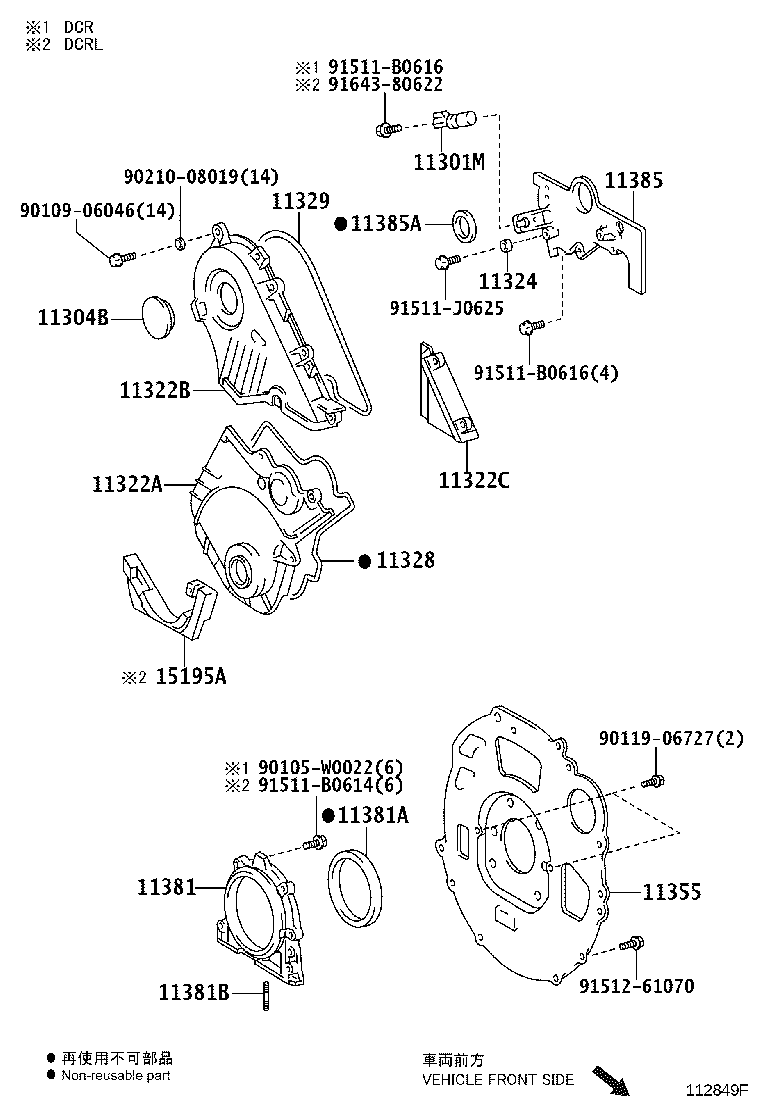

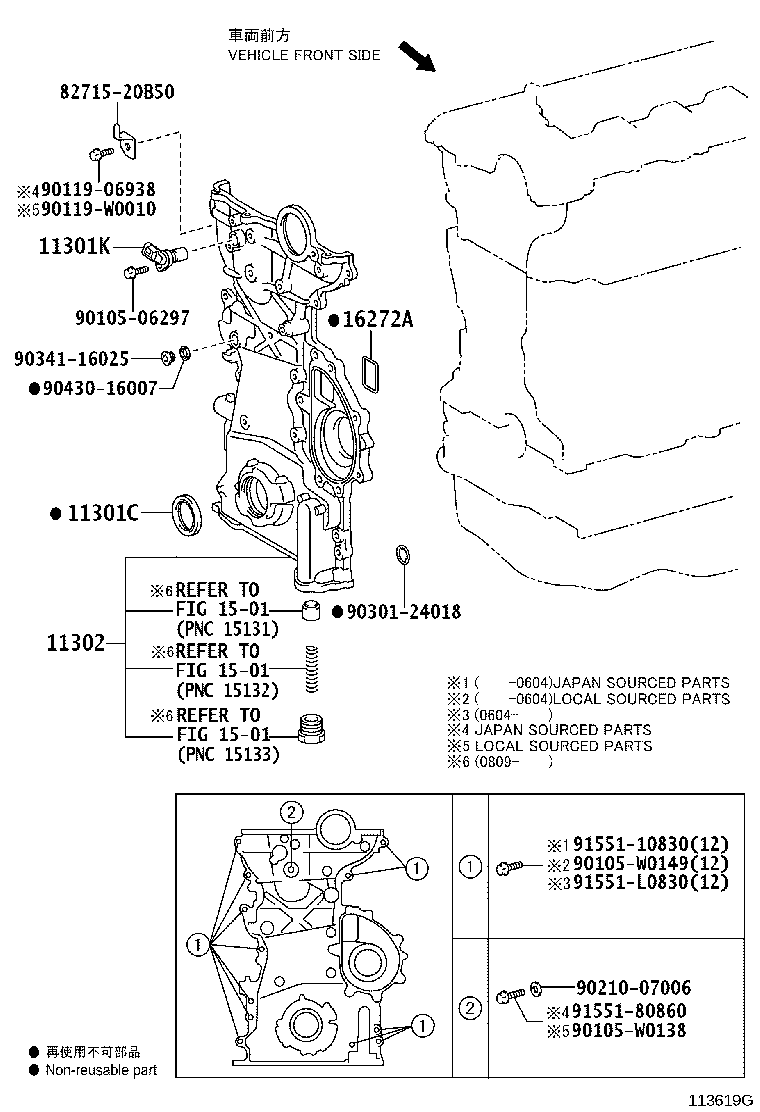

Timing Gear Cover & Rear End Plate
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11301M | Sensor, Cam Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11304B | Plug, Semi Circular(FOR CHAIN COVER NO.2) |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322B | Cover, Timing Belt, NO.2 |
| 11322C | Cover, Timing Belt, NO.3 |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11355 | Plate, Rear End |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11381B | Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER) |
| 11385 | Retainer, Camshaft Oil Seal |
| 11385A | Seal, Oil(FOR CAMSHAFT) |
| 15195A | Insulator, Oil Pump |
| 16272A | Gasket, Water Pump NO.2 |
| 19529A | Clamp |
| 19941C | Clamp, Cord(FOR CRANK POSITION SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
