Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 6 illustrations

Illustrations

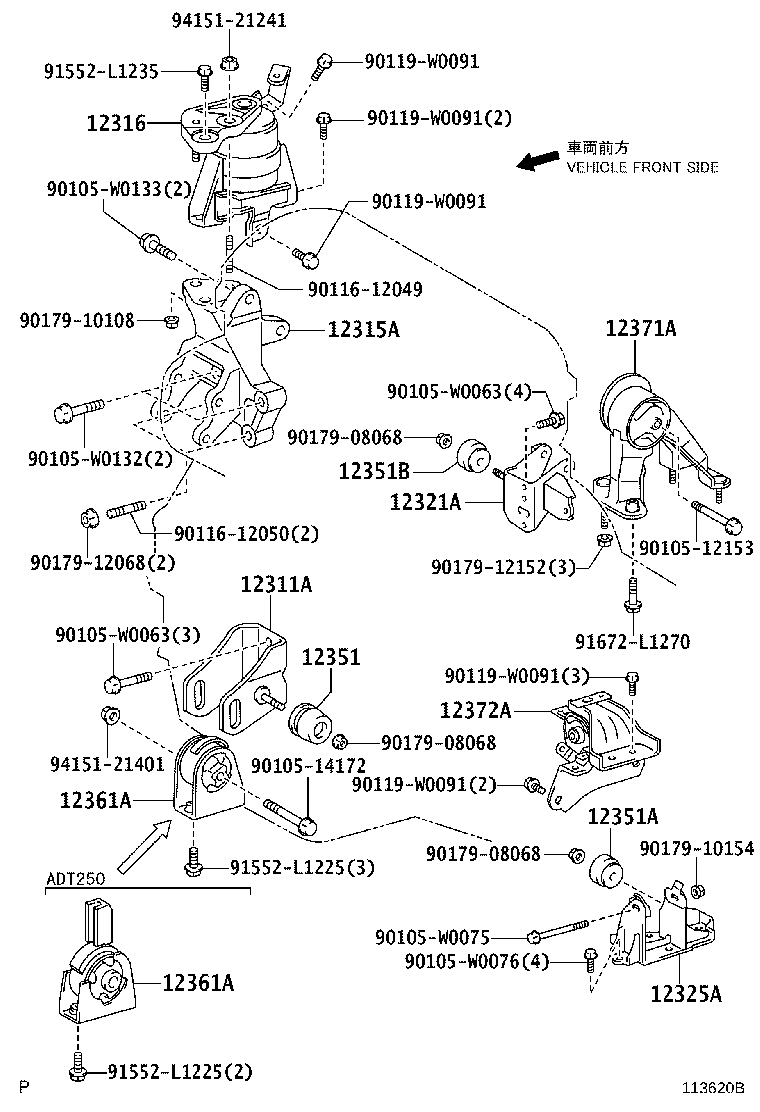

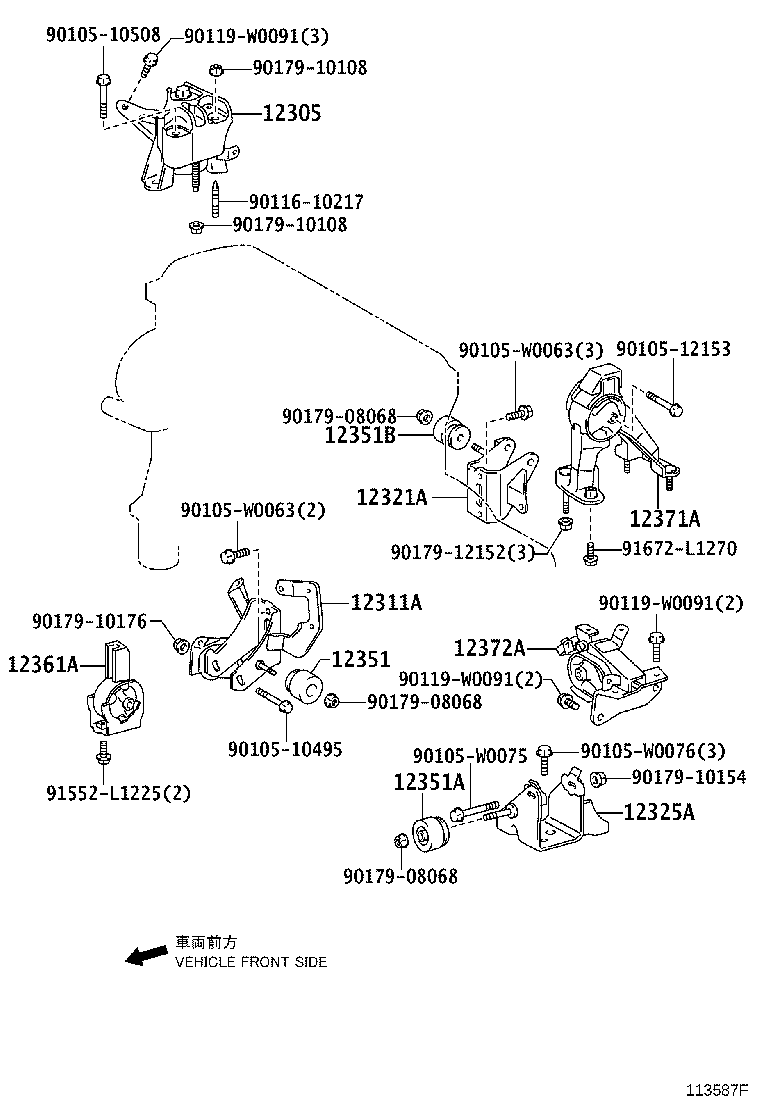

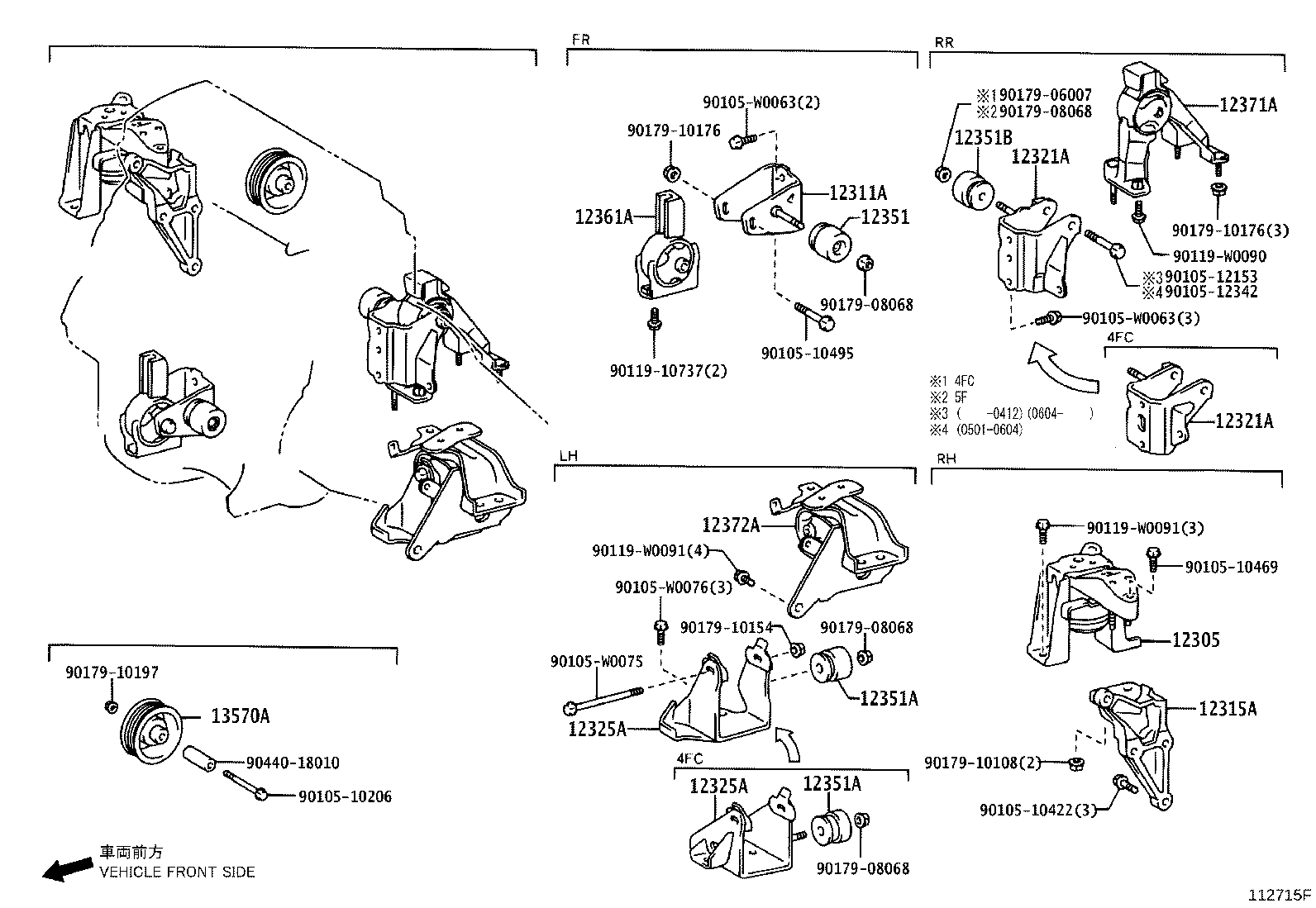

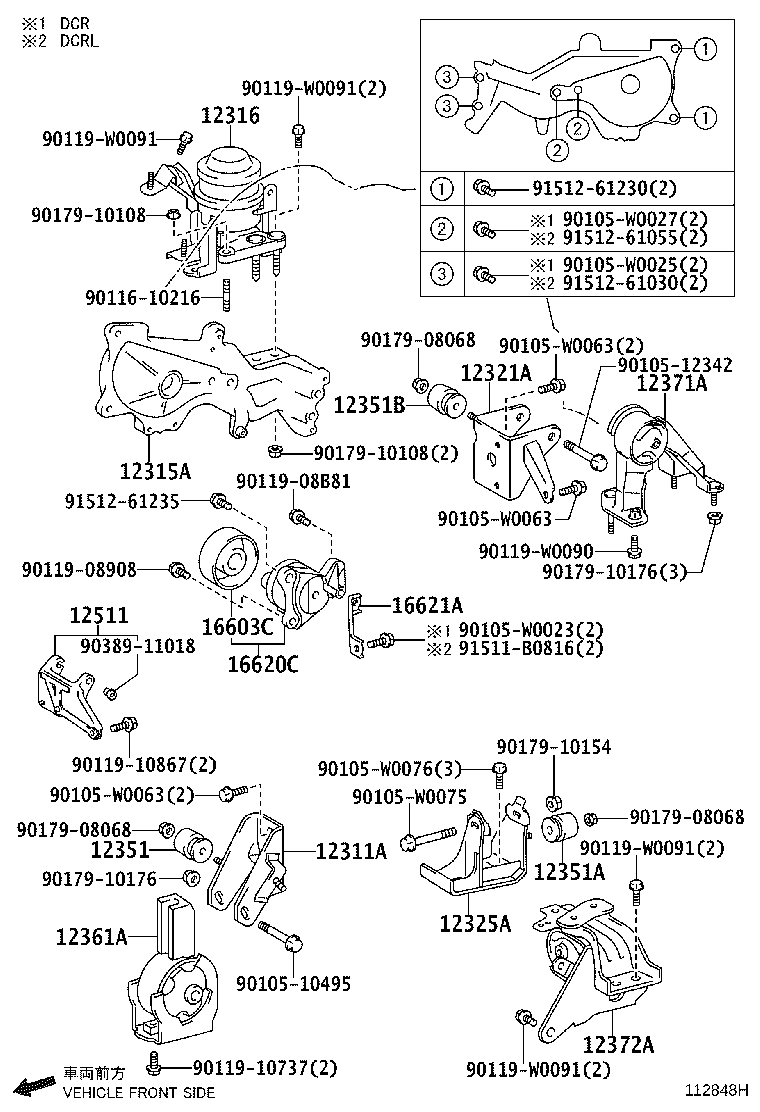

Figure 112995L 112995L 2003-01 → 2004-12 Figure 112995L 112995L 2004-12 → — Figure 113587F 113587F 2004-12 → — Figure 113620B 113620B 2005-04 → — Figure 112848H 112848H 2003-03 → 2006-04 Figure 112715F 112715F 2003-01 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12351B Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
13570A Idler Assy, V-ribbed, NO.1
16603C Pulley Sub-assy, Idler
16620C Tensioner Assy, V-ribbed Belt
16621A Bracket, V-ribbed Belt Tensioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
