Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

20 part groups · 5 illustrations

Illustrations

Figure 150740H

150740H 2003-01 → —

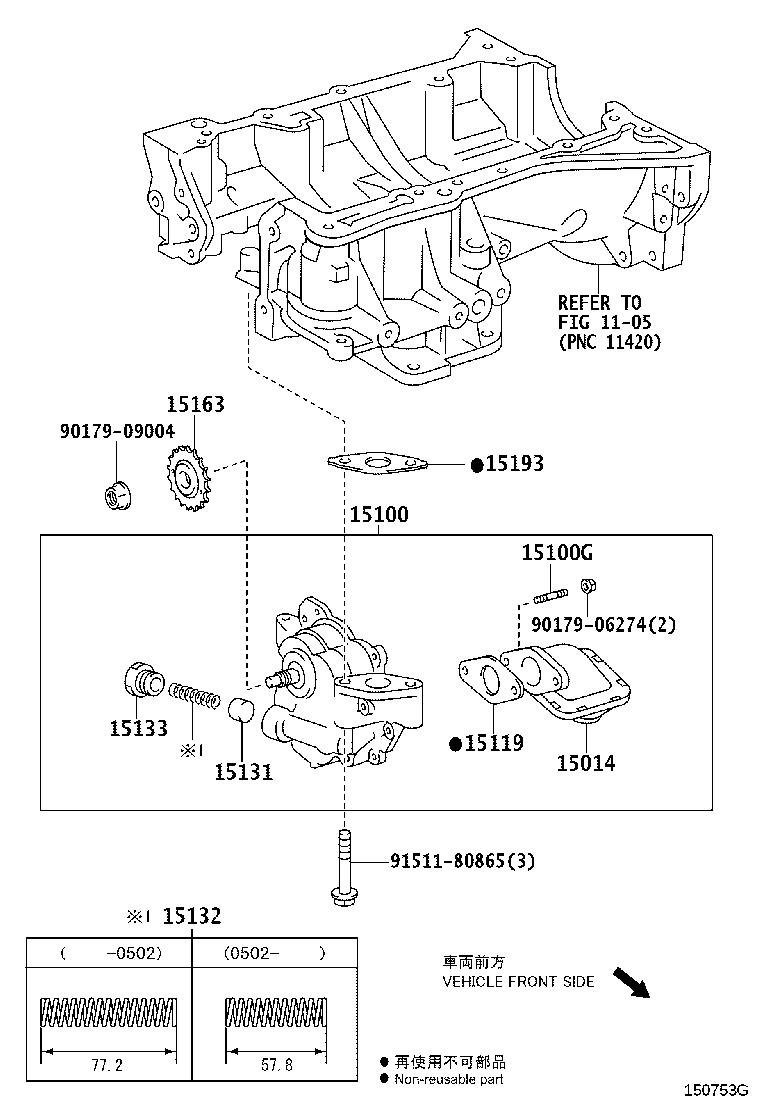

Figure 150753G

150753G 2003-09 → —

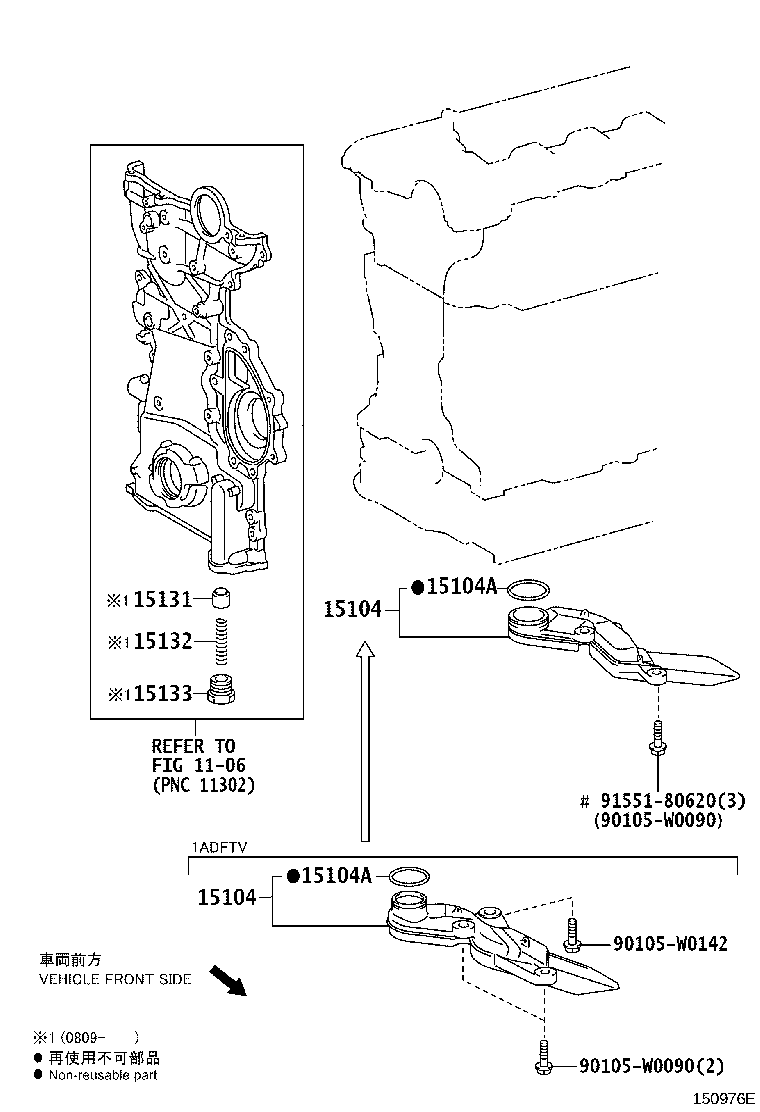

Figure 150976E

150976E 2005-04 → —

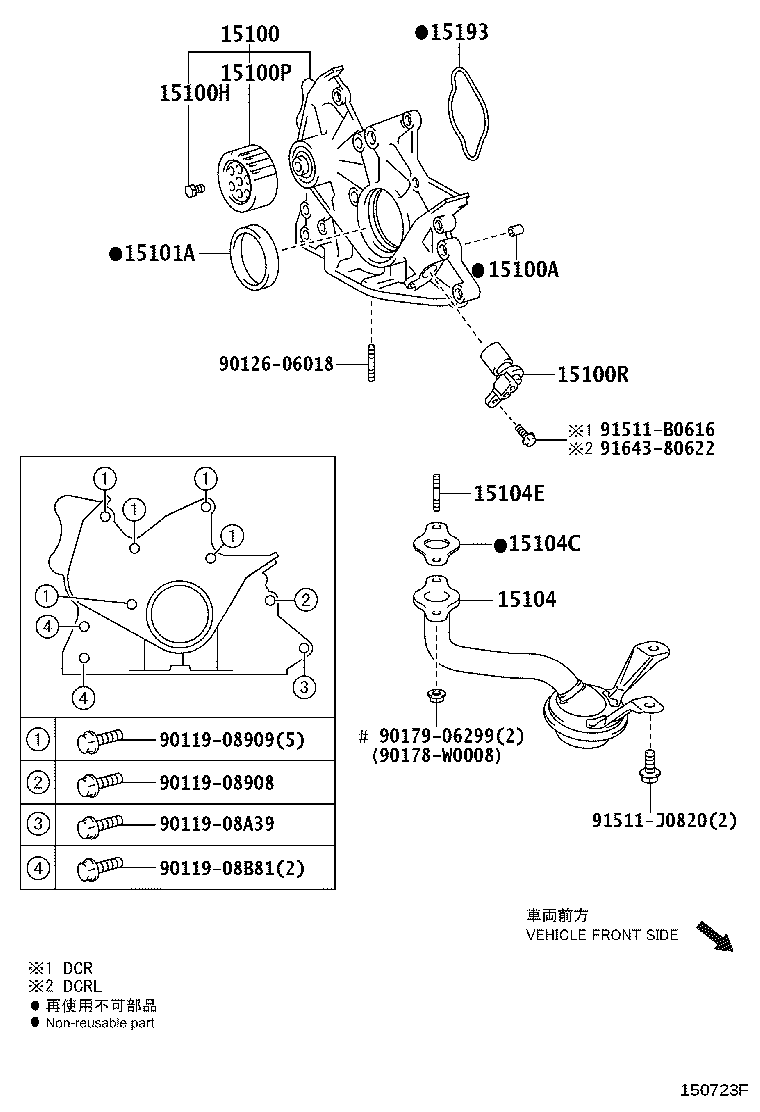

Figure 150723F

150723F 2003-03 → 2006-04

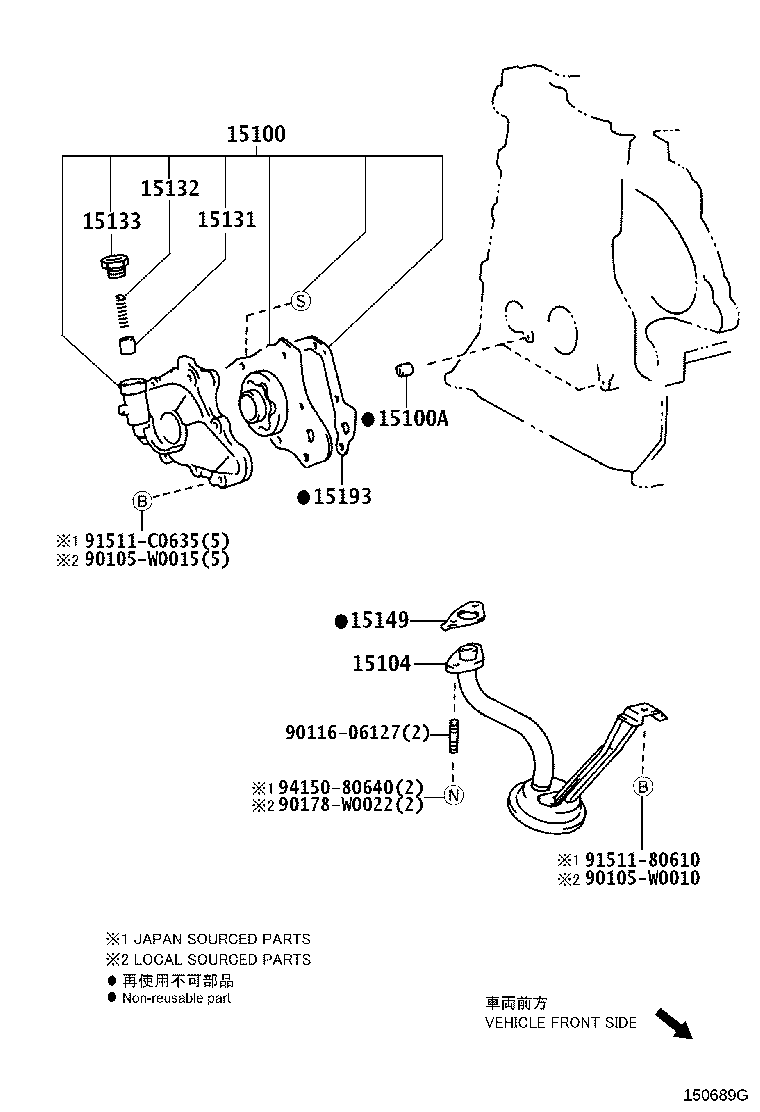

Figure 150689G

150689G 2003-01 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15014	Strainer Set, Oil Pump
15100	Pump Assy, Oil
15100A	Pin, Ring(FOR OIL PUMP SET)
15100G	Bolt,Stud(FOR OIL PUMP)
15100H	Bolt, Seal
15100P	Pulley, Oil Pump Drive Shaft
15100R	Sensor, Crank Position
15101A	Seal(FOR CRANKSHAFT)
15104	Strainer Sub-assy, Oil
15104A	Ring, O(FOR OIL STRAINER)
15104C	Gasket(FOR OIL STRAINER)
15104E	Bolt, Stud(FOR OIL STRAINER)
15119	Gasket, Oil Pump Cover
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15149	Gasket, Oil Strainer Flange
15163	Gear, Oil Pump Drive Shaft
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
