Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

52 part groups · 13 illustrations

Illustrations

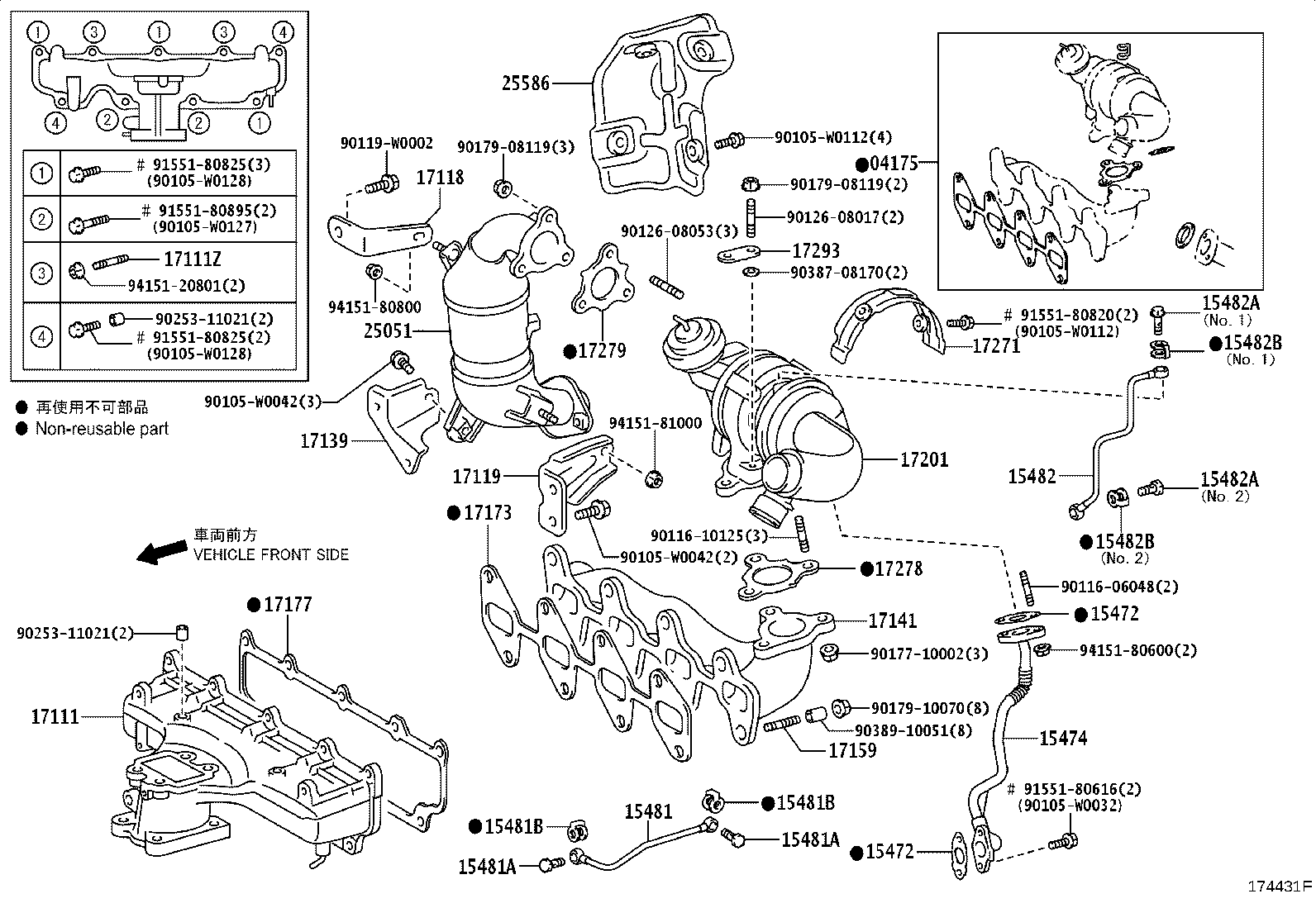

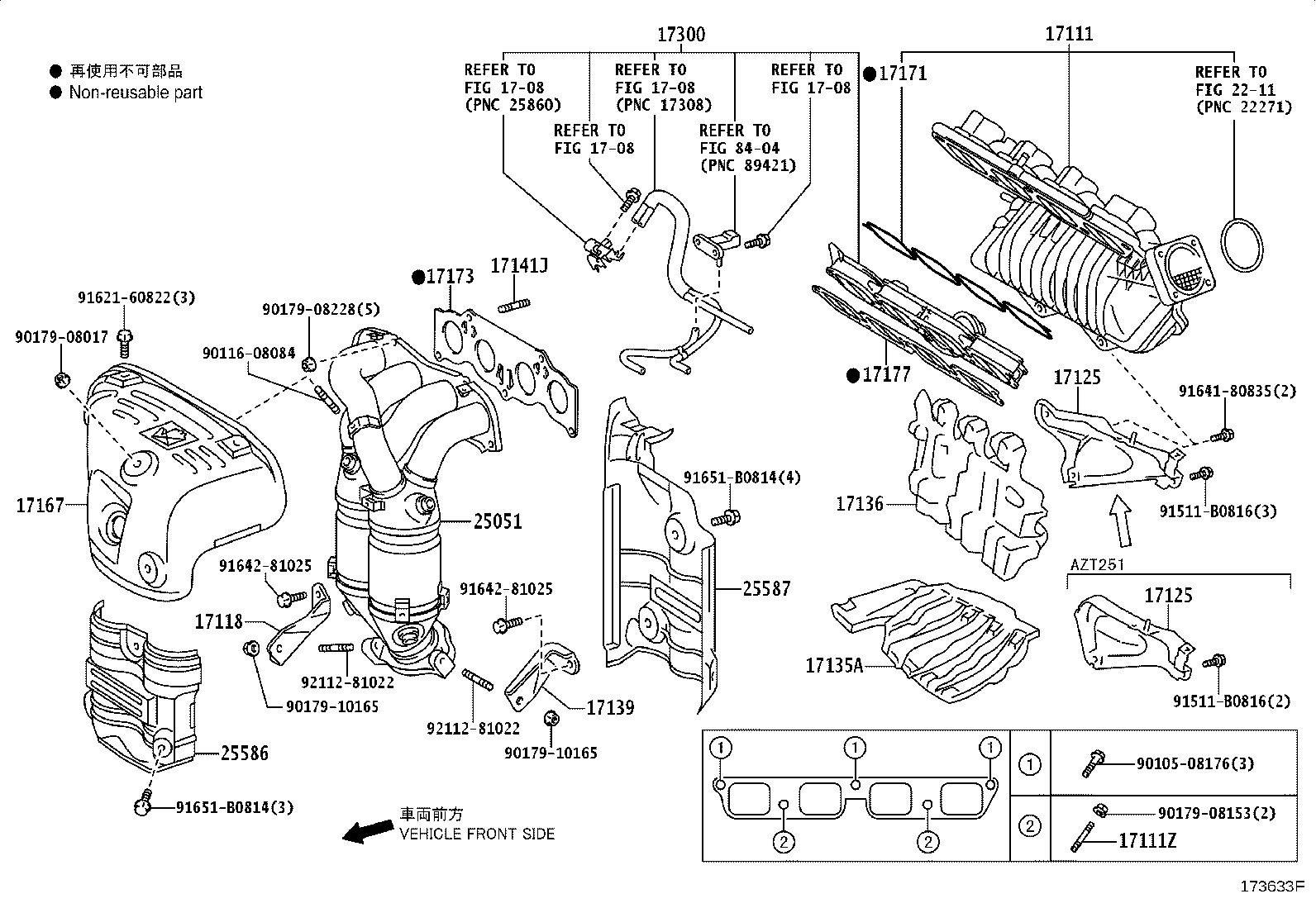

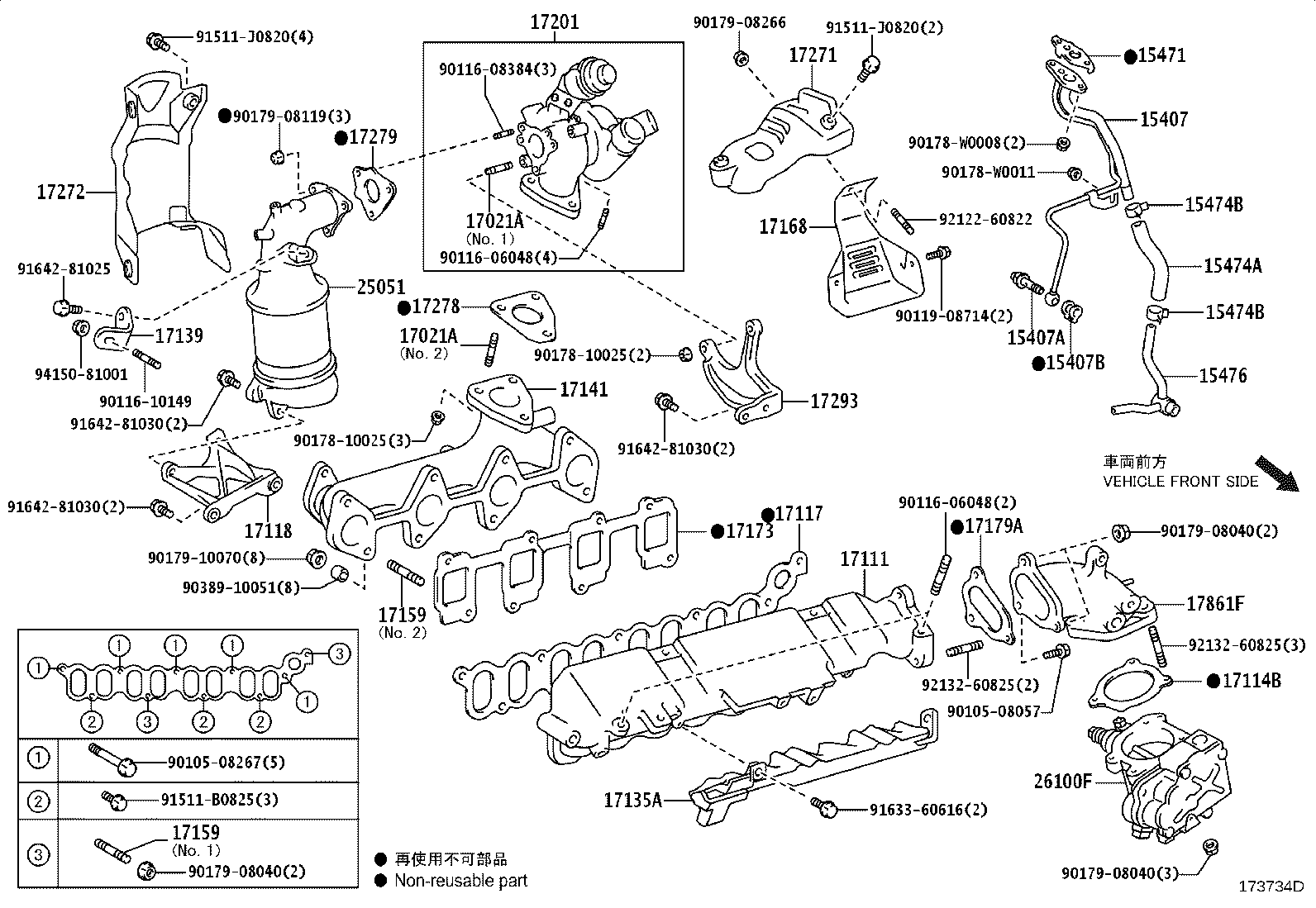

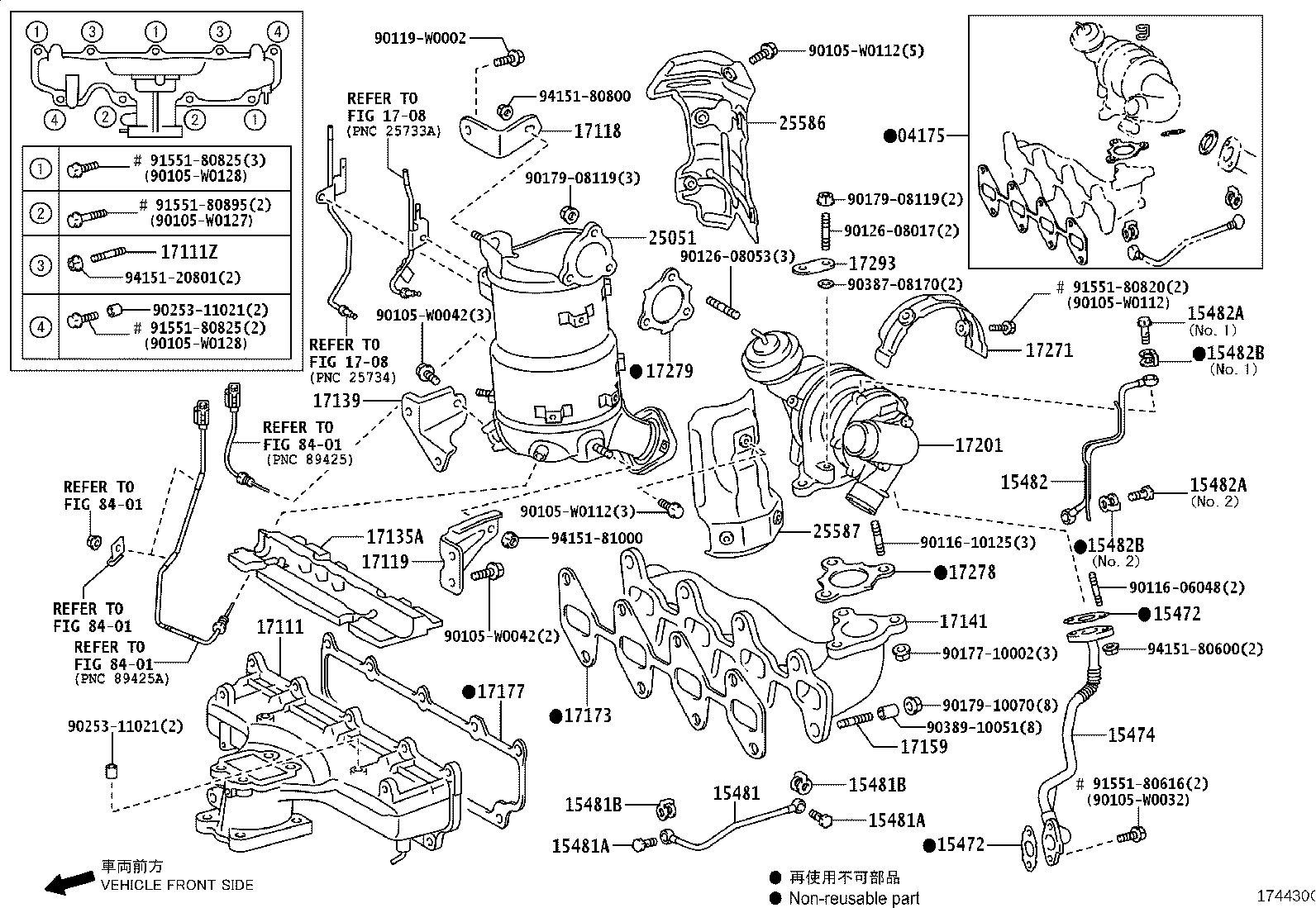

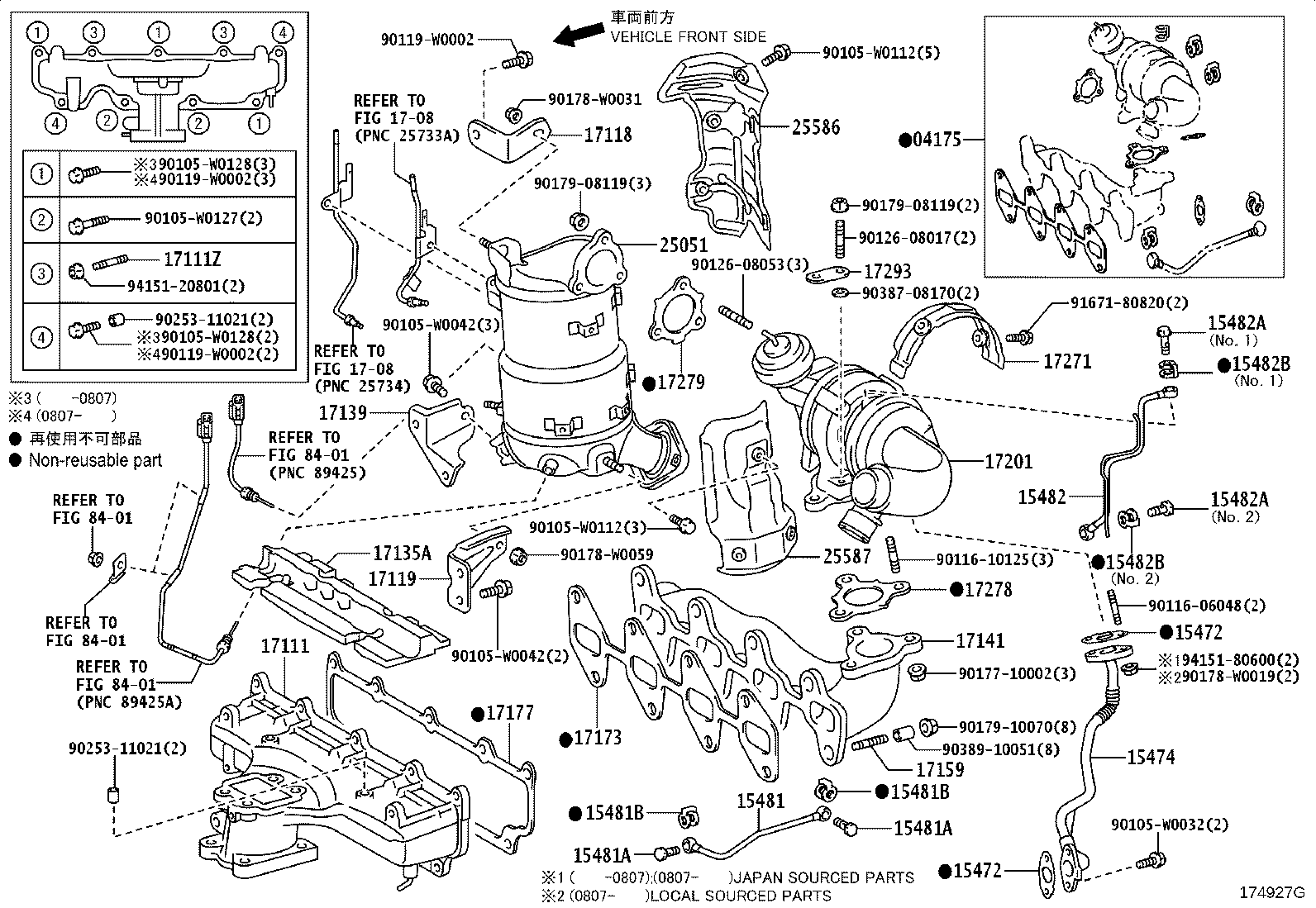

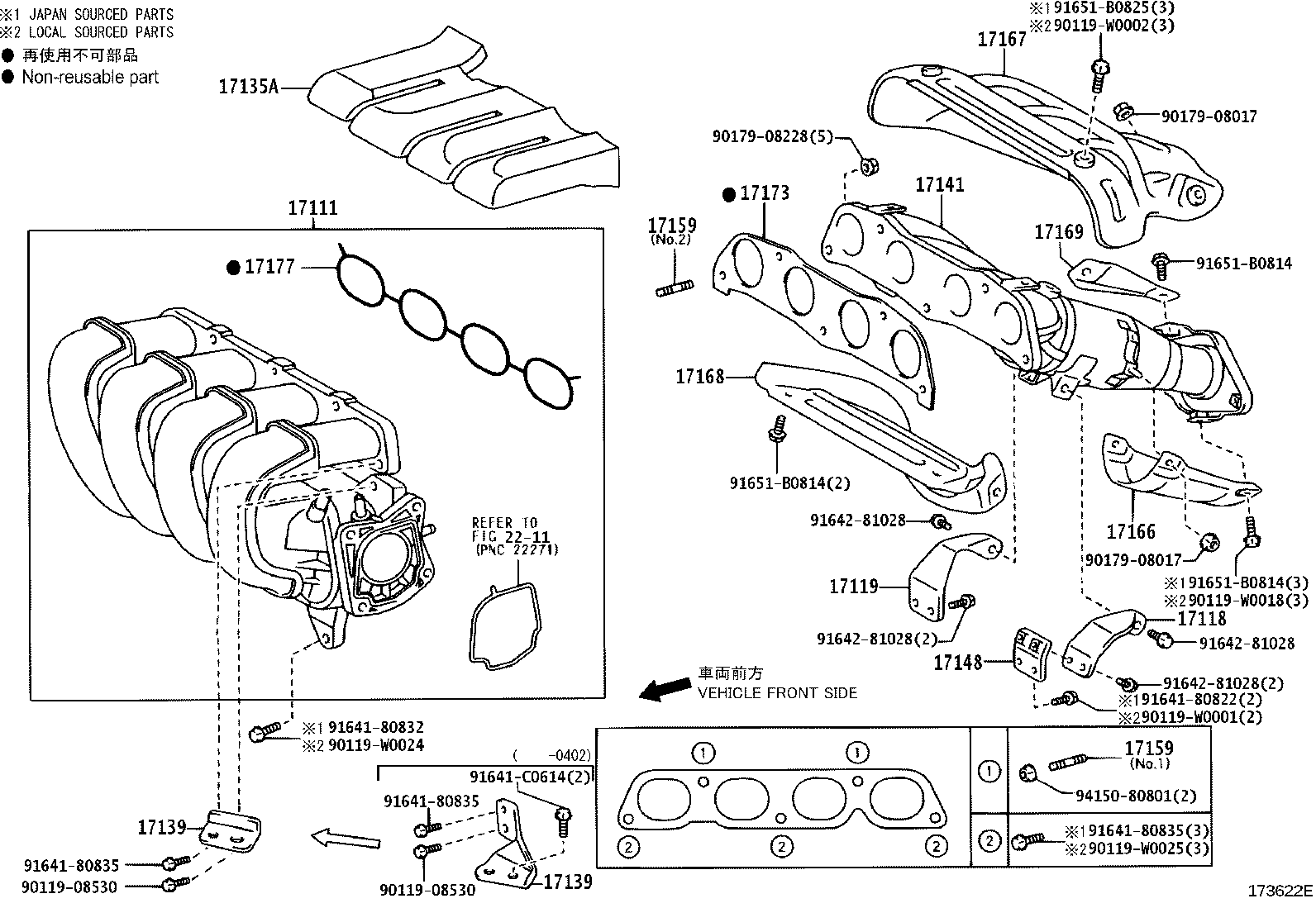

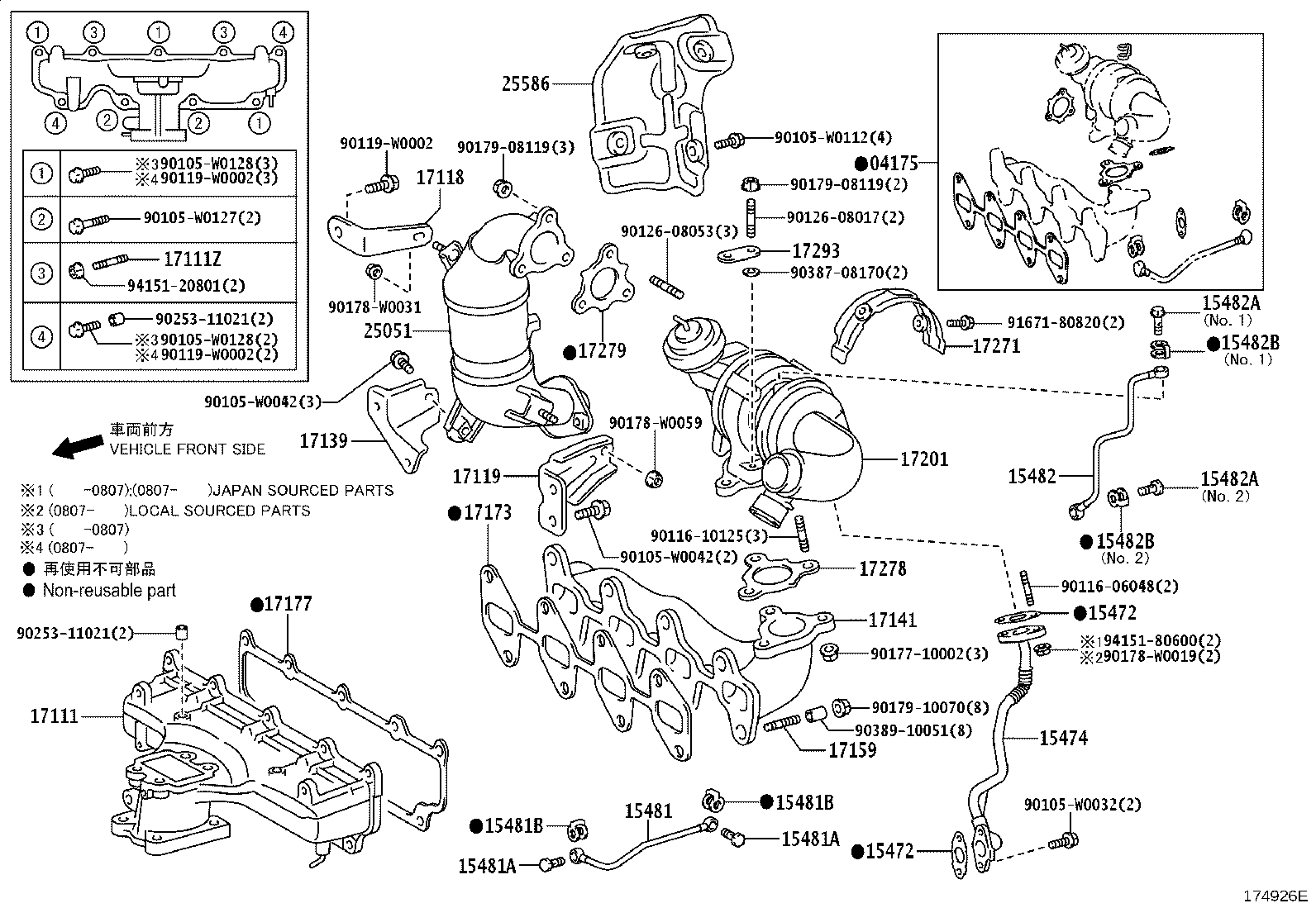

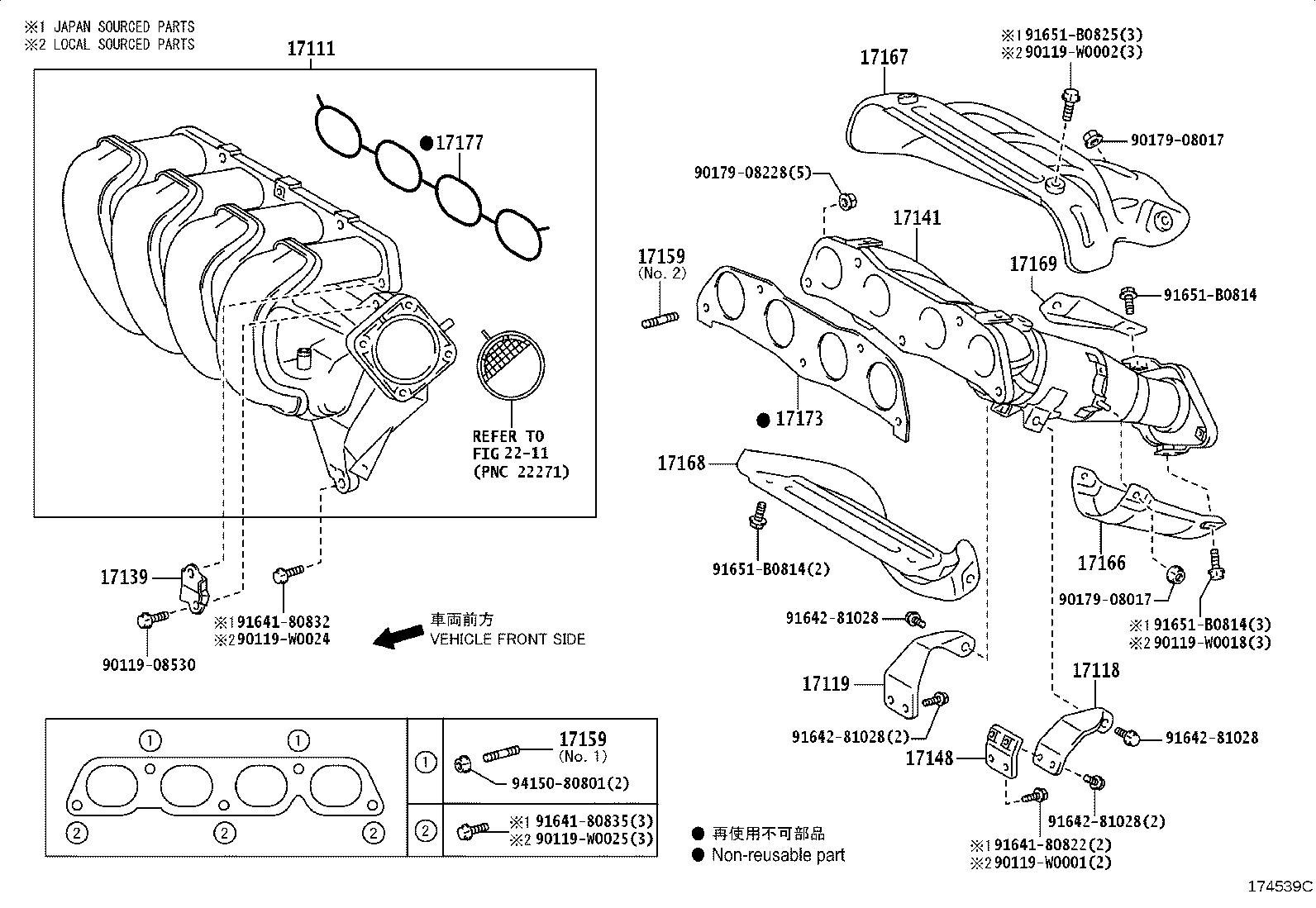

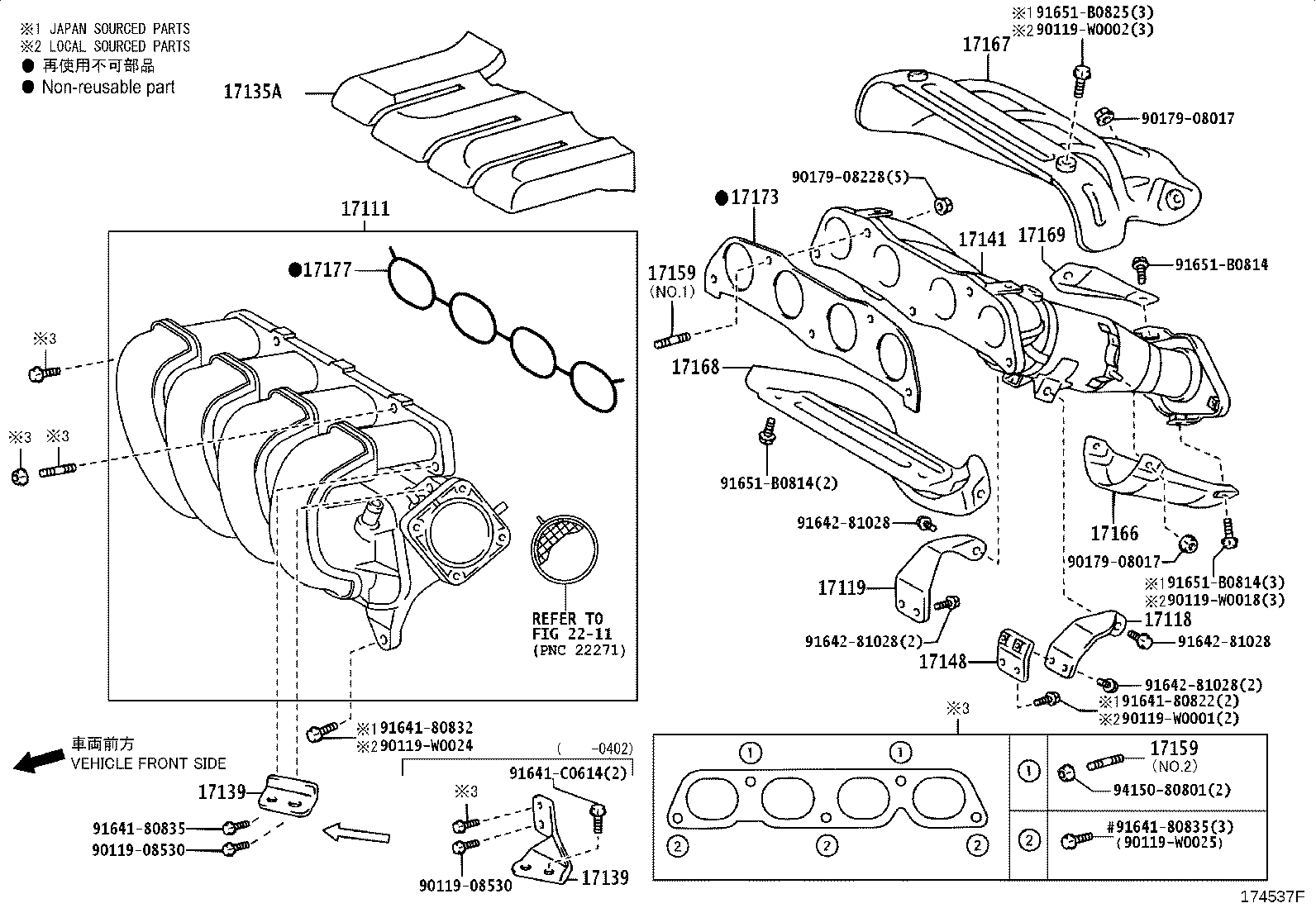

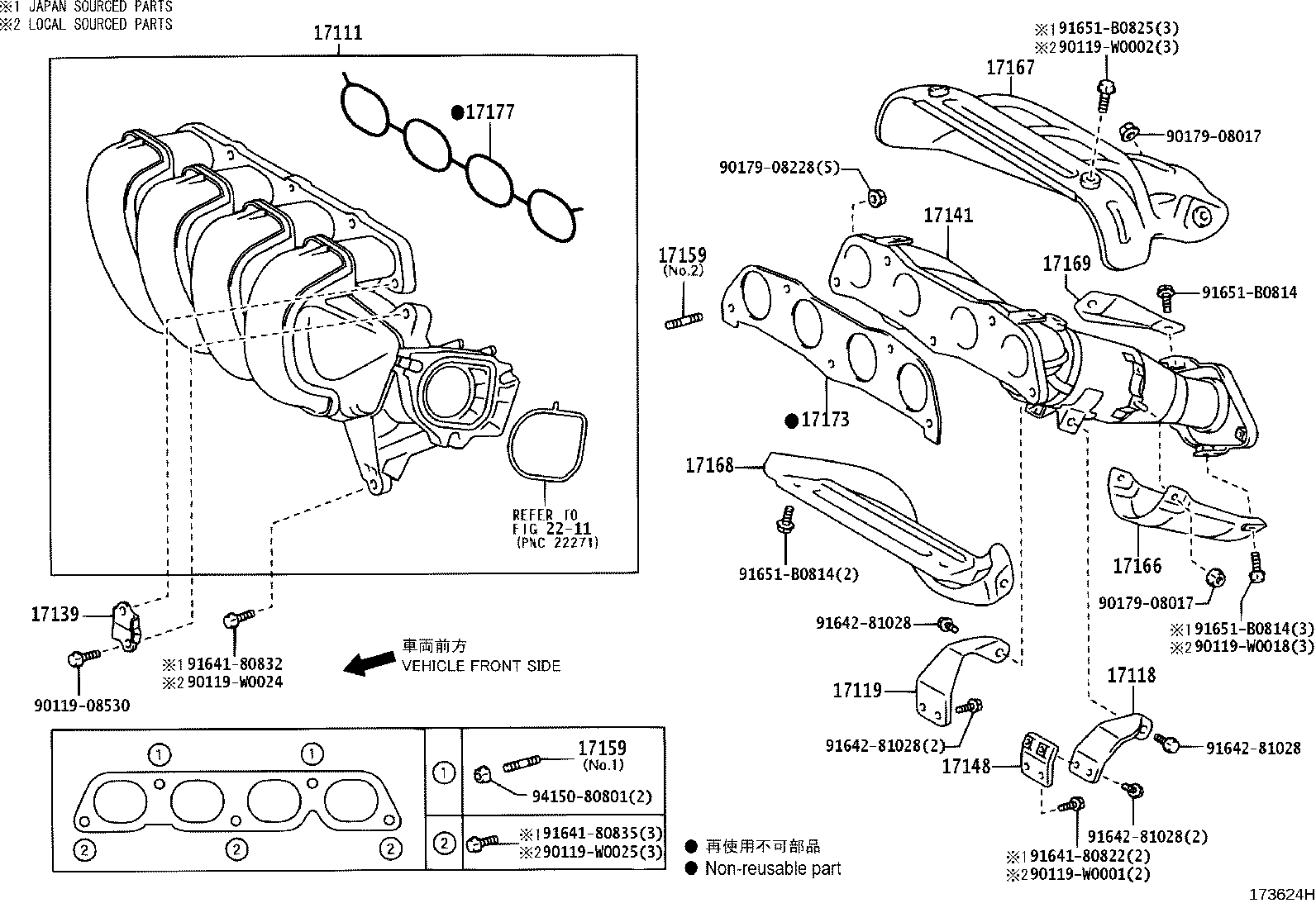

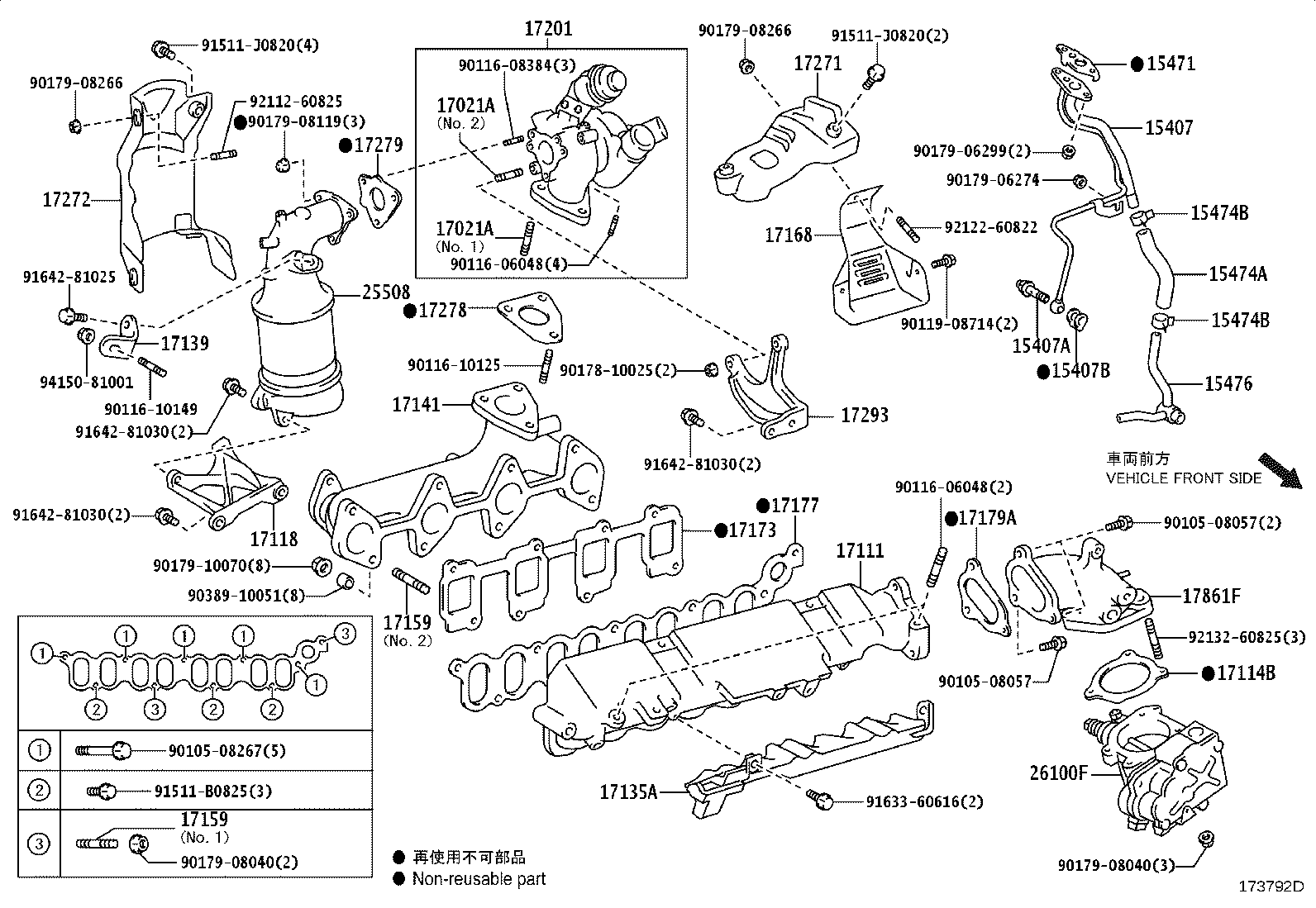

Figure 173632F 173632F 2003-01 → — Figure 173633F 173633F 2003-01 → — Figure 174430G 174430G 2005-04 → 2006-04 Figure 174925F 174925F 2006-04 → — Figure 174431F 174431F 2005-04 → 2006-04 Figure 174926E 174926E 2006-04 → — Figure 174927G 174927G 2006-09 → — Figure 173734D 173734D 2003-03 → 2006-04 Figure 173792E 173792E 2003-07 → 2006-04 Figure 173622F 173622F 2003-01 → 2004-02 Figure 173624H 173624H 2003-01 → 2004-02 Figure 174537F 174537F 2004-02 → — Figure 174539C 174539C 2004-02 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15476 Pipe, Turbo Oil Outlet, NO.2
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15482 Pipe, Turbo Oil, NO.2
15482A Bolt, Union, NO.2
15482B Gasket(FOR UNION BOLT NO.2)
17021A Bolt, Stud(FOR BEARING HOUSING)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114B Gasket, Intake Flange
17117 Insulator, Intake Pipe
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17300 Valve Assy, Intake Air Control
17861F Connector, Intake Air
25051 Converter Sub-assy, Exhaust Manifold
25508 Converter Sub-assy, Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
26100F Shutter Assy, Intake
