Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 7 illustrations

Illustrations

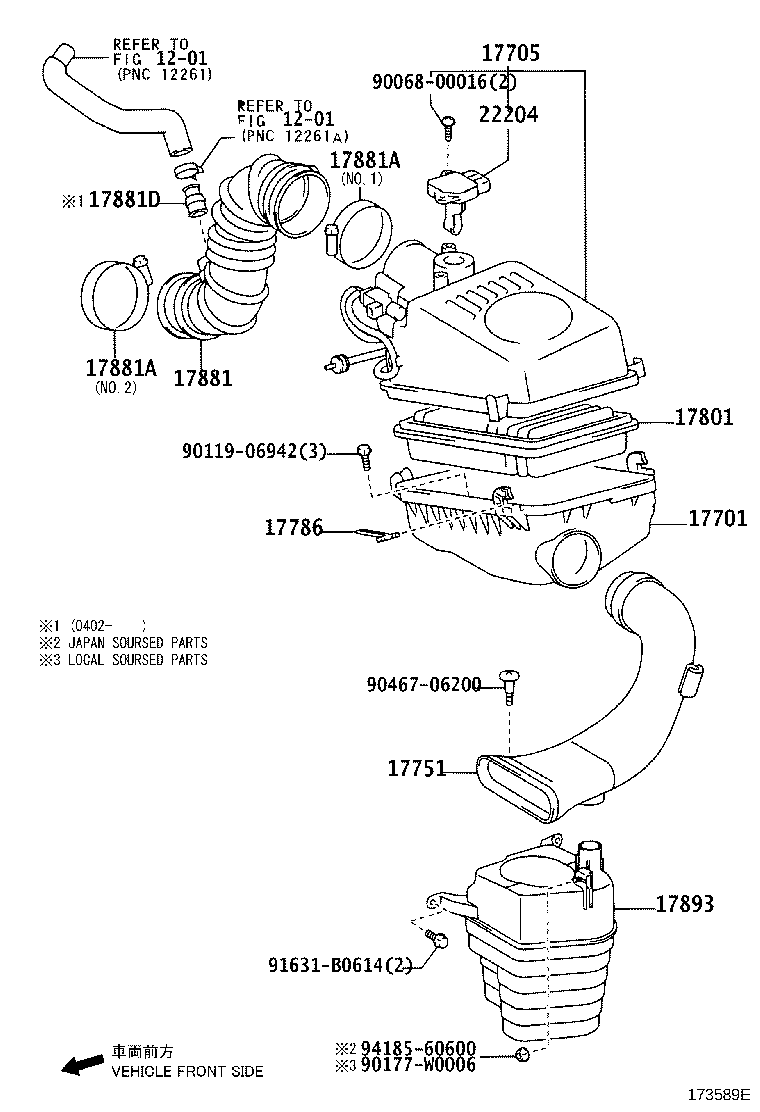

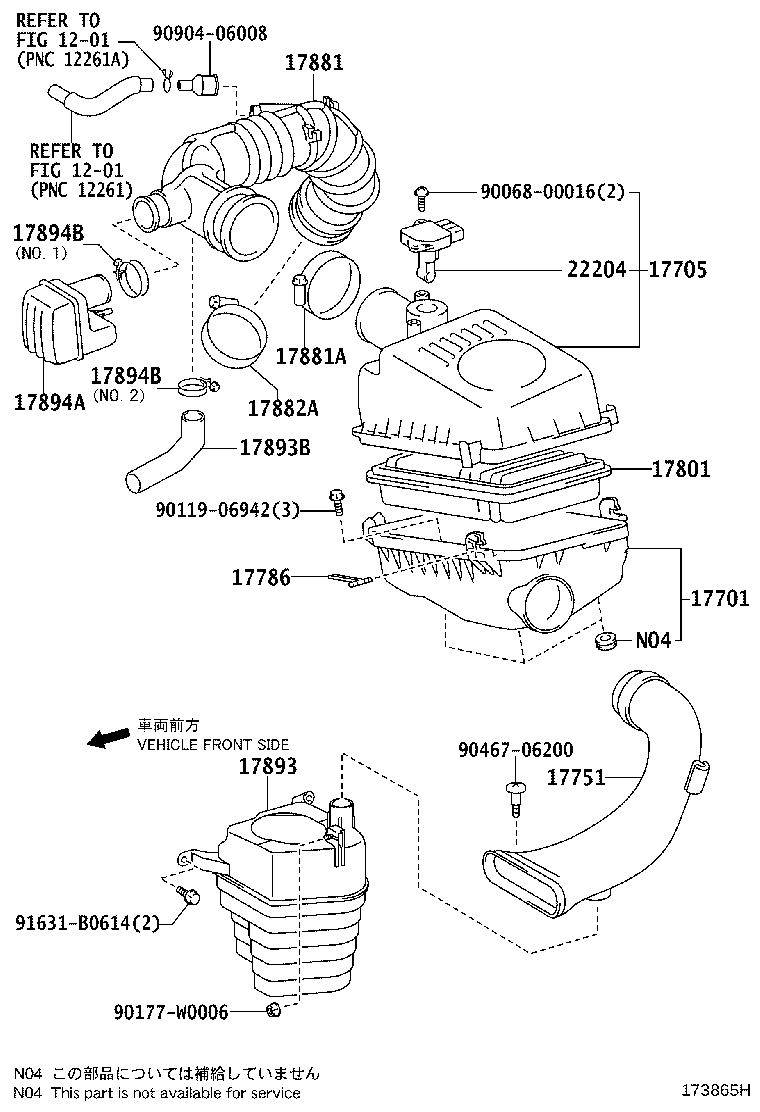

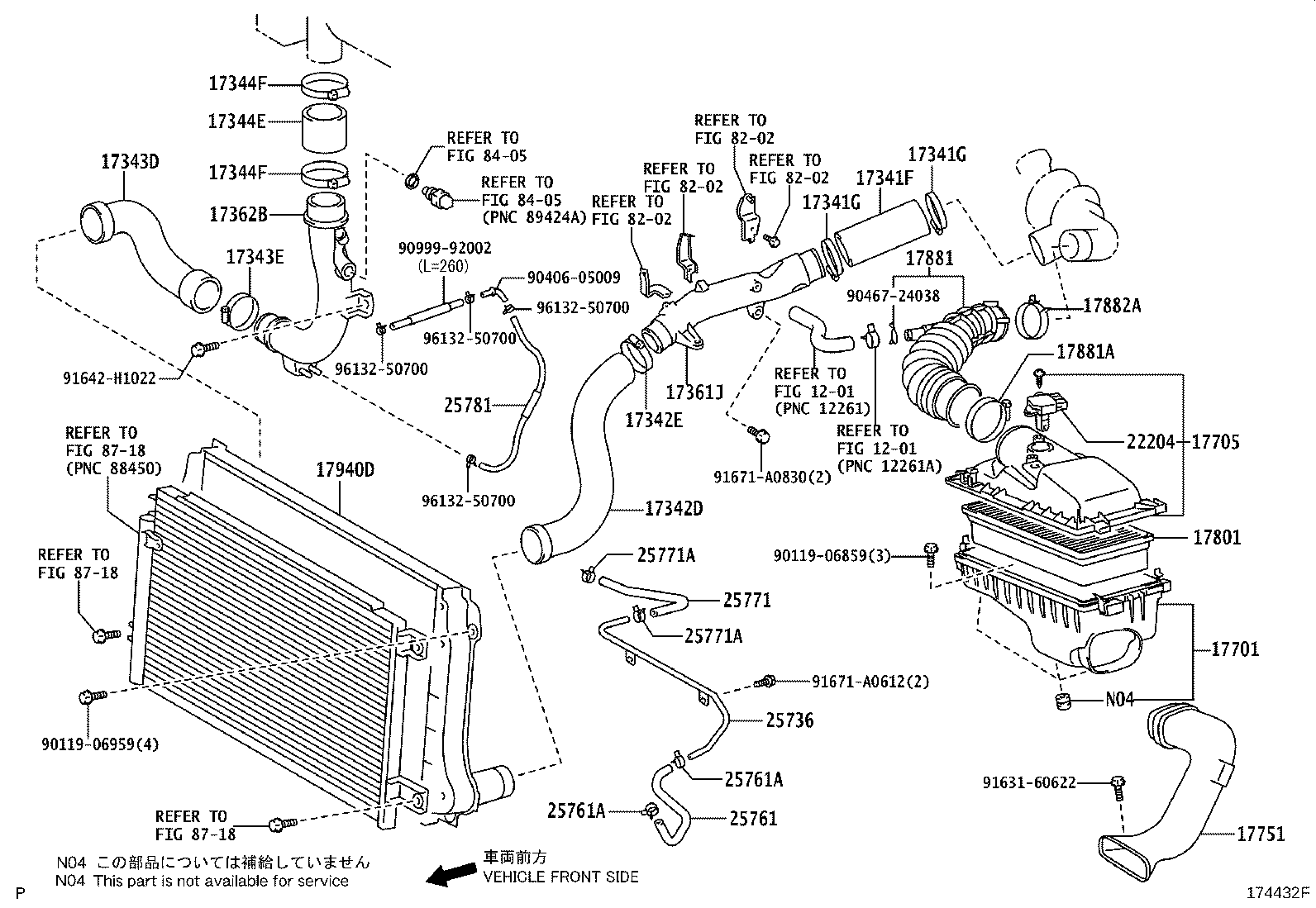

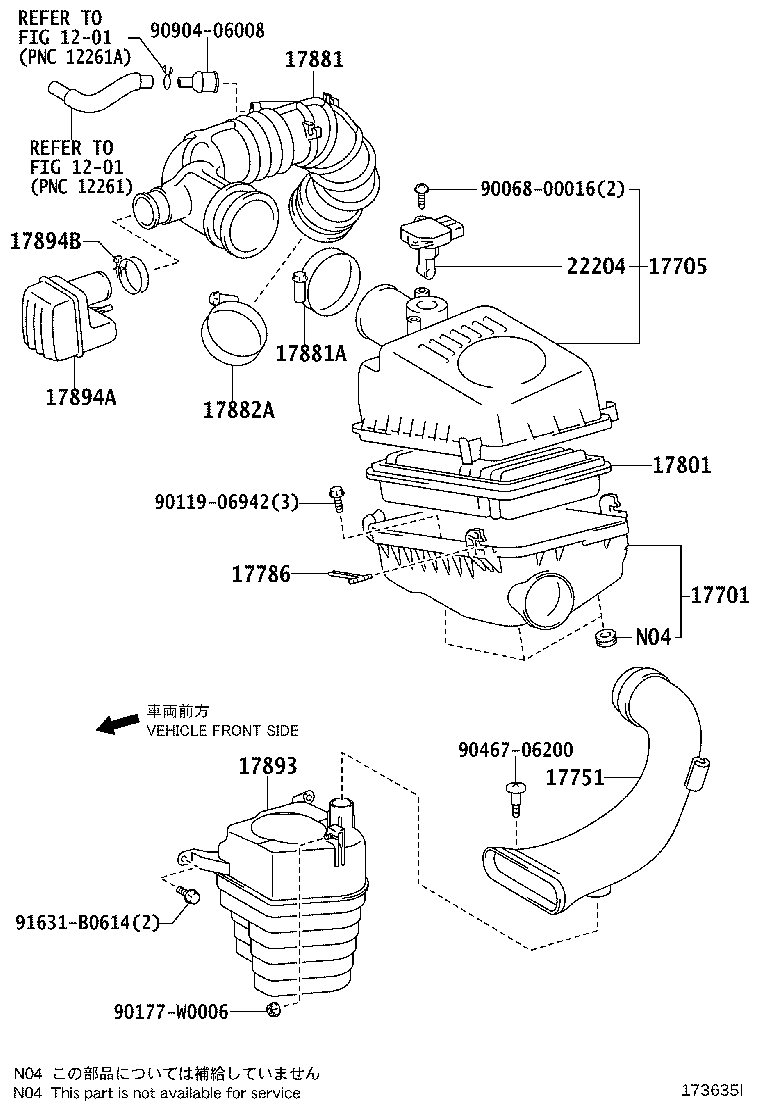

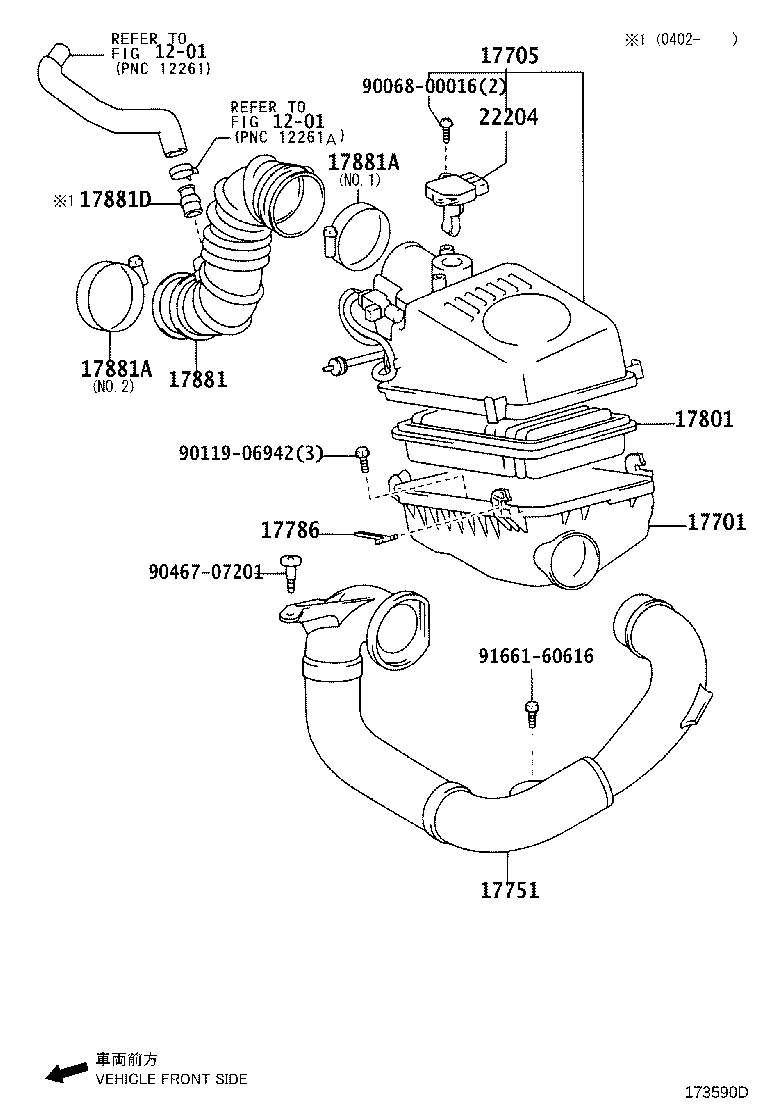

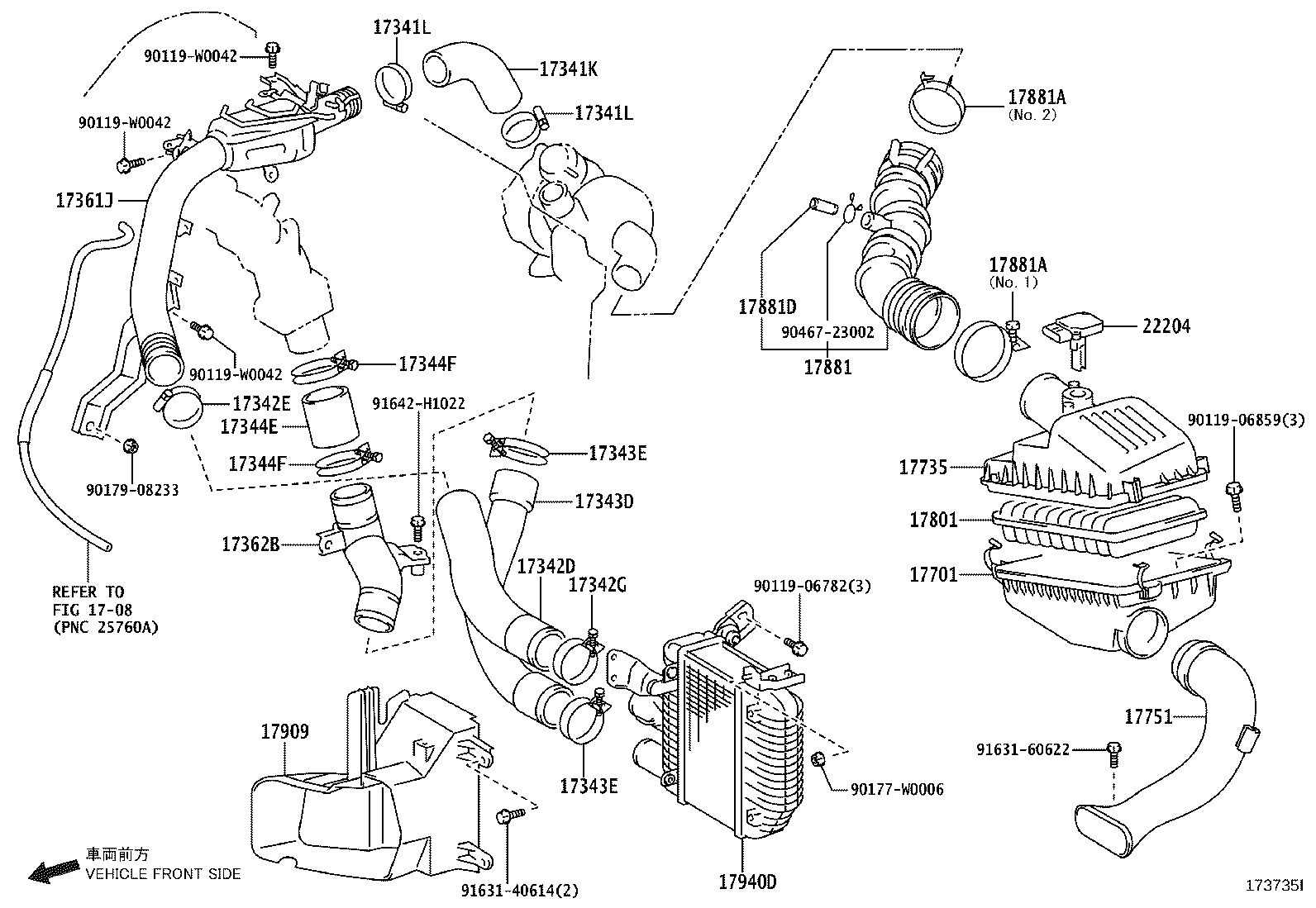

Figure 173864G 173864G 2003-01 → — Figure 173635I 173635I 2003-01 → — Figure 173865H 173865H 2003-09 → — Figure 174432F 174432F 2005-04 → — Figure 173735I 173735I 2003-03 → 2006-04 Figure 173589E 173589E 2003-01 → — Figure 173590D 173590D 2003-01 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893B Resonator, Intake Air, NO.2
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25736 Pipe, Vacuum Transmitting, NO.1
25761 Hose, Vaccum Transmitting, NO.1
25761A Clip(VACCUM TRANSMITTING HOSE NO.1)
25771 Hose, Vaccum Transmitting, NO.2
25771A Clip(VACCUM TRANSMITTING HOSE NO.2)
25781 Hose, Vacuum Transmitting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
