Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

13 part groups · 5 illustrations

Illustrations

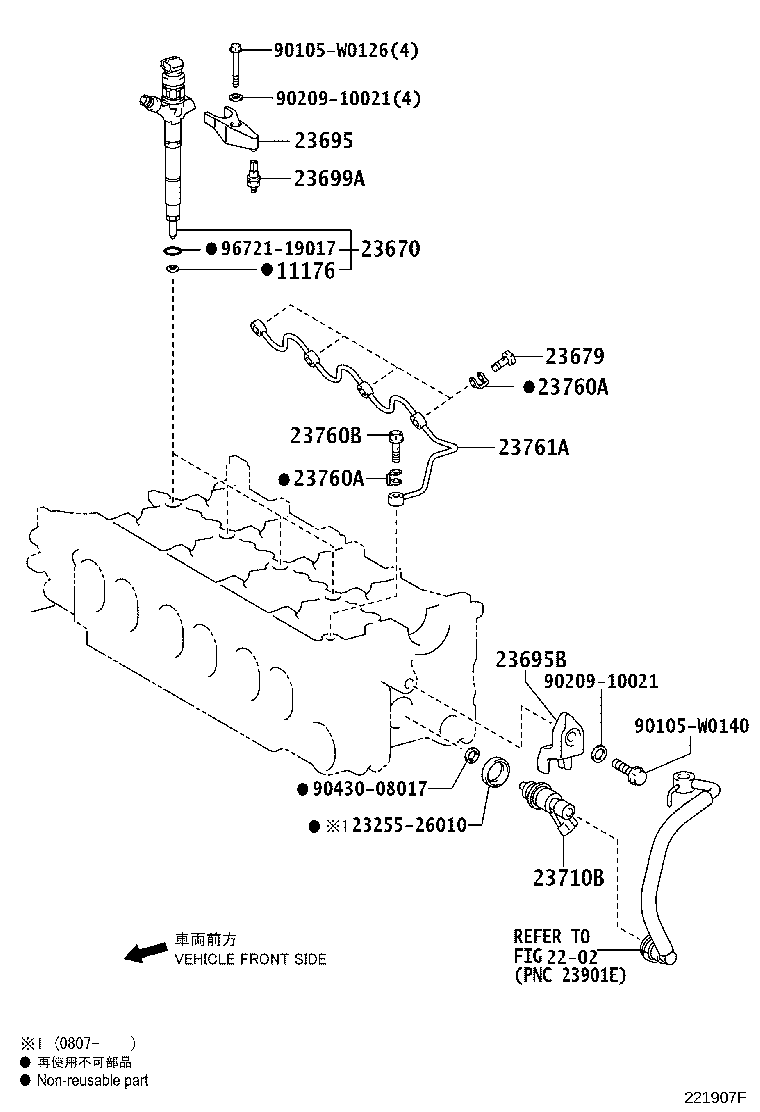

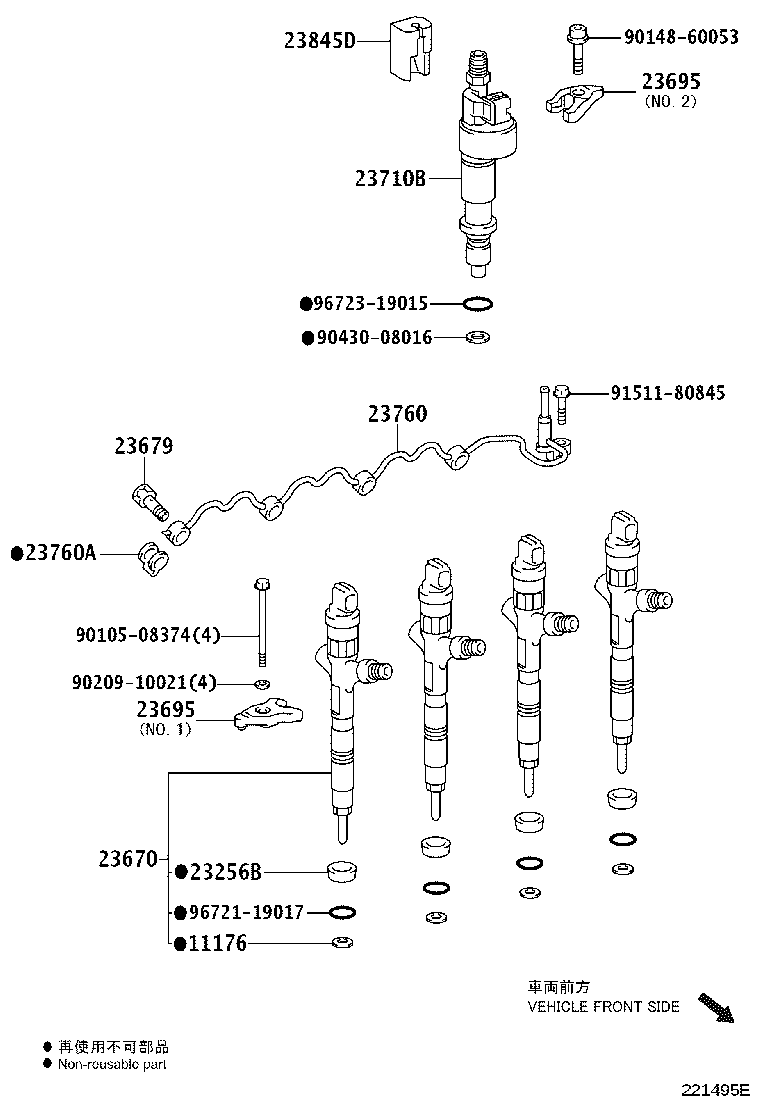

Figure 221741H 221741H 2005-04 → — Figure 221742C 221742C 2005-04 → — Figure 221907F 221907F 2006-09 → — Figure 223558A 223558A 2003-03 → 2006-04 Figure 221495E 221495E 2003-09 → 2006-04

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23256B Ring, Fuel Injector Back-up, NO.1
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23760B Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
23761A Pipe, Nozzle Leakage, NO.1
23845D Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
