Exhaust Gas Recirculation System

14 part groups · 7 illustrations

Illustrations

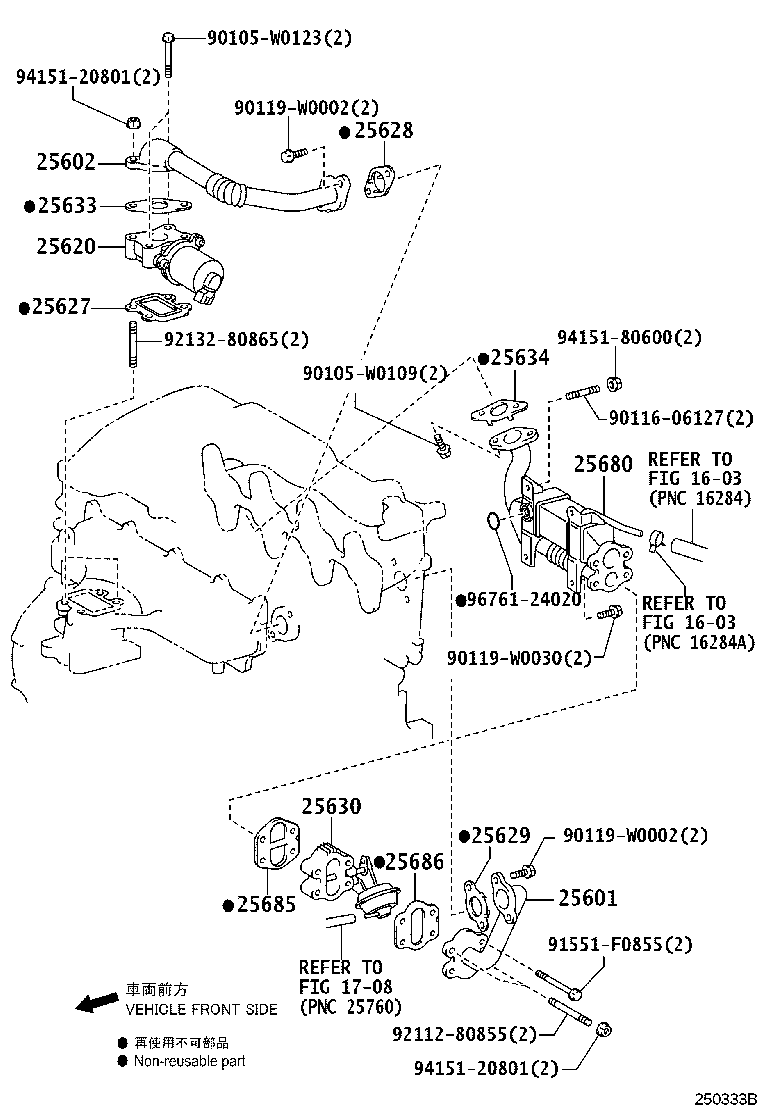

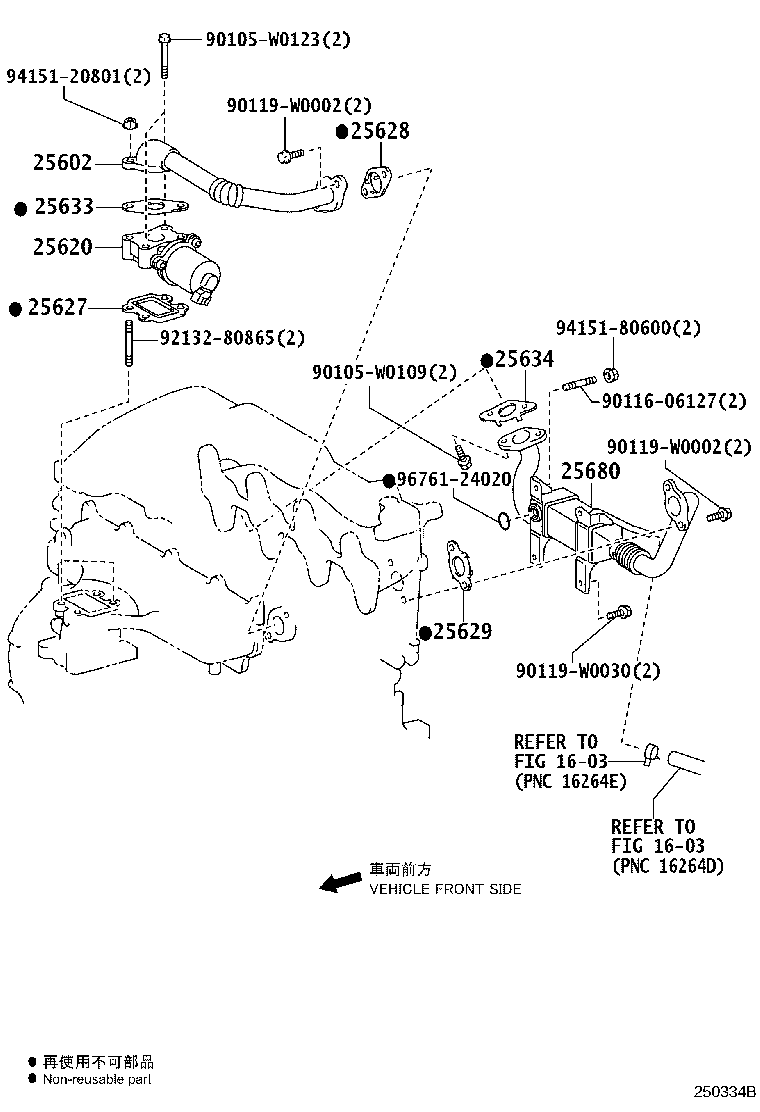

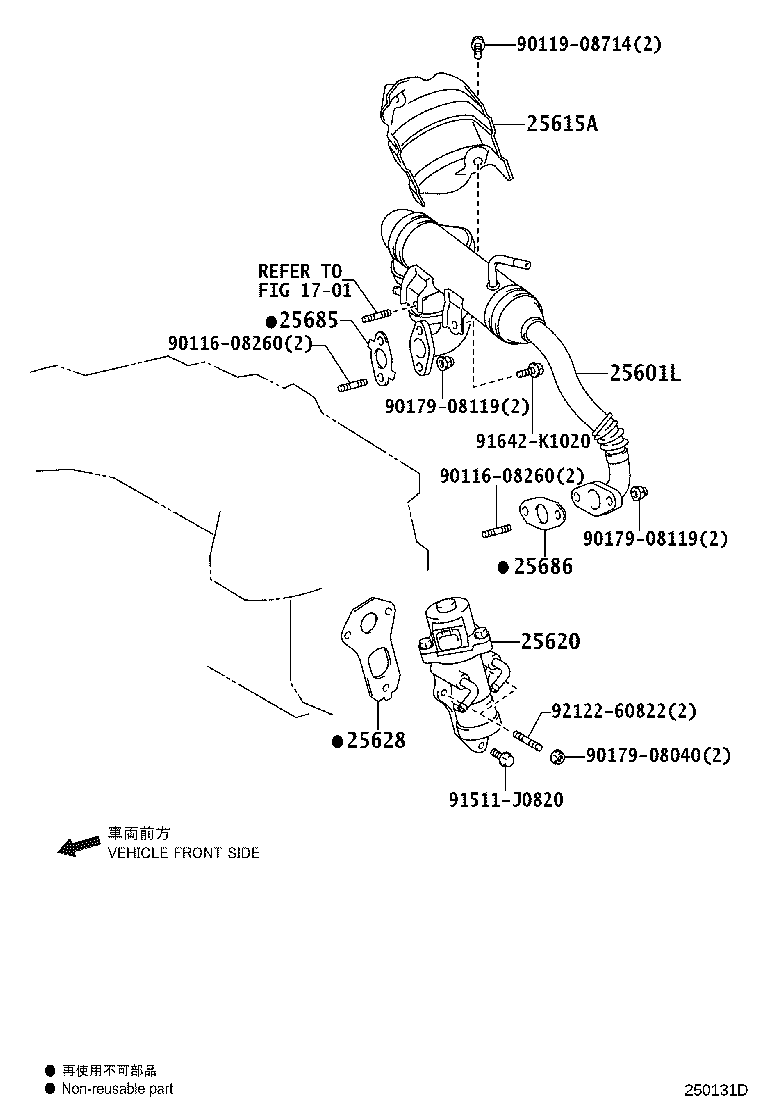

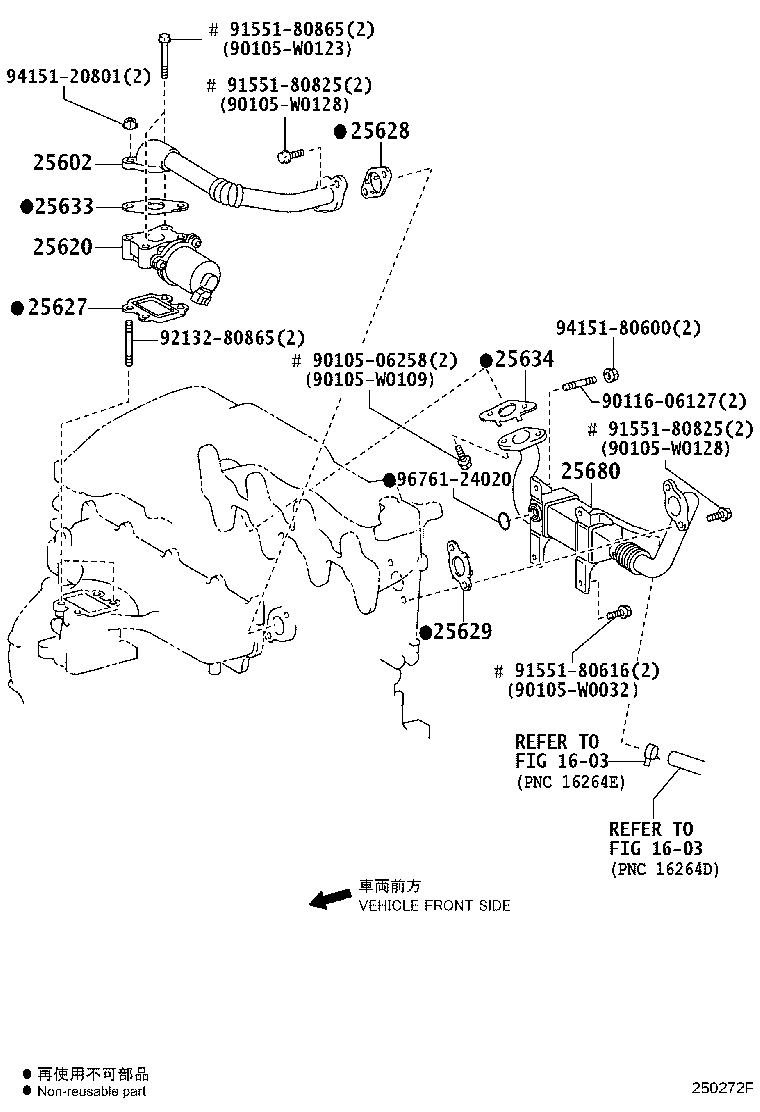

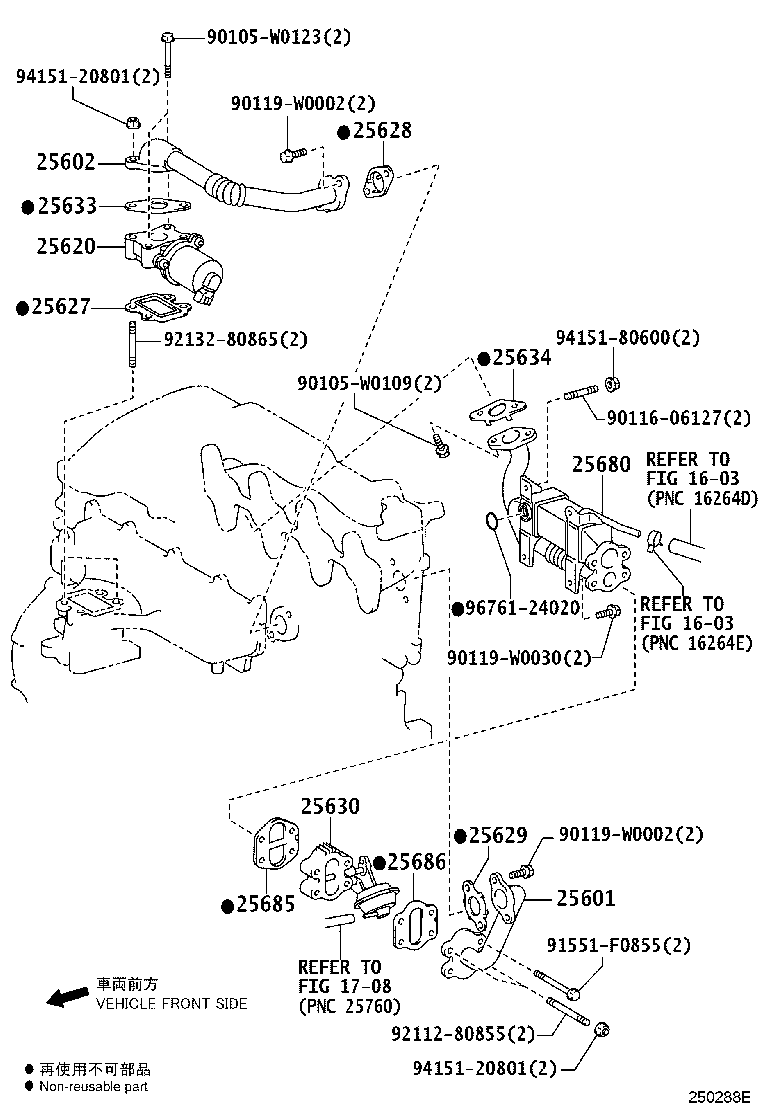

Figure 250271G 250271G 2005-04 → 2008-05 Figure 250333B 250333B 2008-05 → — Figure 250272F 250272F 2005-04 → 2008-05 Figure 250334B 250334B 2008-05 → — Figure 250288E 250288E 2006-09 → — Figure 250653A 250653A 2003-03 → 2006-04 Figure 250131D 250131D 2003-09 → 2006-04

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601L Pipe Sub-assy, Egr W/Cooler
25602 Pipe Sub-assy, Egr, NO.2
25615A Insulator, Egr Pipe
25620 Valve Assy, Egr
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
