Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

19 part groups · 13 illustrations

Illustrations

Figure 311104C 311104C 2003-01 → — Figure 311104C 311104C 2005-04 → — Figure 311106B 311106B 2003-01 → — Figure 311106B 311106B 2005-04 → — Figure 311107A 311107A 2003-01 → — Figure 311108A 311108A 2003-01 → — Figure 311119 311119 2003-01 → — Figure 311109 311109 2003-01 → — Figure 311110 311110 2003-01 → — Figure 311156A 311156A 2003-03 → — Figure 311155A 311155A 2003-03 → — Figure 311484A 311484A 2005-04 → — Figure 311485A 311485A 2005-04 → —

Part groups

PNCDescription

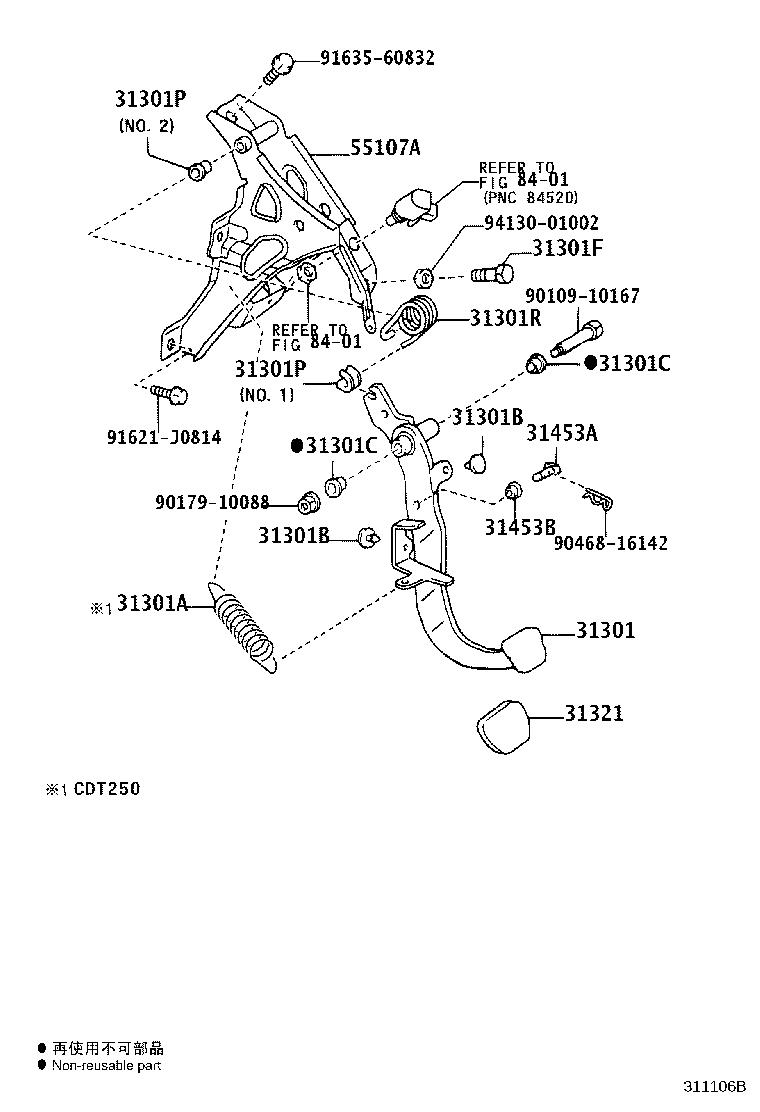

31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

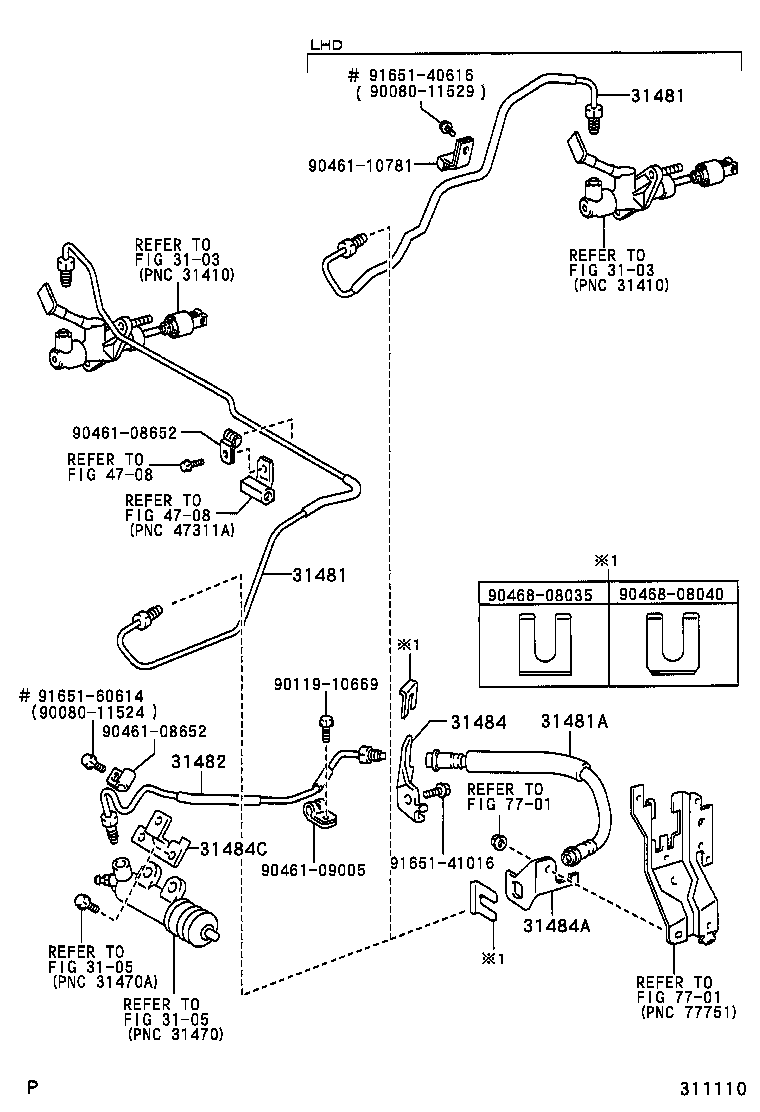

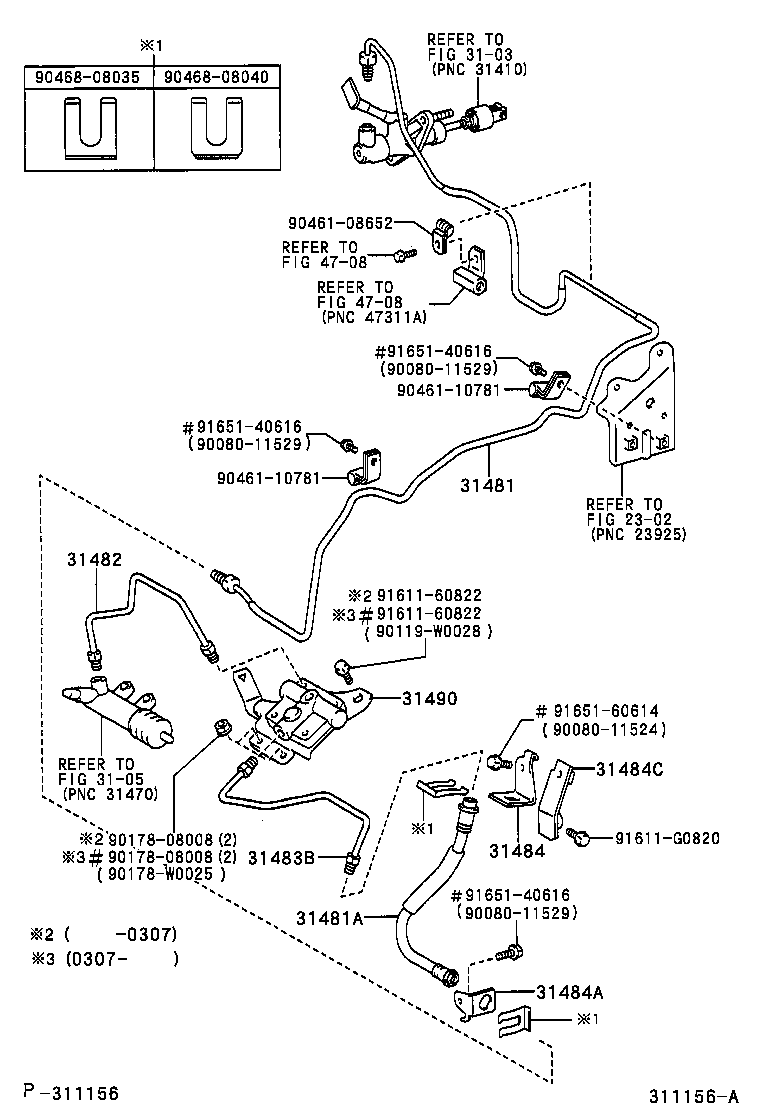

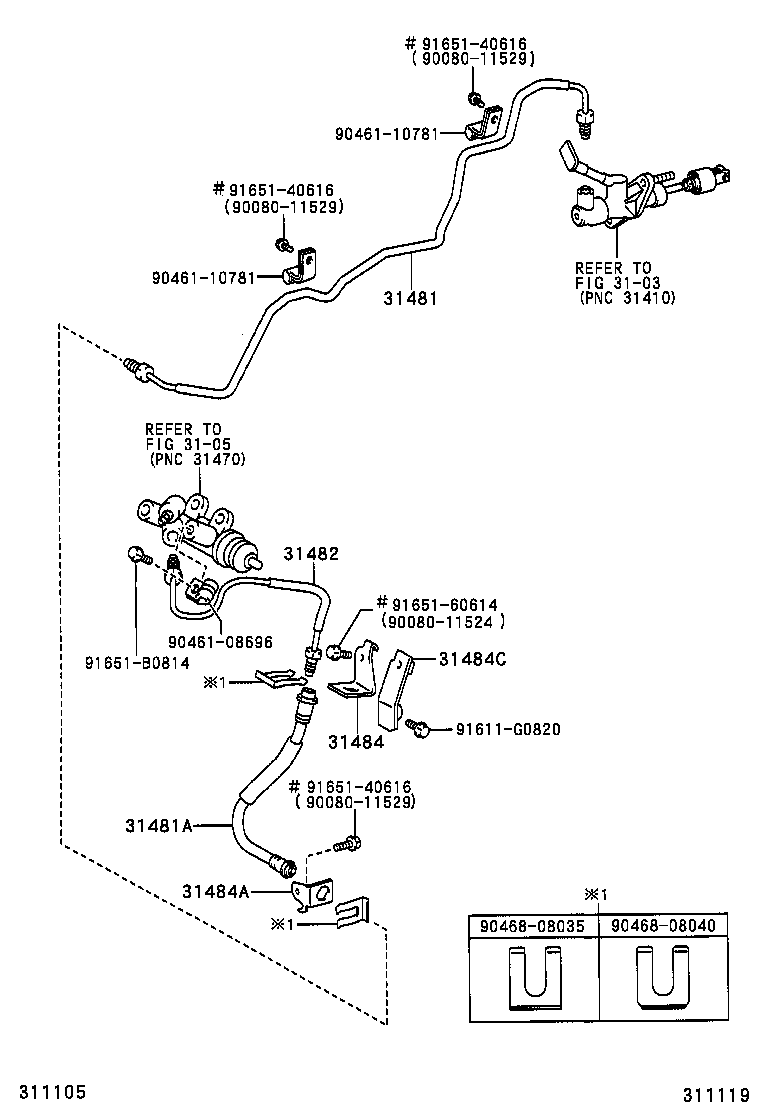

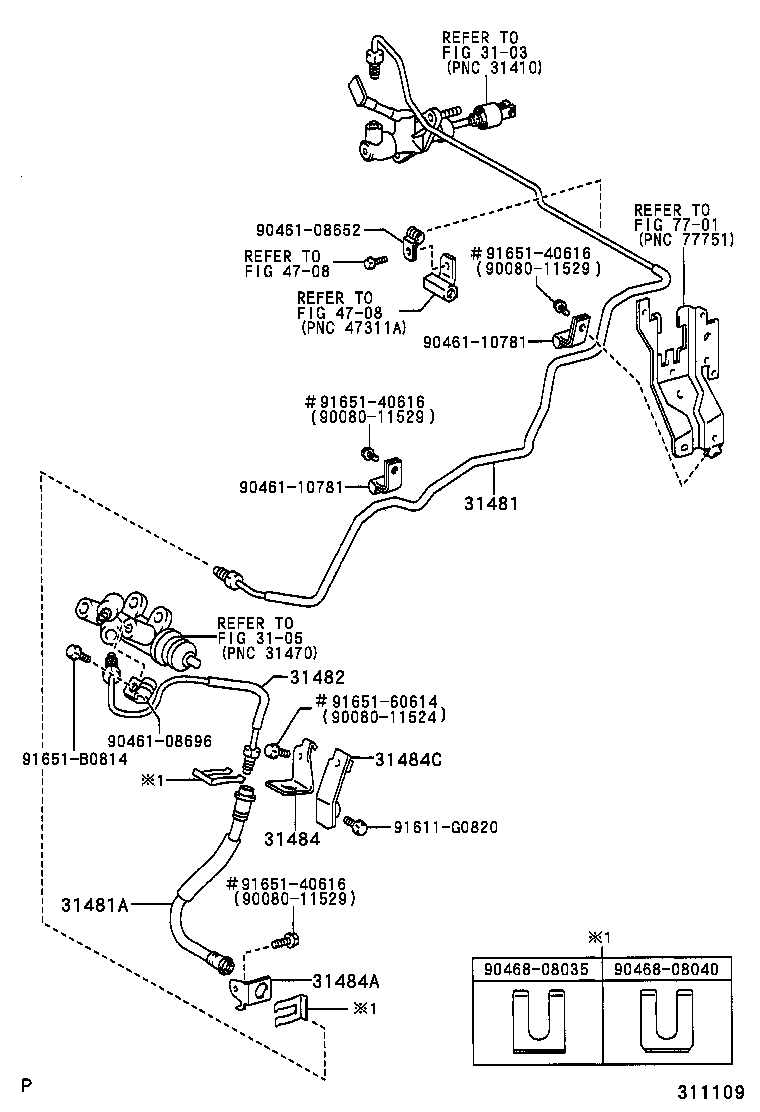

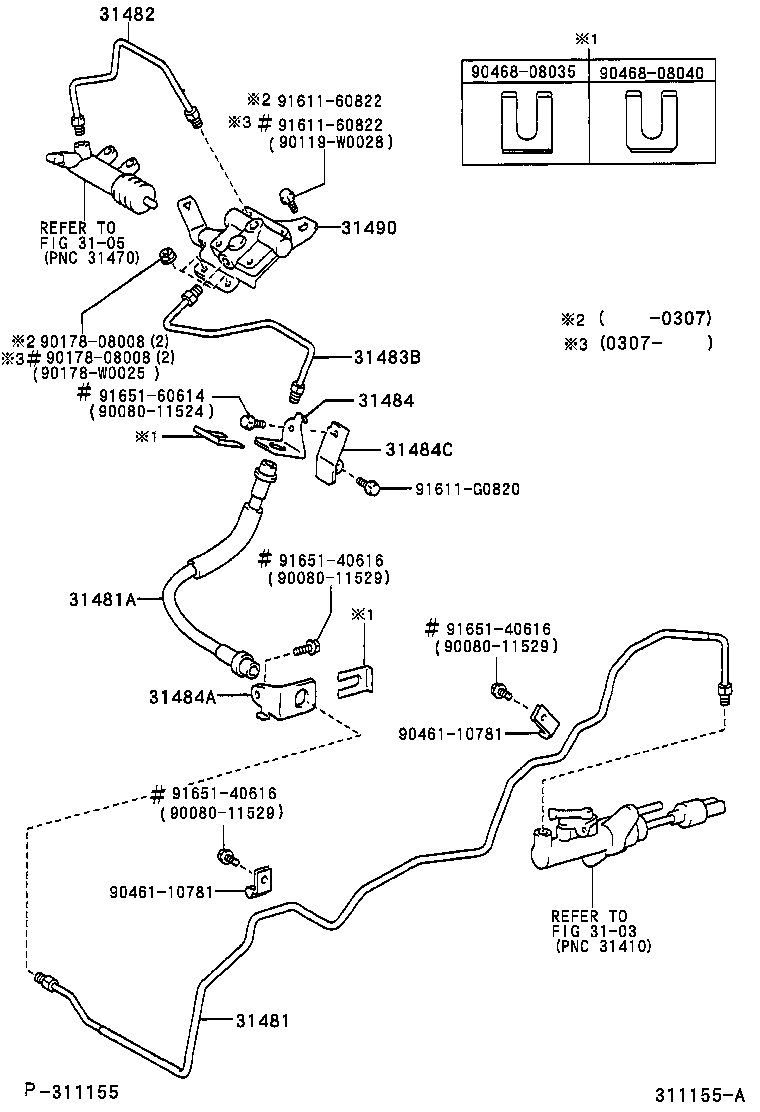

31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31483B Tube, Accumulator TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1

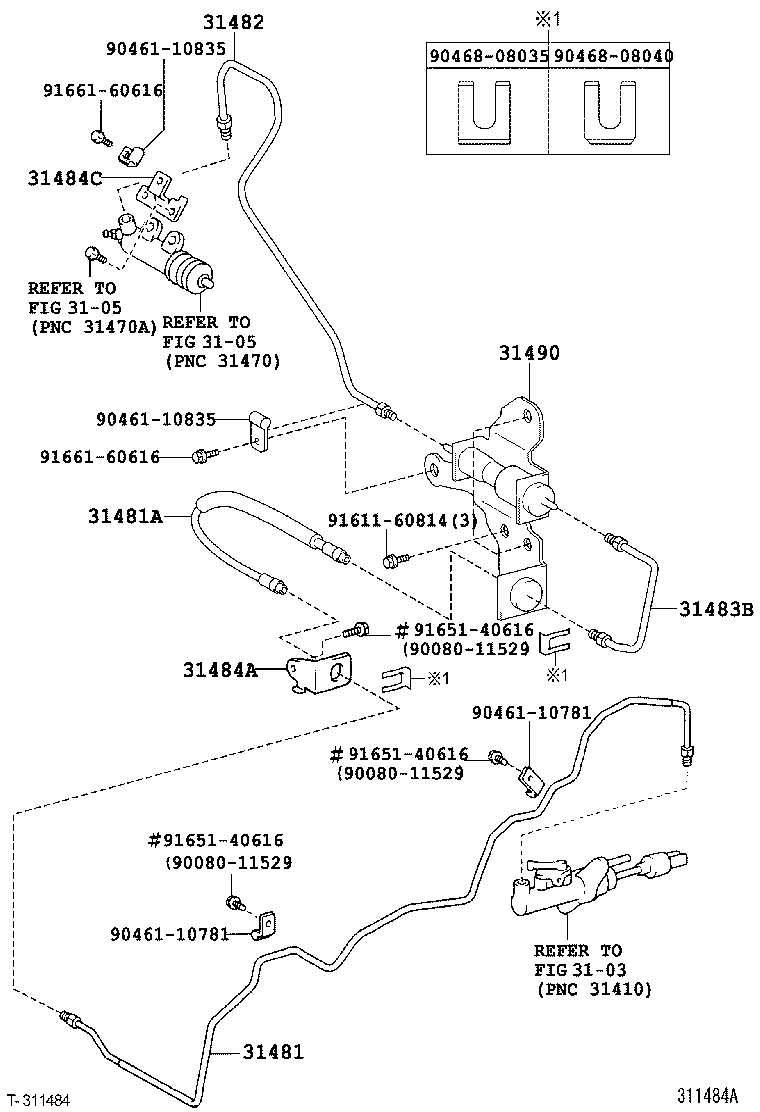

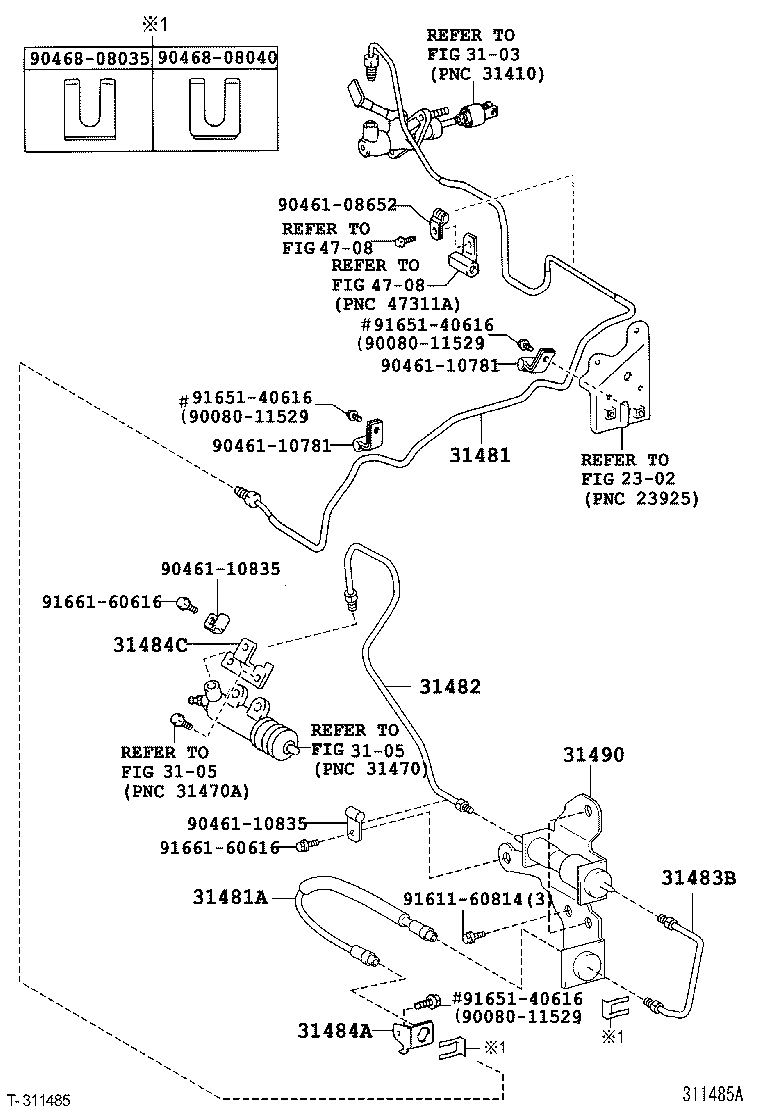

31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
