Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

14 part groups · 4 illustrations

Illustrations

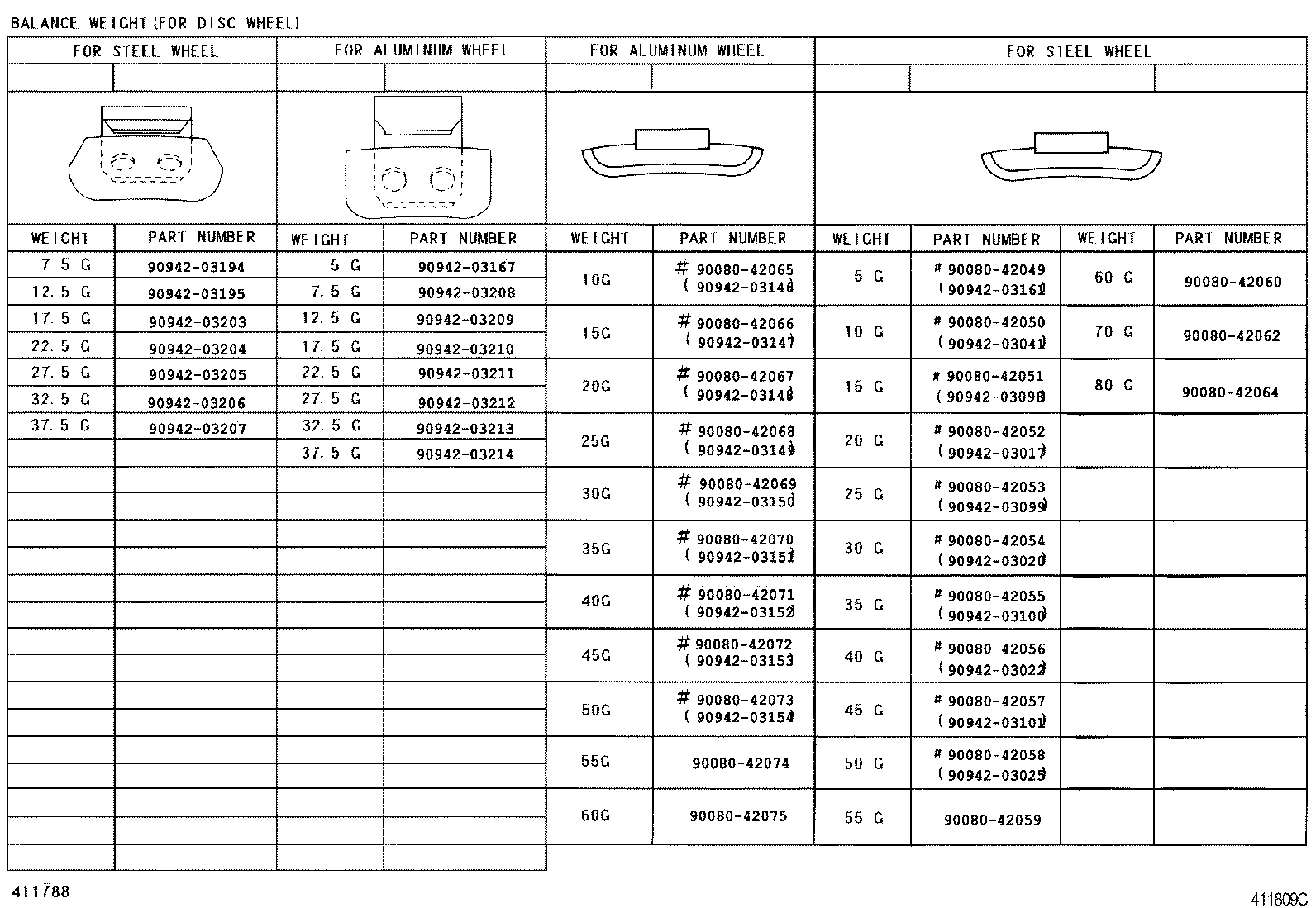

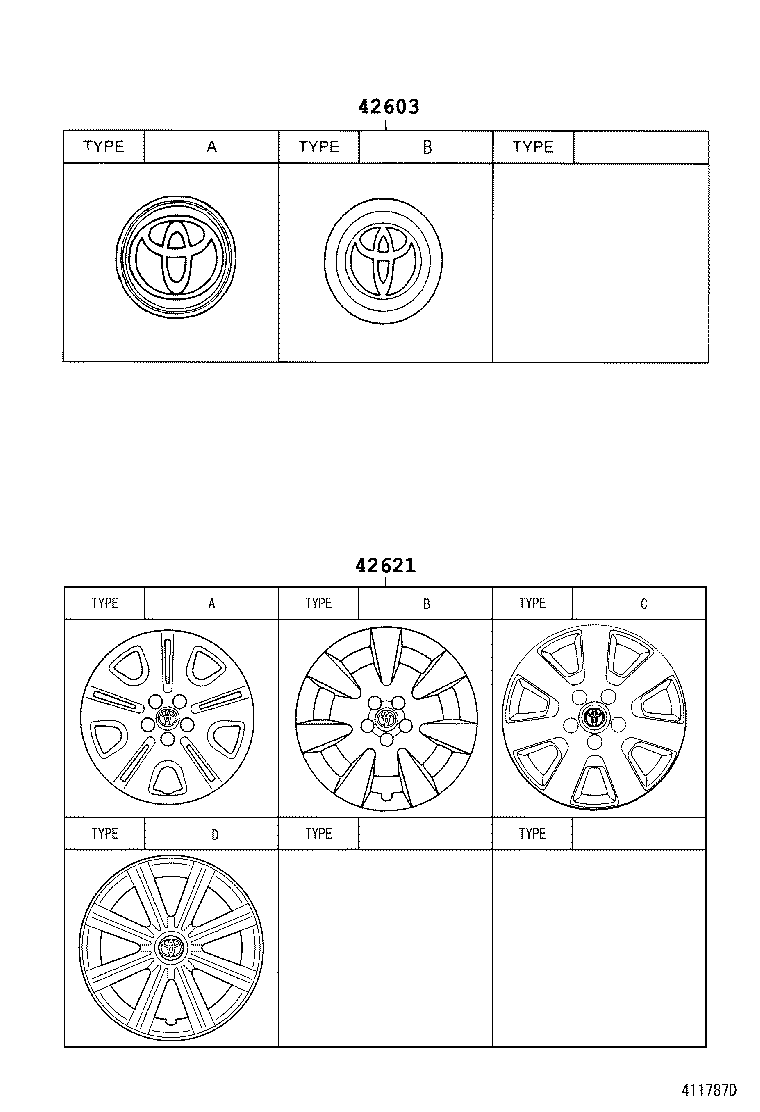

Figure 411790K 411790K 2003-01 → — Figure 411787D 411787D 2003-01 → — Figure 411809C 411809C 2003-01 → — Figure 411810B 411810B 2003-01 → —

Part groups

PNCDescription
04423 Fitting Kit, Tire Pressure Monitor OR Balancer Valve
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42607 Valve Sub-assy, Tire Pressure Monitor
42607A Valve Sub-assy, Tire Pressure Monitor (FOR SPARE)
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
42611W Cap, Tire Valve (FOR SPARE)
42621 Cap, Wheel
42652 Tire
42652A Tire (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
