Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 6 illustrations

Illustrations

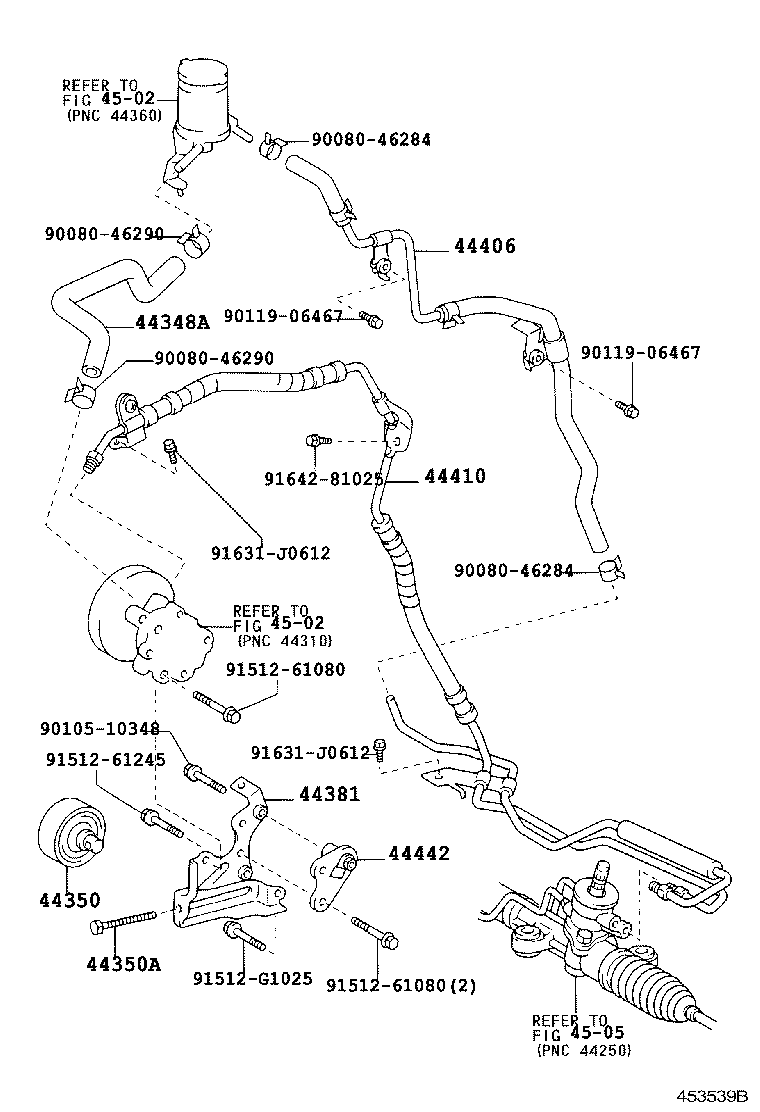

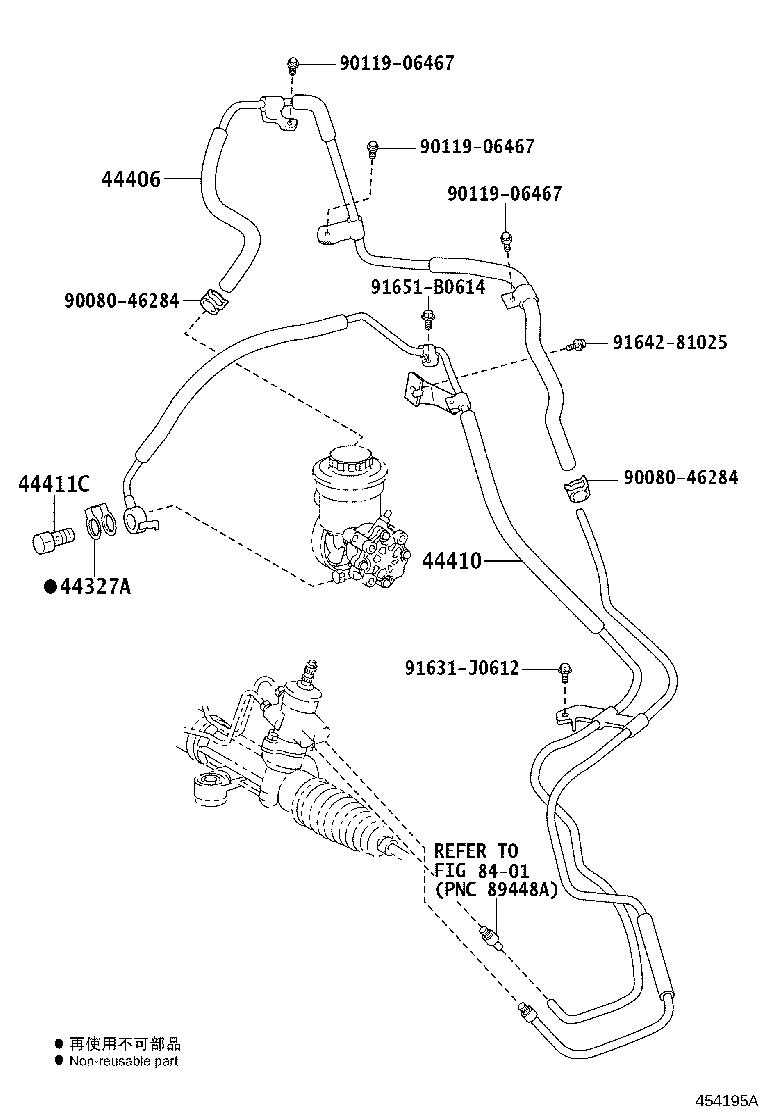

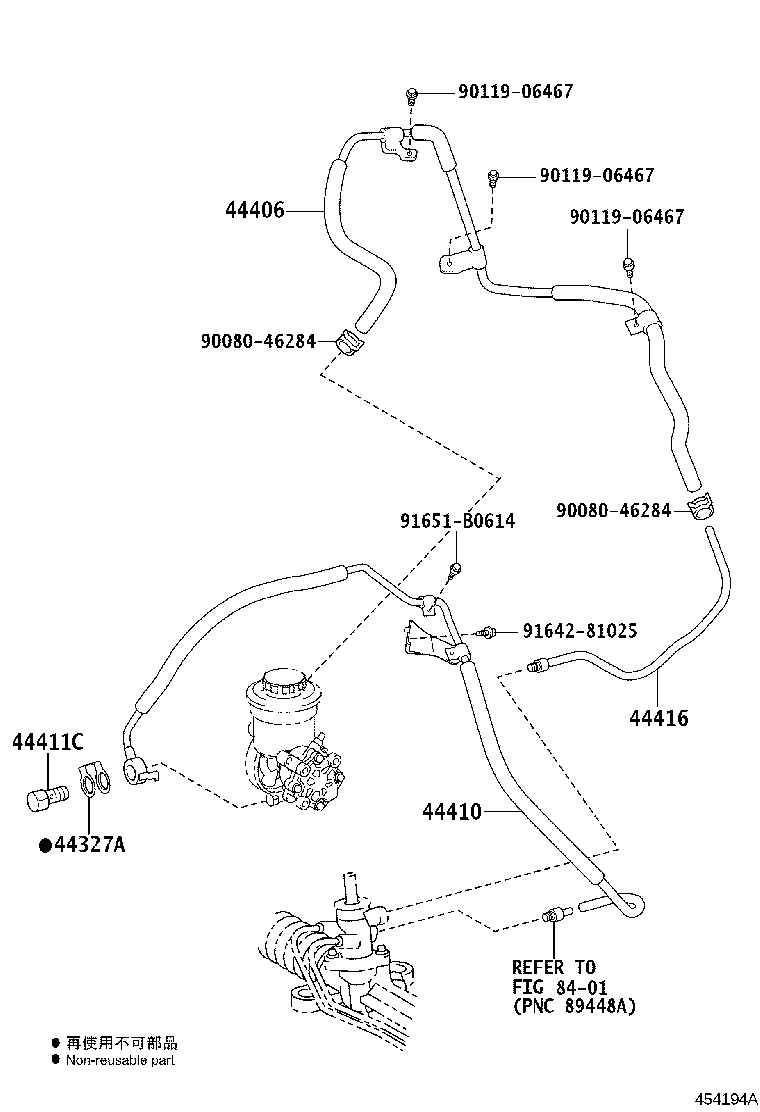

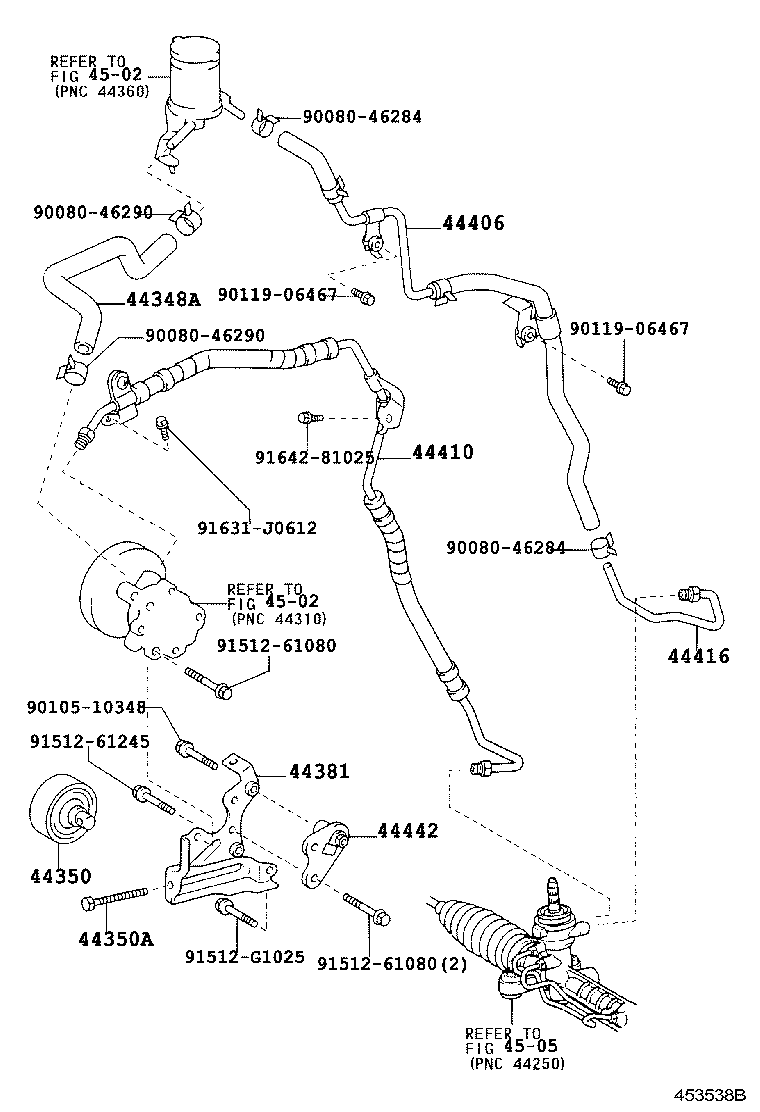

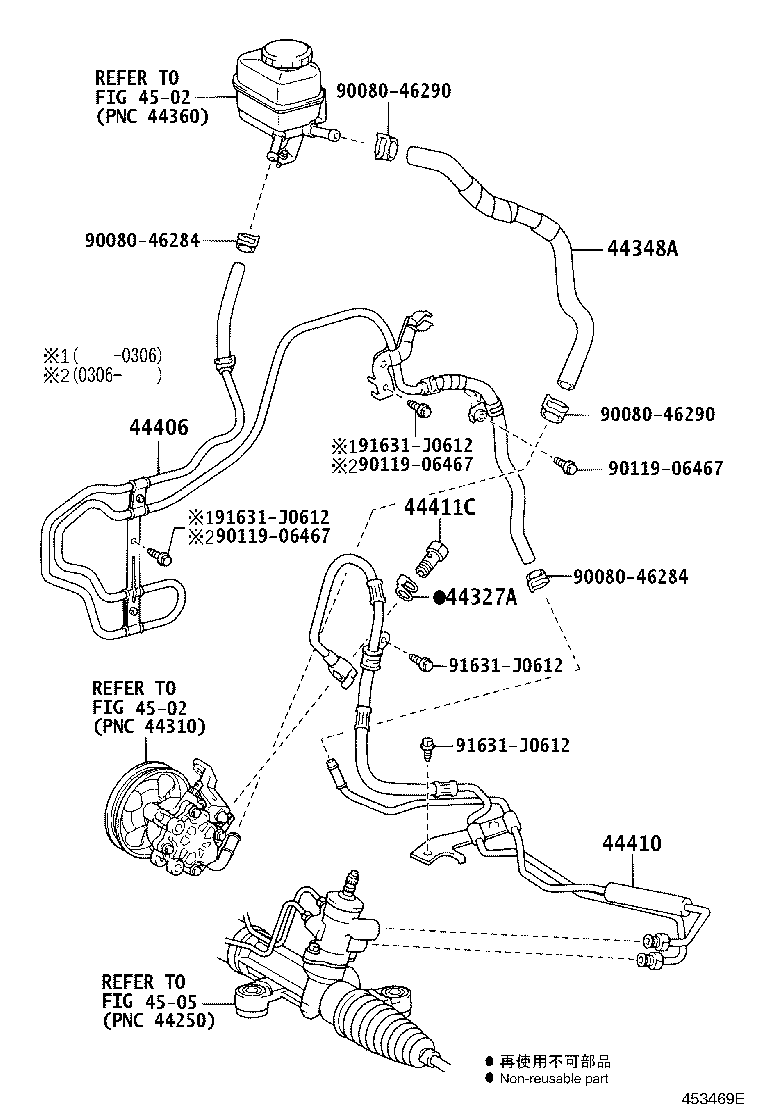

Figure 453468G 453468G 2003-01 → — Figure 453469E 453469E 2003-01 → — Figure 453538B 453538B 2003-03 → 2006-04 Figure 453539B 453539B 2003-03 → 2006-04 Figure 454194A 454194A 2005-04 → — Figure 454195A 454195A 2005-04 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44442 Bracket, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
