Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

16 part groups · 4 illustrations

Illustrations

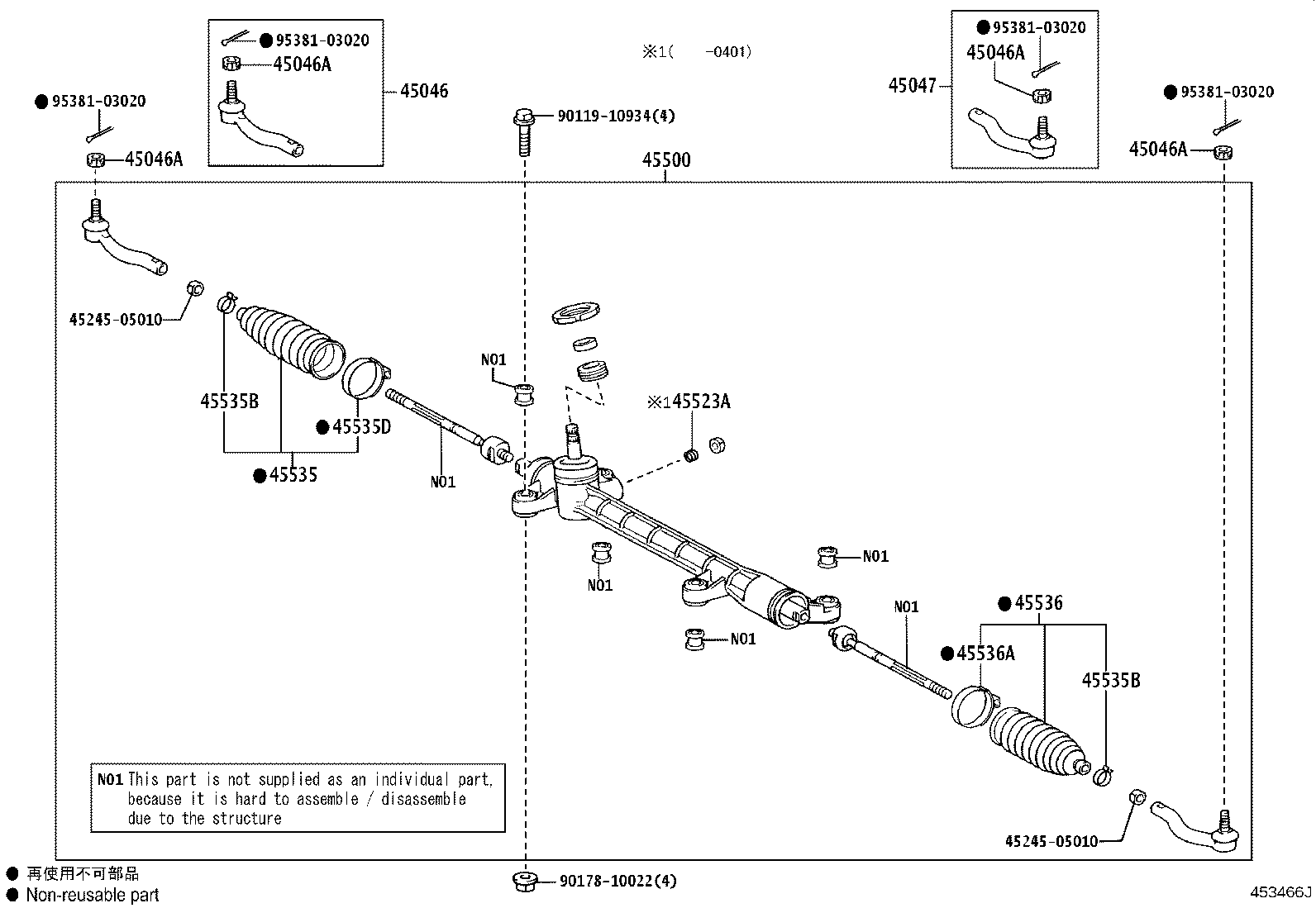

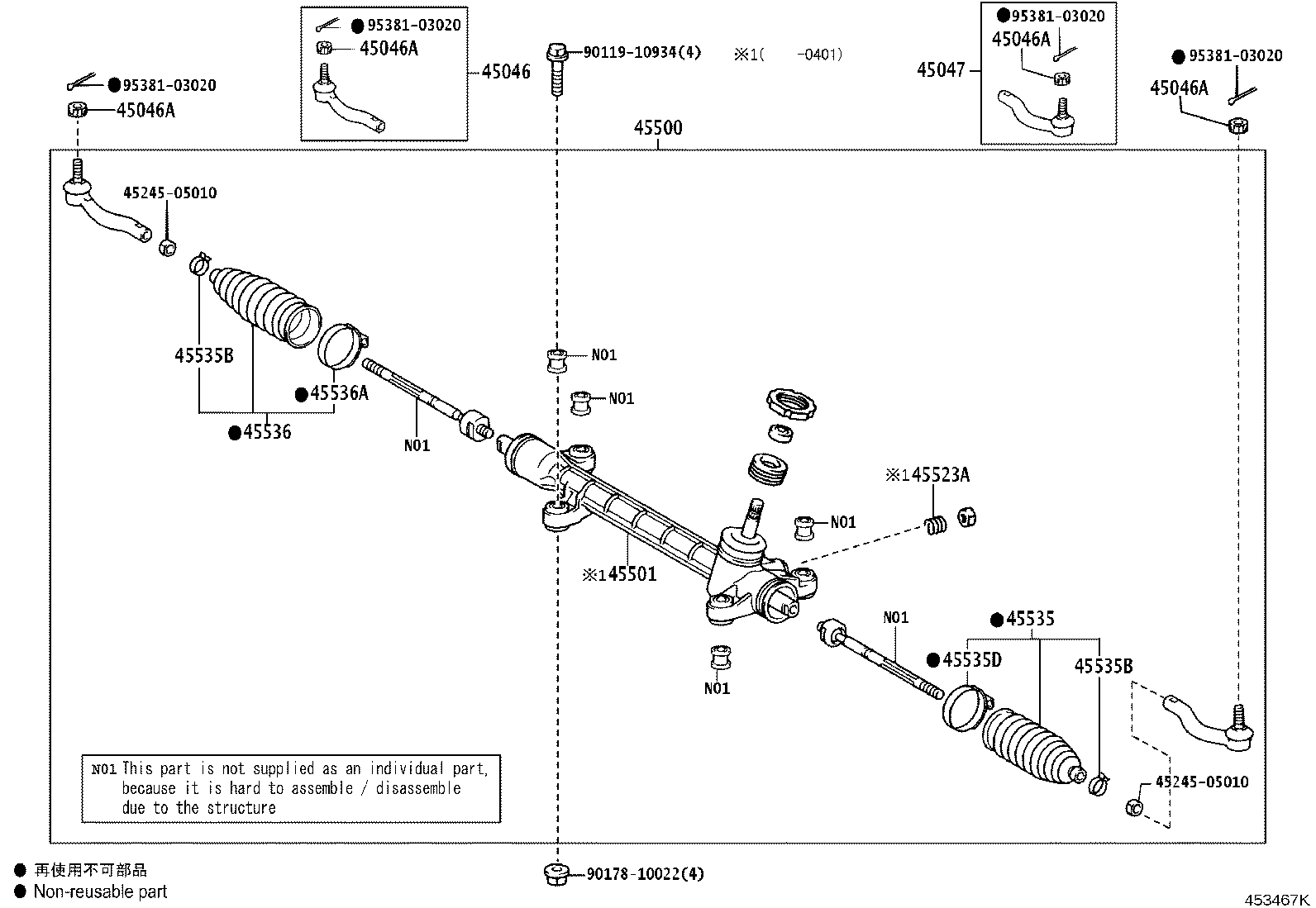

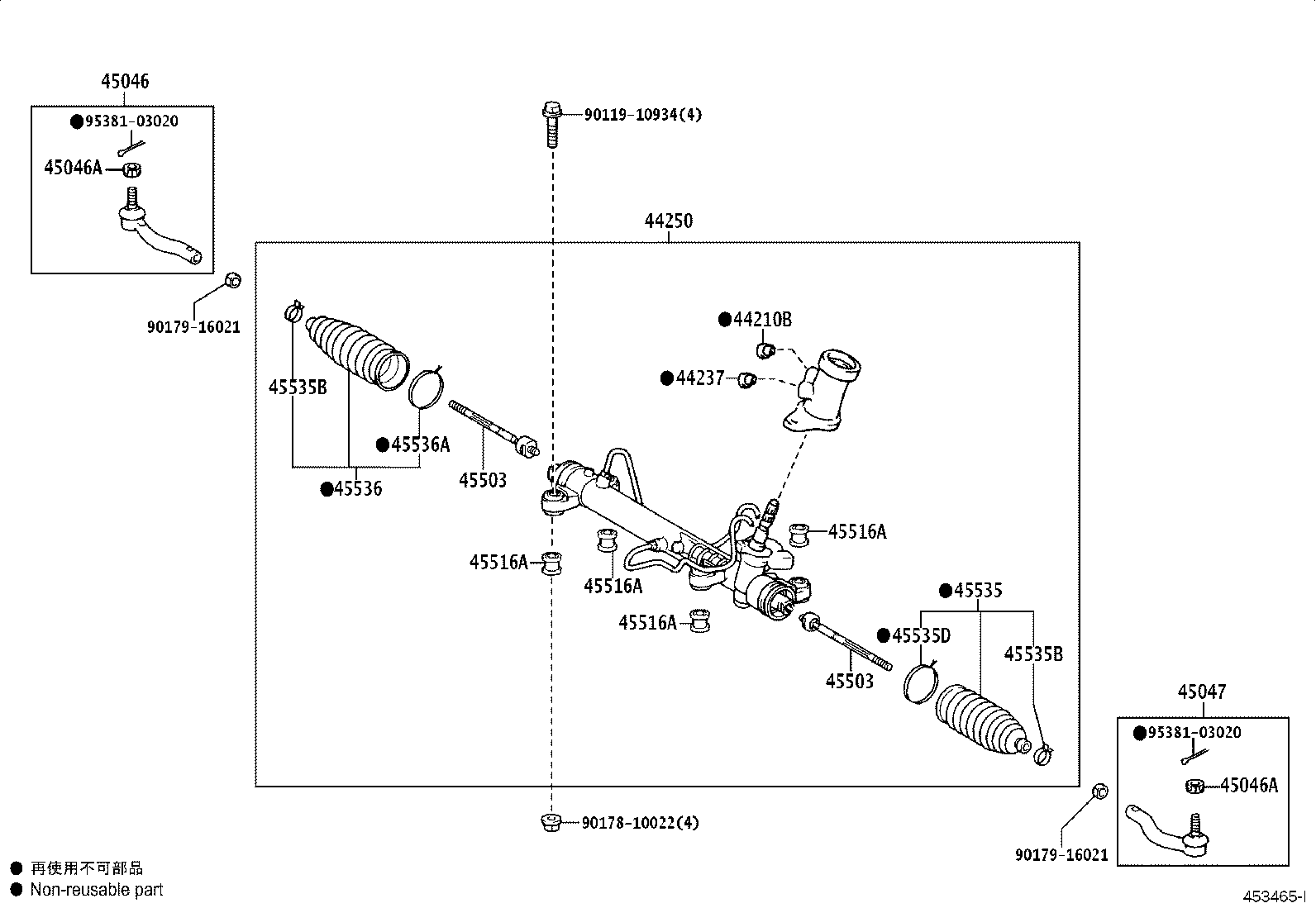

Figure 453902G 453902G 2003-01 → — Figure 453465I 453465I 2003-01 → — Figure 453466J 453466J 2003-01 → — Figure 453467K 453467K 2003-01 → —

Part groups

PNCDescription
44210B Seat, Union(FOR POWER STEERING CONTROL VALVE)
44237 Seat, Pressure Control Valve Orifice
44250 Gear Assy, Power Steering(FOR RACK & PINION)
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45500 Link Assy, Steering
45501 Housing Sub-assy, Steering Rack
45503 End Sub-assy, Steering Rack
45516A Bush, Steering Rack Housing, NO.1
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
