Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

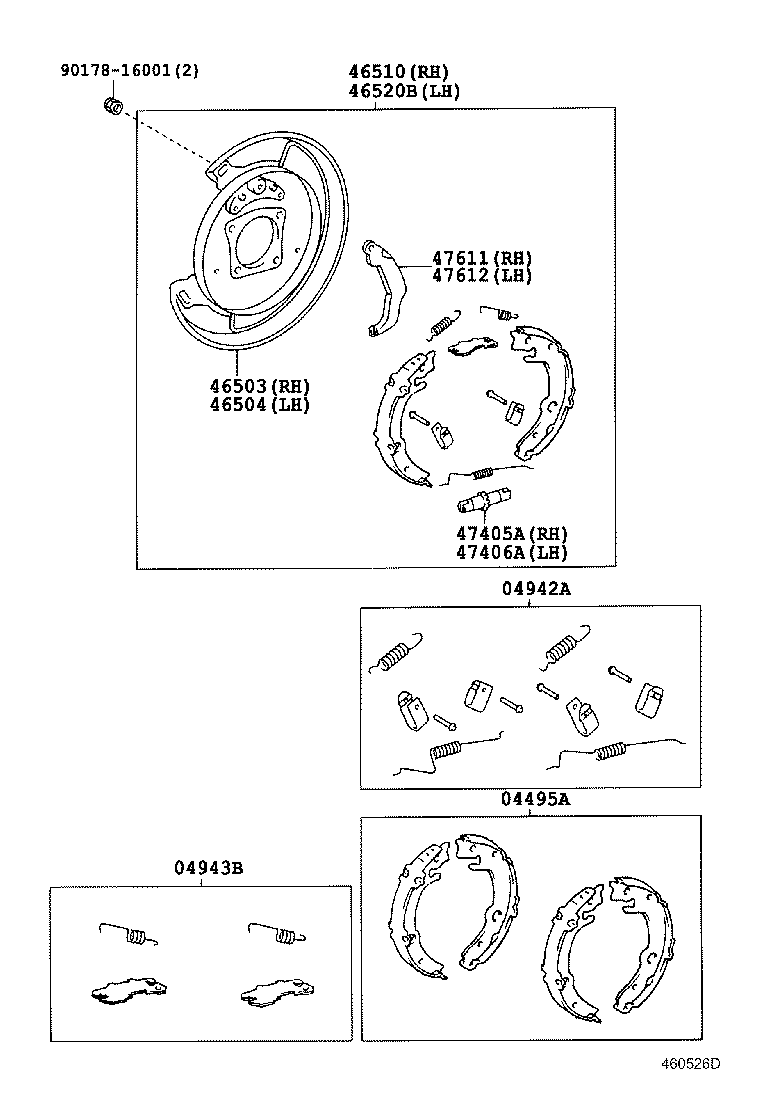

Parking Brake & Cable
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04495A | Shoe Kit, Parking Brake |
| 04942A | Spring Kit, Parking Brake |
| 04943B | Adjuster Kit, Parking Brake |
| 46201E | Lever Sub-assy, Parking Brake |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46458 | Retainer, Cable |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46510 | Brake Assy, Parking, RH |
| 46520B | Brake Assy, Parking, LH |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
