Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 9 illustrations

Illustrations

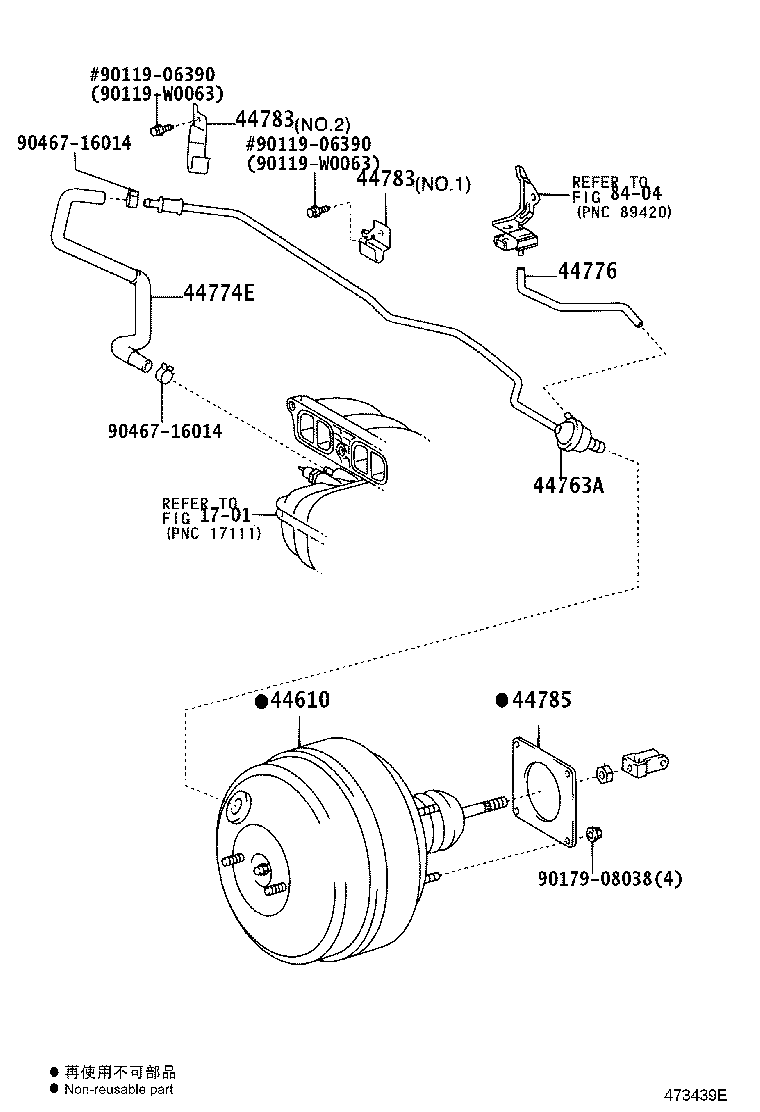

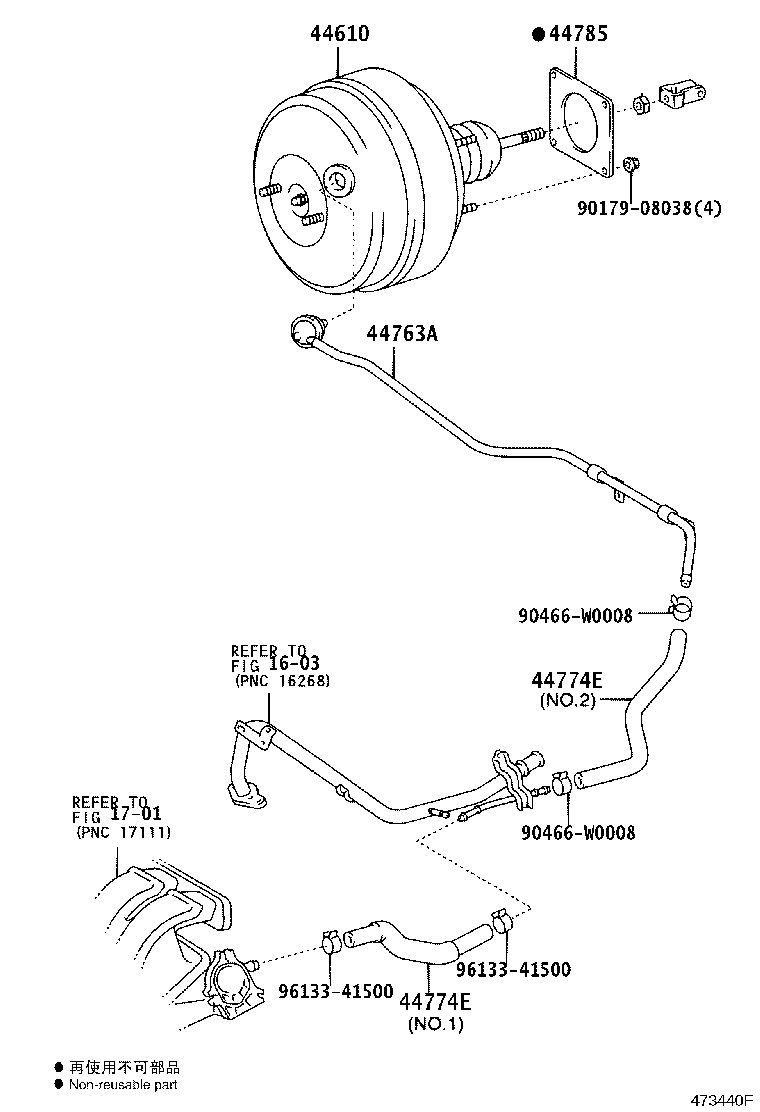

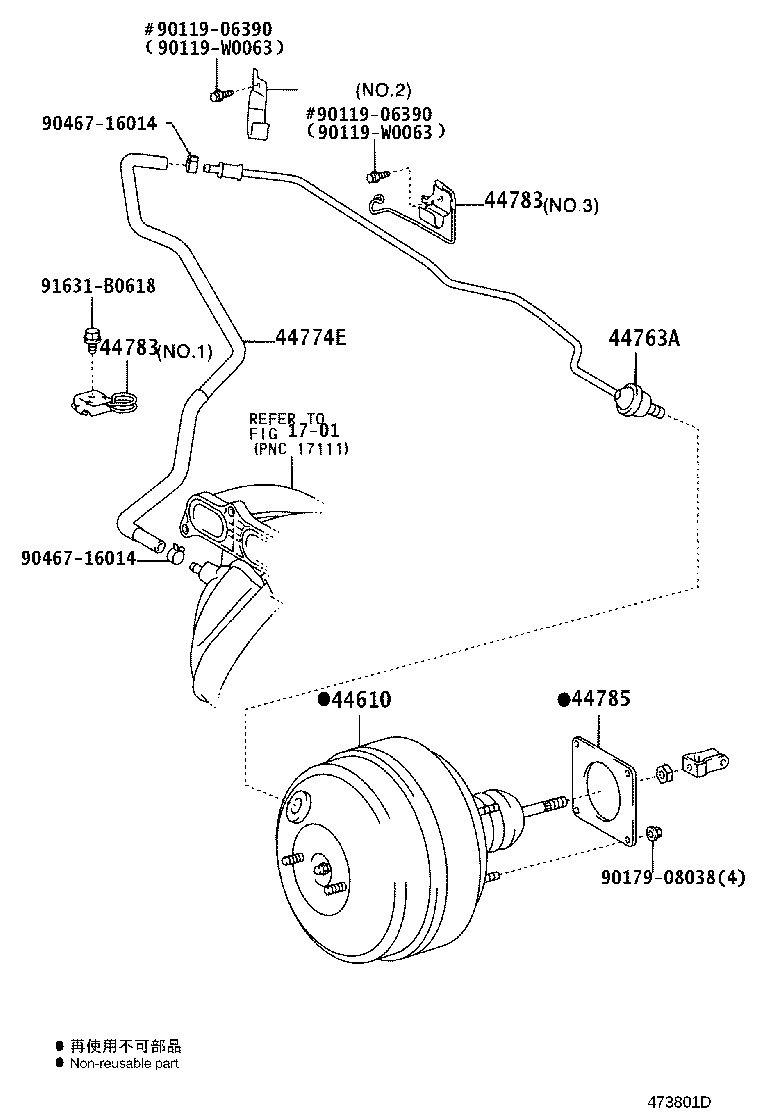

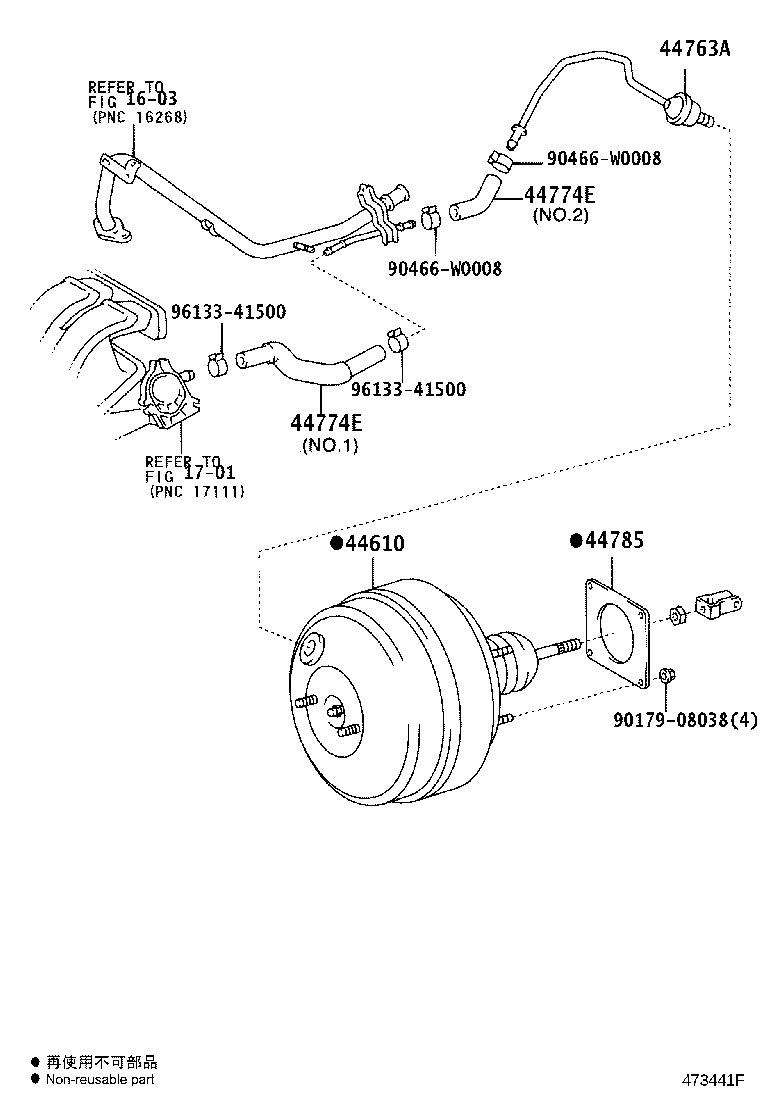

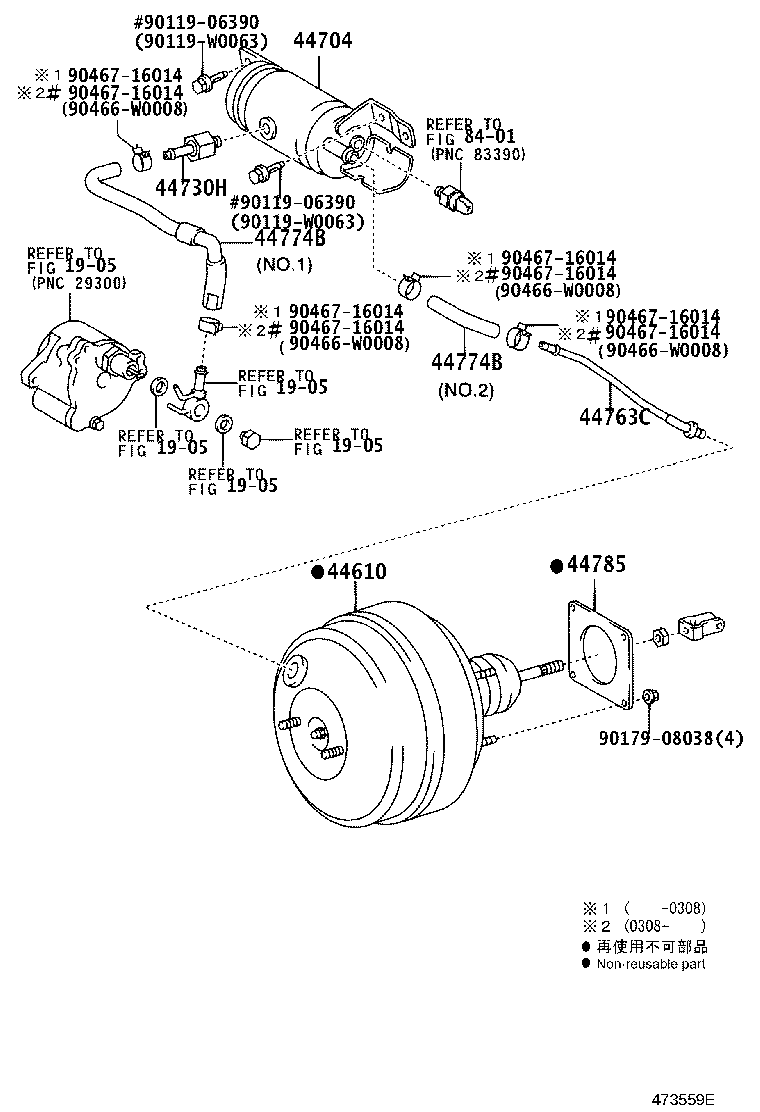

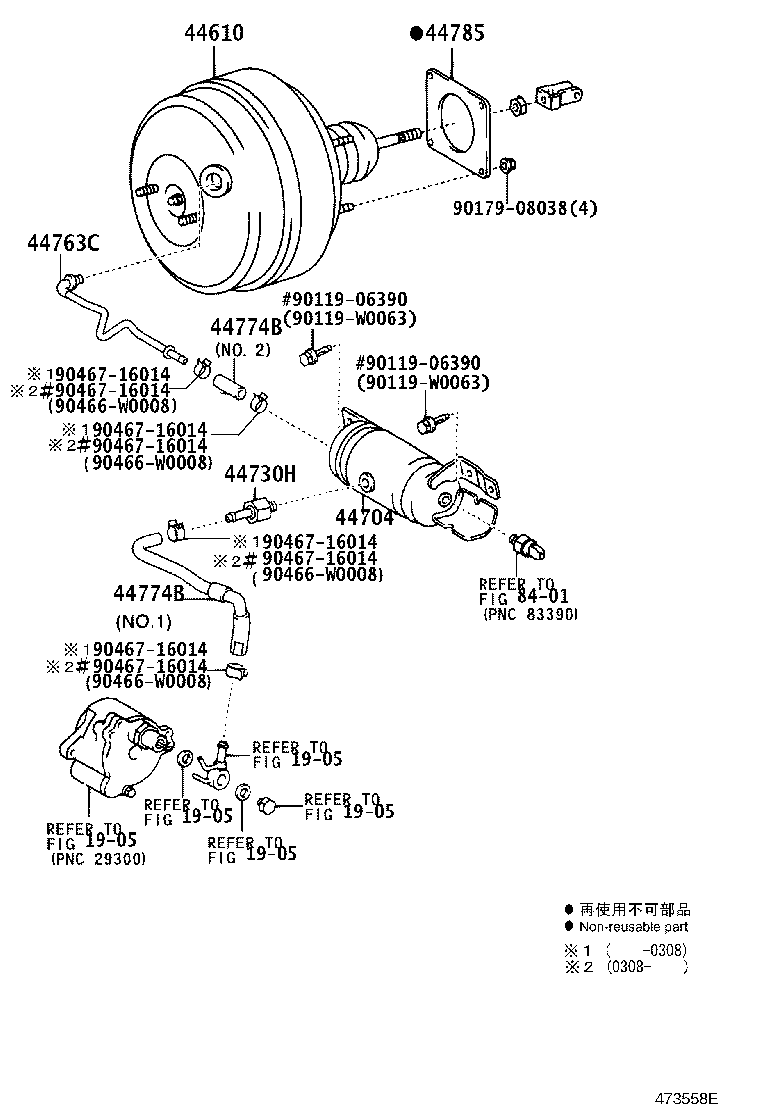

Figure 473438F 473438F 2003-01 → — Figure 473801D 473801D 2003-01 → — Figure 473439E 473439E 2003-01 → — Figure 473440F 473440F 2003-01 → — Figure 473441F 473441F 2003-01 → — Figure 473558E 473558E 2003-03 → 2006-04 Figure 473559E 473559E 2003-03 → 2006-04 Figure 474537A 474537A 2005-04 → — Figure 474538B 474538B 2005-04 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44773F Hose, Union TO Check Valve
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
