Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

23 part groups · 15 illustrations

Illustrations

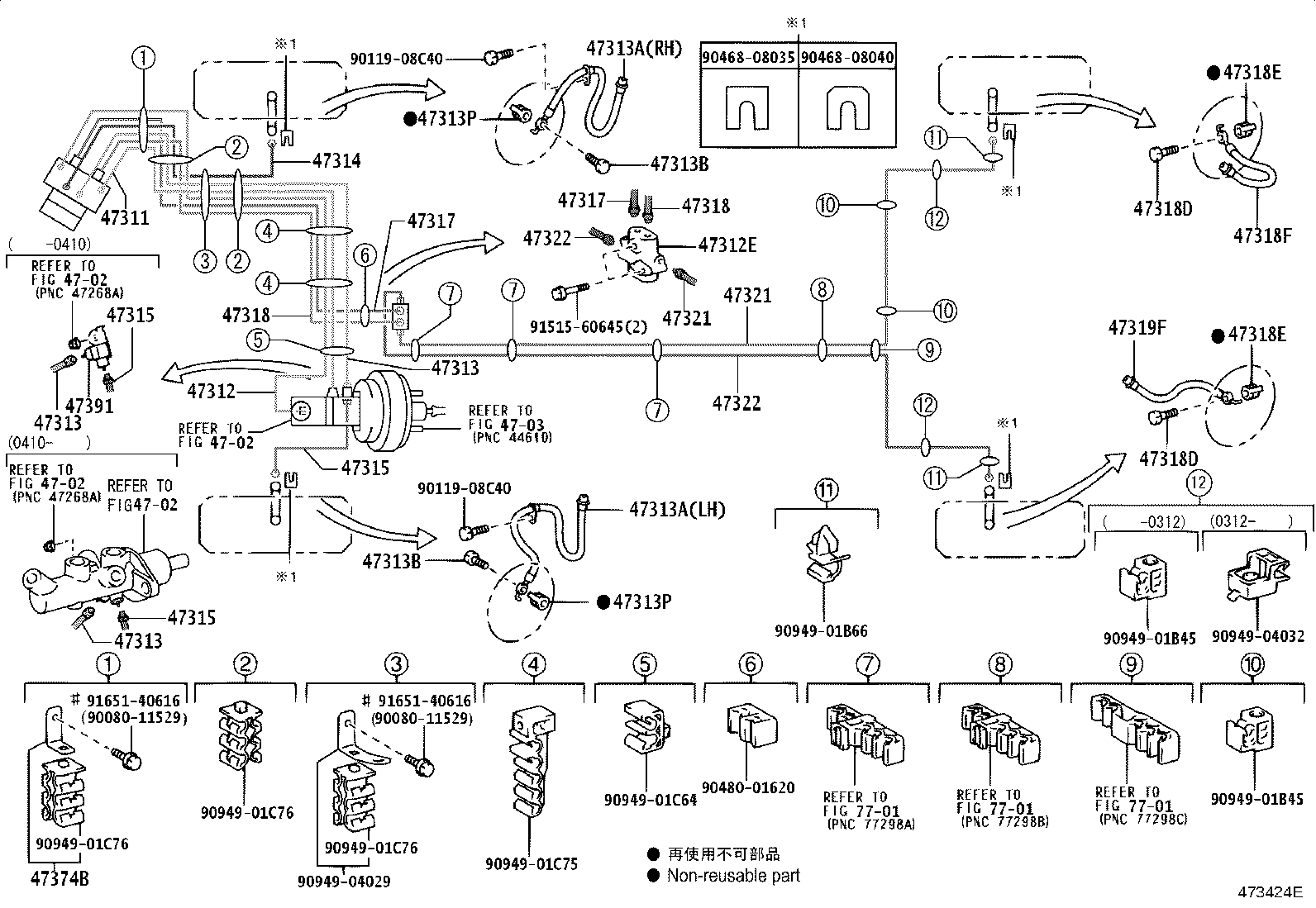

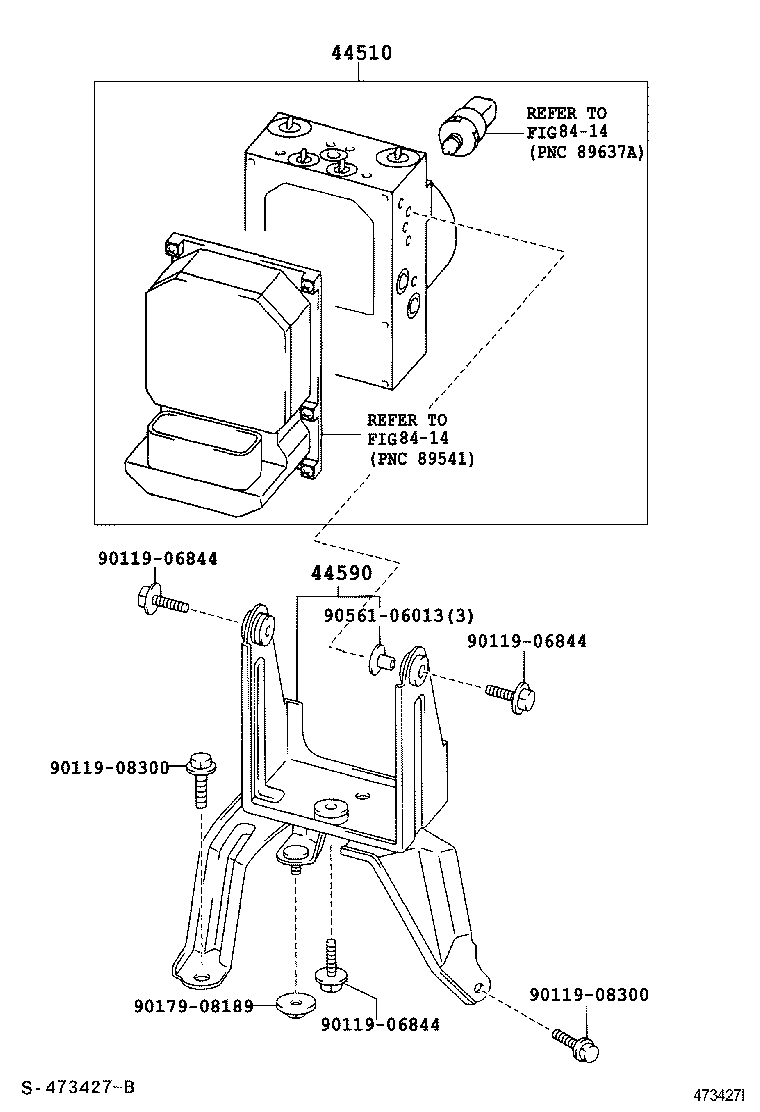

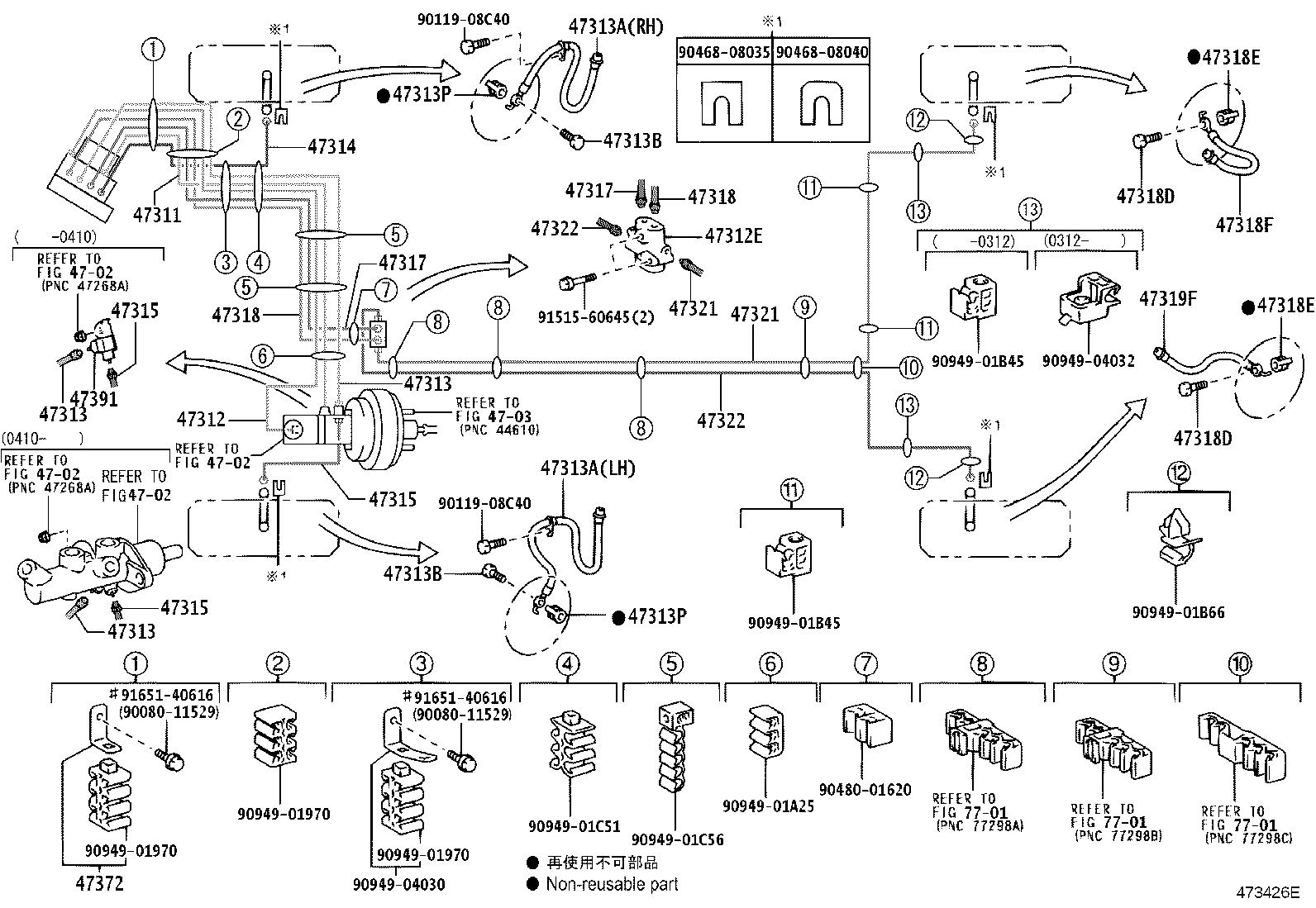

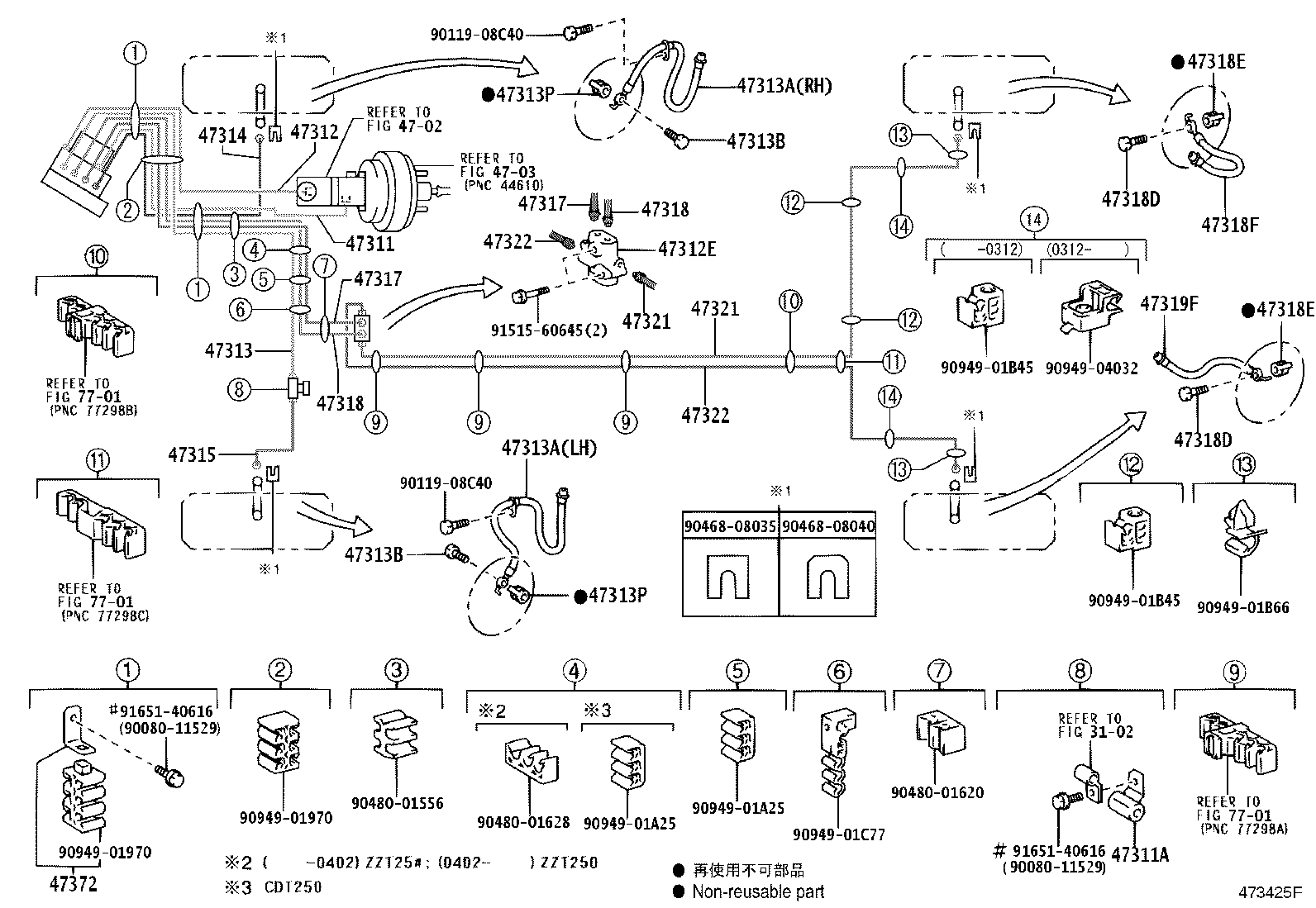

Figure 473423H 473423H 2003-01 → 2004-02 Figure 473423H 473423H 2004-02 → — Figure 473423H 473423H 2005-04 → — Figure 473424E 473424E 2003-01 → 2004-02 Figure 473424E 473424E 2004-02 → — Figure 473424E 473424E 2005-04 → — Figure 473425F 473425F 2003-01 → 2004-02 Figure 473425F 473425F 2004-02 → — Figure 473426E 473426E 2003-01 → 2004-02 Figure 473426E 473426E 2004-02 → — Figure 473422D 473422D 2003-01 → 2004-02 Figure 473422D 473422D 2004-02 → — Figure 473427I 473427I 2003-01 → 2004-02 Figure 473427I 473427I 2004-02 → — Figure 473427I 473427I 2005-04 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47372 Clamp, Brake Tube, NO.2
47374B Clamp, Brake Tube, NO.4
47391 Way, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
